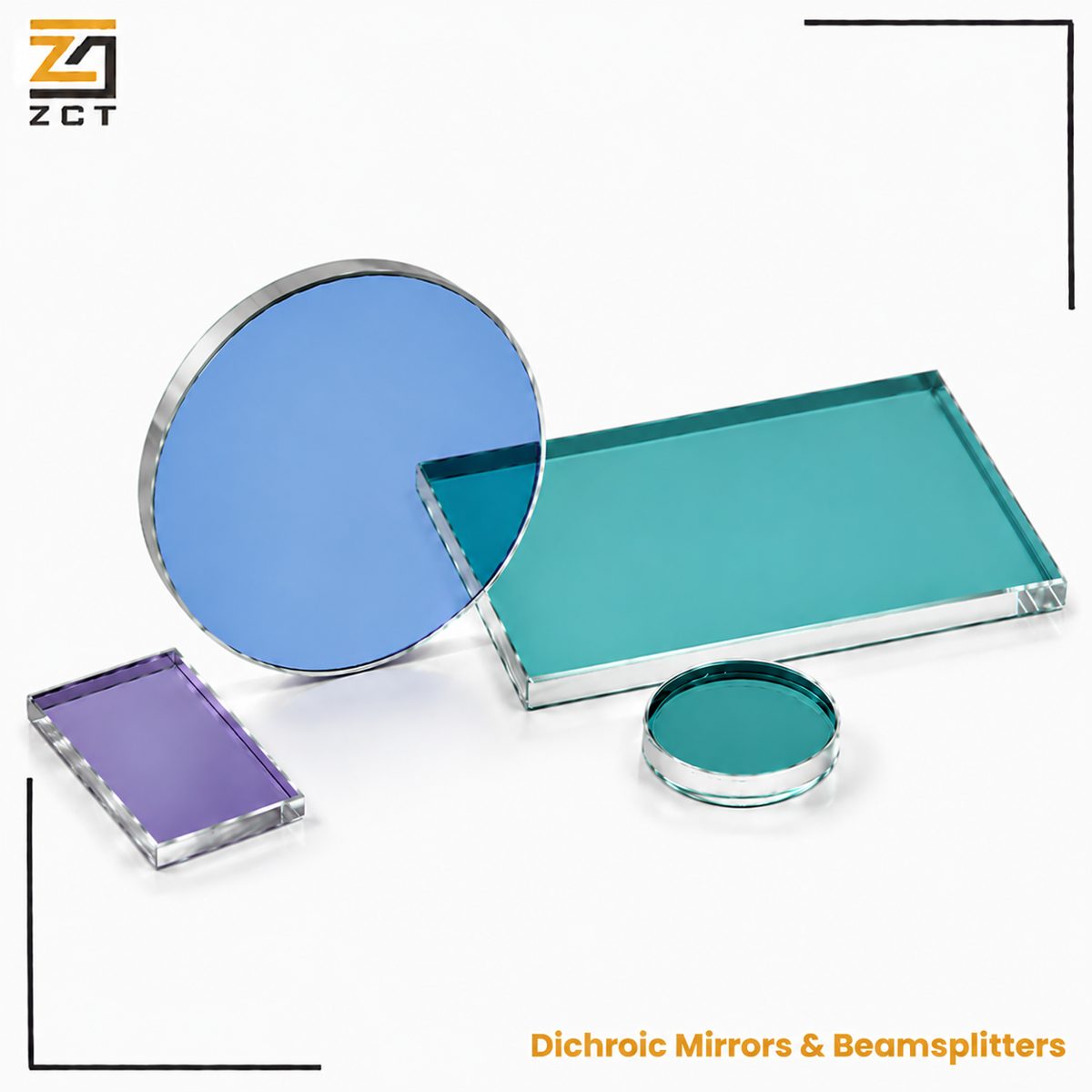

Custom Size K9 Pellicle Beamsplitter

Product description

The K9 pellicle beamsplitter is engineered to minimize ghost reflections in imaging and research applications across the 400-700 nm and 0.7-1.7 μm bands. Its ultra-thin membrane structure effectively reduces beam displacement and optical path differences, making it ideal for optical testing, alignment tools, and laboratory instruments. Customization options ensure optimal performance for specific applications.

Key Features

Customizable T/R ratios (50/50, 70/30) for tailored performance.
Designed for minimal ghost reflections, enhancing image clarity.
Suitable for a wide range of applications, including imaging and optical testing.
OEM, ODM, and OBM support for unique project requirements.

Applications

Imaging, Research

Specification Summary

Item	Value
Material	K9
Shape	Pellicle
Size	Custom
Thickness	Custom
Coating	partial-reflective
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Transmittance	Custom visible T/R ratio; 50/50, 70/30 or custom visible band
Customized Support	OEM, ODM, OBM
Type	Optical Filter

FAQ

Is custom sizing available?

Yes, custom frame sizes, clear apertures, and T/R ratios can be provided.

What are the available bands for this beamsplitter?

This beamsplitter is suitable for the 400-700 nm and 0.7-1.7 μm bands.
