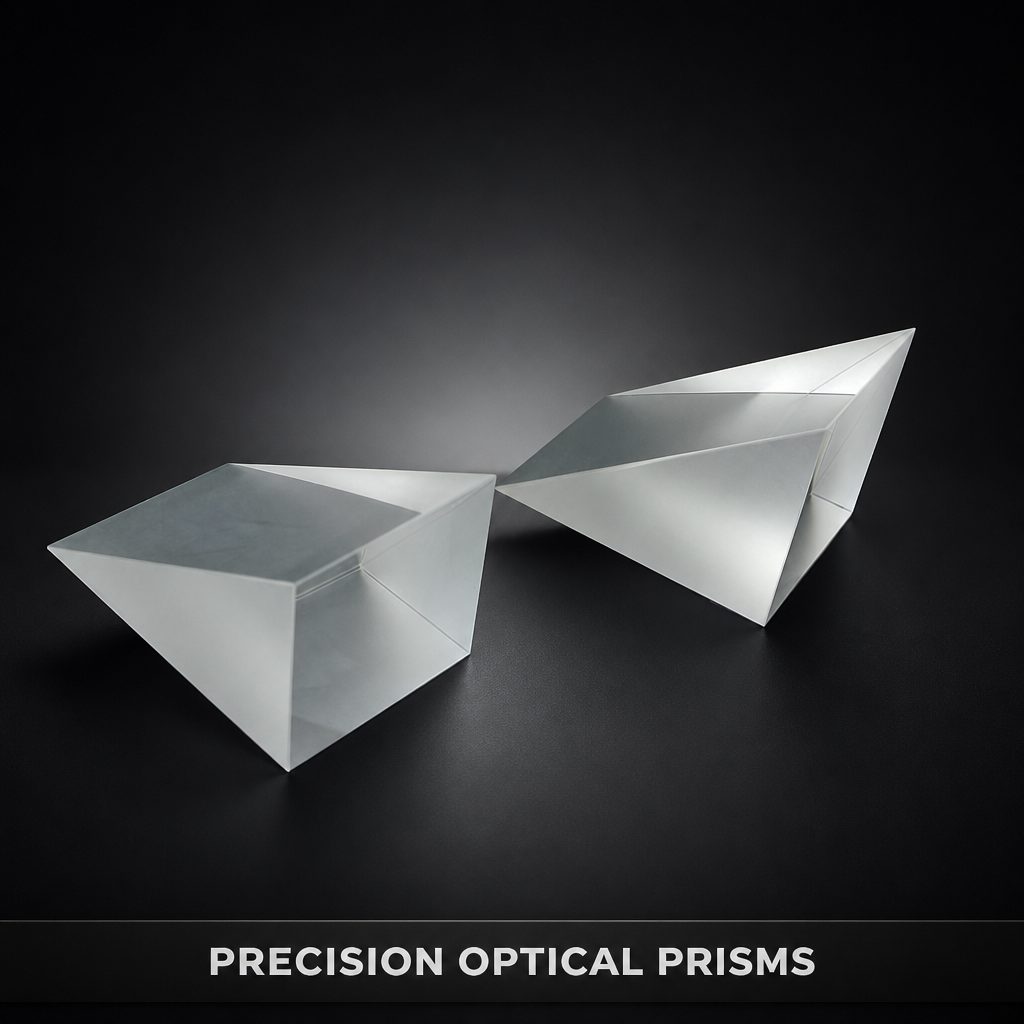

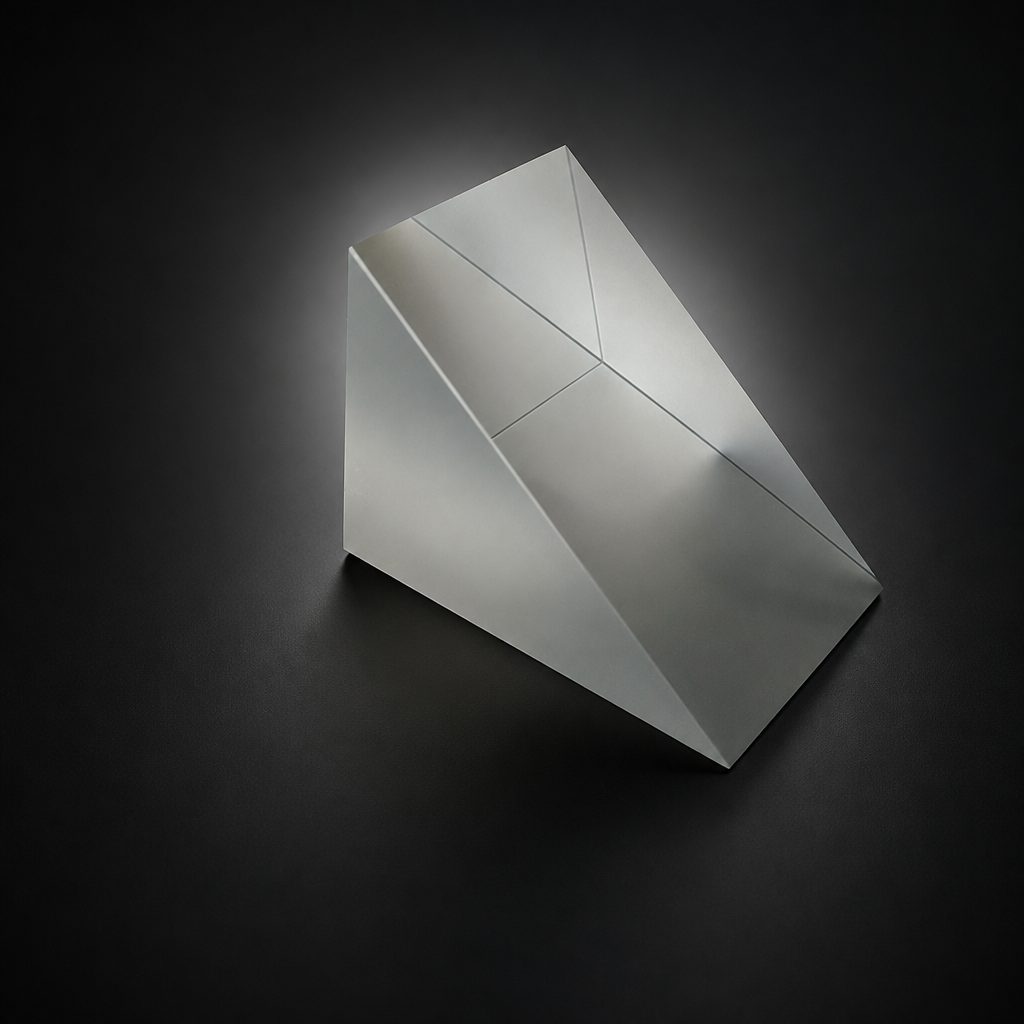

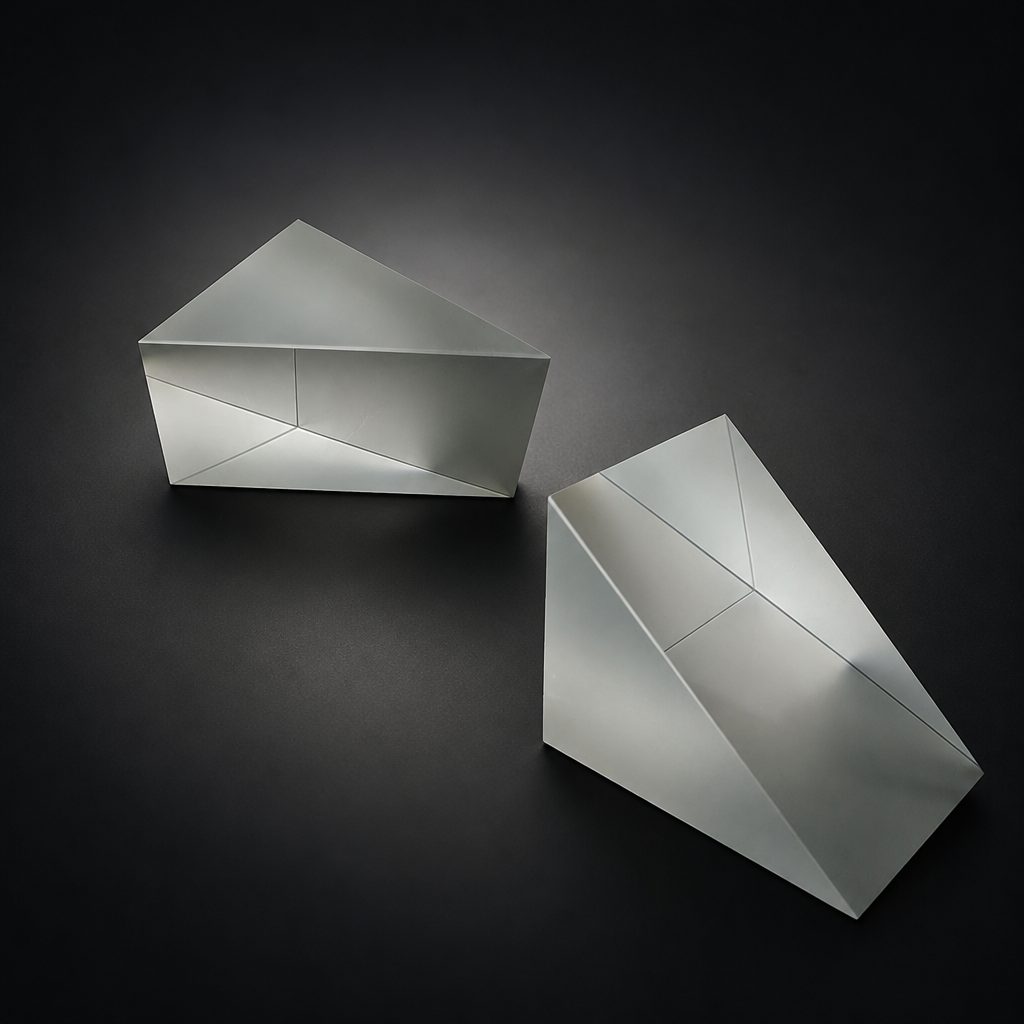

3 mm K9 Right-angle Optical Prism, AR Coated
Right-angle prism in K9 glass with AR coating for precise optical alignment. Custom sizes available.
Core attributes
- Material
- K9
- Shape
- Right-angle
- Size
- 3 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- K9
- Shape
- Right-angle
- Size
- 3 mm
- Thickness
- Custom
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
The right-angle prism is essential for precise optical alignment in various instruments, utilizing durable K9 optical glass for high clarity. Its AR coating enhances light transmission while minimizing reflections, making it suitable for applications requiring accurate beam manipulation. With a clear aperture of 90% and surface quality rated at 60/40, this prism ensures optimal performance in your optical path.
Key Features
- Right-angle geometry for effective beam steering and alignment.
- AR coating for improved light transmission and reduced glare.
- Surface quality of 60/40 for reliable wavefront integrity.
- Clear aperture of 90% for maximum light throughput.

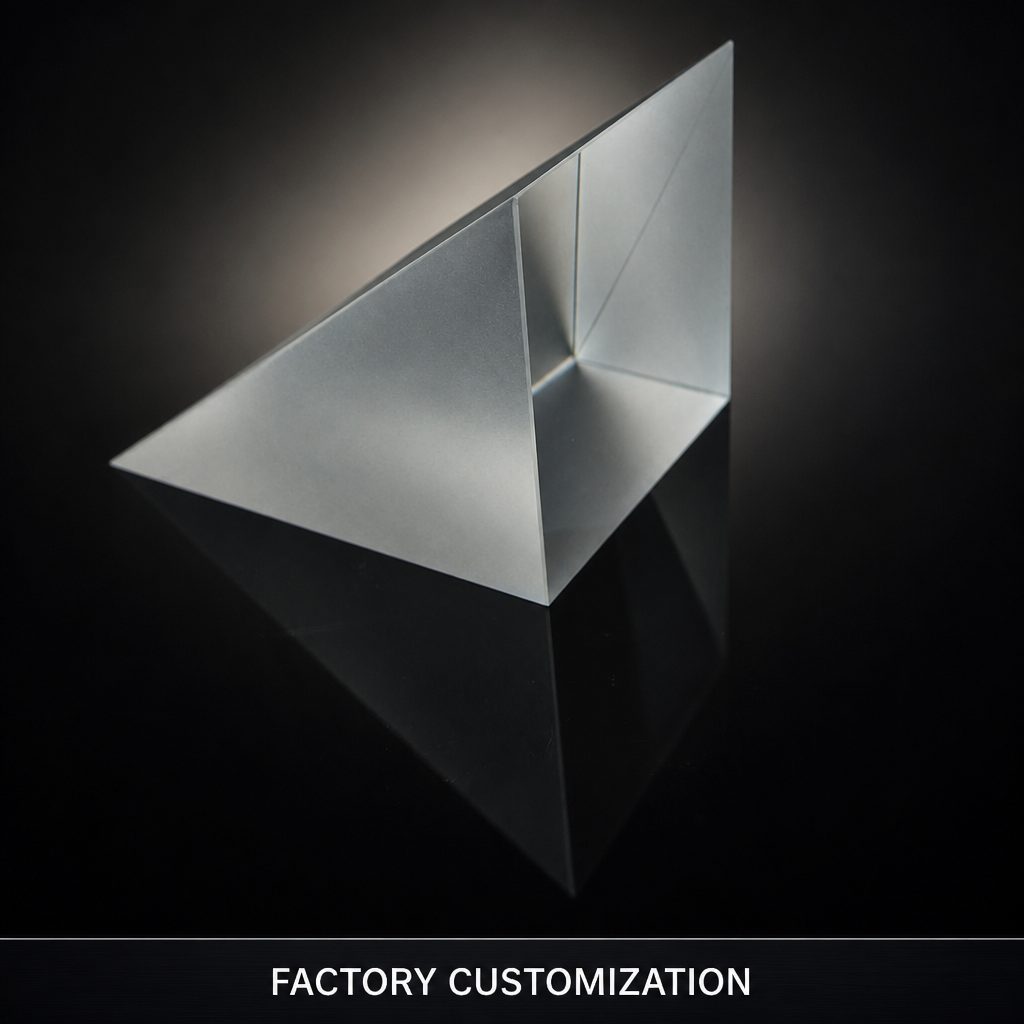

- Customizable support available through OEM and ODM options.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Shape | Right-angle |
| Size | 3 mm |
| Thickness | Custom |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Right Angle Prism |
| Customized Support | OEM, ODM |
| Warranty | None |
| Clear Aperture | 90% |
| Type | Optical prism |
| Color | Transparent |
| Materail | BK7 /K9 QUARTZ/ SAPPHIRE |
| Diameter Tolerance | 0/-0.05mm |
| Certificate | CE/ISO9001 |
FAQ

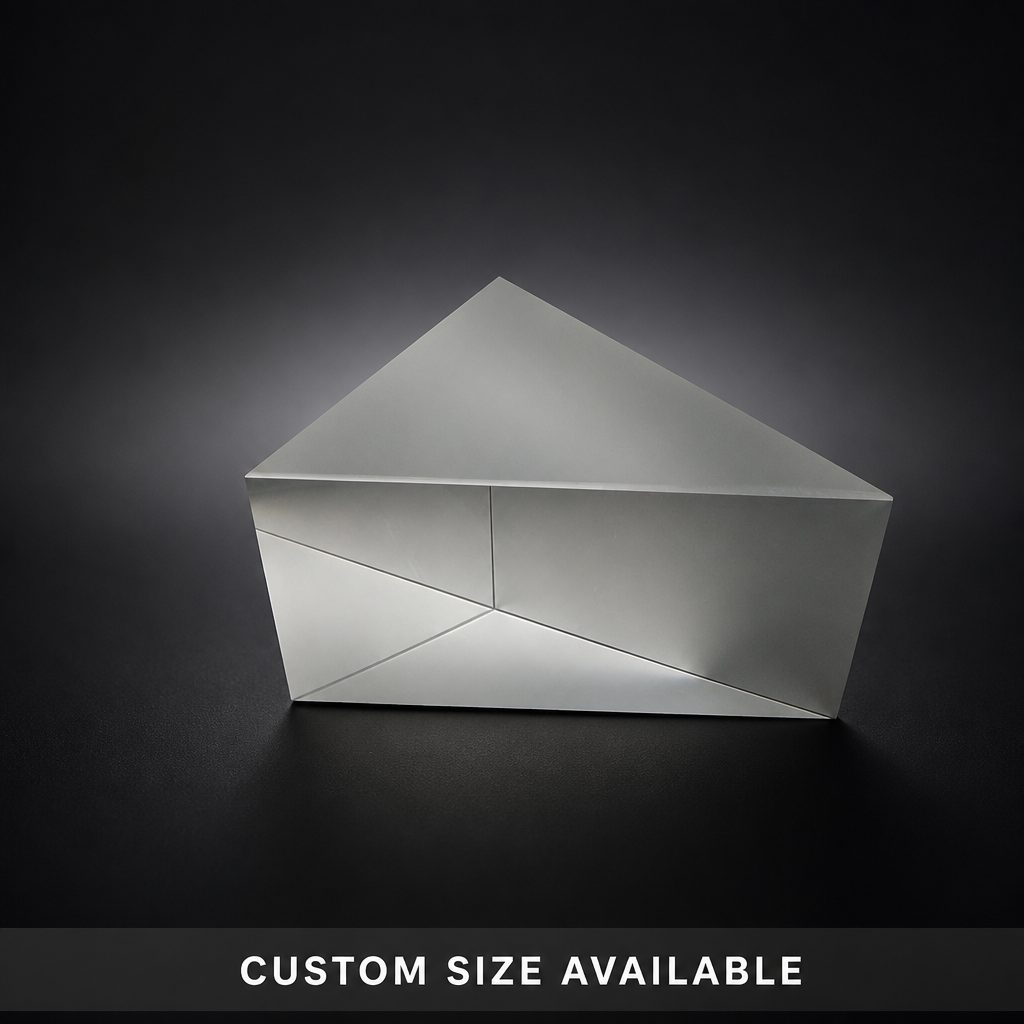

Can I get custom sizes?
Yes, customizable sizes are available through OEM and ODM support.
What is the diameter tolerance?
The diameter tolerance is 0/-0.05mm.
