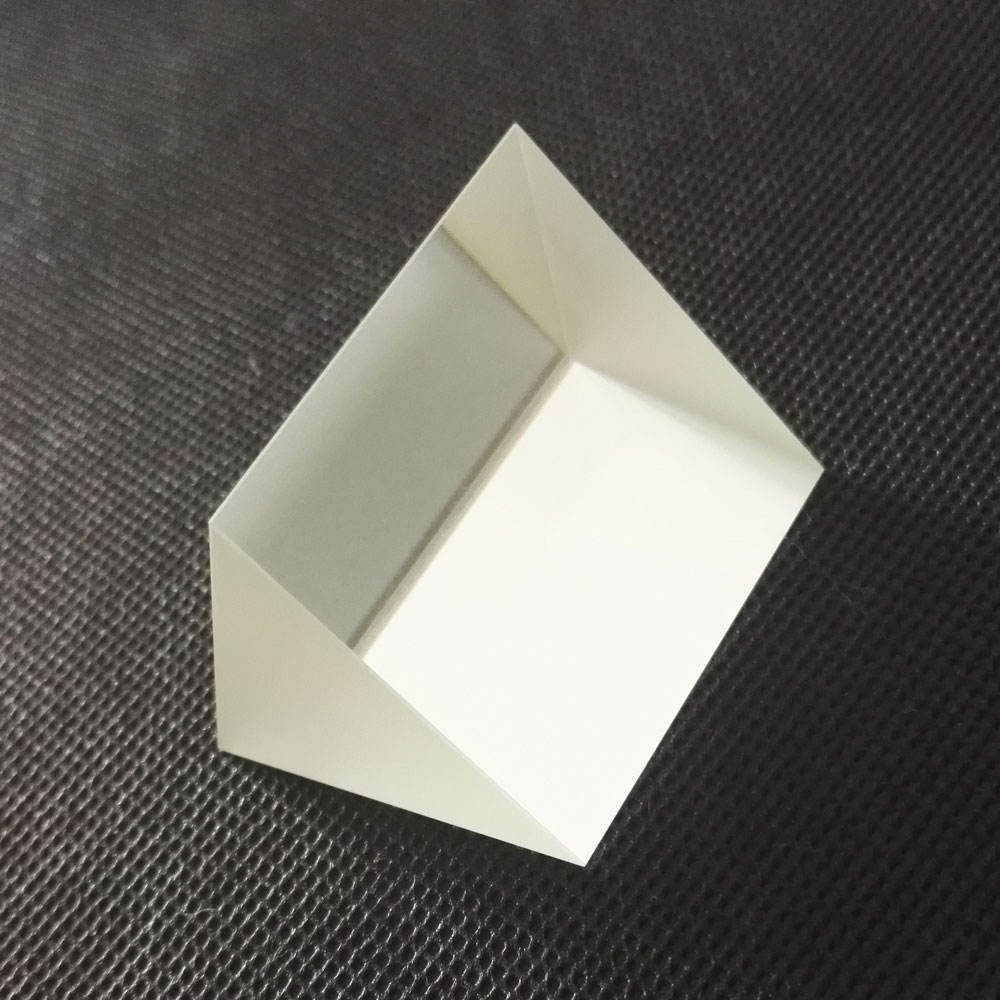

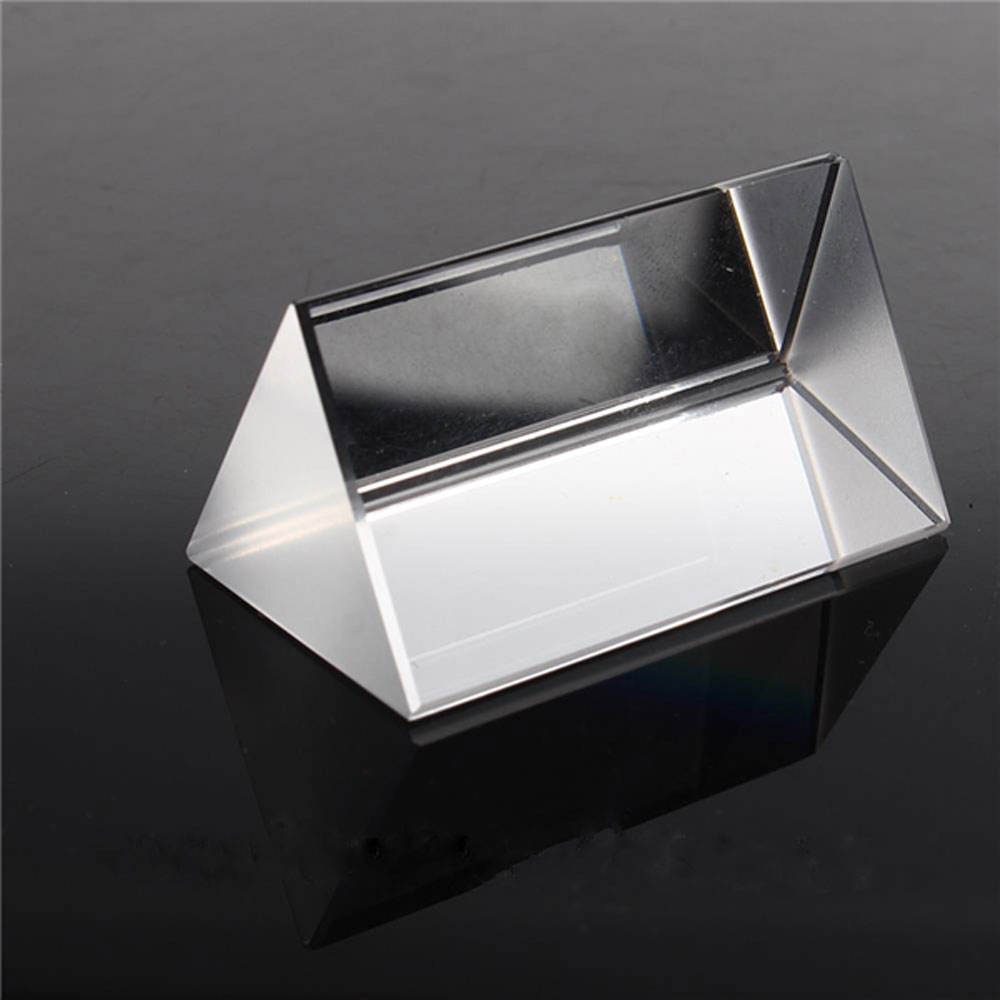

5x1 mm K9 Right-angle Optical Prism, AR Coated

Product description

The right-angle prism is essential for redirecting light paths in various optical applications. With precise angle tolerances of less than 3 arcseconds and a customizable size range from 5.0 mm to 100.0 mm, it ensures accurate beam deviation. The K9 material and AR coatings enhance transmittance, making it suitable for applications requiring high optical performance. Originating from Hubei, this prism offers reliable quality for research and industrial uses.

Key Features

Angle tolerance of <3 arcseconds ensures precision in optical paths.
Dimension tolerance of ±0.1mm supports consistent batch production.
Custom sizes available from 5.0 mm to 100.0 mm for specific applications.
Flatness specification of L/2 - L/8 @633nm maintains wavefront integrity.
Clear aperture of ≥90% maximizes light transmission efficiency.

Available Sizes

Size x Thickness (mm)
52.5 x 5.5

Specification Summary

Item	Value
Material	K9
Shape	Right-angle
Size	5 mm
Thickness	1 mm
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Prism Type	Right Angle Prism, Triangular Prism
Customized Support	OEM, ODM, OBM
Warranty	1 month
Angle Tolerance	<3 arcsec
Dimension Tolerance	±0.1mm
Flatness	L/2- L/8 @633nm
Clear Aperture	≥90%
Bevel	0.2-0.5mmx45°

FAQ

Can I get custom sizes for the right-angle prism?

Yes, custom sizes are available ranging from 5.0 mm to 100.0 mm.

What is the angle tolerance of the prism?

The angle tolerance is less than 3 arcseconds, ensuring high precision.
