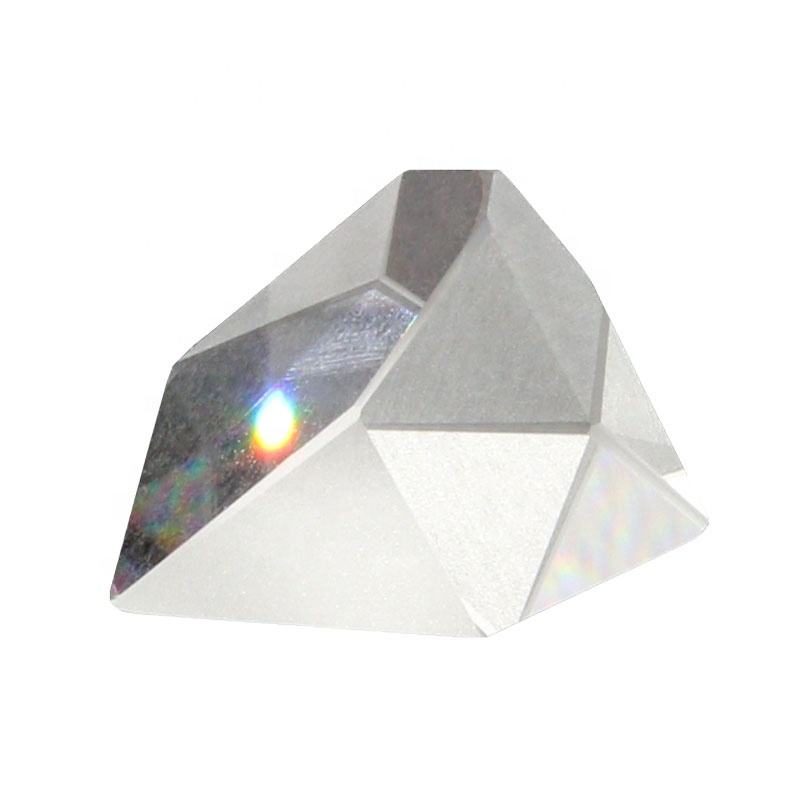

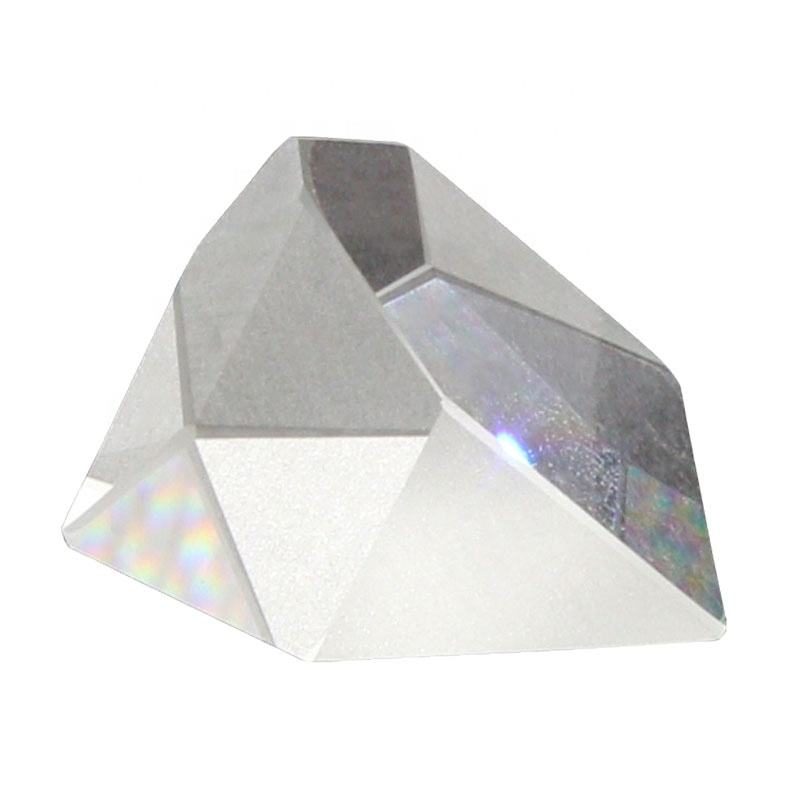

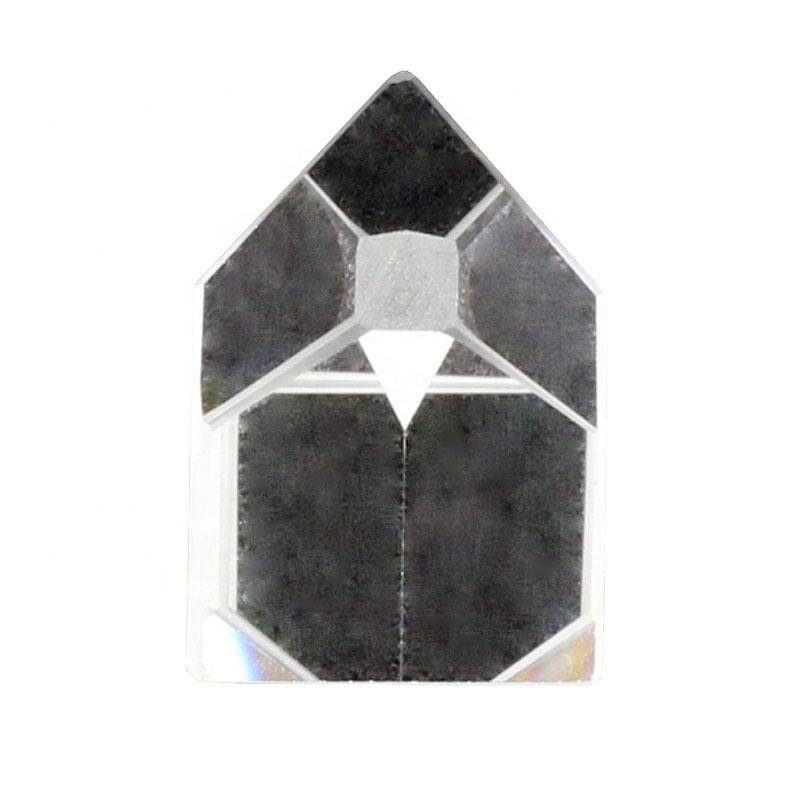

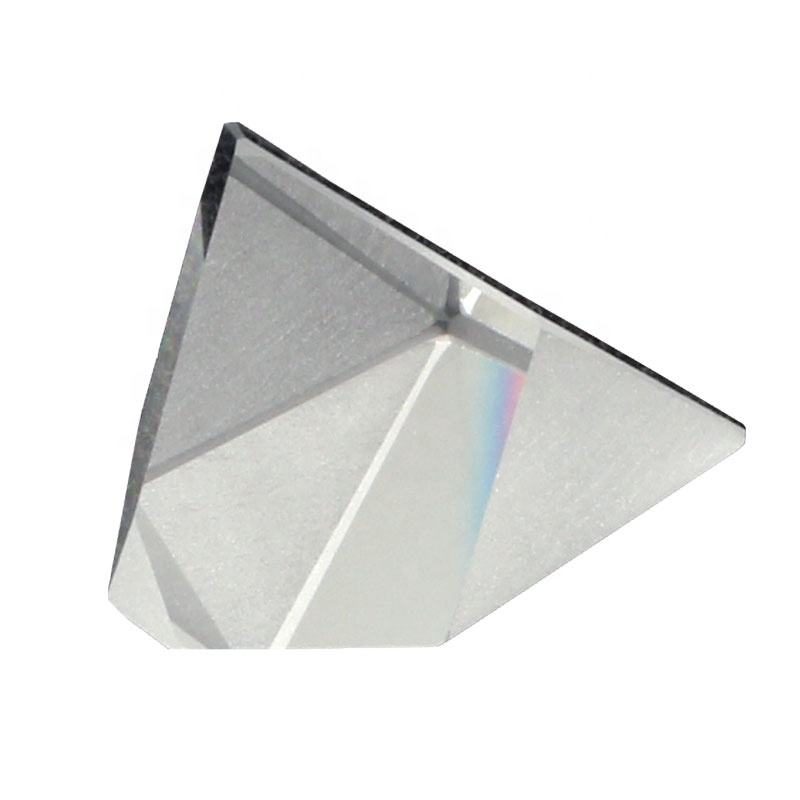

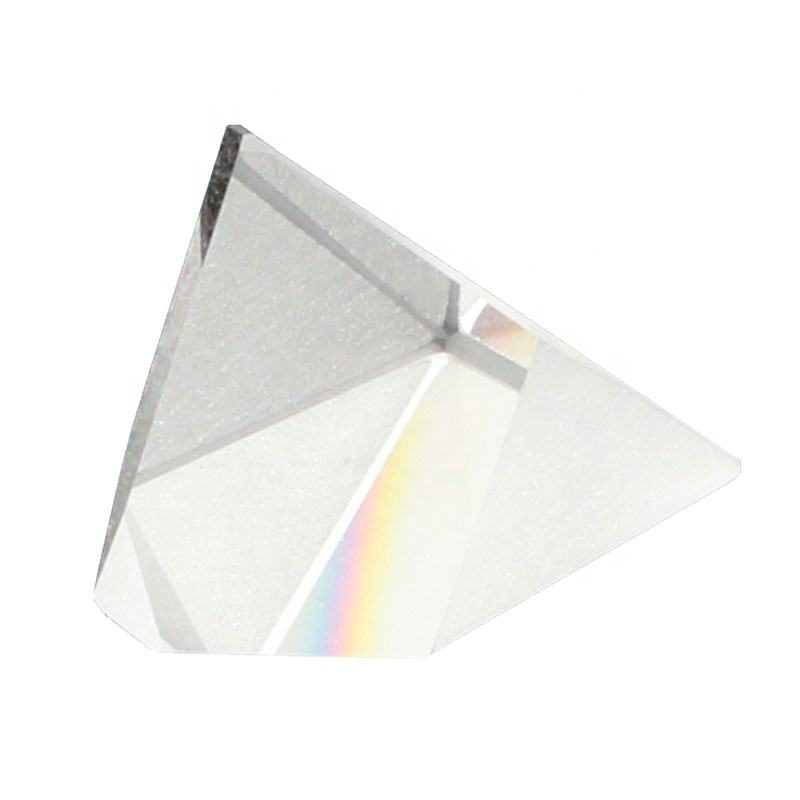

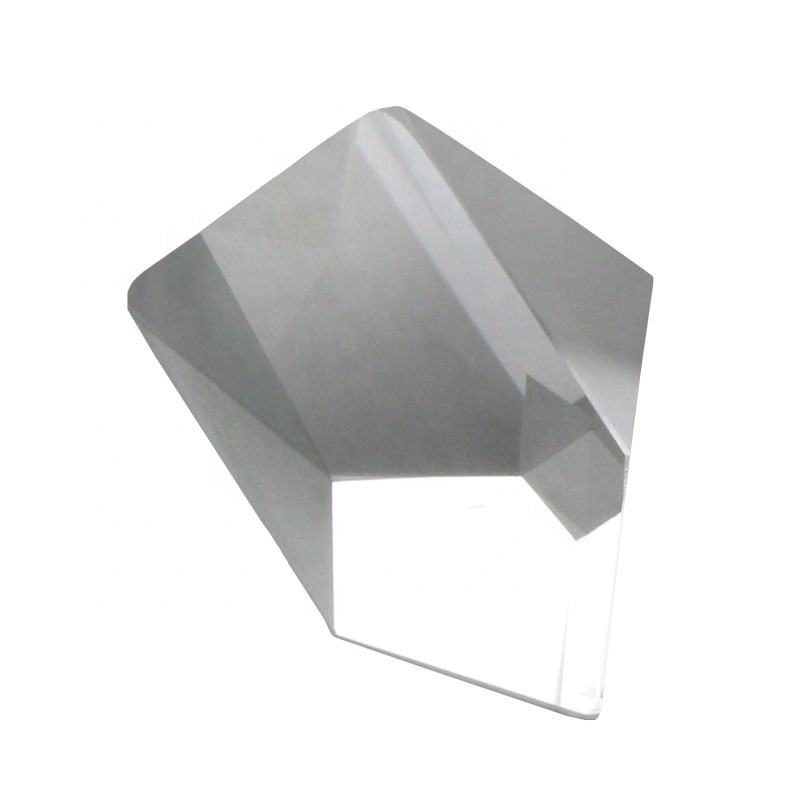

26.5 mm K9 Roof Optical Prism
Explore our roof prism for astronomy applications, featuring precise angle tolerance and OEM customization options.
Core attributes
- Material
- K9
- Shape
- Roof
- Size
- 26.5 mm
- Thickness
- Custom
Product facts
Key attributes
- Material
- K9
- Shape
- Roof
- Size
- 26.5 mm
- Thickness
- Custom
Product description
The roof prism is essential for compact optical systems in astronomy, enabling efficient light path manipulation while maintaining a lightweight design. With a size of 26.5 mm and an angle tolerance of +/- 5’, it ensures precise alignment in telescopic applications. The K9 material offers excellent optical clarity, making it suitable for high-performance astronomical observations.
Key Features
- Size: 26.5 mm, ideal for compact designs in astronomy.
- Weight: 8g, lightweight for easy integration into optical systems.
- Angle Tolerance: +/- 5’, ensuring precise optical alignment.
- Size Tolerance: +/- 0.1mm, supporting high precision requirements.
- Customized Support: OEM options available for tailored solutions.
Applications
Astronomy
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Shape | Roof |
| Size | 26.5 mm |
| Thickness | Custom |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | Binoculars |
| Customized Support | OEM |
| Warranty | 1 Year |
| Size Tolerance | +/- 0.1mm |
| Weight | 8g |
| Angle Tolerance | +/-5' |
| Dimension Tolerance | +/- 0.1mm |
| Flatness | Polyhedron |
FAQ
Is custom sizing available?
Custom sizing options are available through OEM support.
What is the angle tolerance?
The angle tolerance is +/- 5’, ensuring accurate optical performance.
