1 / 6Optical Prisms

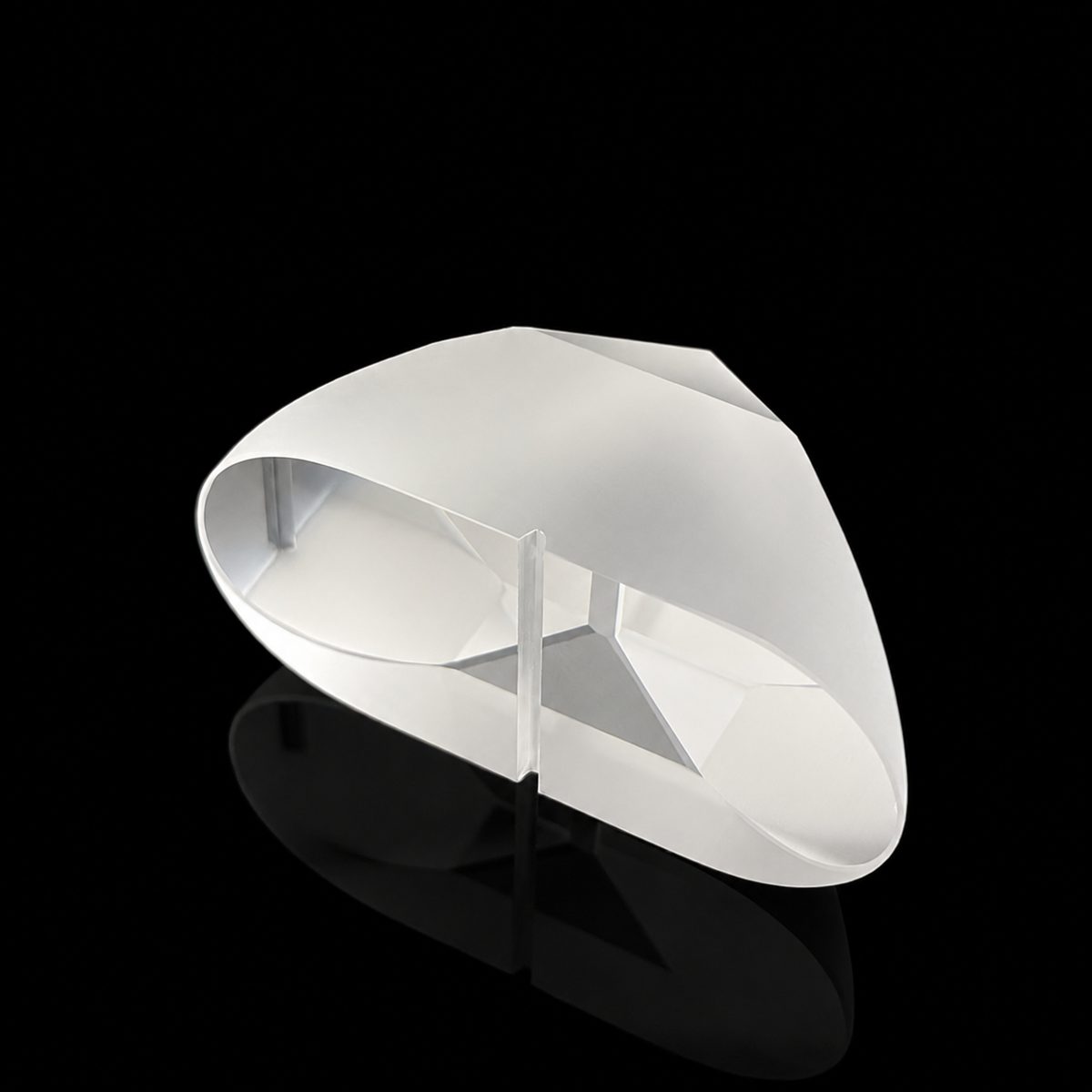

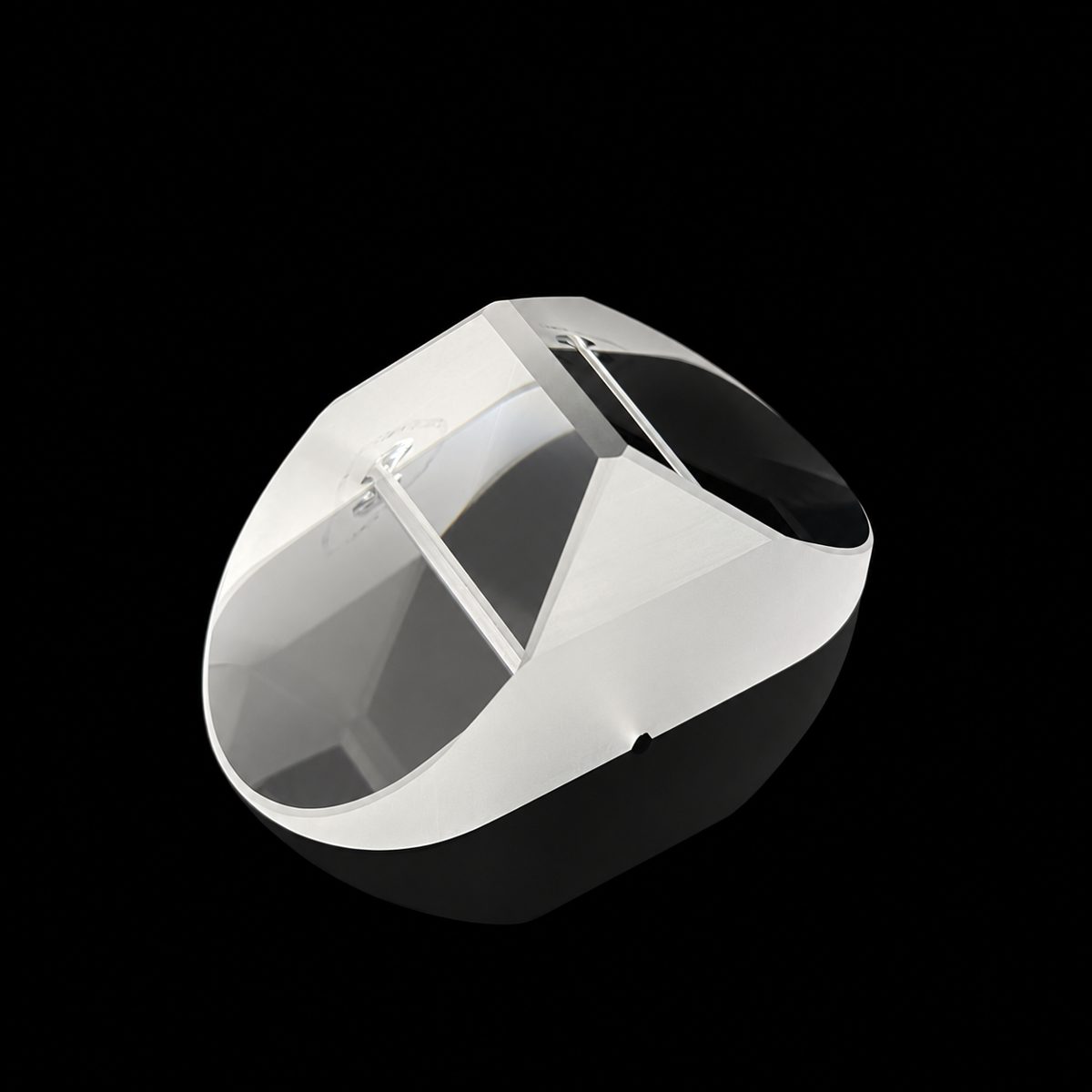

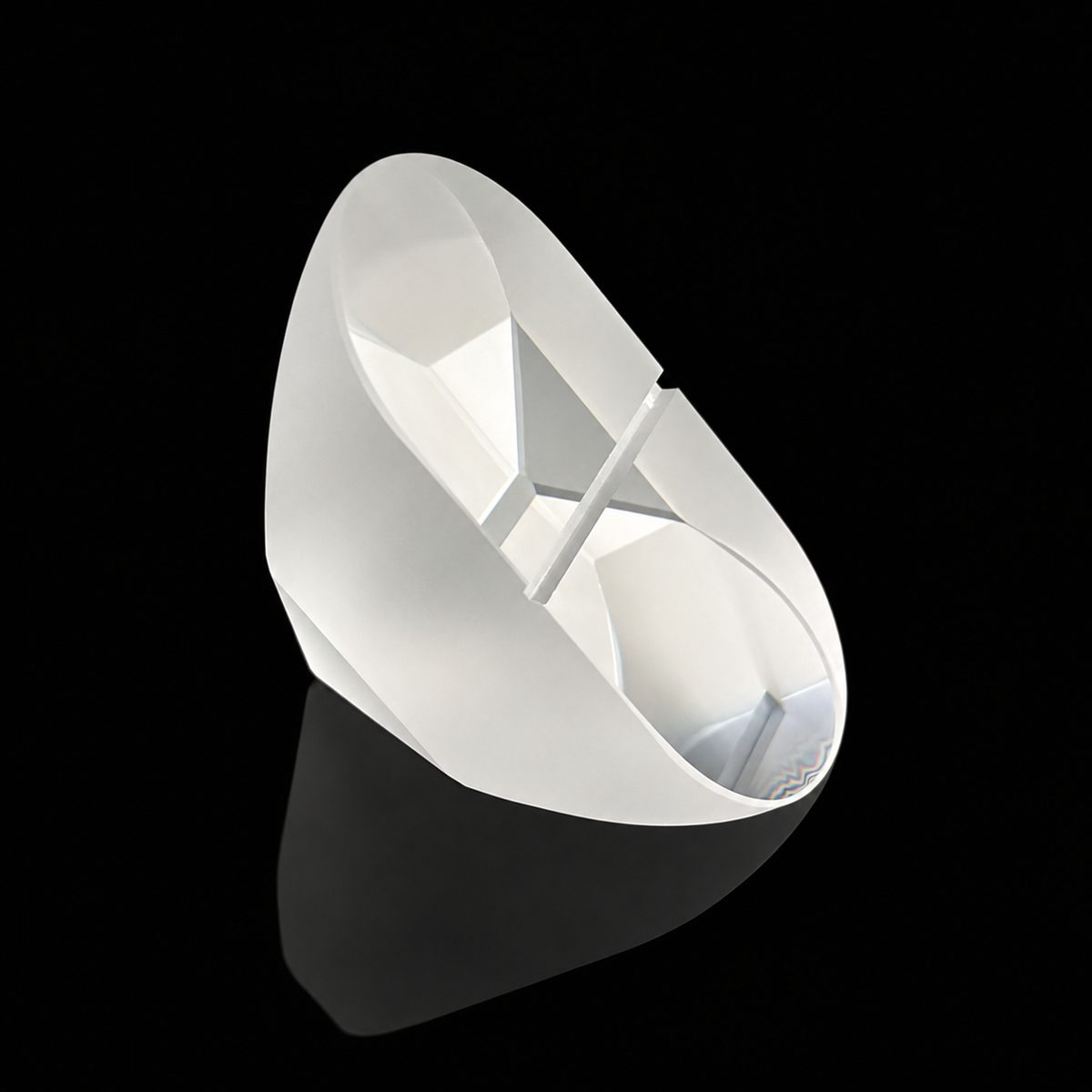

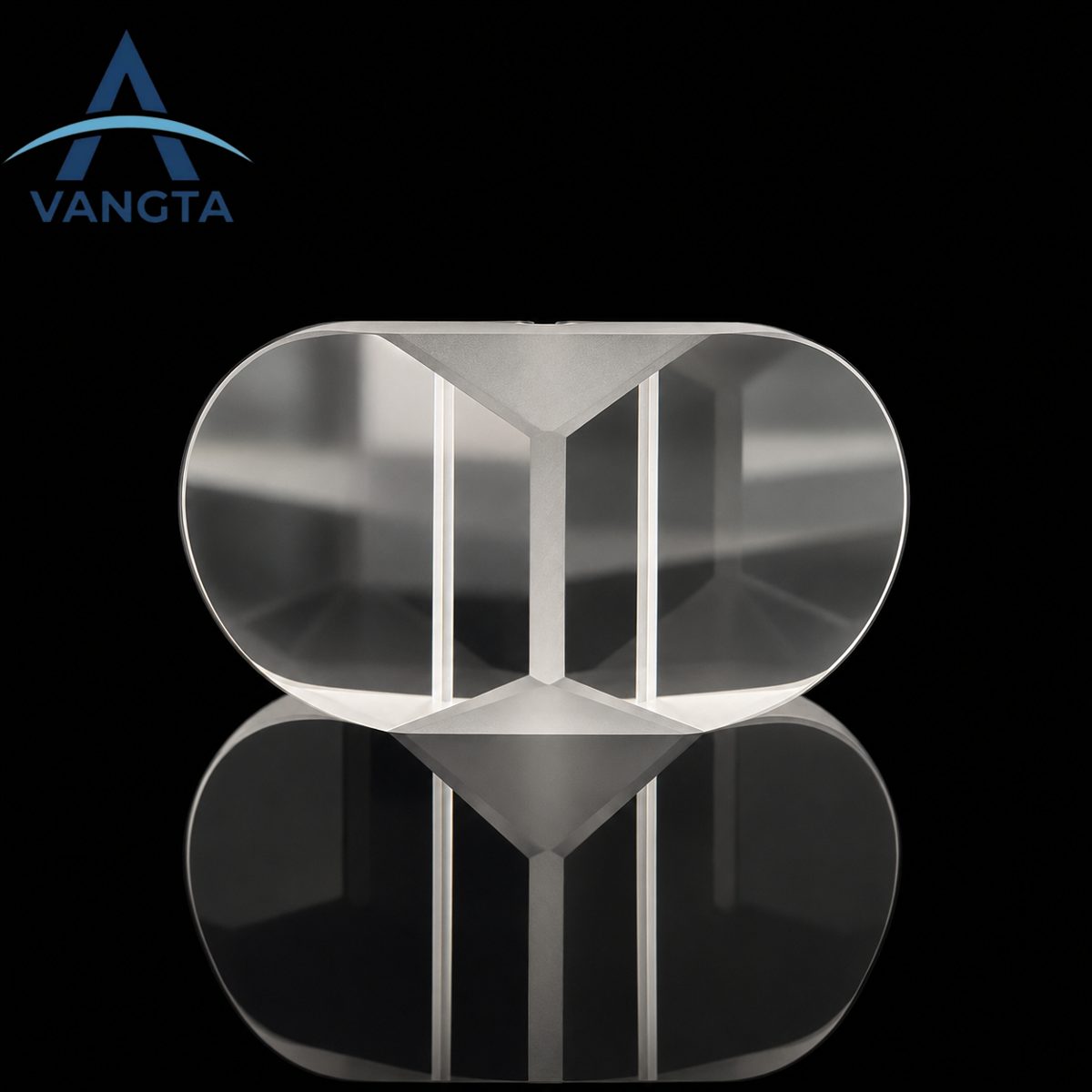

Custom Size K9 Roof Optical Prism
Explore roof prisms made from K9 glass, ideal for laser systems and machine vision with a surface quality of 60/40.
Core attributes
- Material
- K9
- Shape
- Roof
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
Product facts
Key attributes
- Material
- K9
- Shape
- Roof
- Size
- Custom
- Thickness
- Custom
- Surface Quality
- 60/40
Product description
Roof prisms are essential components in laser systems, machine vision, and optical instruments, providing efficient light direction and image orientation. Their geometry is ideal for applications requiring compact design and high optical performance. Made from K9 glass, these prisms offer a surface quality of 60/40, ensuring adequate wavefront integrity for various optical paths.
Key Features
- Roof prism geometry enhances light direction and image orientation for optical systems.
- Surface quality of 60/40 supports effective wavefront integrity.
- Custom support available for OEM and ODM projects.
- Lightweight design at 97g facilitates integration into compact systems.
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Shape | Roof |
| Size | Custom |
| Thickness | Custom |
| Surface Quality | 60/40 |
Full Specifications
| Parameter | Value |
|---|---|
| Prism Type | roof prism |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Type | Optical Prisms |
| Key Word | Porro Prisms |
| Service | OEM ODM Private Label Service |
| Application Field | Laser Systems; Machine Vision; Optical Instruments |
| Weight | 97g |
FAQ
Can I get custom sizes?
Custom support is available for OEM and ODM projects.
What is the surface quality?
The surface quality is rated at 60/40.
