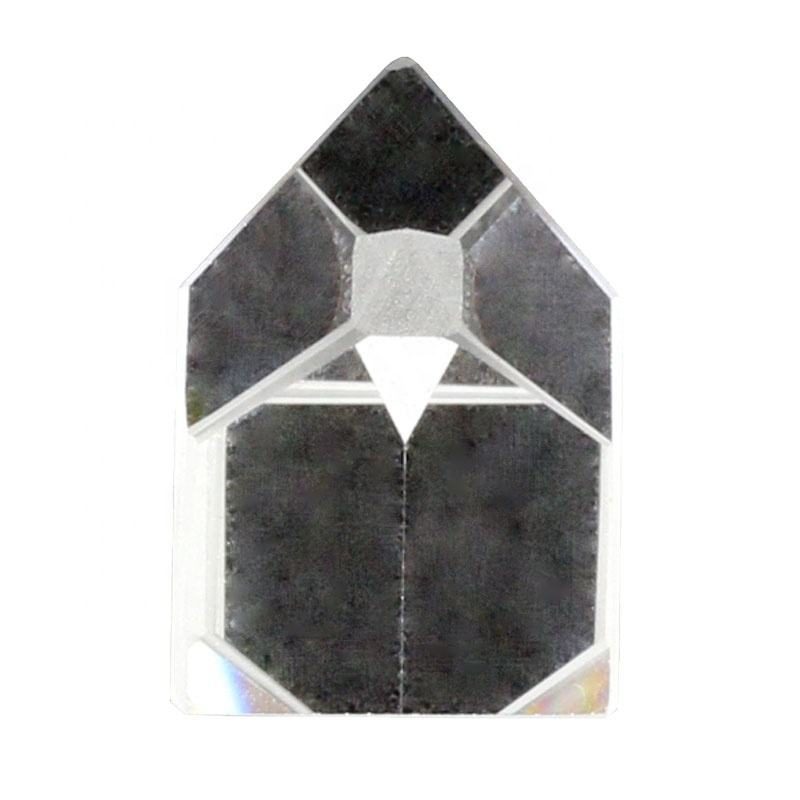

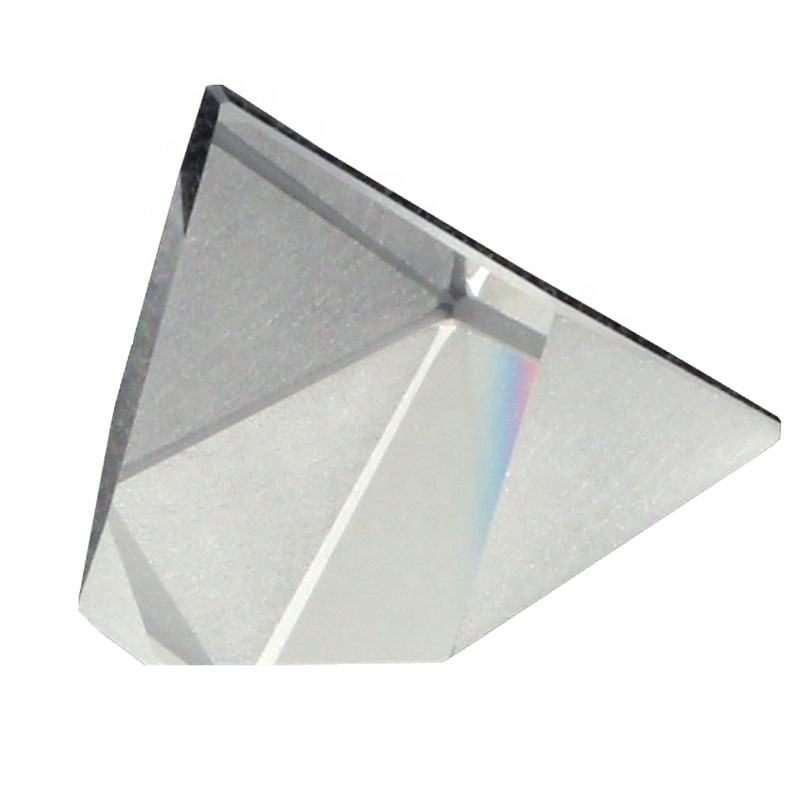

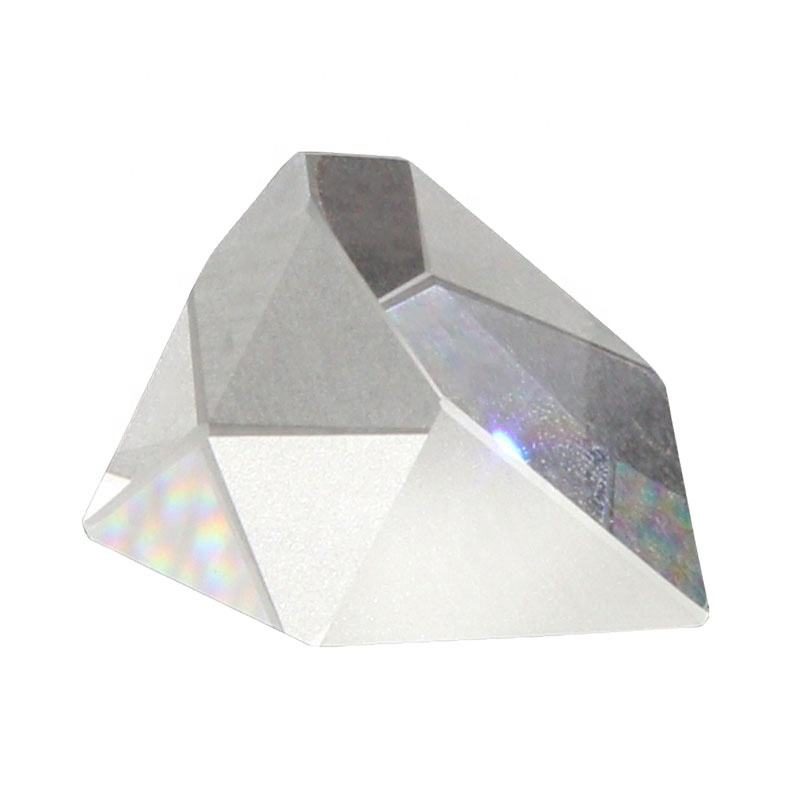

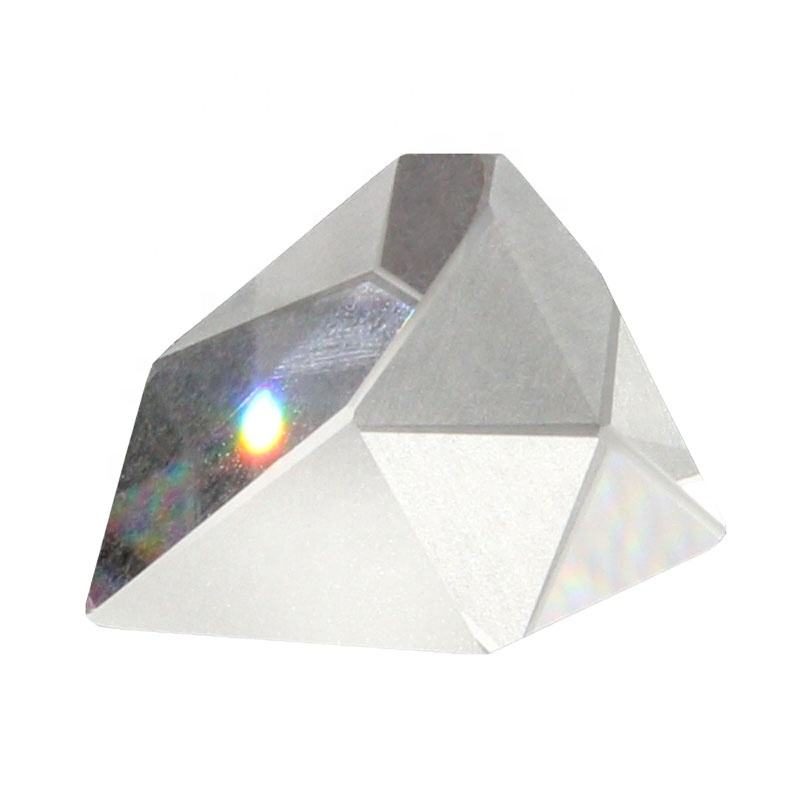

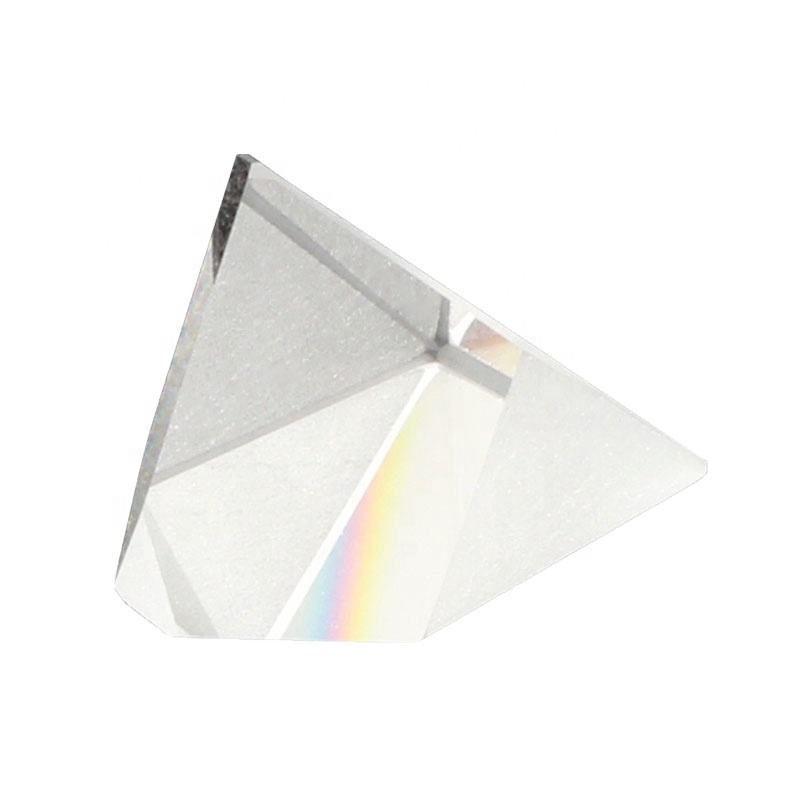

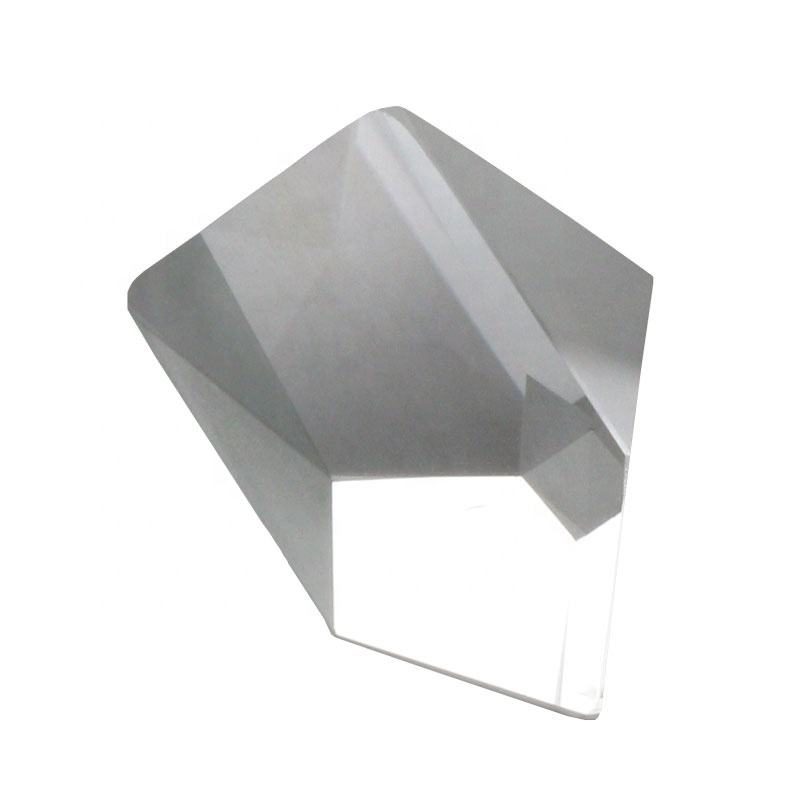

Custom Size K9 Roof Optical Prism

Product description

Roof prisms are essential in astronomy applications for redirecting light paths while maintaining image orientation. Their geometry allows for compact designs in telescopes and other optical systems, ensuring efficient light transmission. With a size tolerance of +/- 0.1mm and an angle tolerance of +/-5’, these prisms are designed for precision in optical alignment.

Key Features

Angle tolerance of +/-5’ ensures accurate beam alignment for precise astronomical observations.
Size tolerance of +/-0.1mm allows for seamless integration into existing optical systems.
Polyhedron flatness supports high-quality image fidelity in telescope applications.
OEM customization options available to meet specific design requirements.

Applications

Astronomy

Specification Summary

Item	Value
Material	K9
Shape	Roof
Size	Custom
Thickness	Custom

Full Specifications

Parameter	Value
Prism Type	Roof Prisms
Customized Support	OEM
Warranty	1 Year
Size Tolerance	+/- 0.1mm
Angle Tolerance	+/-5'
Dimension Tolerance	+/- 0.1mm
Flatness	Polyhedron

FAQ

Can I get custom sizes for roof prisms?

OEM customization options are available to meet specific design requirements.

What is the angle tolerance for these prisms?

The angle tolerance is +/-5’, ensuring accurate beam alignment.
