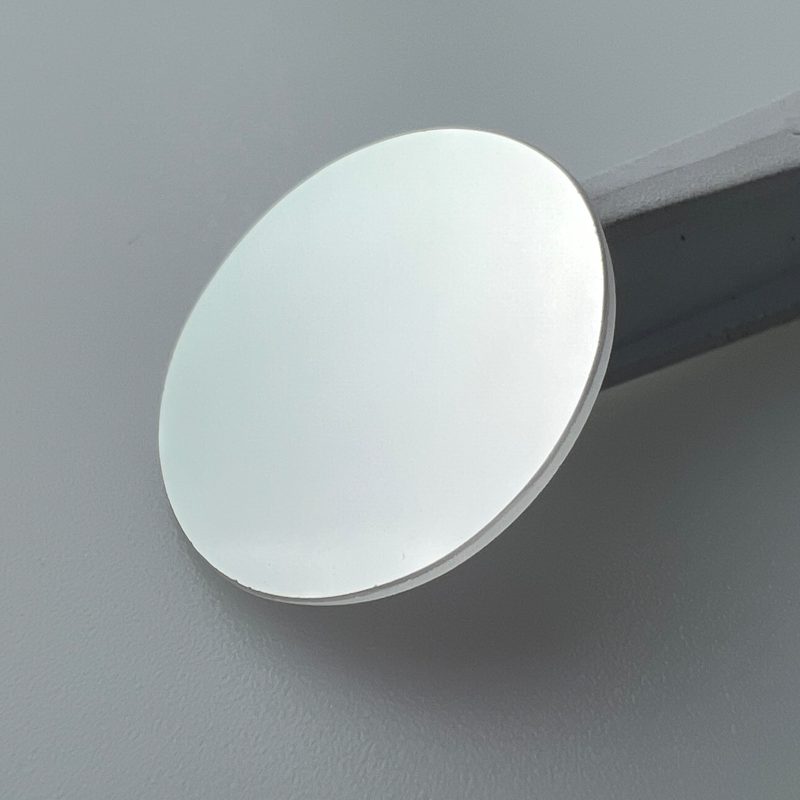

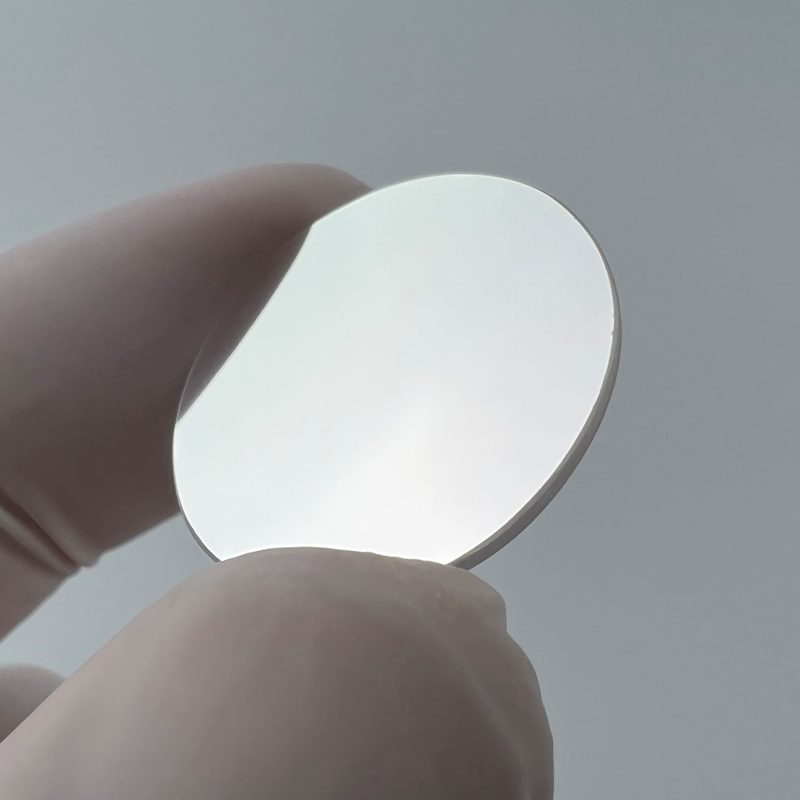

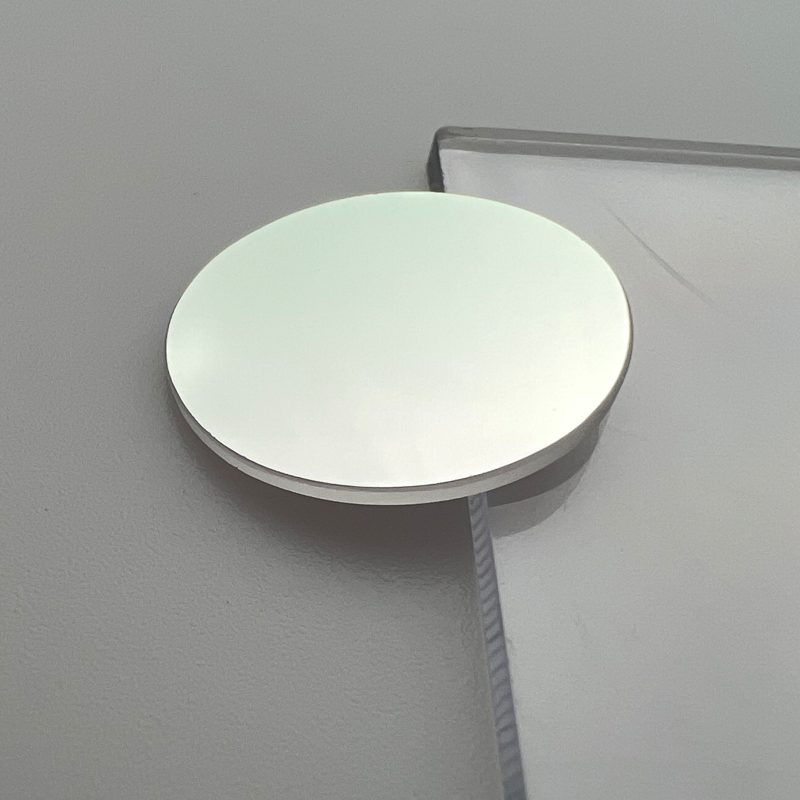

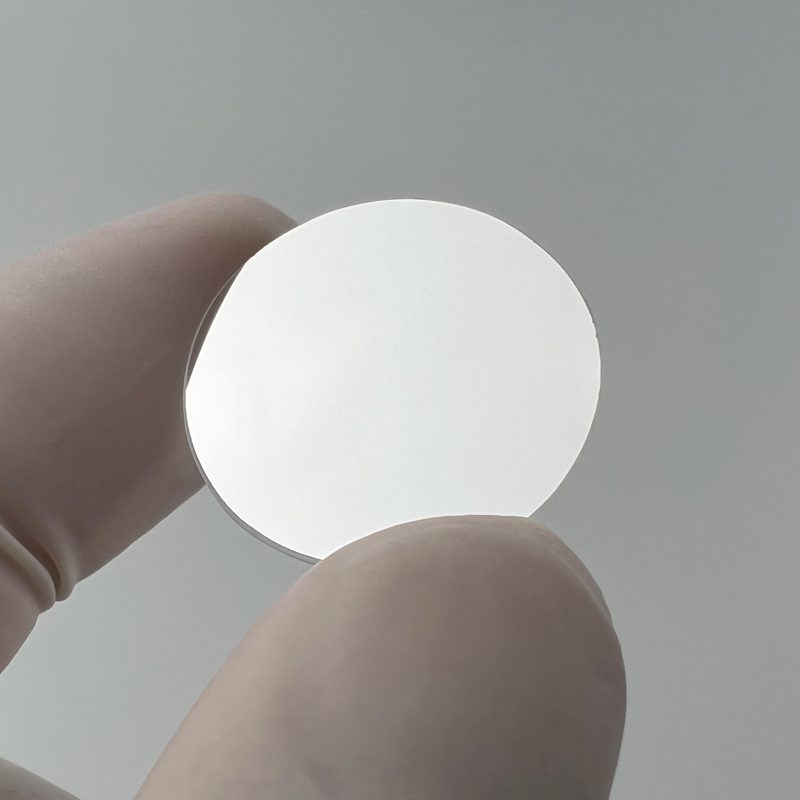

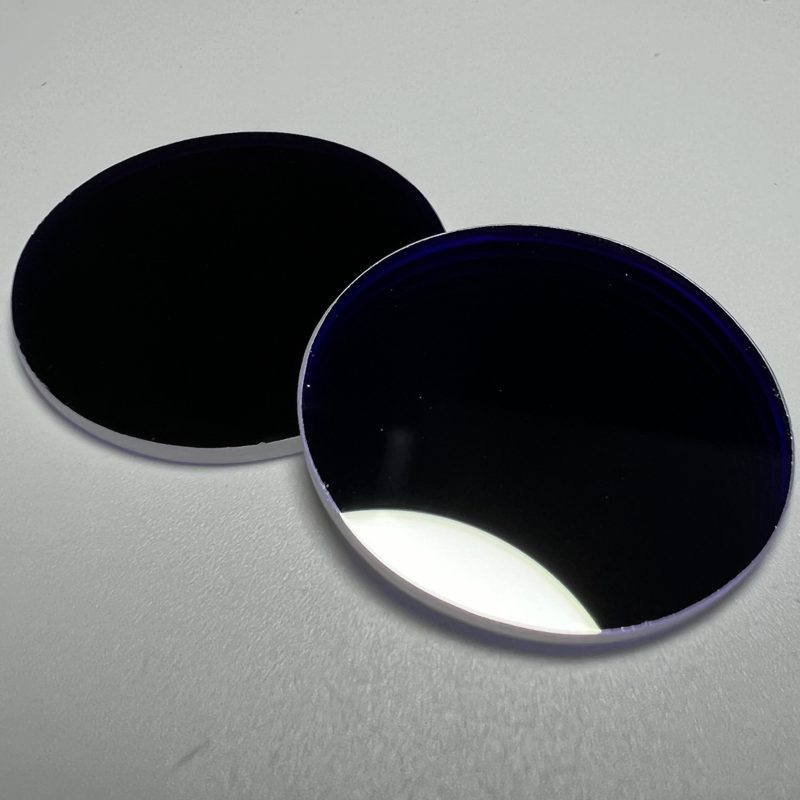

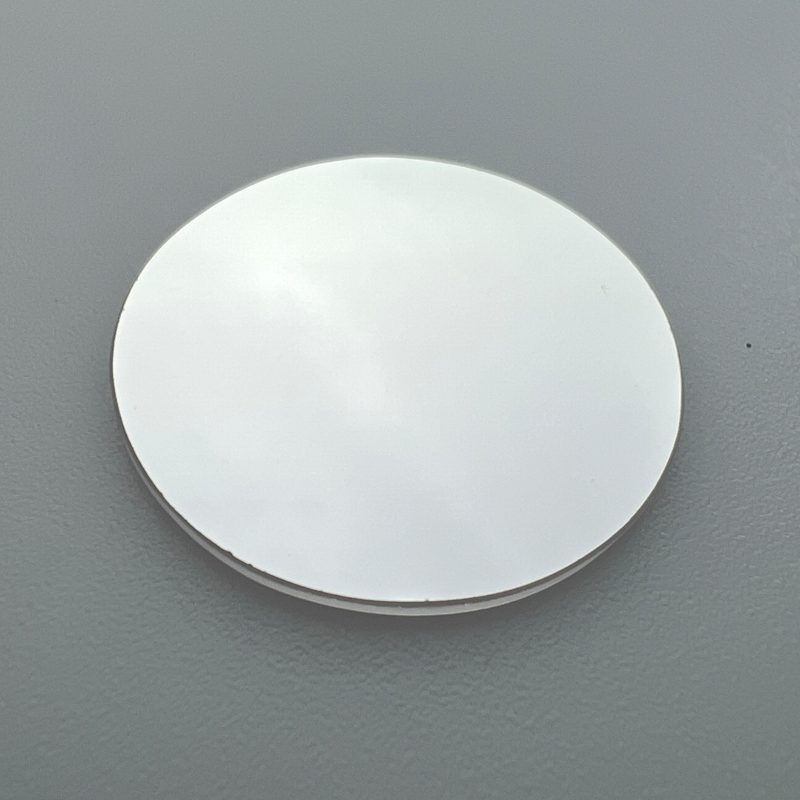

Custom Size K9 Round Optical Filter
High-performance bandpass filter with 785nm center wavelength, 93% transmittance, and customizable sizes for various applications.
Core attributes
- Material
- K9
- Shape
- Round
- Size
- Custom
- Thickness
- 0.5 mm
- Transmittance
- 93%
- Filter Type
- bandpass
- Cwl
- 785nm
- Fwhm
- 6nm
- Coating
- metallic, hard-coat
- Transmission bands
- NIR (0.7-1.7 μm)
Product facts
Key attributes
- Material
- K9
- Shape
- Round
- Size
- Custom
- Thickness
- 0.5 mm
- Transmittance
- 93%
- Filter Type
- bandpass
- Cwl
- 785nm
- Fwhm
- 6nm
- Coating
- metallic, hard-coat
- Transmission bands
- NIR (0.7-1.7 μm)
Product description
This bandpass filter is designed for applications in fluorescence microscopy, machine vision, and laser systems, featuring a precise 785nm center wavelength and a narrow 6nm FWHM. With a high transmittance of 93%, it ensures optimal signal throughput in near-infrared optical paths. The filter’s OD6 blocking capability effectively suppresses background stray light, making it ideal for Raman detection and fluorescence analysis. The hard-coated K9 substrate enhances durability, ensuring reliable performance in demanding environments.
Key Features
- Center wavelength of 785nm with a 6nm FWHM for precise spectral fit.
- 93% peak transmittance ensures high signal throughput.
- OD6 optical density blocks stray light for enhanced detection.
- Durable hard-coated K9 substrate for improved environmental resistance.
- Custom cut sizes available for tailored applications.
Applications
Fluorescence, Machine Vision, Laser, Spectroscopy
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Shape | Round |
| Size | Custom |
| Thickness | 0.5 mm |
| Transmittance | 93% |
| Filter Type | bandpass |
| Cwl | 785nm |
| Fwhm | 6nm |
| Coating | metallic, hard-coat |
| Transmission bands | NIR (0.7-1.7 μm) |
Full Specifications
| Parameter | Value |
|---|---|
| Transmittance | custom; 93% |
| Clear Aperture | 99% |
FAQ
Can I get custom sizes for this filter?
Yes, round and square optical filters can be cut to custom dimensions.
What is the thickness range of this filter?
The filter thickness ranges from 0.5mm to 50.0mm.
