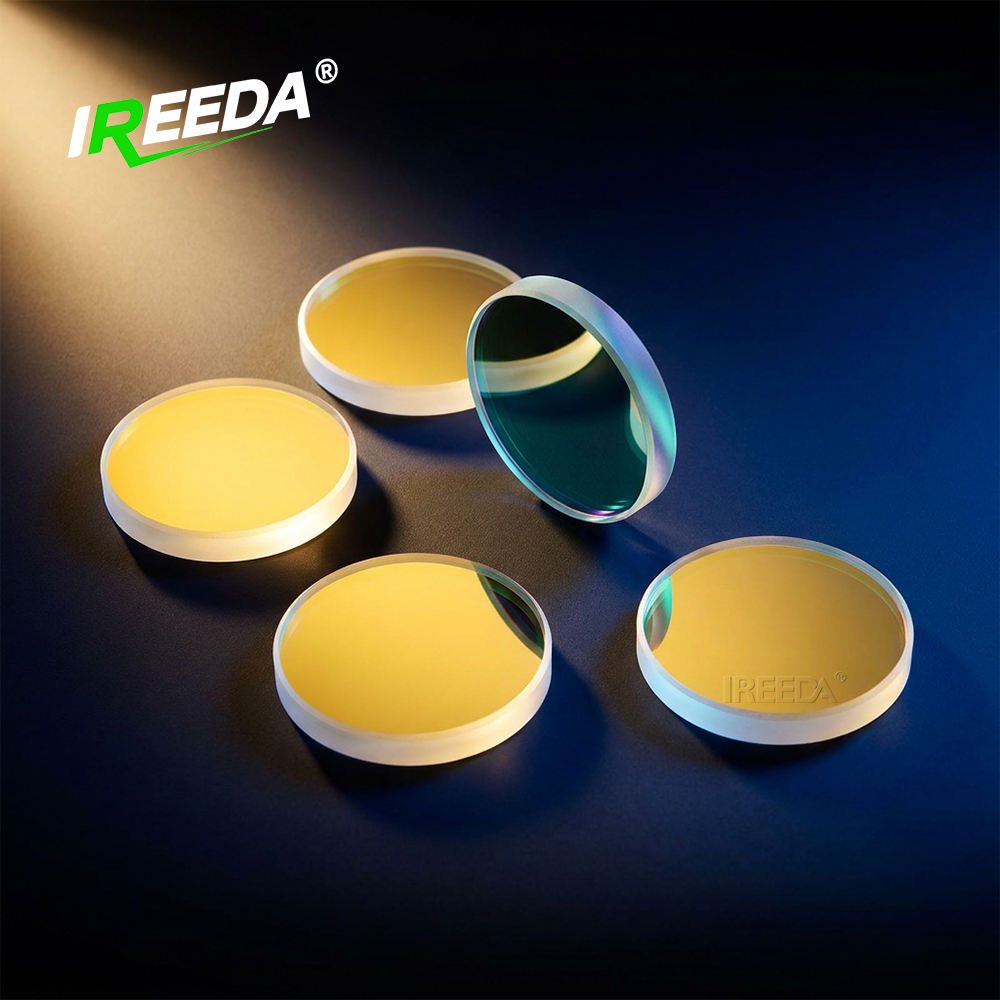

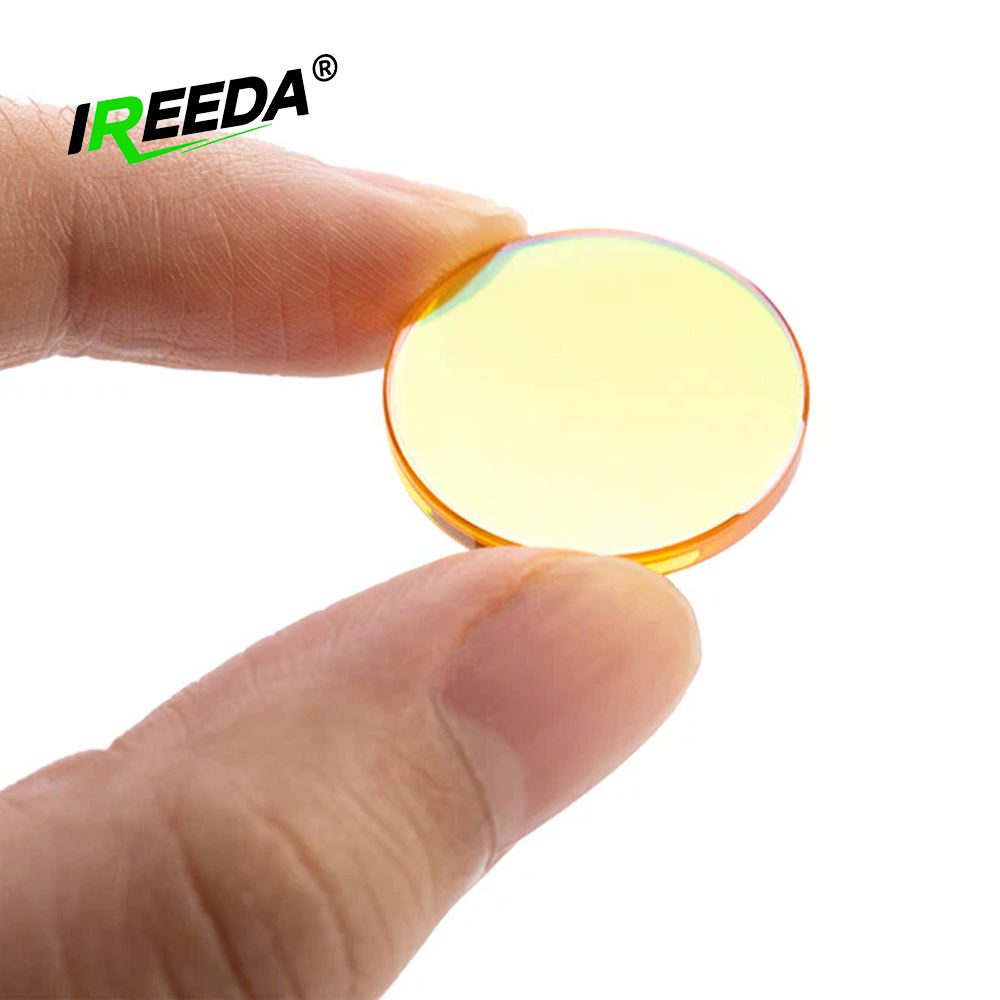

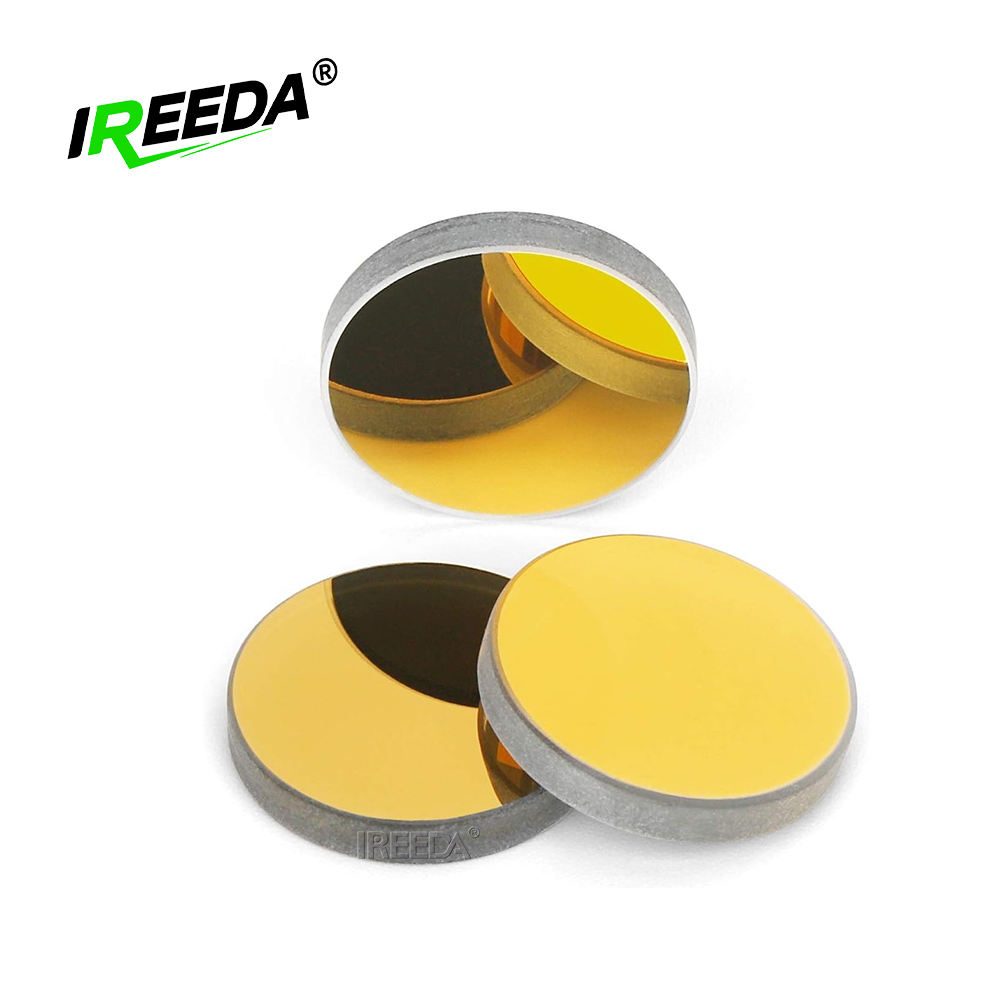

24 mm K9 Round Optical Mirror

Product description

This round K9 mirror features a dielectric high-reflection coating, achieving over 99.8% reflectance at both 532 nm and 1064 nm, making it ideal for laser applications and research. With excellent thermal stability and surface quality of 40/20, it minimizes ghosting effects and ensures high wavefront quality. Available in standard sizes of 24 mm and 30 mm, this mirror can be customized for specific requirements, ensuring compatibility with various optical systems.

Key Features

Reflectance of 99.8% at 532 nm and 1064 nm for optimal laser efficiency.
Surface quality of 40/20 ensures minimal distortion and high wavefront quality.
Dielectric HR coating provides durability and thermal stability for medium to high-power applications.
Compatible with 650 nm pilot beams, achieving R > 85% for easy system calibration.
Standard sizes of 24 mm and 30 mm, with customization options available.

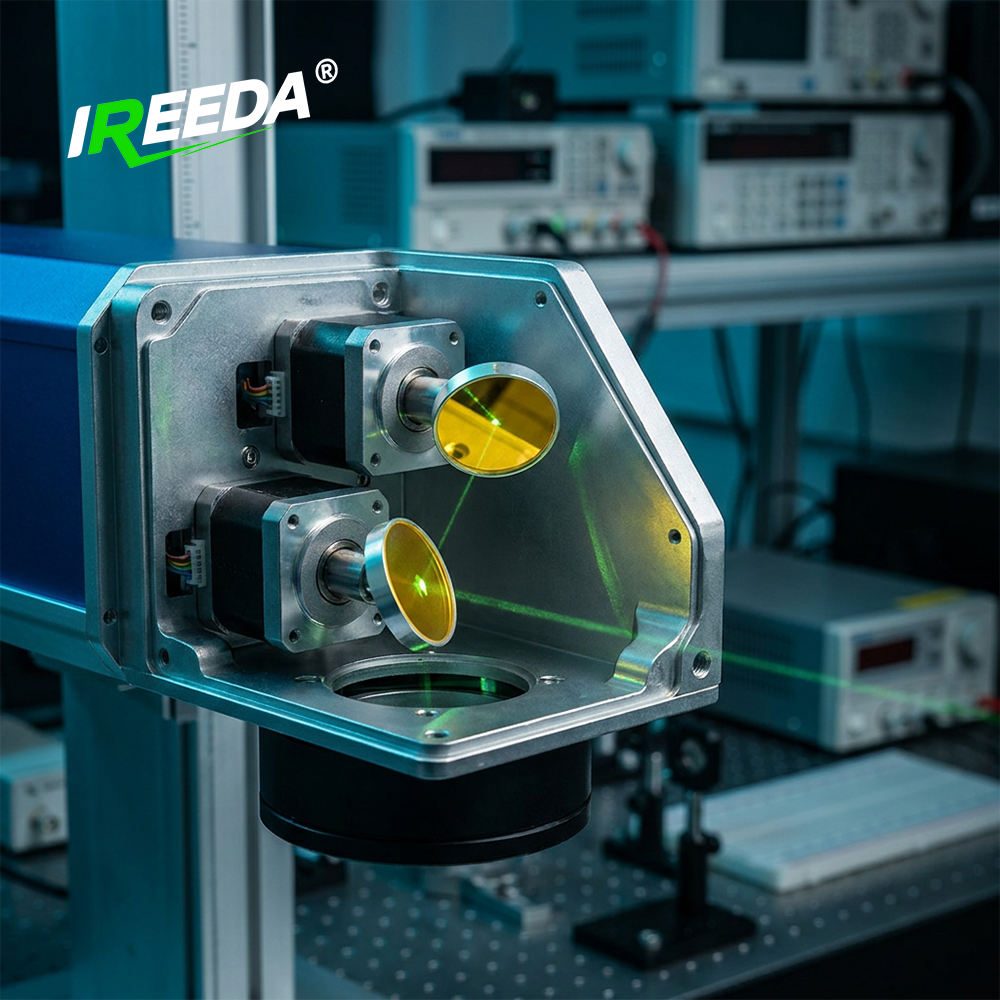

Applications

Laser, Research

Specification Summary

Item	Value
Material	K9
Shape	Round
Size	24 mm
Thickness	Custom
Surface Quality	40/20
Reflectance	99.8%
Coating	dielectric HR
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

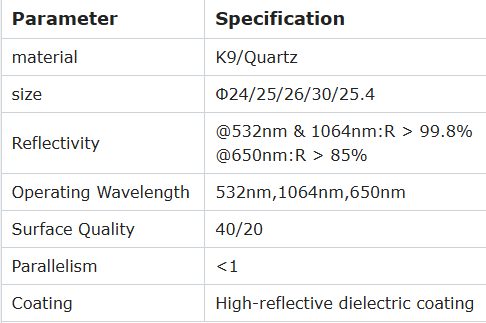

Full Specifications

Parameter	Value
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Reflectivity	@532nm & 1064nm:R > 99.8% @650nm:R > 85%

FAQ

Are custom sizes available?

Yes, custom diameters, thicknesses, and coating specifications are available upon request.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
