1 / 6Optical Filters

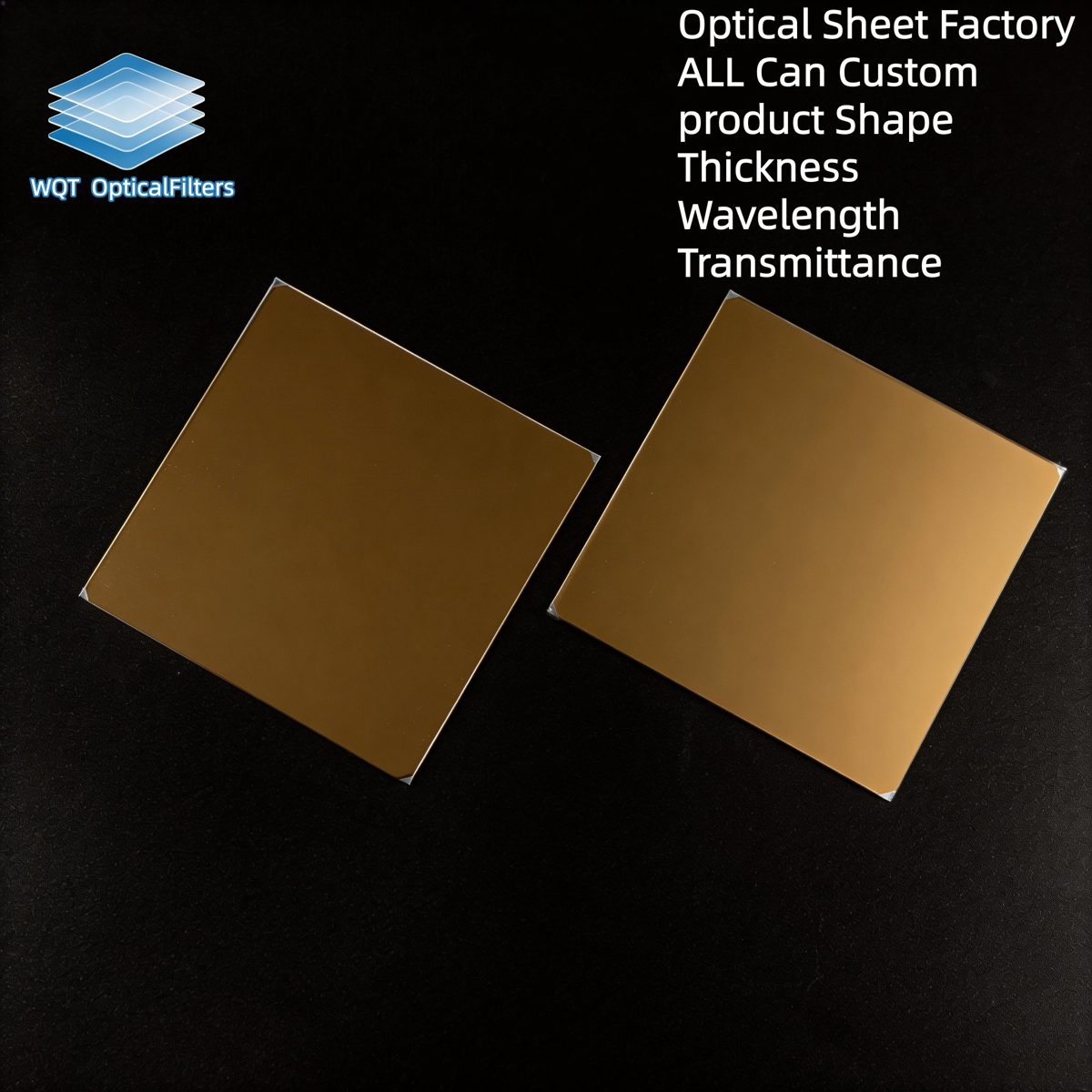

100 mm K9 Square Optical Filter
Discover our 100x100mm ND filter with 80% transmittance, ideal for laser applications and compatible with standard filter holders.
Core attributes
- Material
- K9
- Shape
- Square
- Size
- 100 mm
- Thickness
- Custom
- Transmittance
- 80%
- Filter Type
- nd
- Cwl
- 550nm
- Od
- 0.55
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- K9
- Shape
- Square
- Size
- 100 mm
- Thickness
- Custom
- Transmittance
- 80%
- Filter Type
- nd
- Cwl
- 550nm
- Od
- 0.55
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This neutral density (ND) filter is designed to effectively attenuate light within the 400-700 nm wavelength range, making it ideal for laser applications. With a center wavelength of 550 nm and a transmittance of 80%, it allows for precise control over exposure without color distortion. The filter’s robust construction ensures durability, while its compatibility with standard filter holder systems enhances versatility for various setups.
Key Features
- Transmittance of 80% for effective light control, reducing exposure without color shift.
- Compatible with Cokin P Z series and most 100mm square filter holders for easy integration.
- High purity K9 optical glass substrate ensures minimal distortion and excellent image clarity.
- Metal evaporation process provides superior color correction capabilities.
- OEM and ODM support available for customized solutions.
Applications
Laser
Specification Summary
| Item | Value |
|---|---|
| Material | K9 |
| Shape | Square |
| Size | 100 mm |
| Thickness | Custom |
| Transmittance | 80% |
| Filter Type | nd |
| Cwl | 550nm |
| Od | 0.55 |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|

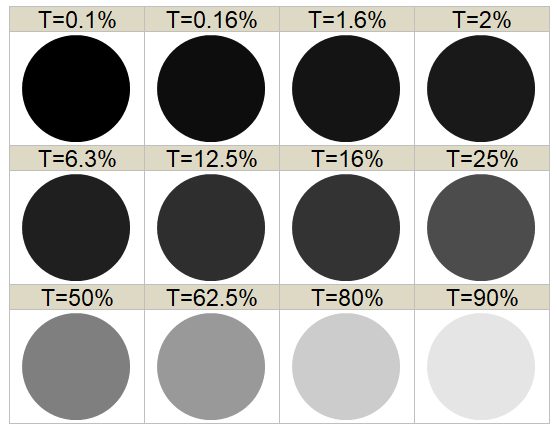

| Transmittance | 80%; ND2 50%, ND8 12.5%, ND32 3.13%, ND2-400 50-0.25%, ND4 25%, ND16 6.25%, ND64… |
| Customized Support | OEM, ODM |
| Warranty | 3 Years |
| Type | neutral density glass |
| Key Word | ND filter, camera exposure filter |
| Parallelism | s3 arc min |
FAQ
Can I get custom sizes for this filter?
Yes, OEM and ODM support is available for customized solutions.
What is the minimum order quantity (MOQ)?
The minimum order quantity is not specified.
