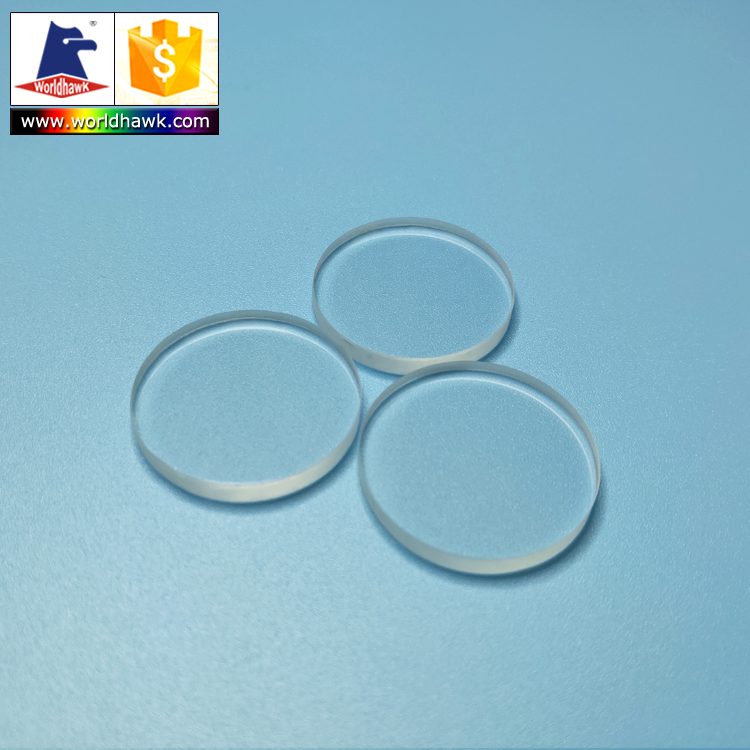

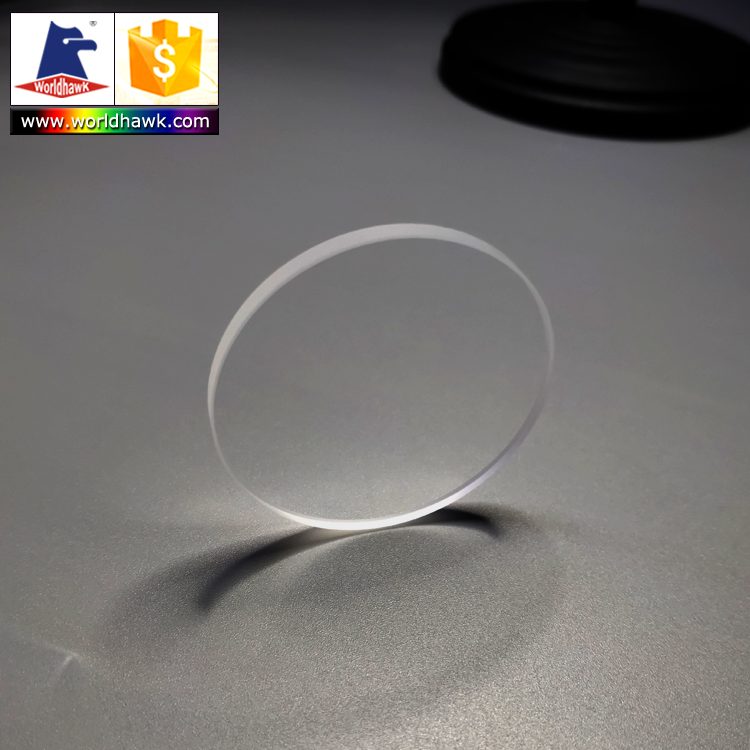

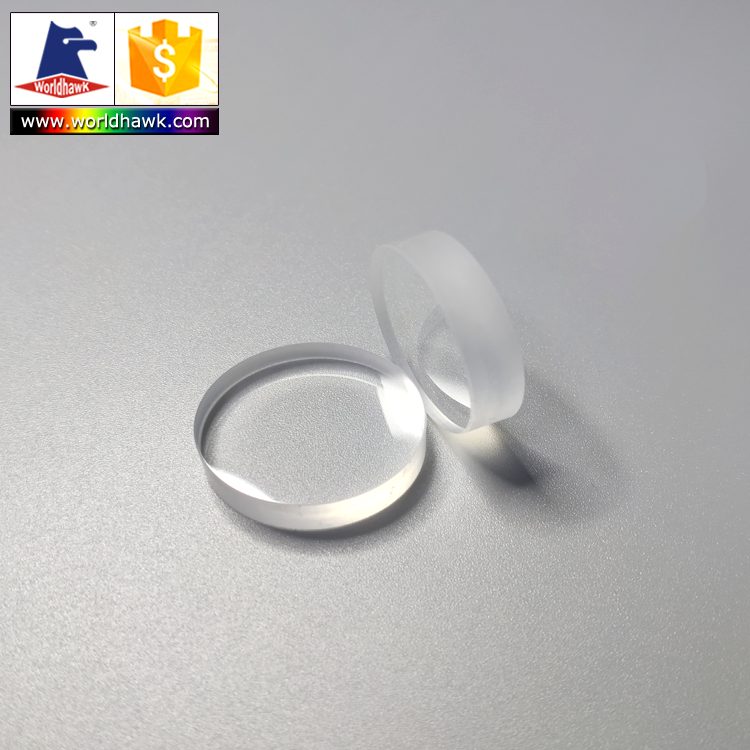

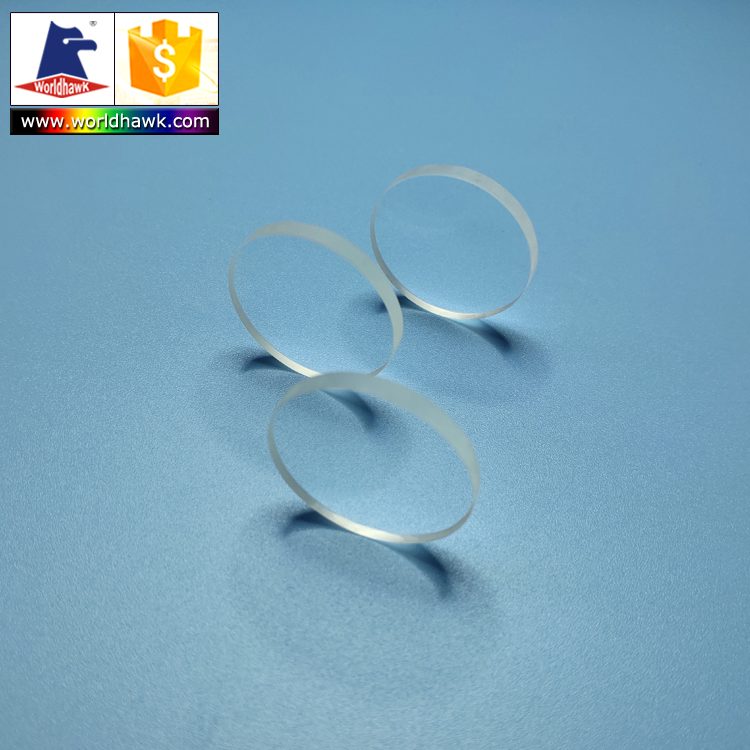

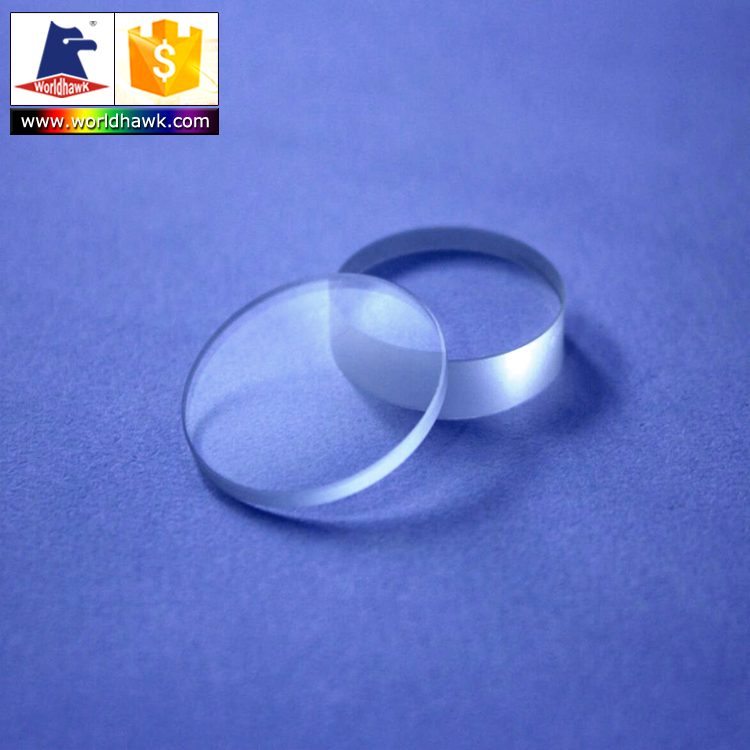

3x0.5 mm MgF2 Optical Window, AR Coated

Product description

Magnesium Fluoride (MgF2) optical windows provide a robust solution for applications requiring high transmission from the deep-UV to mid-infrared wavelengths, specifically below 400 nm. These windows allow optical radiation to pass without altering the wavelength distribution or scattering light. Ideal for use in IR imaging, LIDAR, and laser applications, they ensure minimal environmental interference while maintaining optical clarity.

Key Features

Broadband transmission from <400 nm, suitable for various optical applications.
Customizable sizes available, including a variant size of 76.5 mm diameter.
High surface quality rated at 60/40, ensuring minimal distortion.
Clear aperture greater than 90%, maximizing light throughput.
Robust construction with a Knoop hardness of 415, providing durability against environmental factors.

Available Sizes

Diameter x Thickness (mm)
76.5 x 0.5

Specification Summary

Item	Value
Material	MgF2
Diameter	3 mm
Thickness	0.5 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	UV (<400 nm)
MOQ	—

Full Specifications

Parameter	Value
Customized Support	OEM
Warranty	3 Years
Weight	0.01kg(0.02lb)
Parallelism	3 arc minutes
Clear Aperture	>90%
Bevel	<0.3mm

FAQ

Are custom sizes available?

Yes, customized sizes are available, including a variant size of 76.5 mm in diameter.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified in the data provided.
