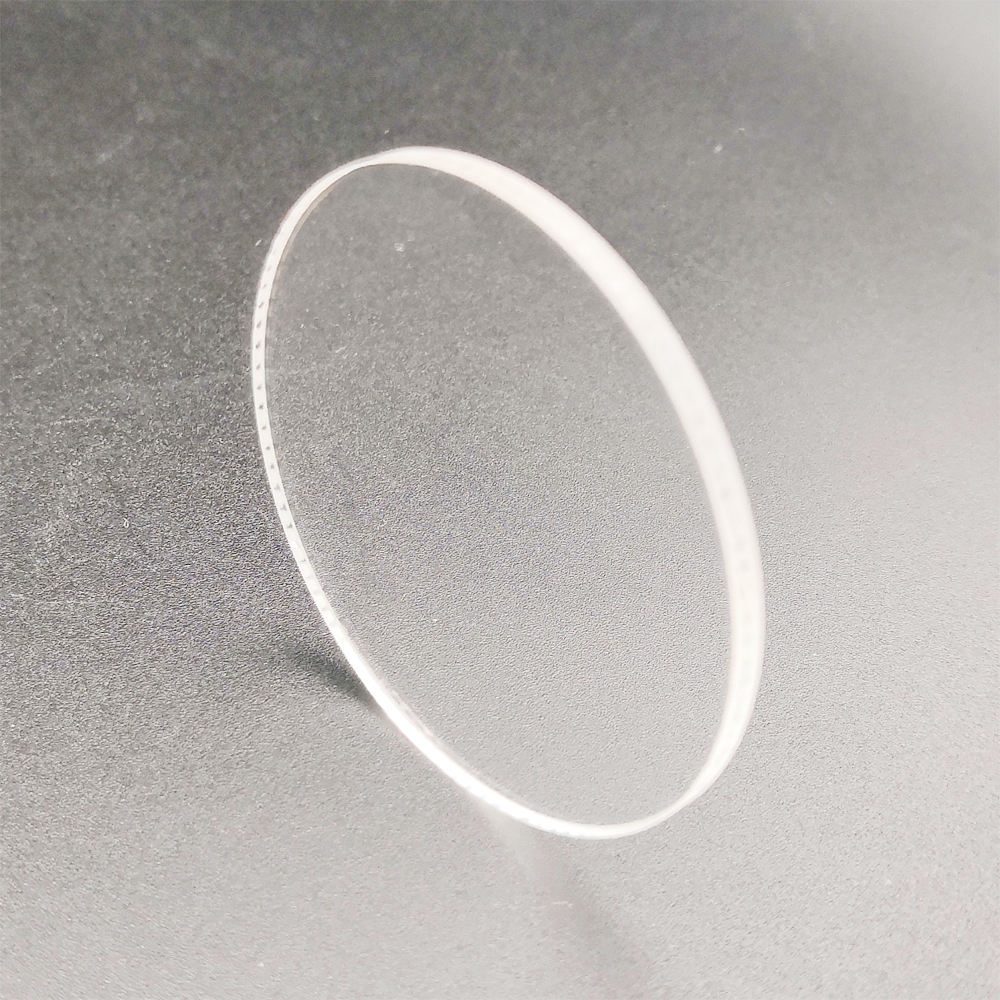

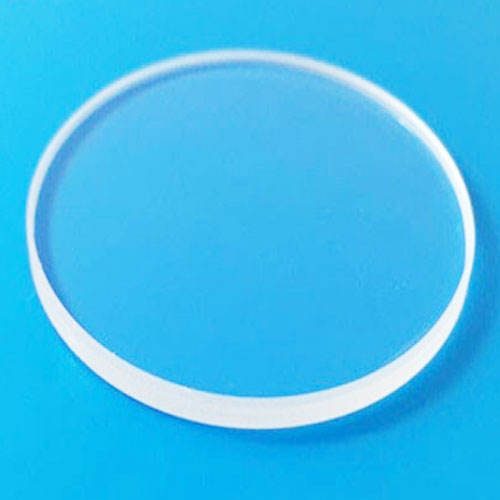

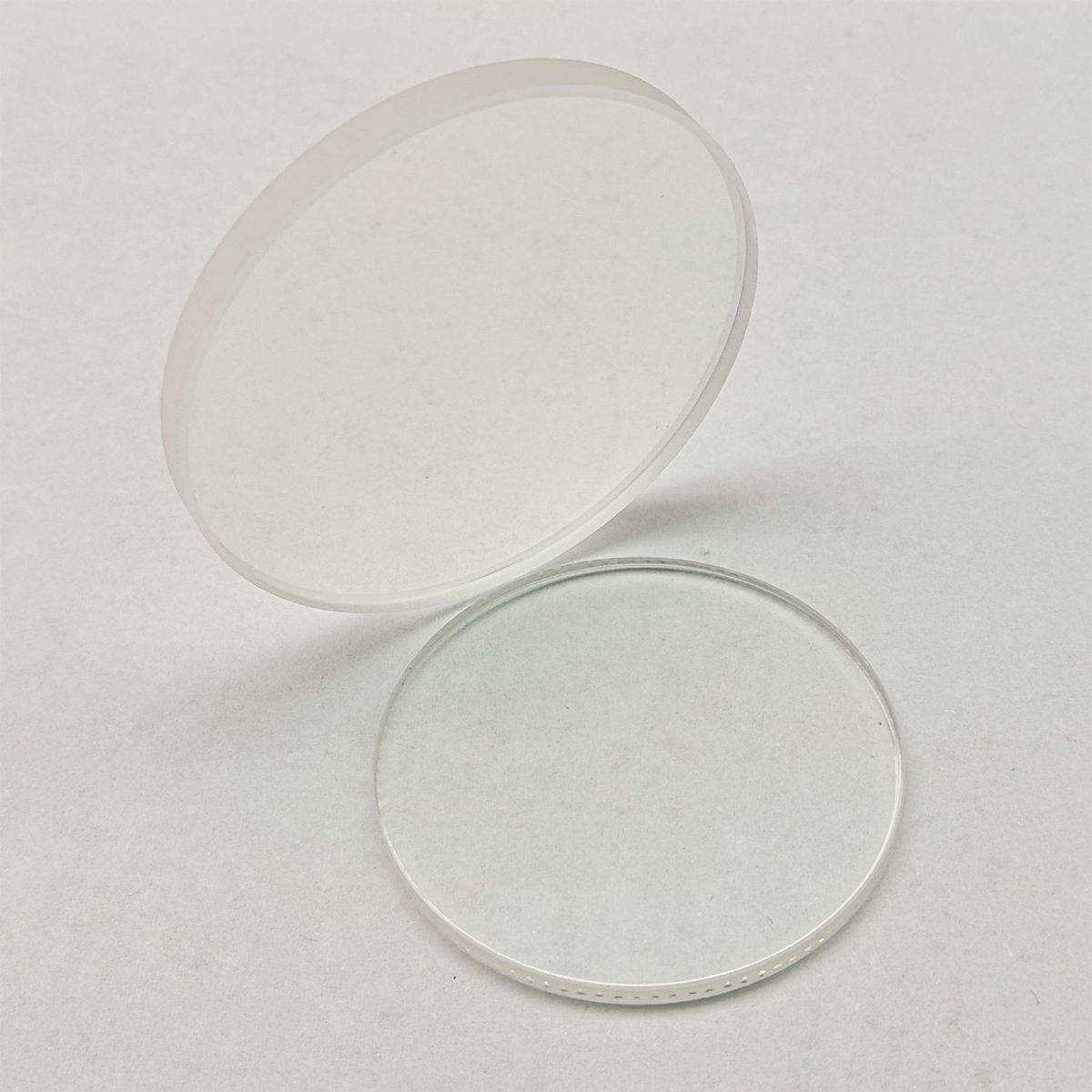

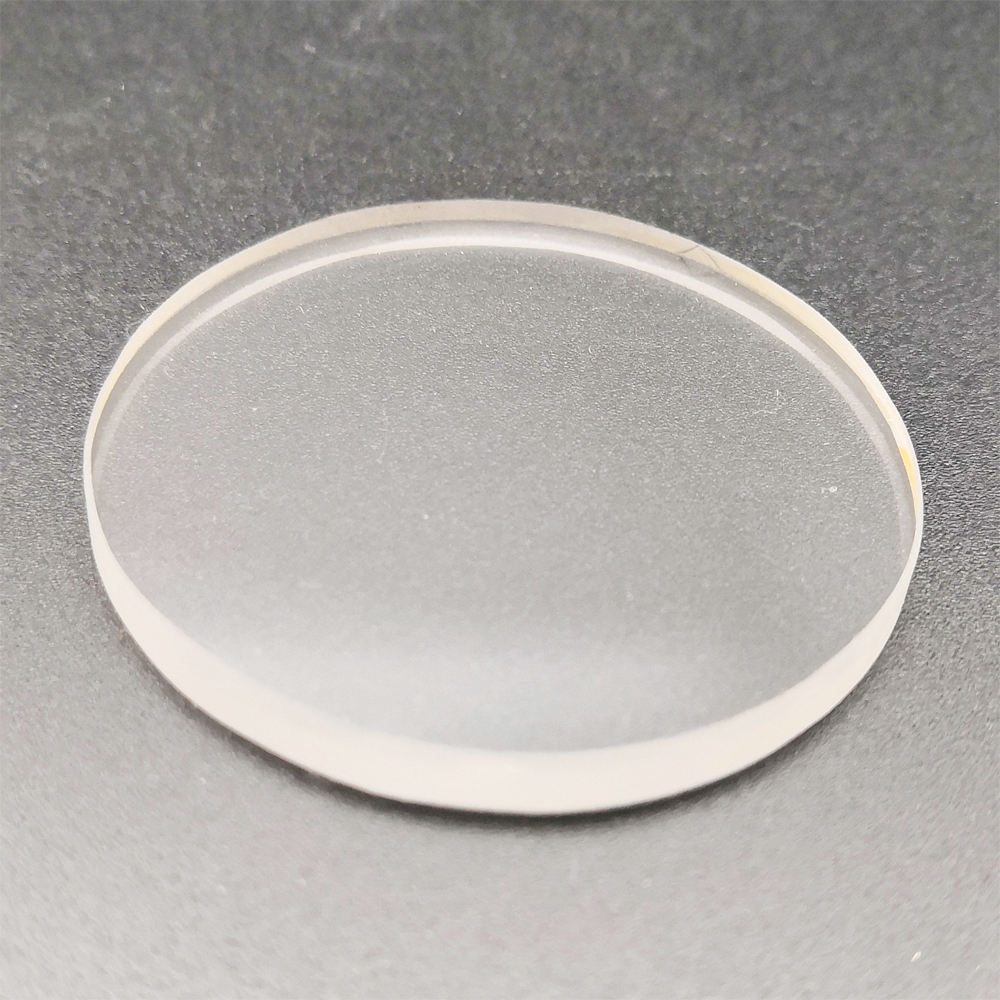

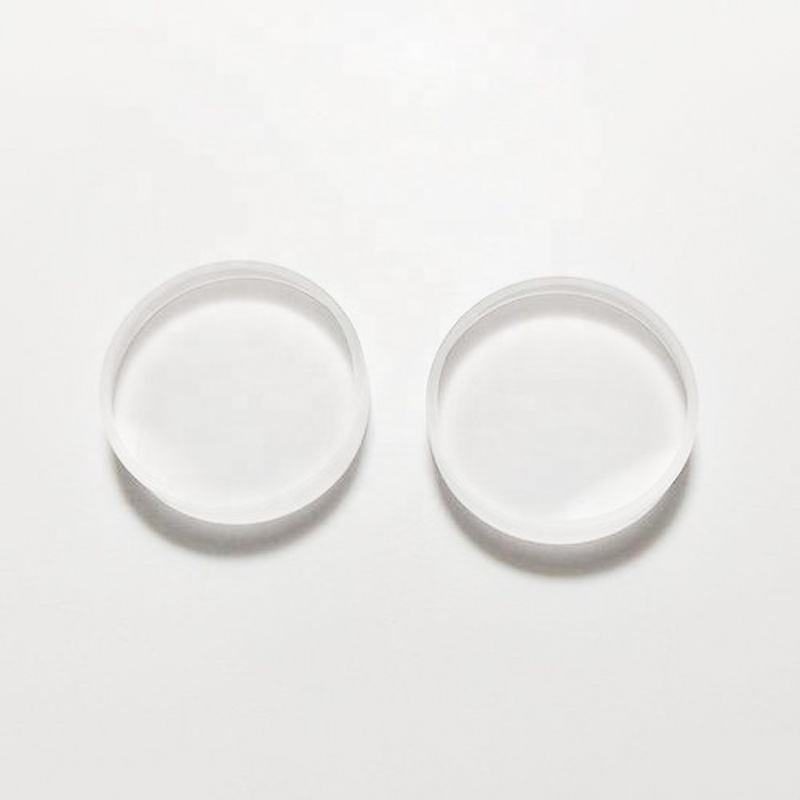

5x0.5 mm MgF2 Round Optical Window
MgF2 windows offer excellent transmission from 120 nm to 7 μm, customizable sizes, and high optical performance.
Core attributes
- Material
- MgF2
- Shape
- round
- Diameter range
- 5–300 mm
- Thickness
- 0.5–20 mm
Product facts
Key attributes
- Material
- MgF2
- Shape
- round
- Diameter range
- 5–300 mm
- Thickness
- 0.5–20 mm
Product description
MgF2 windows provide excellent broadband transmission from 120 nm to 7 μm, making them suitable for applications in the deep-UV to mid-infrared spectrum. Their rugged and durable design, along with resistance to chemical etching, positions them as ideal components for UV radiation sources, excimer lasers, and other optical applications. With customizable sizes and specifications, these windows can meet various project requirements.
Key Features
- Broadband transmission from 120 nm to 7 μm for diverse applications.

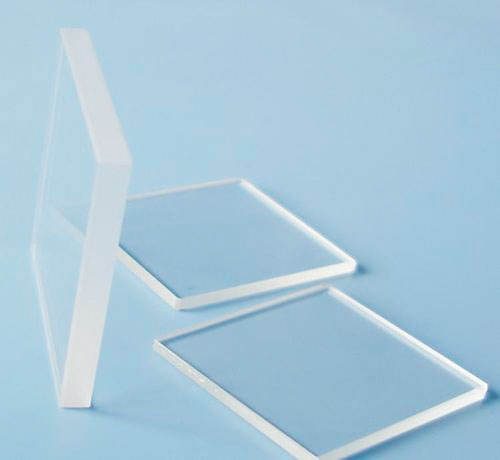

- Custom sizes available, including round and rectangular shapes.
- Flatness of Lambda/8 @ 633 nm ensures high optical performance.
- High clear aperture (>90%) for optimal light transmission.
- Durable and resistant to chemical etching for longevity.
Available Sizes
| Diameter x Thickness (mm) |
|---|
| 152.5 x 10.2 |
Specification Summary
| Item | Value |
|---|---|
| Material | MgF2 |
| Shape | Round |
| Diameter | 5 mm |
| Thickness | 0.5 mm |
| Transmission bands | VIS (400-700 nm), UV (<400 nm) |
| MOQ | — |
Full Specifications
| Parameter | Value |
|---|---|
| Warranty | not applicable |
| Customized Support | OEM, ODM, OBM |
| Flatness | Lambda/8 @633nm |
| Parallelism | < 3arcmin |
| Clear Aperture | >90% |
| Bevel | <0.5mmX45° |
| Certificate | ISO 9001 |
FAQ
What custom sizes are available?
Custom sizes include options like 152.5 mm diameter and 10.2 mm thickness.
What is the minimum order quantity?
Minimum order quantity details are not specified.
