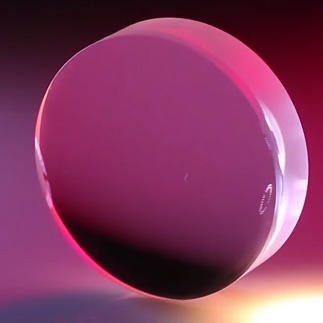

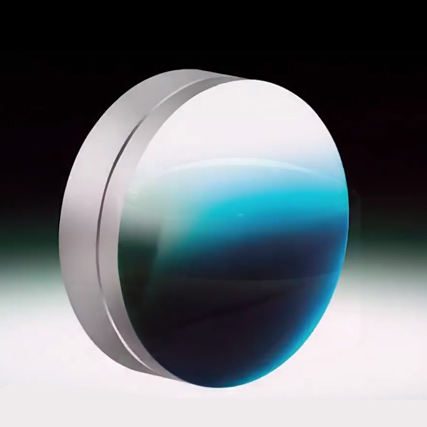

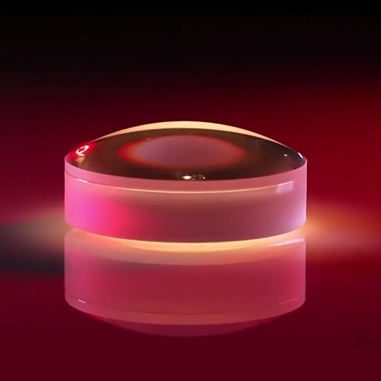

0.1 mm N-BK7 Achromatic Lens, AR Coated

Product description

The achromatic lens made from N-BK7 material is designed for imaging applications across a broad spectral range of 0.7-1.7 μm and 400-700 nm. This lens effectively minimizes chromatic and spherical aberrations, making it ideal for optical instruments requiring high precision. With a clear aperture of 85% to 95%, it ensures optimal light transmission for enhanced image clarity. Sourced from Henan, this lens is reliable for both research and industrial applications.

Key Features

Achromatic design reduces chromatic and spherical aberrations for improved imaging performance.
Surface quality of 60/40 ensures high clarity and minimal distortion.
Clear aperture of 85% to 95% maximizes light transmission for better image quality.
Customizable options available for OEM support to meet specific project needs.
Diameter tolerance of -0.2 mm allows for precise fitting in various applications.

Applications

Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Achromatic
Diameter	0.1 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Achromatic Lens; Bi-convex Lenses
Customized Support	OEM
Warranty	3 Years
Weight	0.5
Color	Transparent
Clear Aperture	85% ~95%
Flatness	1/4lambda

FAQ

Can I get custom sizes?

Yes, a wide range of focal lengths and diameters are available for customization.

What are the tolerances for this lens?

Diameter tolerance is -0.2 mm, with a thickness tolerance of +/-0.1 mm.
