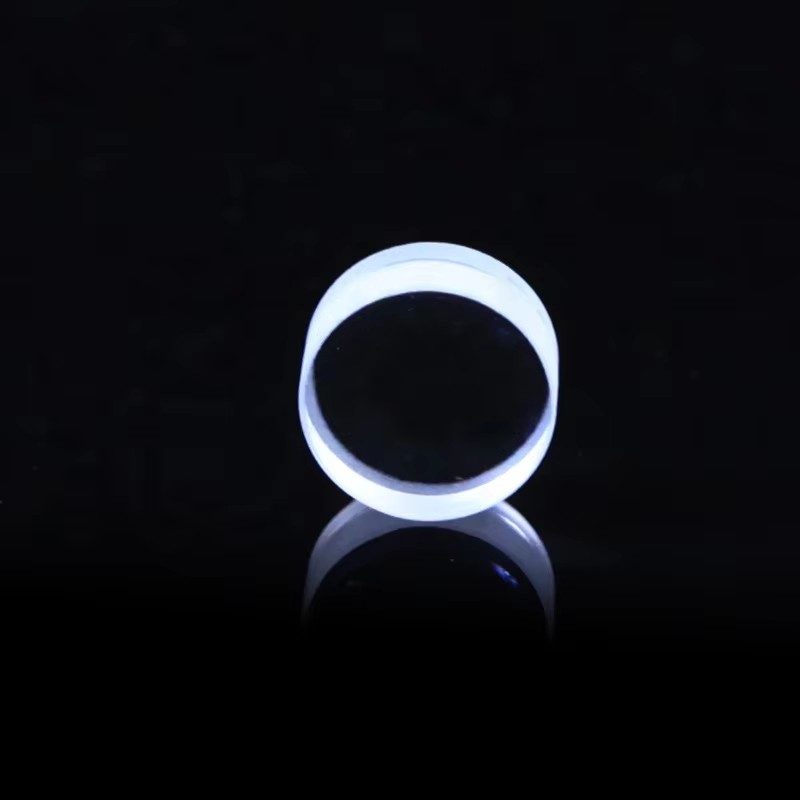

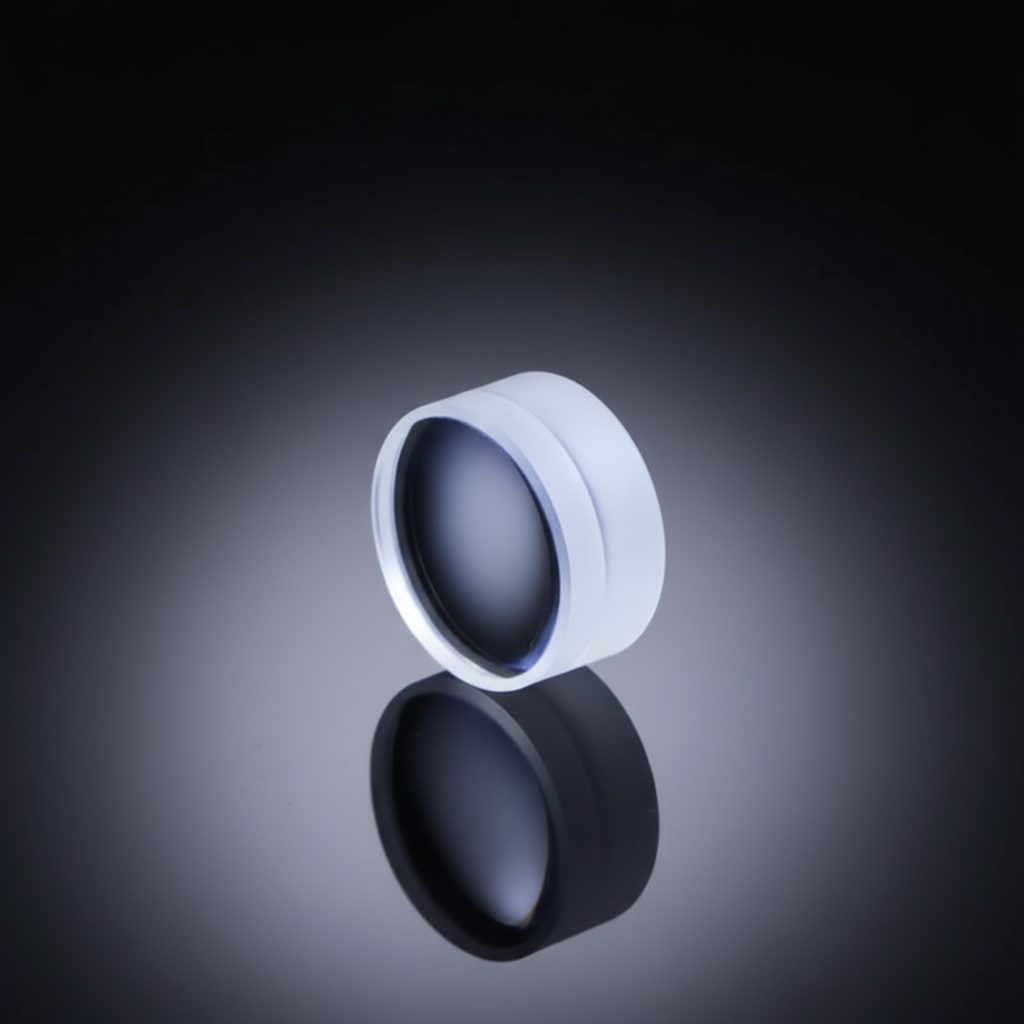

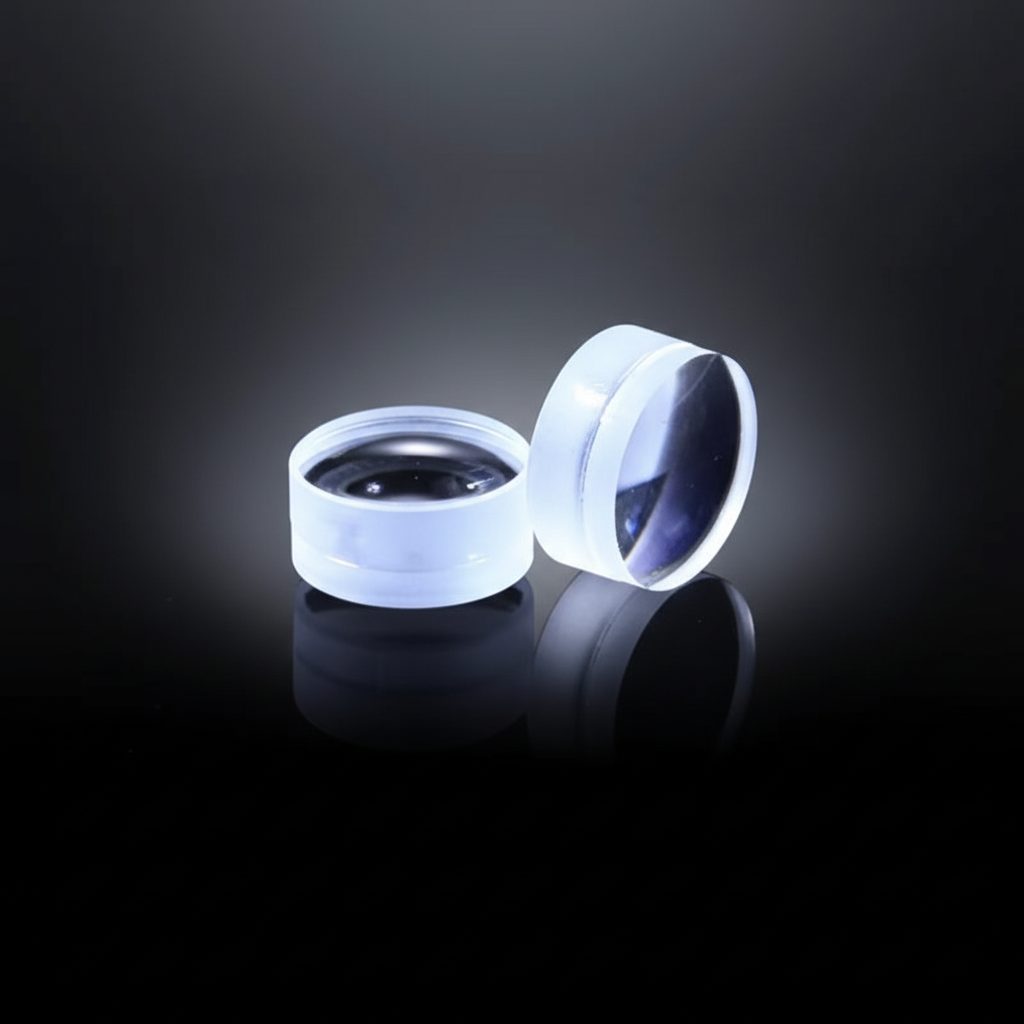

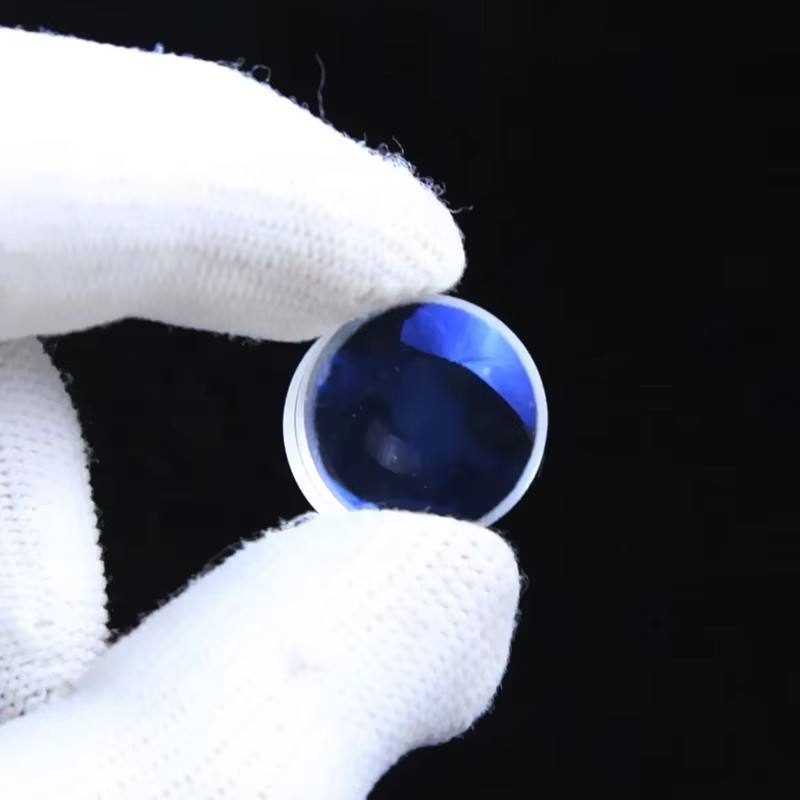

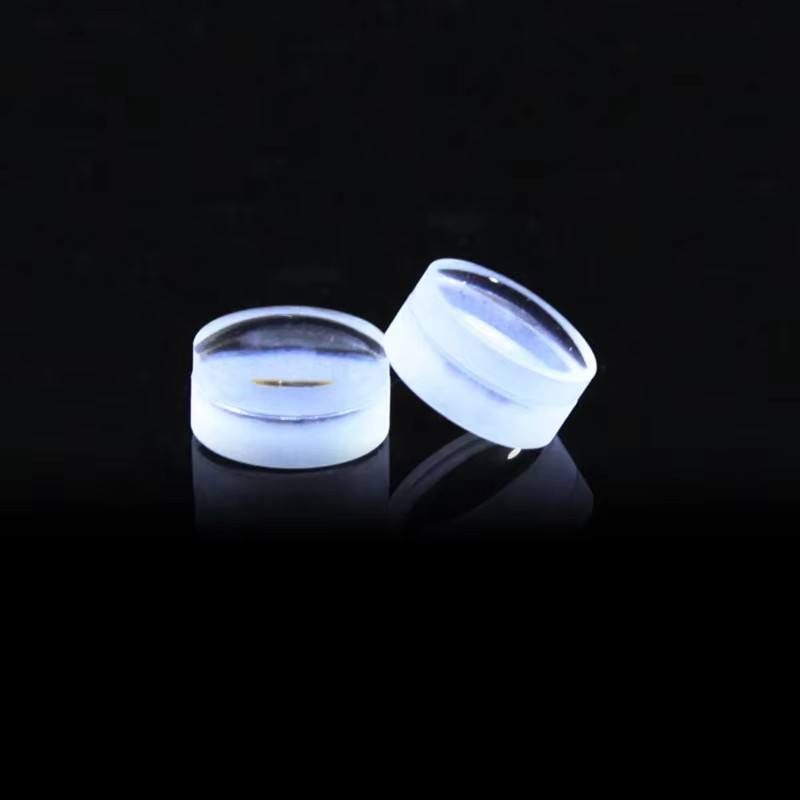

12.5x100 mm N-BK7 Achromatic Lens, AR Coated
Achromatic lens in N-BK7 material, 12.5 mm diameter, 100 mm focal length, customizable for various applications.
Core attributes
- Material
- N-BK7
- Shape
- Achromatic
- Diameter
- 12.5 mm
- Focal Length
- 100 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Achromatic
- Diameter
- 12.5 mm
- Focal Length
- 100 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
The achromatic lens made from N-BK7 material effectively corrects chromatic aberration, ensuring clearer images for various optical applications. With a focal length of 100 mm and a diameter of 12.5 mm, this lens is designed for precision in imaging systems. The anti-reflective coating enhances light transmission, making it ideal for applications in IR imaging, LIDAR, and machine vision. Its high surface quality of 60/40 ensures minimal distortion, while the option for customization supports specific project needs.
Key Features
- Achromatic design minimizes chromatic aberration for enhanced image clarity.
- Anti-reflective coating reduces glare, improving light transmission.
- Surface quality of 60/40 ensures high optical performance.
- Available in a compact size of 12.5 mm diameter and 100 mm focal length.
- Customizable options available for OEM, ODM, and OBM projects.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 12.5 x 100 |
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Achromatic |
| Diameter | 12.5 mm |
| Focal Length | 100 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.02 |
| Center Thickness | 4.33mm |
| Surface Flatness | 1/4@633nm |
| Clear Aperture | >=central 80% of diameter |
FAQ
What is the minimum order quantity (MOQ) for this lens?
The minimum order quantity (MOQ) is not specified.
Can I get this lens in custom sizes?
Yes, customizable options are available for OEM, ODM, and OBM requests.
