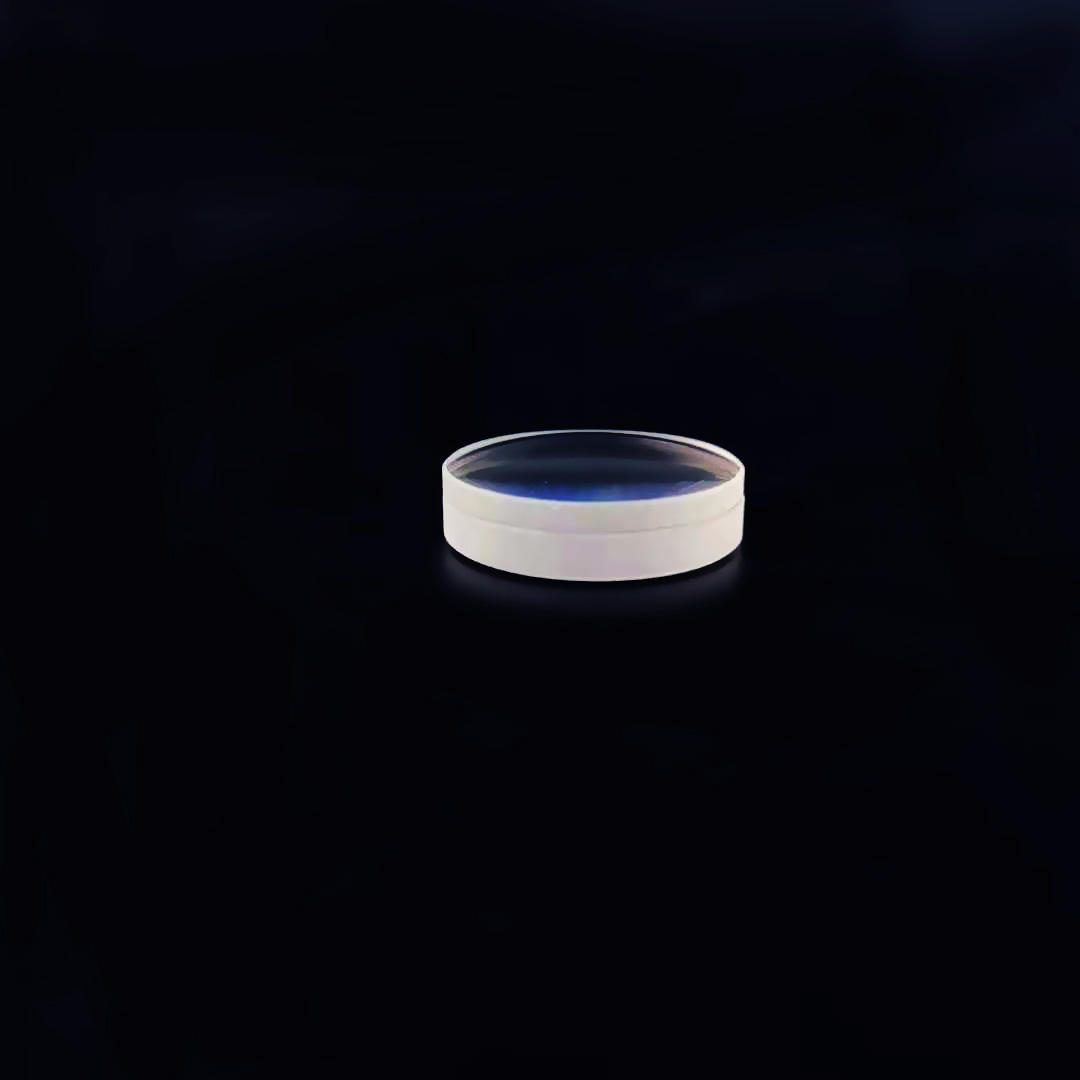

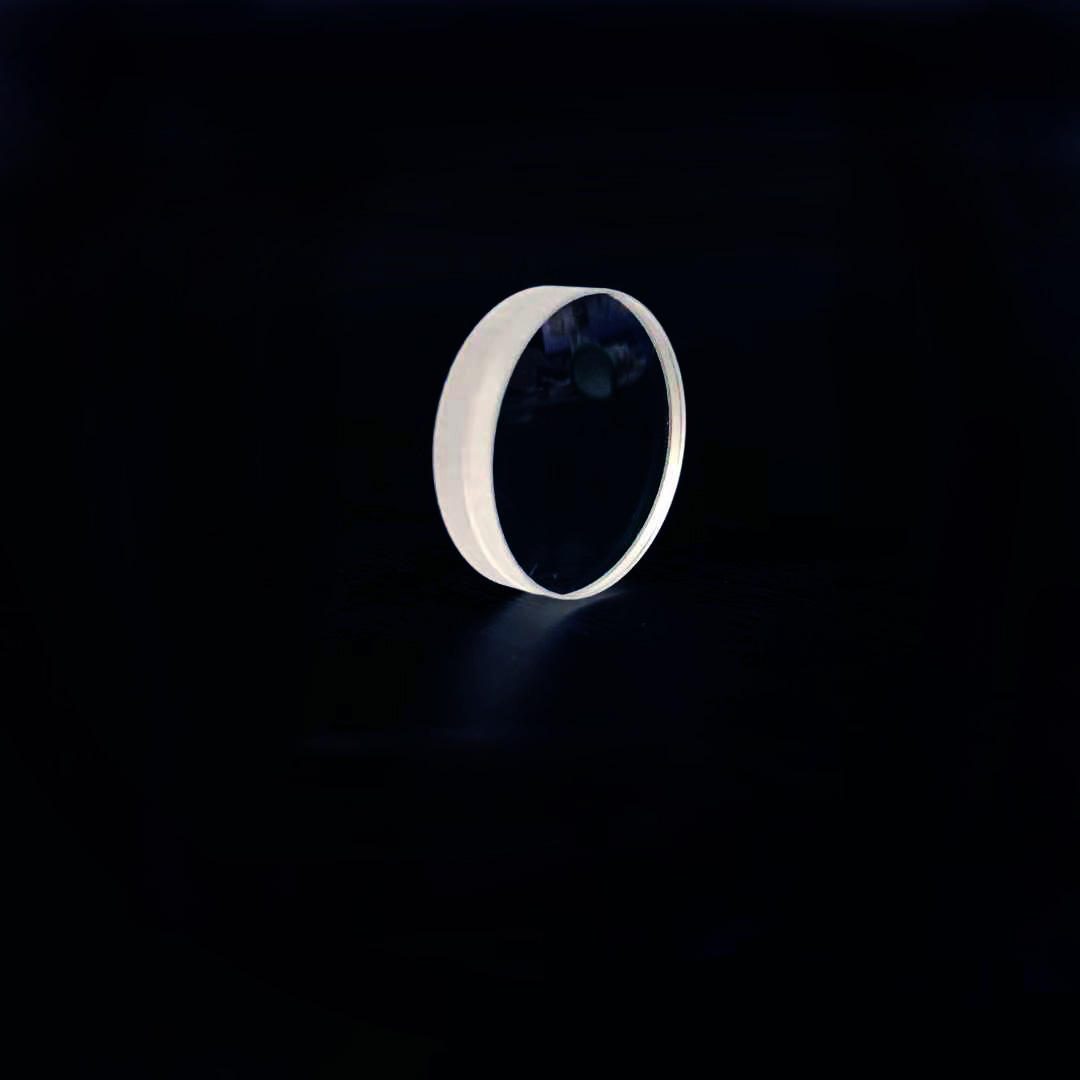

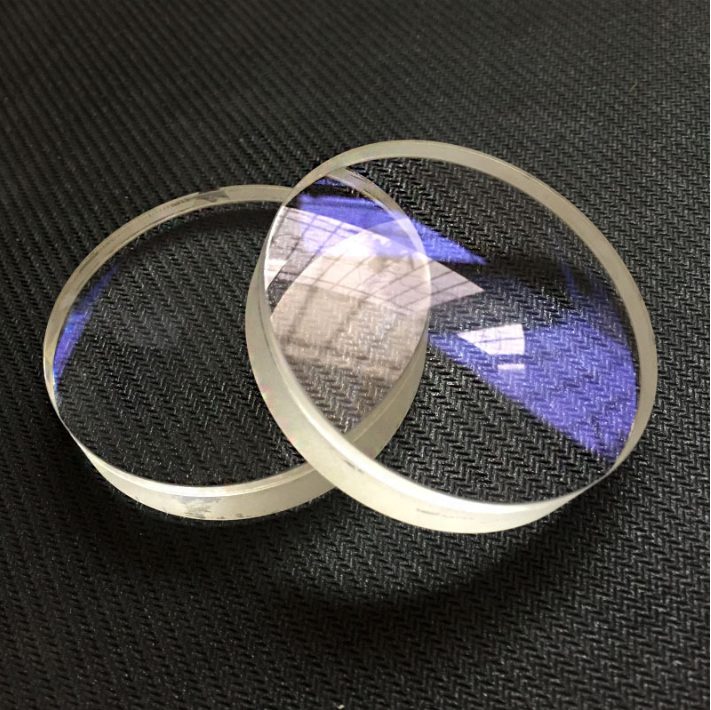

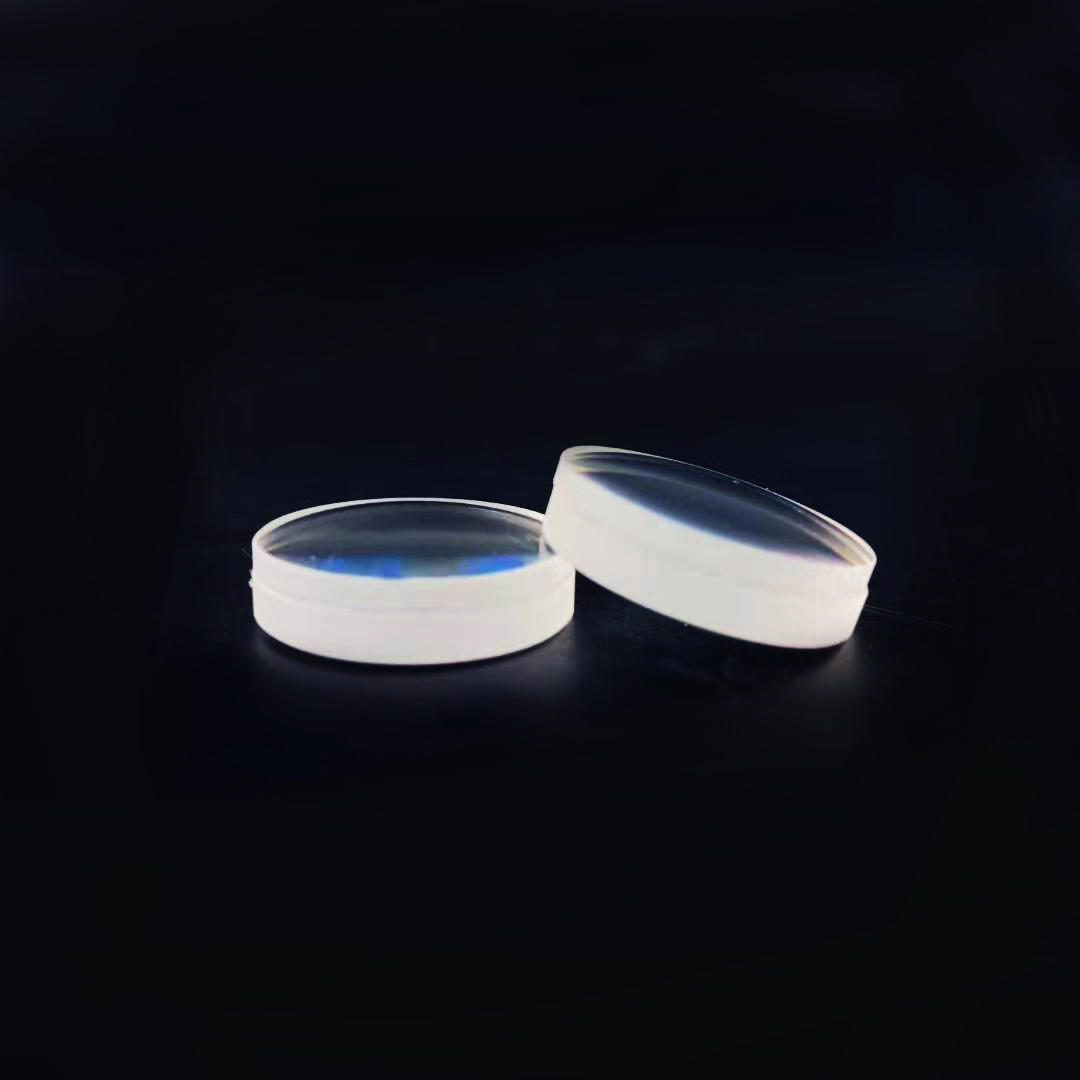

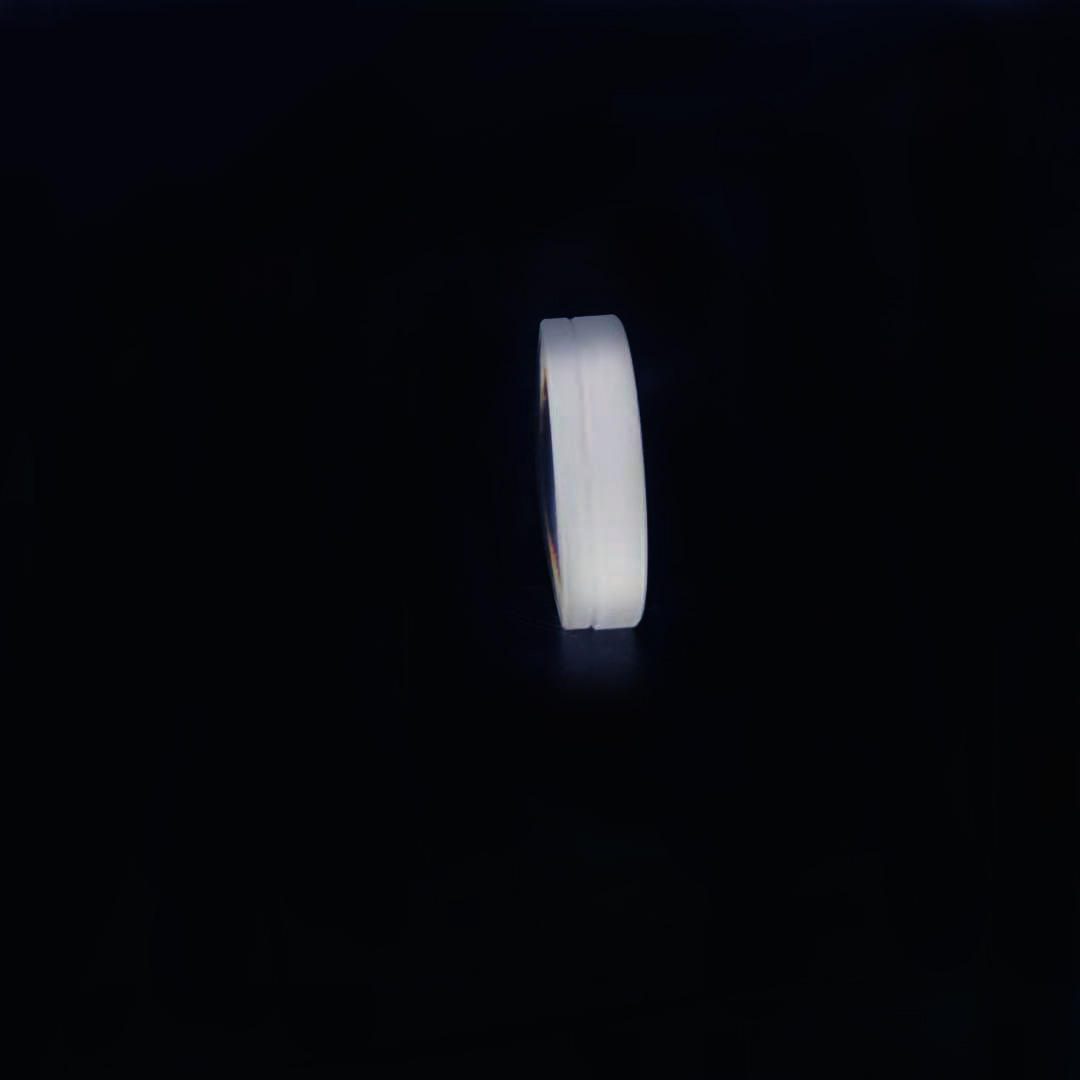

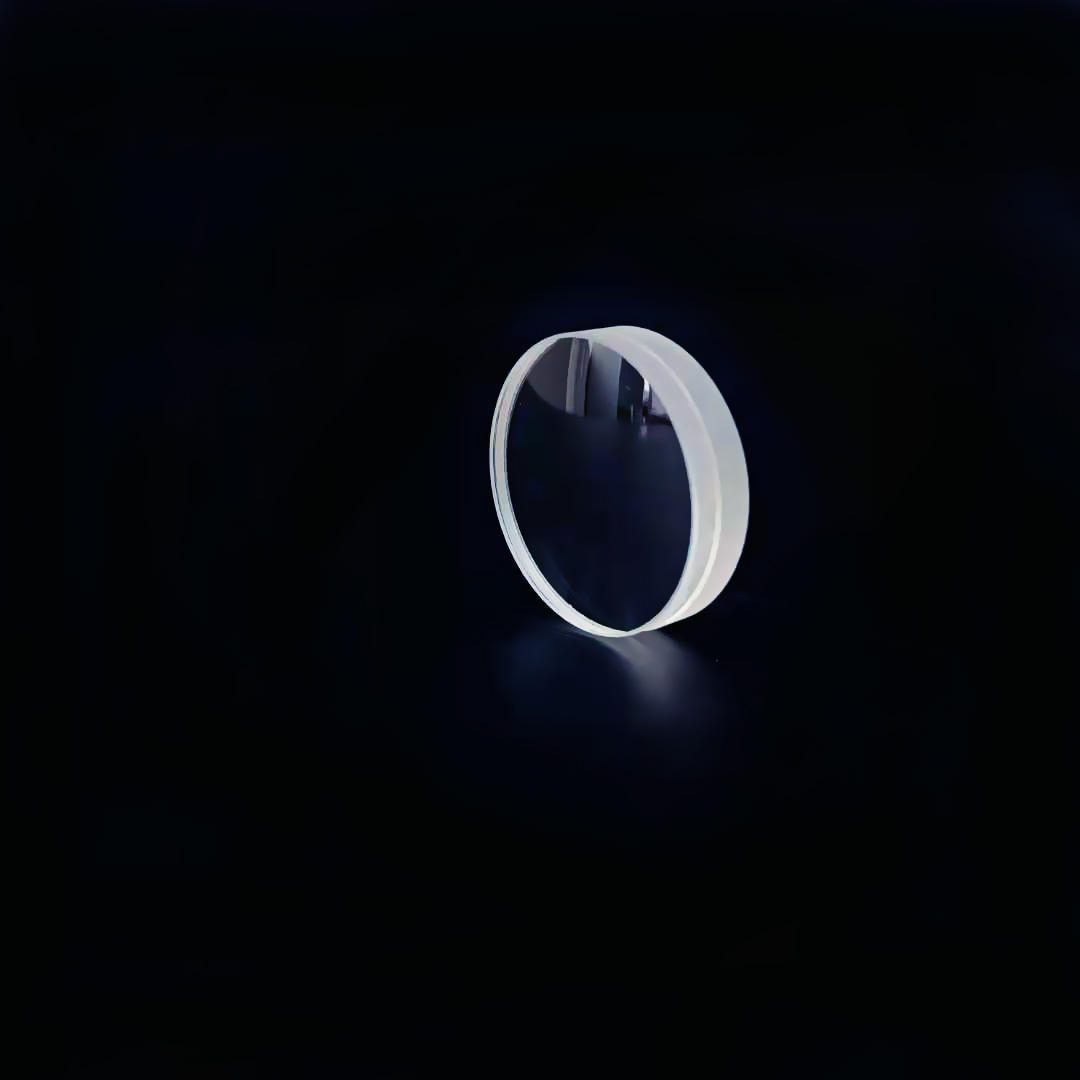

1x1 mm N-BK7 Achromatic Lens, AR Coated

Product description

This achromatic lens is designed for imaging applications across a broad wavelength range of 0.7-1.7 μm and 400-700 nm. With diameters from 1.0 mm to 200.0 mm and focal lengths between 1.0 mm and 1000.0 mm, it provides flexibility for various optical setups. The lens features anti-reflection coatings and a surface quality of 60/40, ensuring optimal performance in demanding environments. Custom sizes and configurations are available to meet specific project requirements.

Key Features

Achromatic design minimizes chromatic aberration, enhancing image clarity.
Available diameters from 1.0 mm to 200.0 mm for versatile applications.
Focal lengths ranging from 1.0 mm to 1000.0 mm for diverse optical needs.
Surface quality of 60/40 ensures high transmission and image quality.
Custom sizes and OEM/ODM support available for tailored solutions.

Available Sizes

Diameter x Focal Length (mm)
100.5 x 500.5

Applications

Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Achromatic
Diameter	1 mm
Focal Length	1 mm
Surface Quality	60/40
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Achromatic Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.05
Diameter Tolerance	+/-0.0-0.1mm
Wavelength	400-700nm or customer request
Clear Aperture	more than 98%
Coated	ar coated

FAQ

Can I get custom sizes for the achromatic lens?

Yes, custom sizes and configurations are available to meet specific project requirements.

What is the diameter tolerance for this lens?

The diameter tolerance is +/-0.0-0.1 mm.
