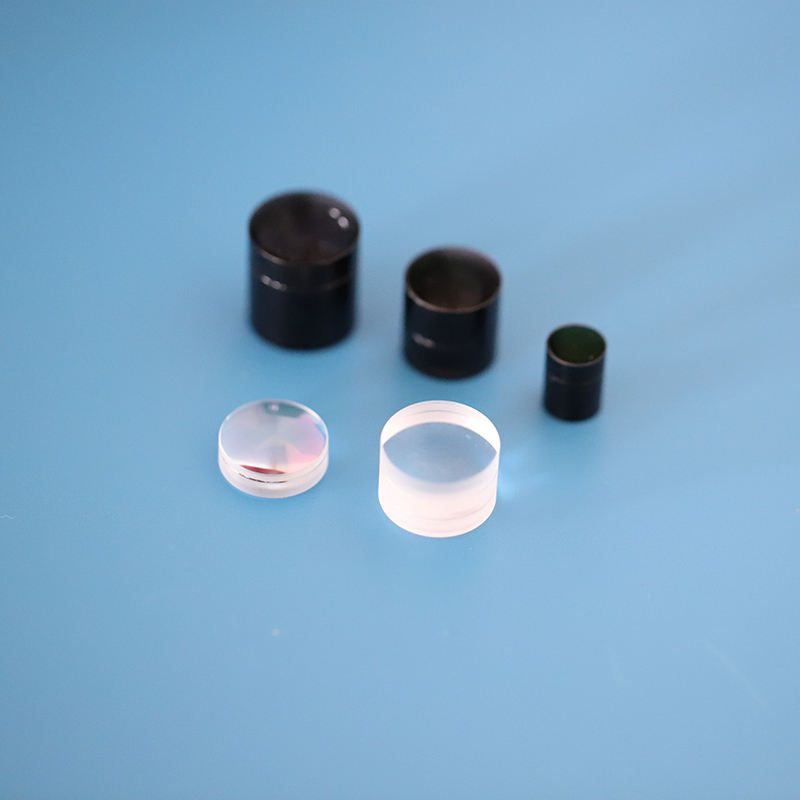

3x6 mm N-BK7 Achromatic Lens, AR Coated

Explore achromatic lenses for microscopy with minimal aberration and customizable sizes, ensuring high-quality imaging performance.

Core attributes

Material: N-BK7
Shape: Achromatic
Diameter: 3 mm
Focal Length: 6 mm
Surface Quality: 20/10
Coating: anti-reflective (AR)
Transmission bands: NIR (0.7-1.7 μm), VIS (400-700 nm)

Product description

Achromatic lenses are essential for applications requiring minimal chromatic aberration, such as microscopy. With a broad operational range of 0.7-1.7 μm and 400-700 nm, these lenses enhance image quality by combining two optical elements to provide superior performance. They are available in diameters from 3.0 mm to 100.0 mm and offer customizable sizes, ensuring compatibility with various optical systems.

Key Features

Achromatic design minimizes chromatic and spherical aberrations for superior imaging.
Available diameters from 3.0 mm to 100.0 mm, accommodating diverse applications.
Surface quality rated at 20/10 ensures high clarity and precision.
Customizable support for OEM projects allows tailored solutions.
Centration tolerance of ±1 arc minutes enhances alignment accuracy.

Available Sizes

Diameter x Focal Length (mm)
51.5 x 6

Applications

Microscopy

Specification Summary

Item	Value
Material	N-BK7
Shape	Achromatic
Diameter	3 mm
Focal Length	6 mm
Surface Quality	20/10
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Achromatic Lens
Customized Support	OEM
Warranty	A month
Weight	1
Product	Achromatic lens
Diameter Tolerance	+0.0, -0.05mm
Center Thickness Tolerance	±0.1mm
Centration	±1 arc minutes

FAQ

What are the available custom sizes?

Custom sizes are available, with standard options including diameters from 3.0 mm to 100.0 mm and a variant size of 51.5 mm by 6.0 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity (MOQ) is not specified, allowing for flexible procurement.
