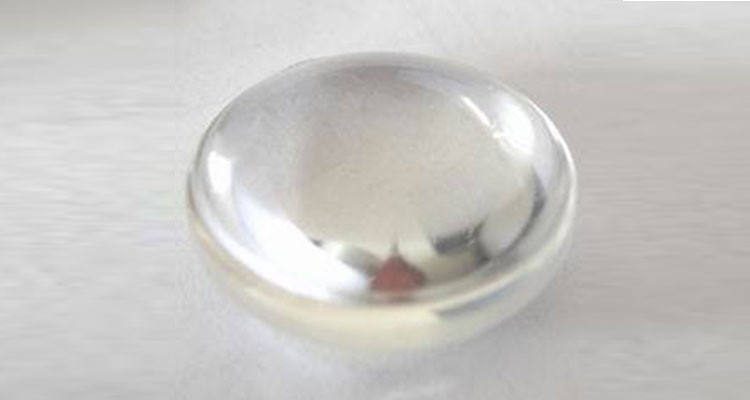

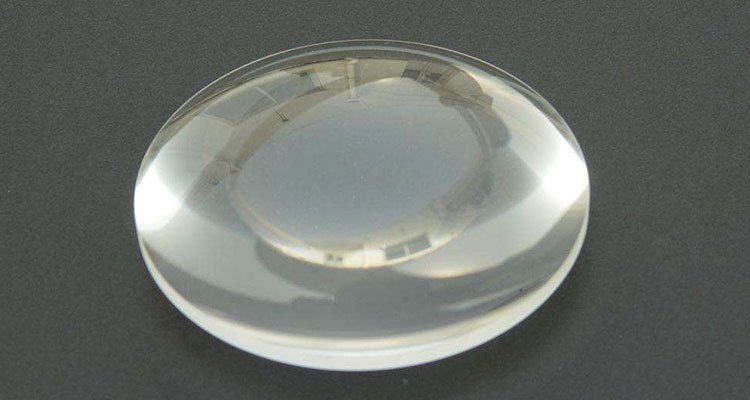

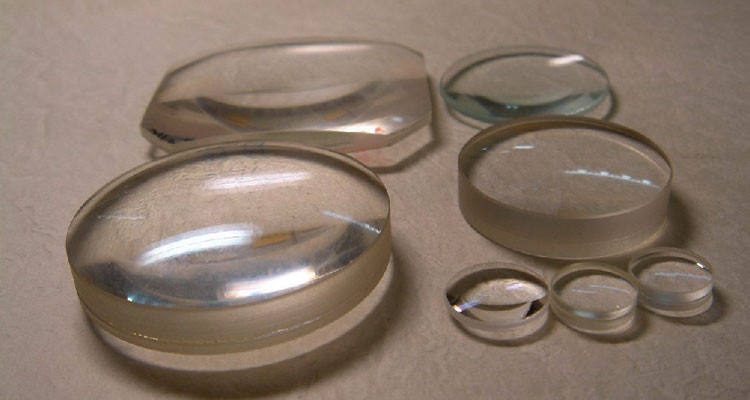

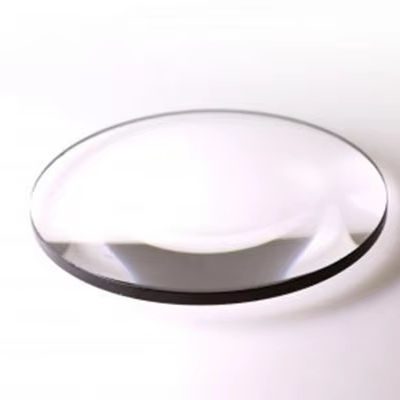

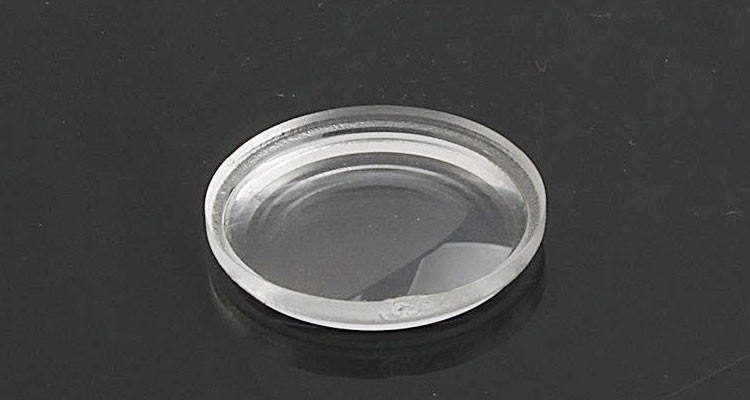

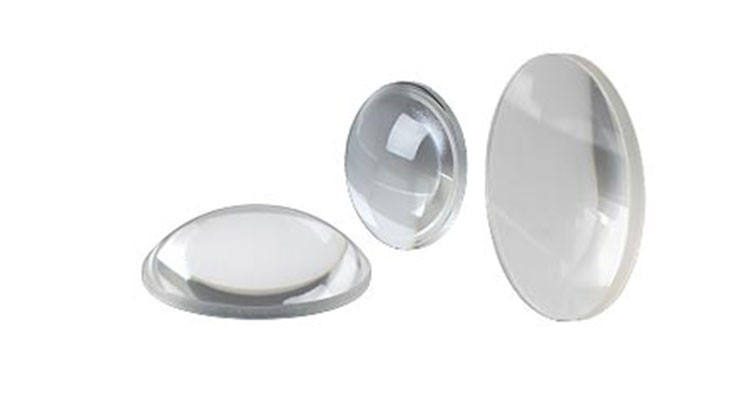

5 mm N-BK7 Achromatic Lens, AR Coated

Product description

The achromatic lens made from N-BK7 material is designed for precise optical alignment across a wavelength range of 0.7-1.7 μm. Its anti-reflective coatings enhance light transmission, making it suitable for applications in IR imaging, LIDAR, and medical devices. With a diameter range from 5.0 mm to 500.0 mm, this lens offers versatility for various setups. The lens also supports OEM and ODM customization to meet specific project requirements.

Key Features

Achromatic design minimizes chromatic aberration, ensuring sharp images.
Anti-reflective coatings improve transmittance and reduce glare.
Diameter options from 5.0 mm to 500.0 mm accommodate diverse applications.
Dimension tolerance of +/-0.1 mm ensures precision in fitting.
Parallelism of < 3 arcmin enhances optical alignment accuracy.

Specification Summary

Item	Value
Material	N-BK7
Shape	Achromatic
Diameter	5 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Type	Achromatic Lens
Customized Support	OEM, ODM
Warranty	6 months
Weight	0.05g(0oz)
Dimension Tolerance	+/-0.1mm
Focal Length Tolerance	±2%
Parallelism	< 3 arcmin
Clear Aperture	>90%

FAQ

Can I get custom sizes for this lens?

Yes, the lens supports OEM and ODM customization to meet specific size requirements.

What is the MOQ for ordering this lens?

The minimum order quantity (MOQ) is not specified; please inquire for details.
