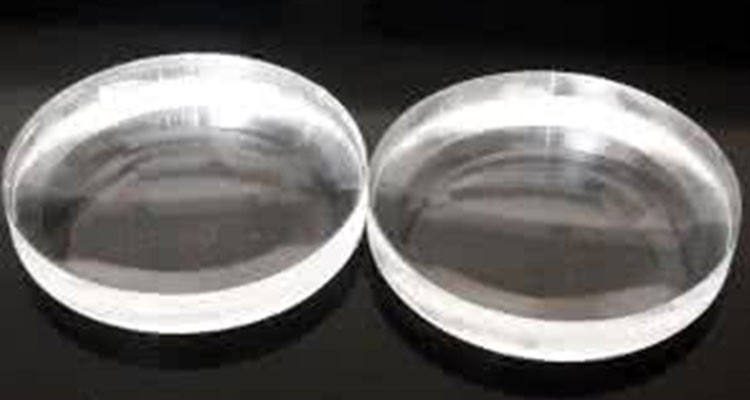

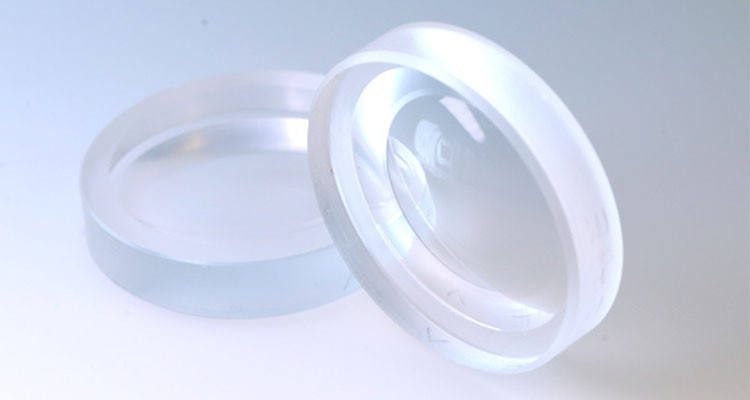

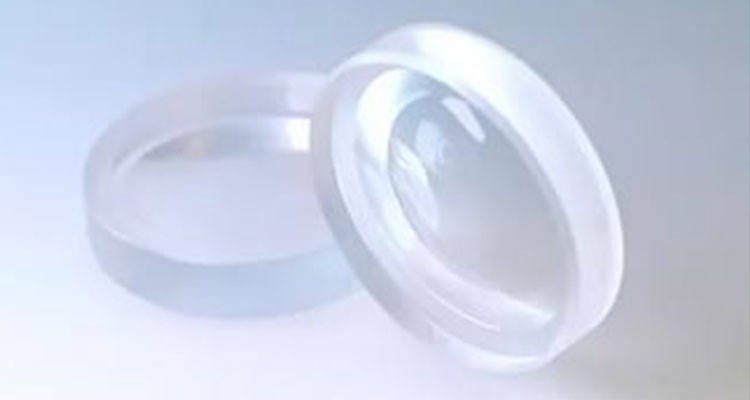

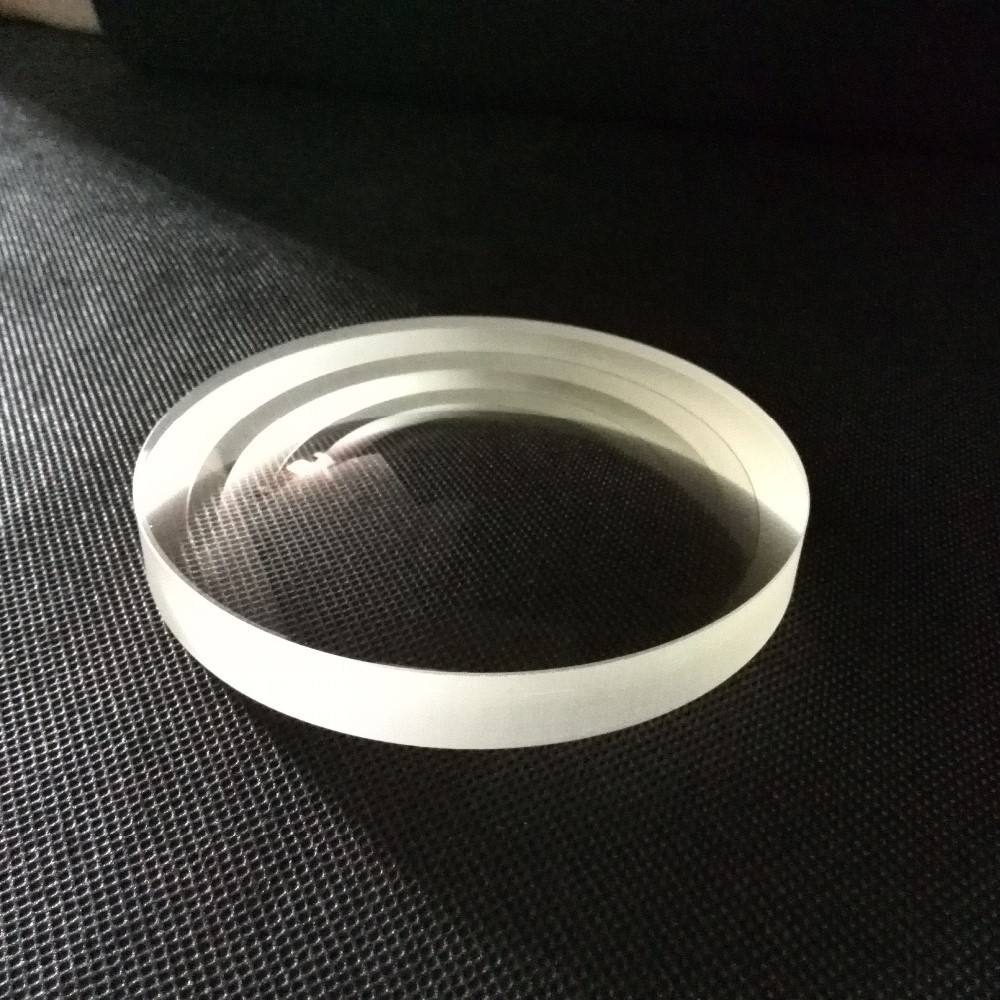

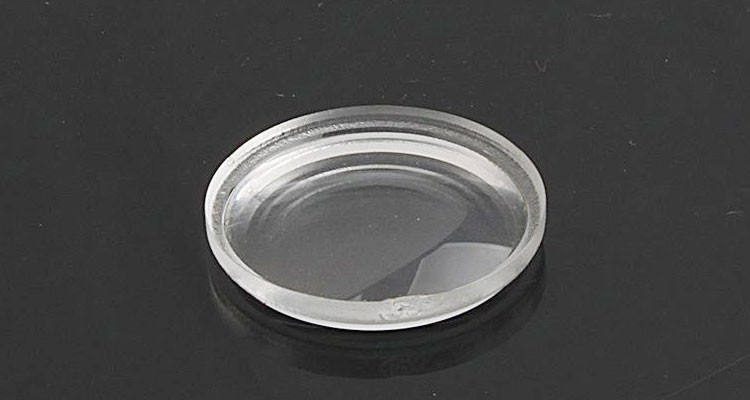

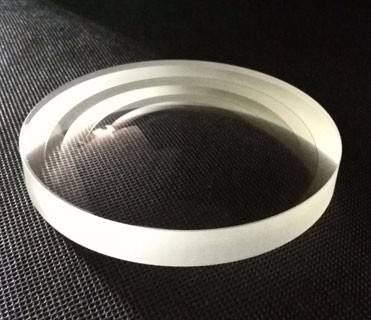

5 mm N-BK7 Achromatic Lens, AR Coated
Achromatic lens in N-BK7 for precise imaging under 400 nm. Customizable sizes and anti-reflective coating enhance performance.
Core attributes
- Material
- N-BK7
- Shape
- Achromatic
- Diameter
- 5 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- UV (<400 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Achromatic
- Diameter
- 5 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- UV (<400 nm)
Product description
The achromatic lens made from N-BK7 material is designed to reduce chromatic aberration, making it ideal for precise imaging applications below 400 nm. With a diameter range from 5.0 mm to 500.0 mm, it offers versatility for various optical systems. The anti-reflective coating enhances light transmission, ensuring optimal performance in imaging tasks. This lens is suitable for R&D and procurement engineers seeking reliable optical components for their advanced applications.
Key Features
- Achromatic design minimizes chromatic aberration for improved imaging accuracy.
- Diameter range from 5.0 mm to 500.0 mm accommodates diverse applications.
- Anti-reflective coating enhances light transmission, reducing glare.
- High precision optics ensure accurate focus and alignment.
- Customizable support available for OEM and ODM requirements.
Applications
Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Achromatic |
| Diameter | 5 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM, ODM |
| Warranty | 6 months |
| Weight | 0.05g(0oz) |
| Dimension Tolerance | +/-0.1mm |
| Focal Length Tolerance | ±2% |
| Parallelism | < 3 arcmin |
| Clear Aperture | >90% |
FAQ
Can I get custom sizes for this lens?
Yes, the lens is customizable with support for OEM and ODM specifications.
What is the dimension tolerance for this lens?
The dimension tolerance is +/-0.1 mm.
