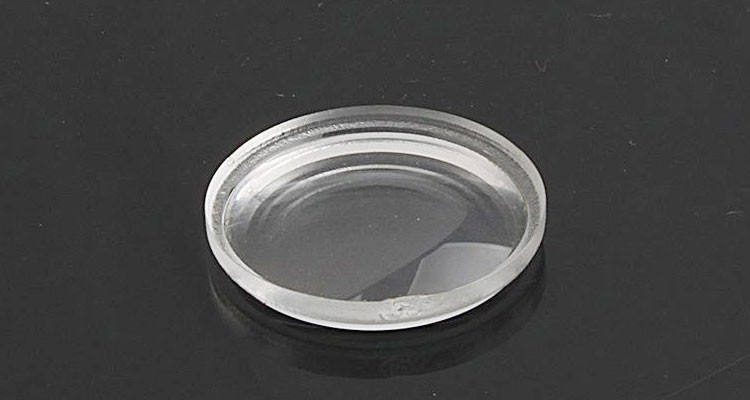

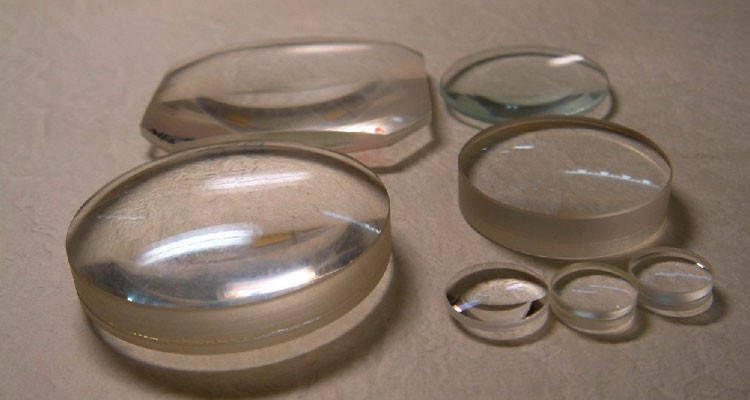

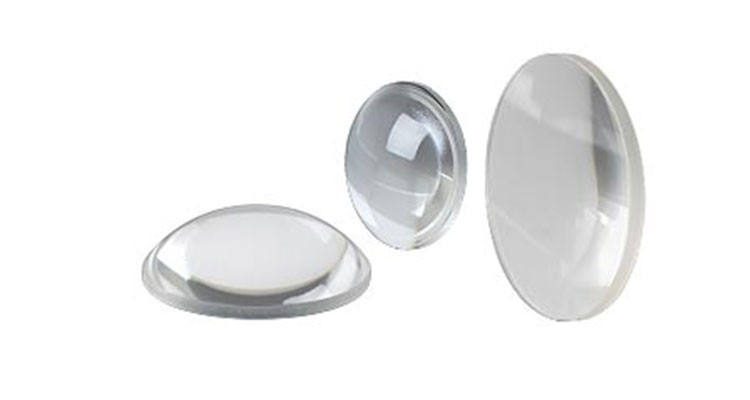

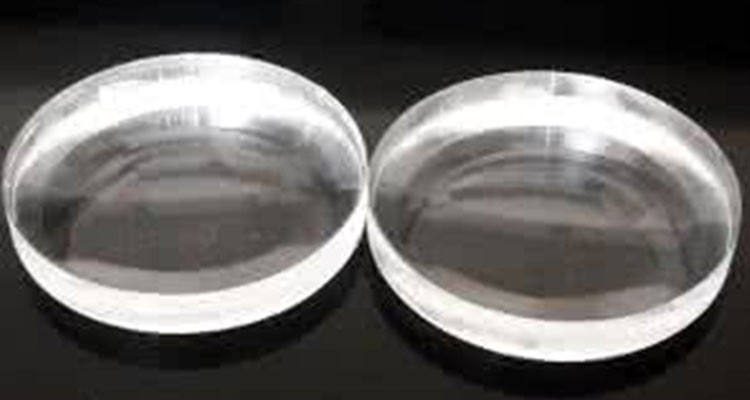

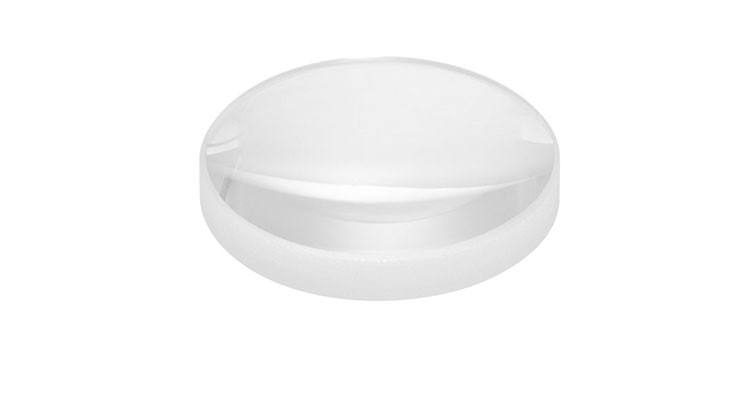

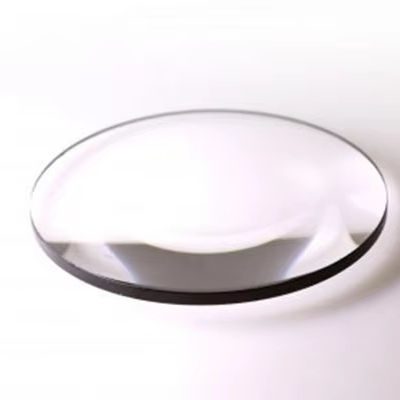

5 mm N-BK7 Achromatic Lens, AR Coated
Achromatic lens in N-BK7, 400-700 nm, customizable sizes, high precision for optical applications.
Core attributes
- Material
- N-BK7
- Shape
- Achromatic
- Diameter
- 5 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Achromatic
- Diameter
- 5 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
The achromatic lens made from N-BK7 material is designed for applications requiring precise optical alignment across the 400-700 nm wavelength range. Its anti-reflective coating enhances light transmission, making it suitable for IR imaging, LIDAR, and machine vision. With a diameter range from 5.0 mm to 500.0 mm, this lens meets diverse optical needs while ensuring high performance and reliability.
Key Features
- Diameter range: 5.0 mm to 500.0 mm for versatile applications.
- Customized support available for OEM and ODM projects.
- Clear aperture greater than 90% for optimal light transmission.
- Parallelism of less than 3 arcmin ensures precise optical alignment.
- Focal length tolerance of ±2% for accurate focusing.
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Achromatic |
| Diameter | 5 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM, ODM |
| Warranty | 6 months |
| Weight | 0.05g(0oz) |
| Dimension Tolerance | +/-0.1mm |
| Focal Length Tolerance | ±2% |
| Parallelism | < 3 arcmin |
| Clear Aperture | >90% |
FAQ
What are the available custom sizes?
The lens is available in a diameter range from 5.0 mm to 500.0 mm.
What is the MOQ for this lens?
Minimum order quantity details are not specified.
