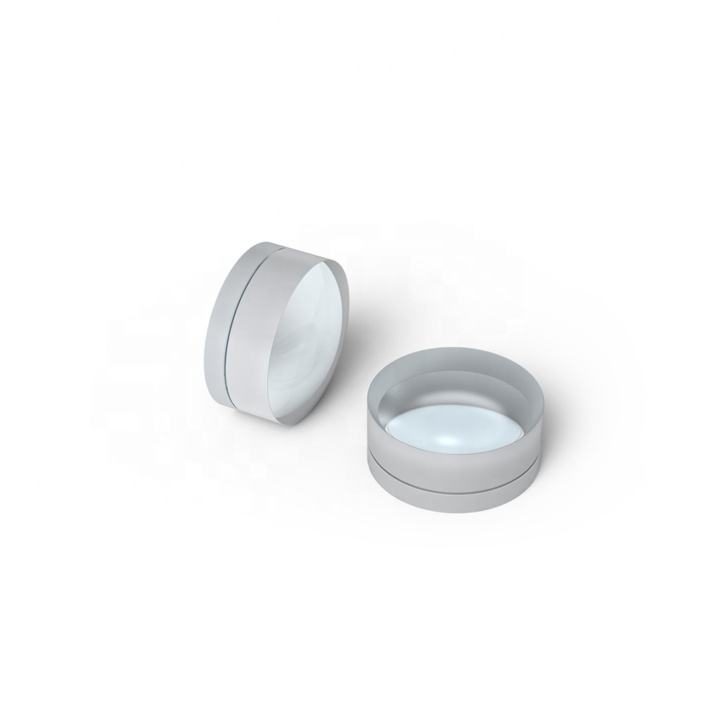

5 mm N-BK7 Achromatic Lens, AR Coated

Product description

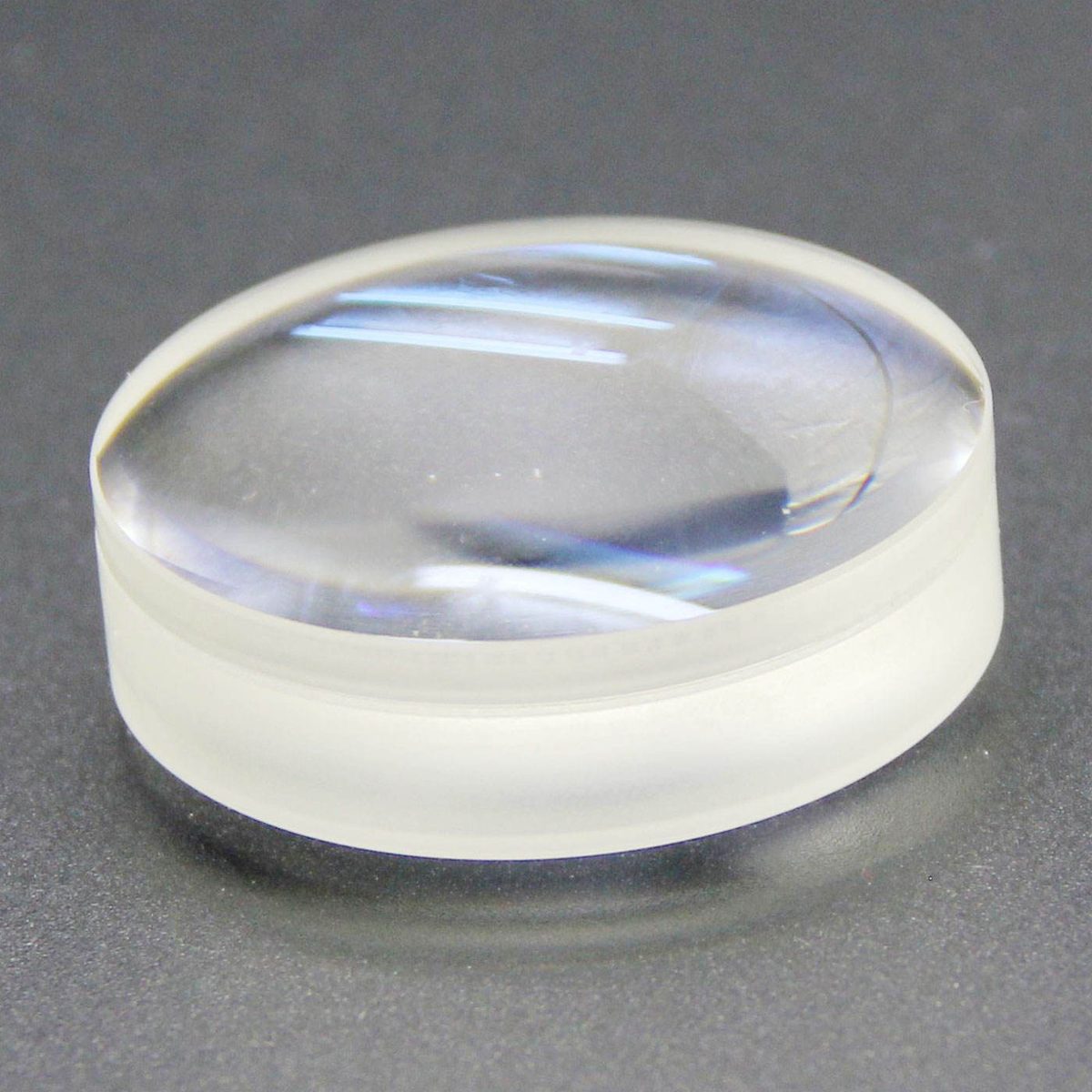

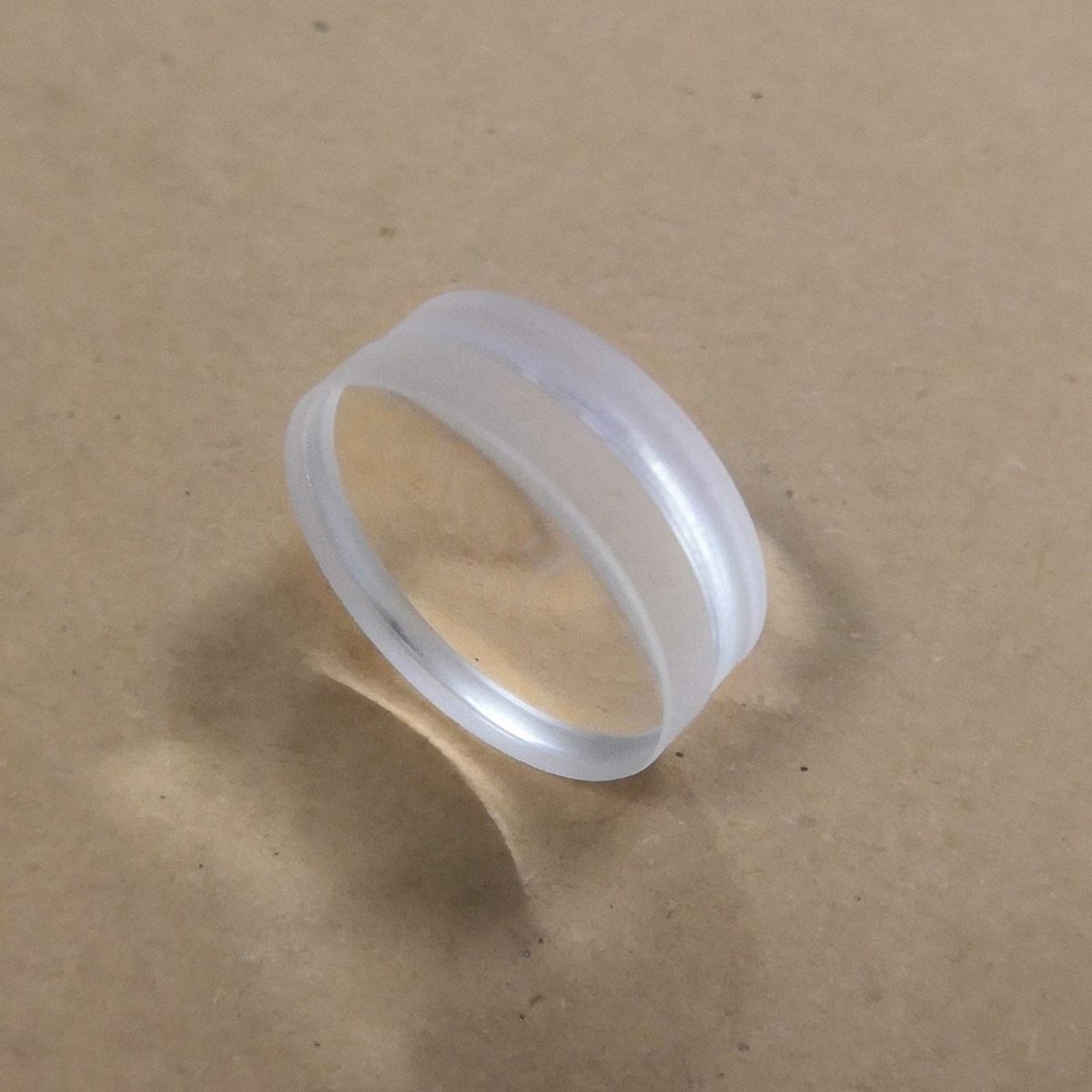

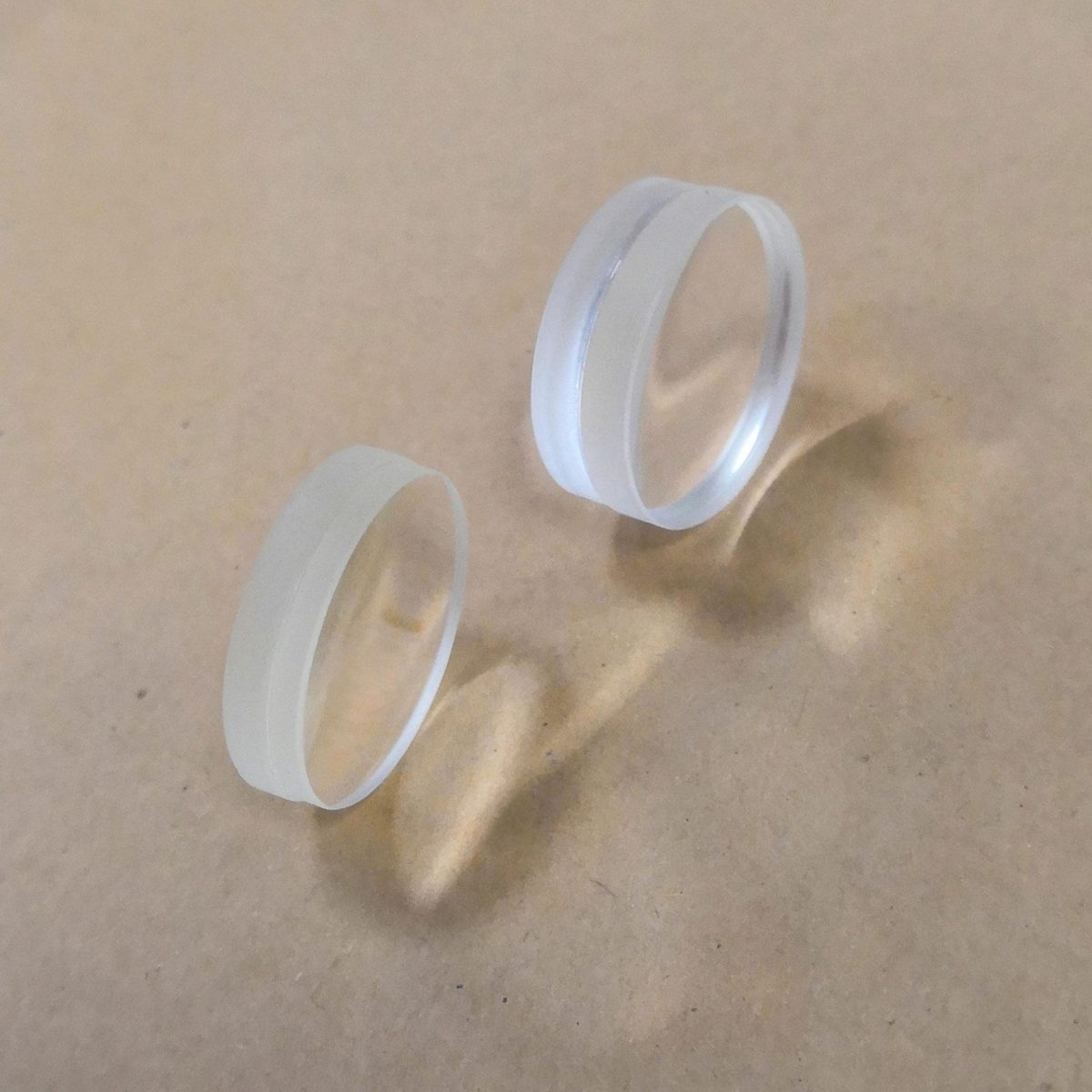

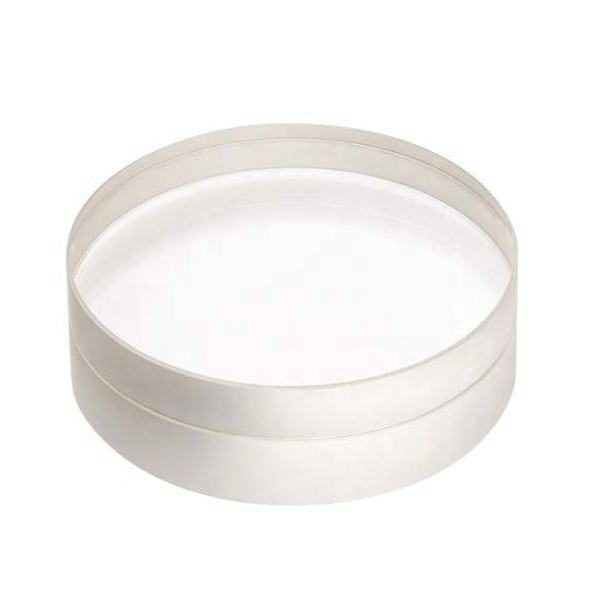

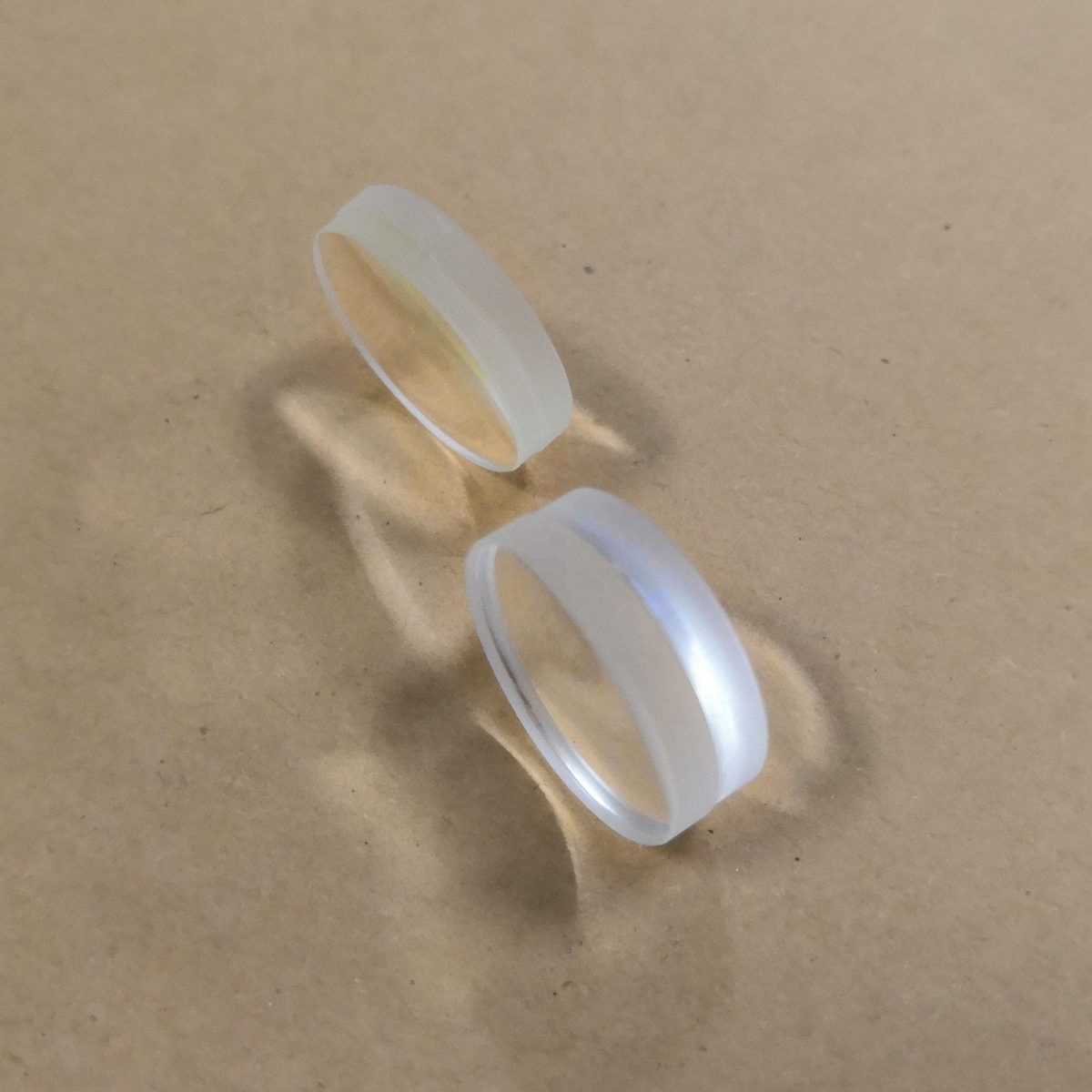

This achromatic lens, made from N-BK7 glass, is designed for applications in collimation and imaging within the 400-700 nm wavelength range. Its dual-element construction minimizes chromatic aberration, enhancing optical performance and clarity over single-element lenses. With a diameter range of 5.0 to 500.0 mm, it offers flexibility for various optical systems. Ideal for precision applications, this lens can be customized to meet specific requirements, ensuring reliability and batch consistency for R&D and procurement engineers.

Key Features

Achromatic design reduces chromatic aberration for sharper images.
Diameter options from 5.0 mm to 500.0 mm for versatile applications.
Clear aperture greater than 90% ensures high light transmission.
Dimension tolerance of +/-0.1 mm supports precise integration.
Available with OEM/ODM support for custom solutions.

Applications

Collimation, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Achromatic
Diameter	5 mm
Coating	anti-reflective (AR), high-reflective (HR)
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Achromatic Lens
Customized Support	OEM, ODM
Warranty	6 months
Weight	0.05g
Dimension Tolerance	+/-0.1mm
Focal Length Tolerance	±2%
Parallelism	< 3 arcmin
Clear Aperture	>90%

FAQ

Can I get custom sizes for this lens?

Yes, the lens is available in a diameter range from 5.0 mm to 500.0 mm.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified, allowing for flexible procurement.
