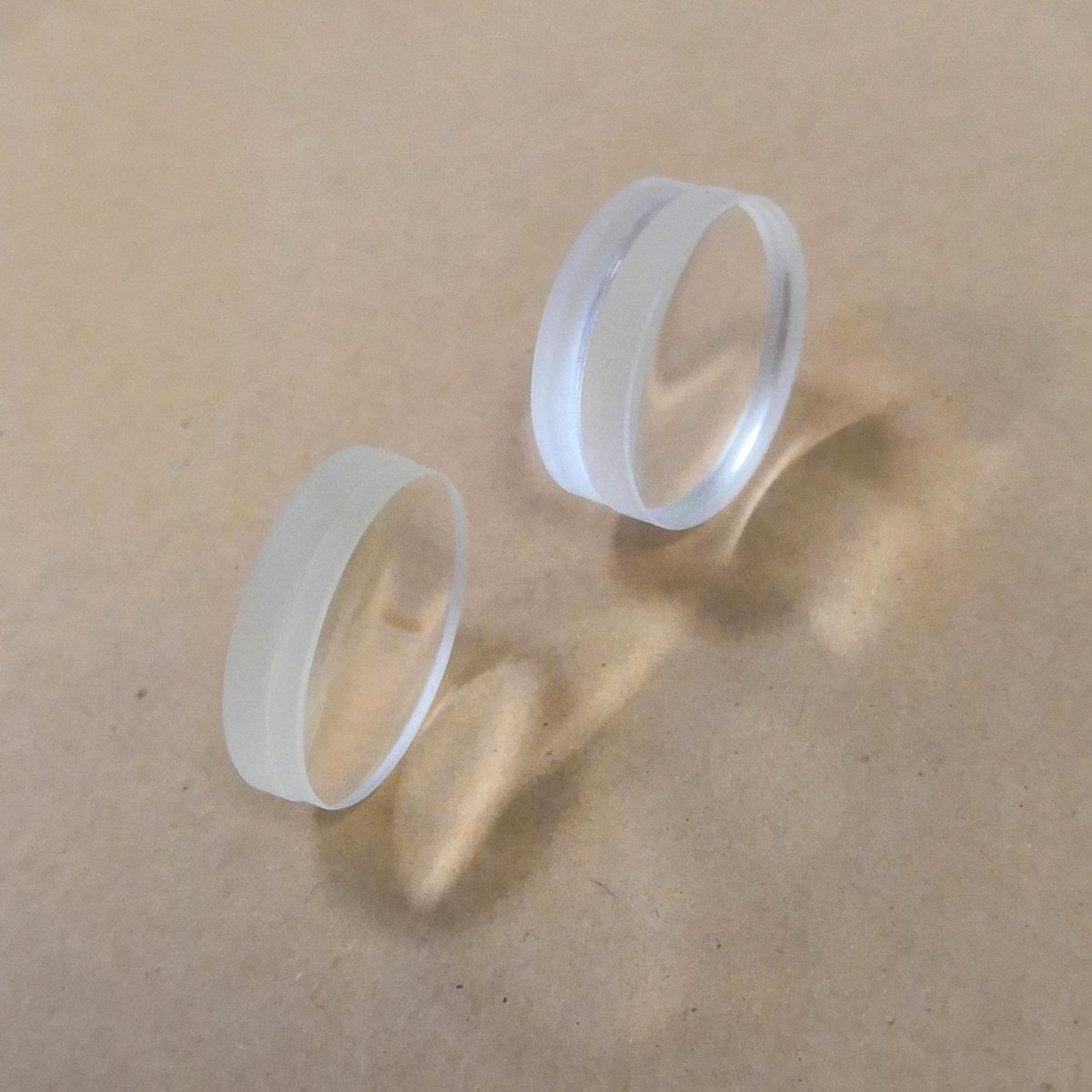

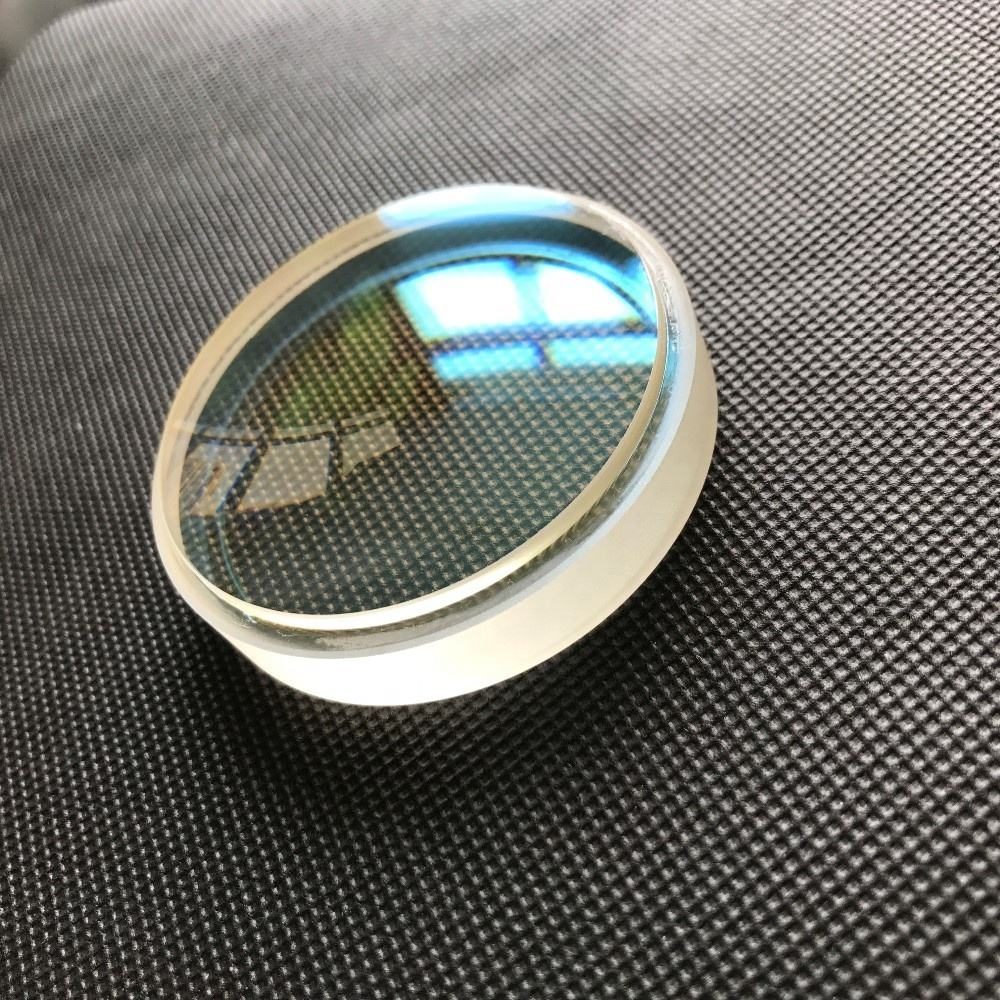

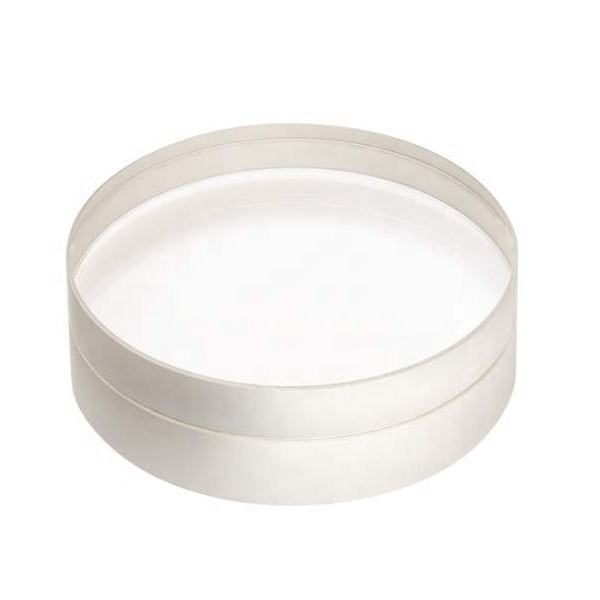

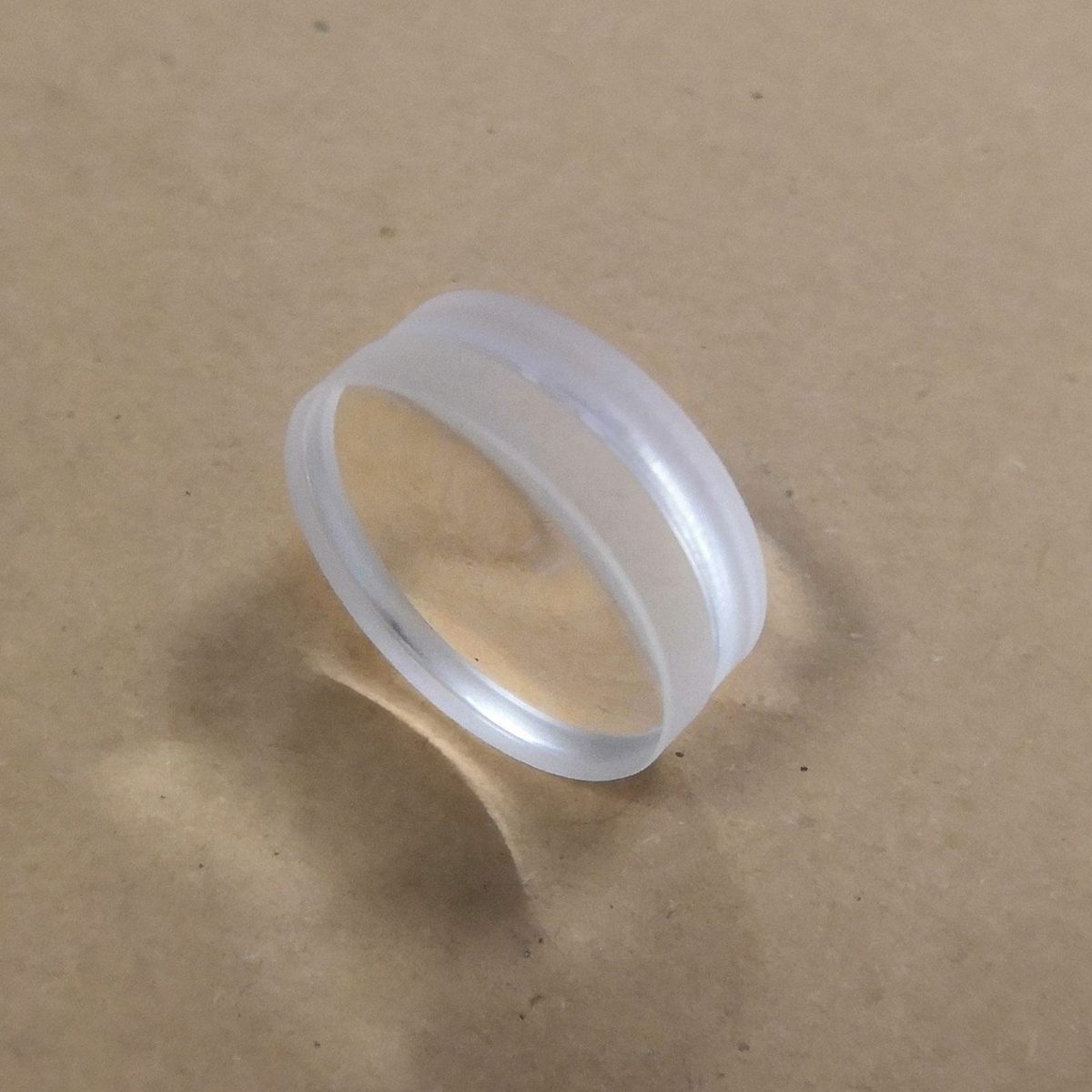

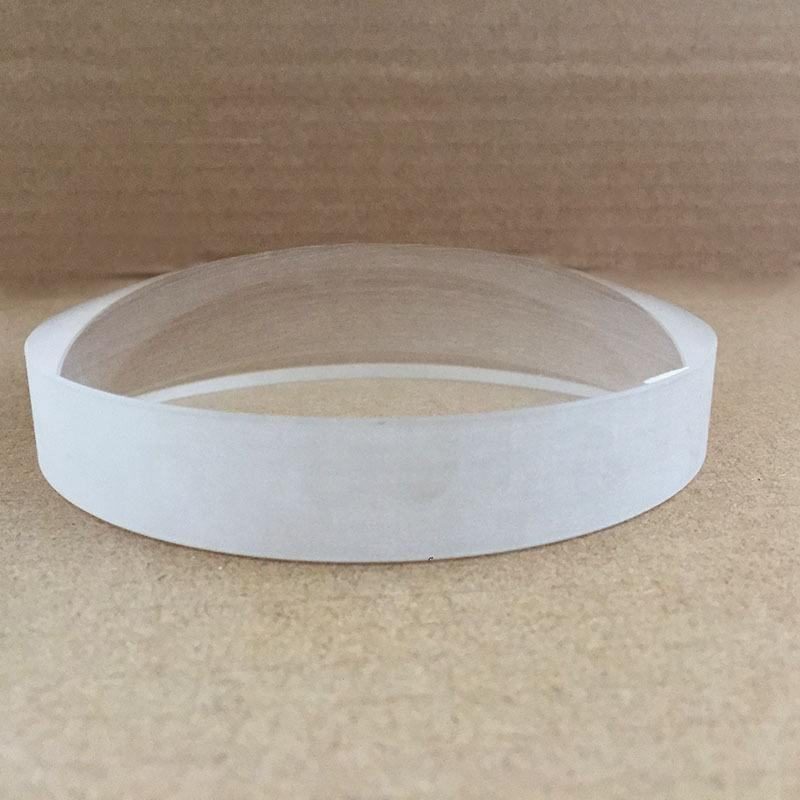

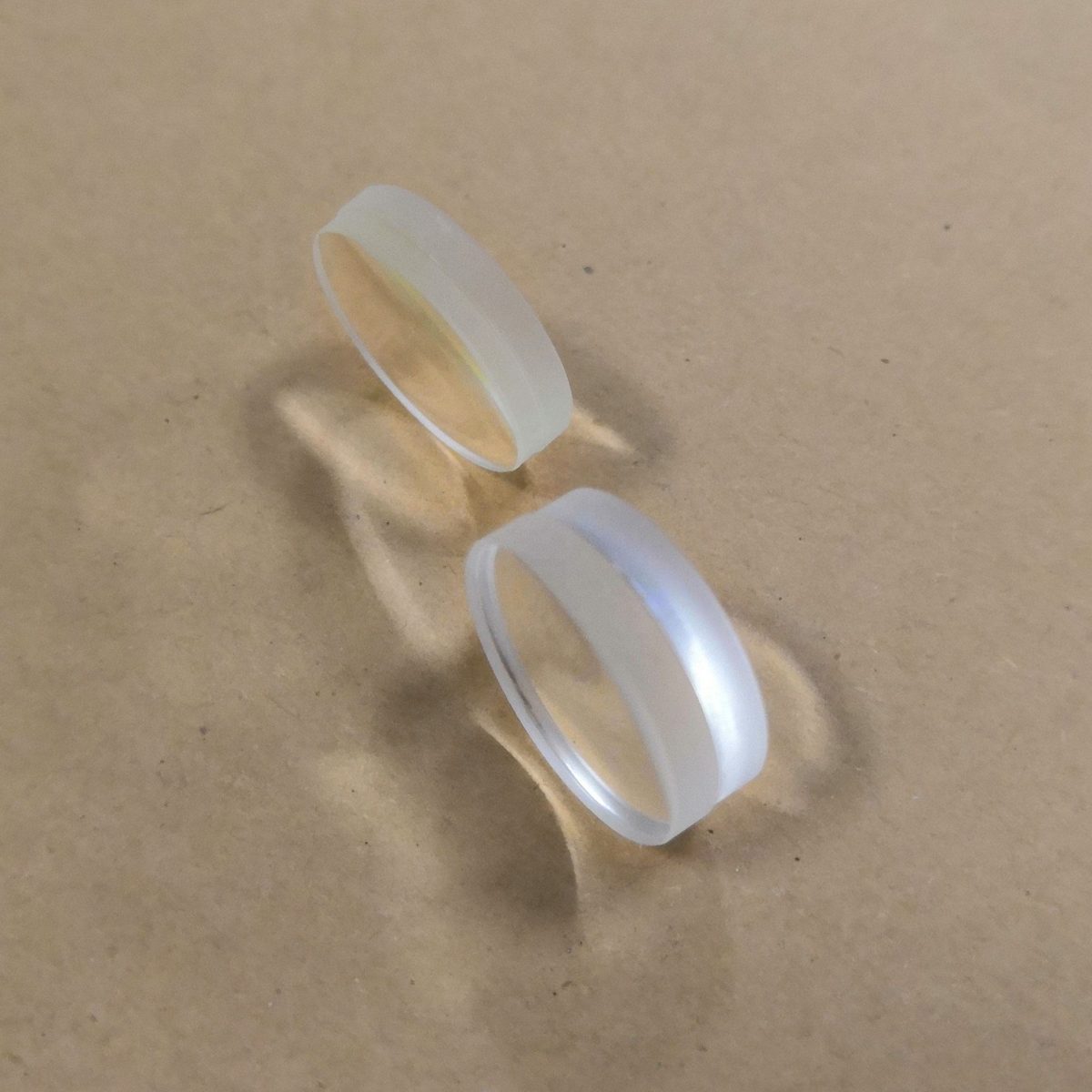

5 mm N-BK7 Achromatic Lens, AR Coated

Product description

The Achromatic Lens made from N-BK7 glass is designed to provide high-quality optical performance across a wide range of wavelengths. Its anti-reflective coating minimizes light loss, enhancing image clarity for precise measurements in various applications. With a diameter range of 5.0 mm to 500.0 mm, this lens is suitable for diverse optical systems, ensuring reliable performance and accurate focus.

Key Features

Diameter range: 5.0 mm to 500.0 mm for versatile application fit.
Customizable options available for OEM and ODM support.
High clarity with >90% clear aperture for sharp images.
Dimension tolerance of +/-0.1 mm ensures precise fitting.
Parallelism of < 3 arcmin for improved optical alignment.

Specification Summary

Item	Value
Material	N-BK7
Shape	Achromatic
Diameter	5 mm
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Achromatic Lens
Customized Support	OEM, ODM
Warranty	6 months
Weight	0.05g
Dimension Tolerance	+/-0.1mm
Focal Length Tolerance	±2%
Parallelism	< 3 arcmin
Clear Aperture	>90%

FAQ

What are the available custom sizes?

The lens is available in a diameter range from 5.0 mm to 500.0 mm, with customizable options.

What is the MOQ for ordering?

The minimum order quantity (MOQ) is not specified, allowing flexibility in procurement.
