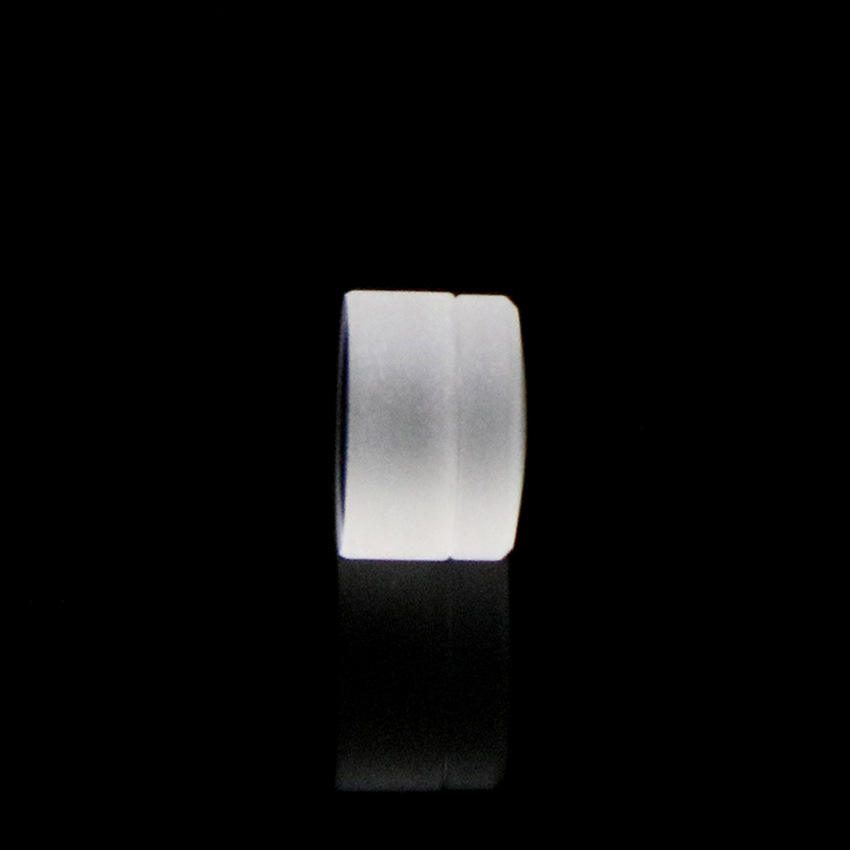

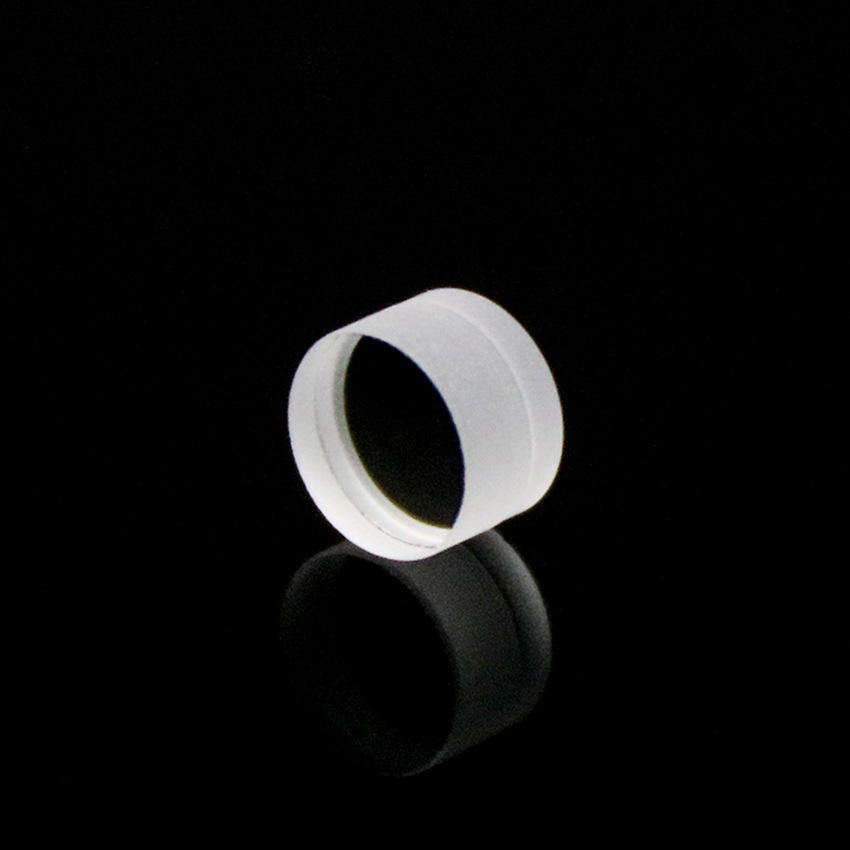

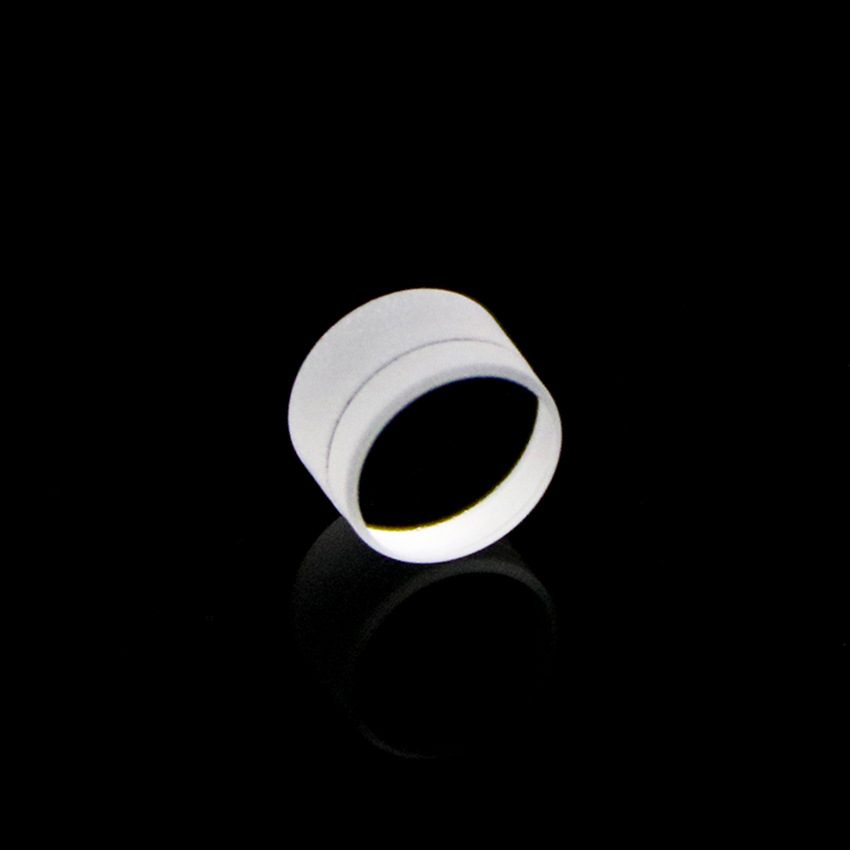

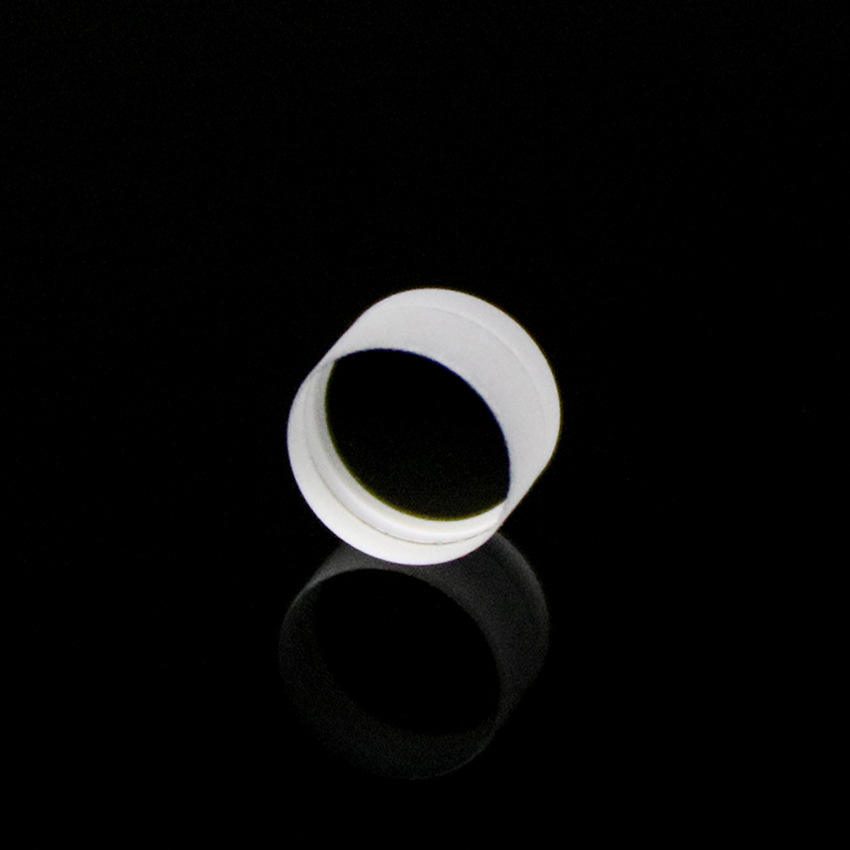

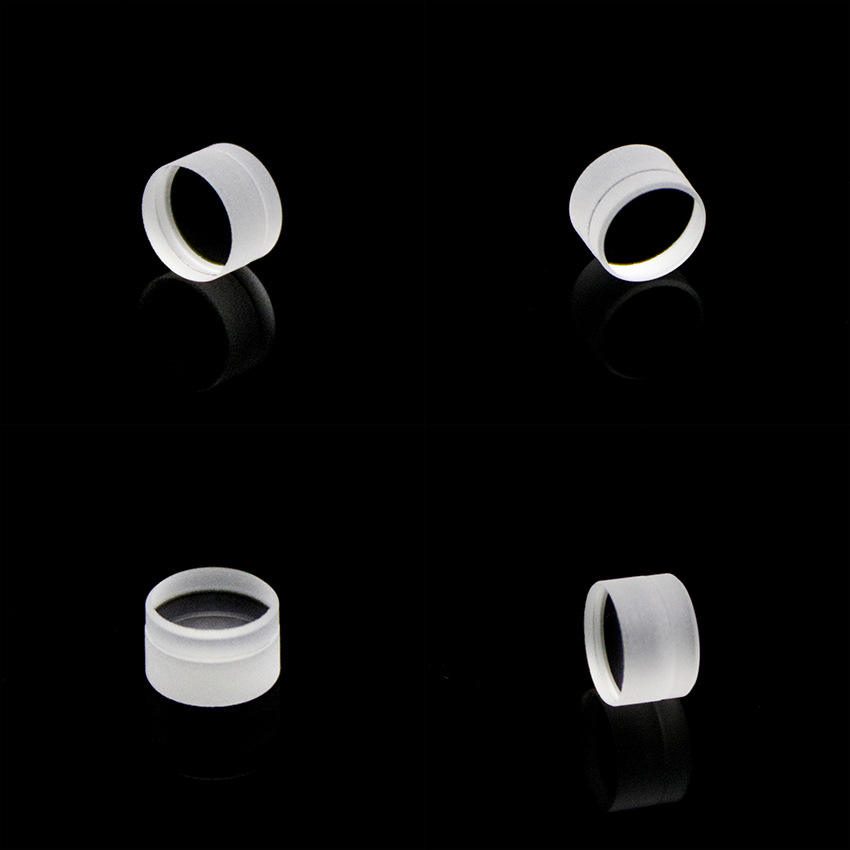

6x6 mm N-BK7 Achromatic Lens, AR Coated

Product description

The achromatic doublet lens is engineered to minimize chromatic and spherical aberrations, delivering sharp and color-accurate images across a wide range of applications including medical, microscopy, and projection. With a focal length of 6.0 mm and a diameter of 6.0 mm, this lens operates effectively within the 0.7-1.7 μm and 400-700 nm bands. Designed for optimal performance, it features anti-reflection coatings that enhance transmittance, ensuring clarity and precision in various optical systems.

Key Features

Achromatic design minimizes chromatic and spherical aberrations for enhanced image clarity.
Compatible with wavelengths from 0.7-1.7 μm and 400-700 nm for versatile applications.
Diameter tolerance of +0.0, -0.05 mm ensures precision fit in optical assemblies.
Custom OEM support available for tailored solutions to meet specific project needs.
Centration tolerance of ±1 arc minutes for accurate alignment in optical systems.

Available Sizes

Diameter x Focal Length (mm)
6 x 6

Applications

Medical, Microscopy, Projection

Specification Summary

Item	Value
Material	N-BK7
Shape	Achromatic
Diameter	6 mm
Focal Length	6 mm
Coating	anti-reflective (AR)
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Achromatic doublet lenses
Customized Support	OEM
Warranty	A month
Weight	0.1
Product	Achromatic doublet lenses
Diameter Tolerance	+0.0, -0.05mm
Center Thickness Tolerance	±0.1mm
Centration	±1 arc minutes

FAQ

Can I get custom sizes for the achromatic doublet lens?

Yes, the achromatic doublet lens can be customized according to specific dimensions and material requests.

What is the minimum order quantity (MOQ) for this lens?

The product description does not specify a minimum order quantity (MOQ).
