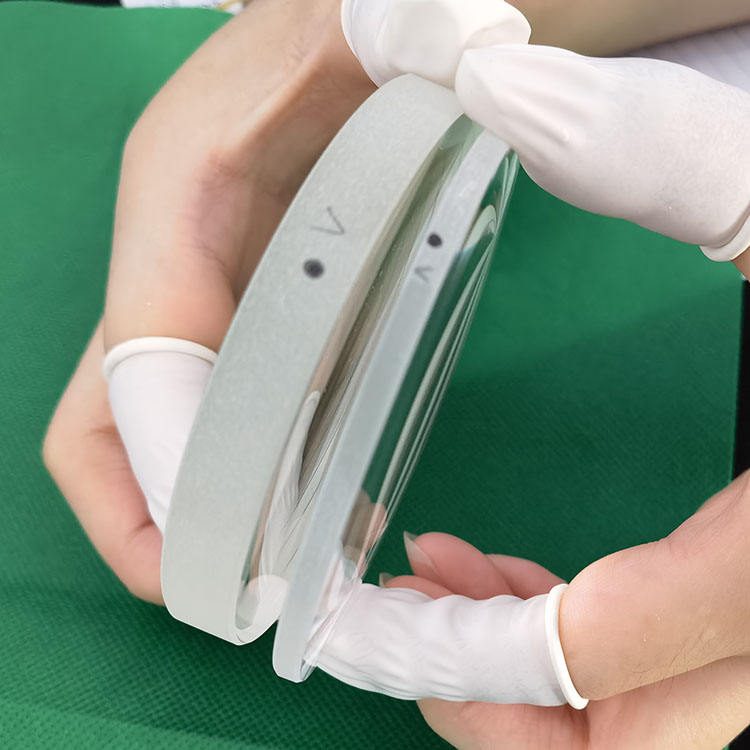

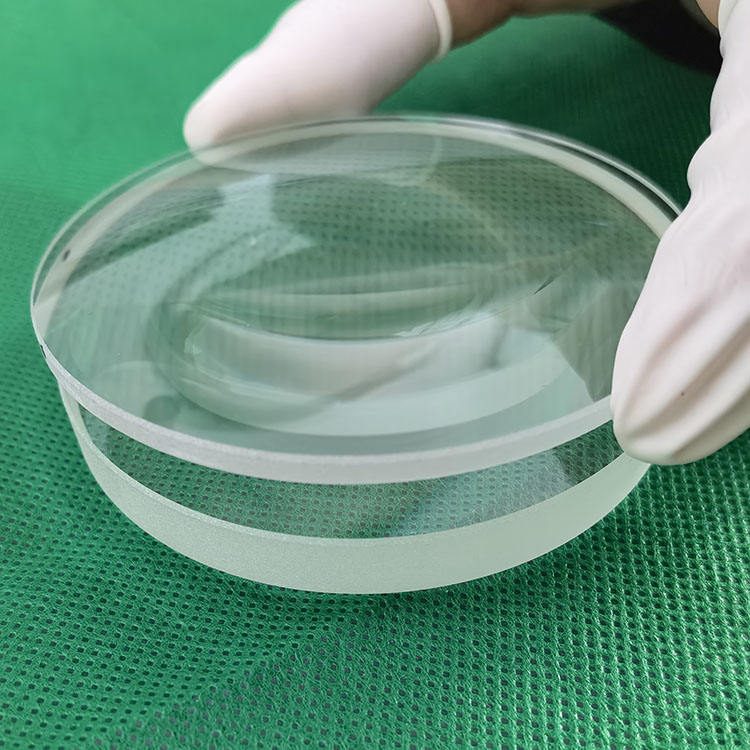

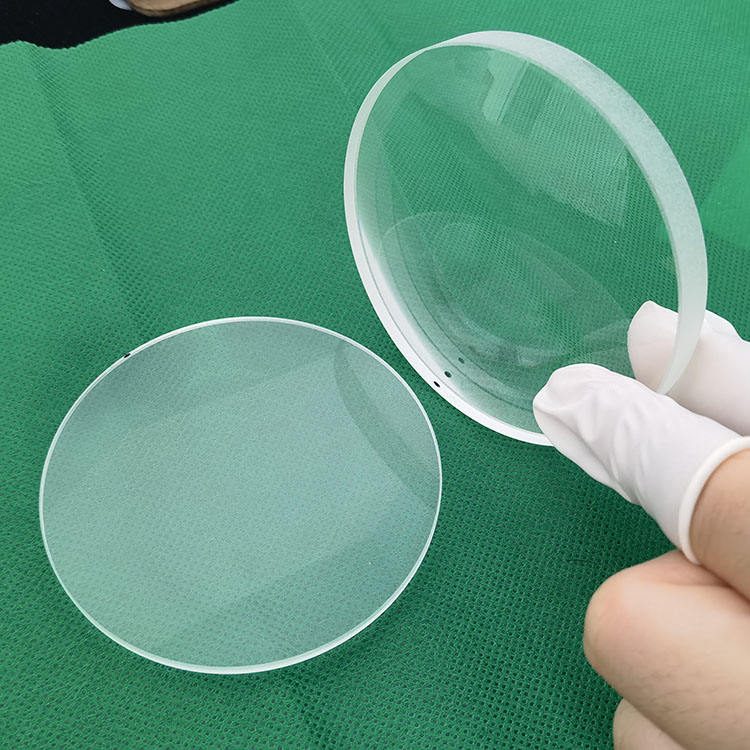

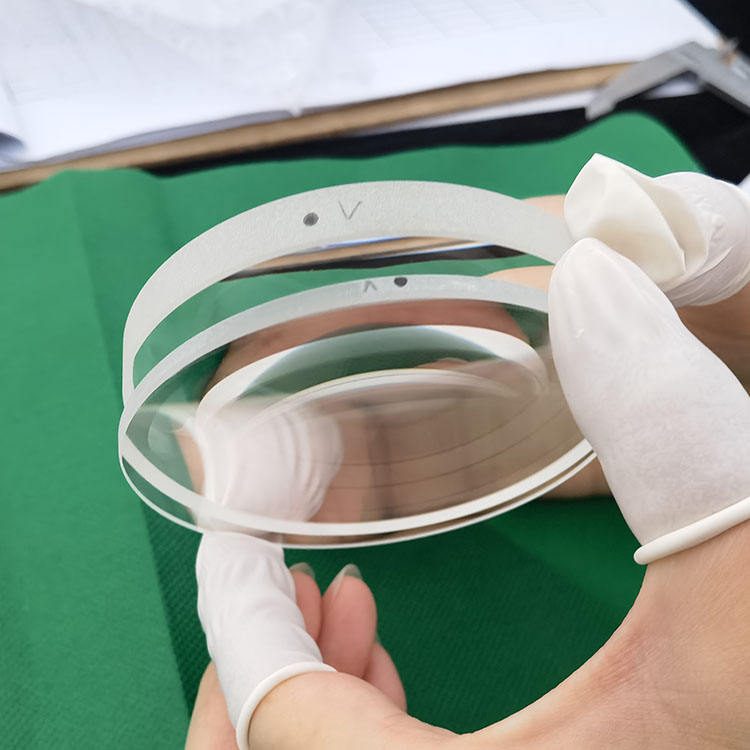

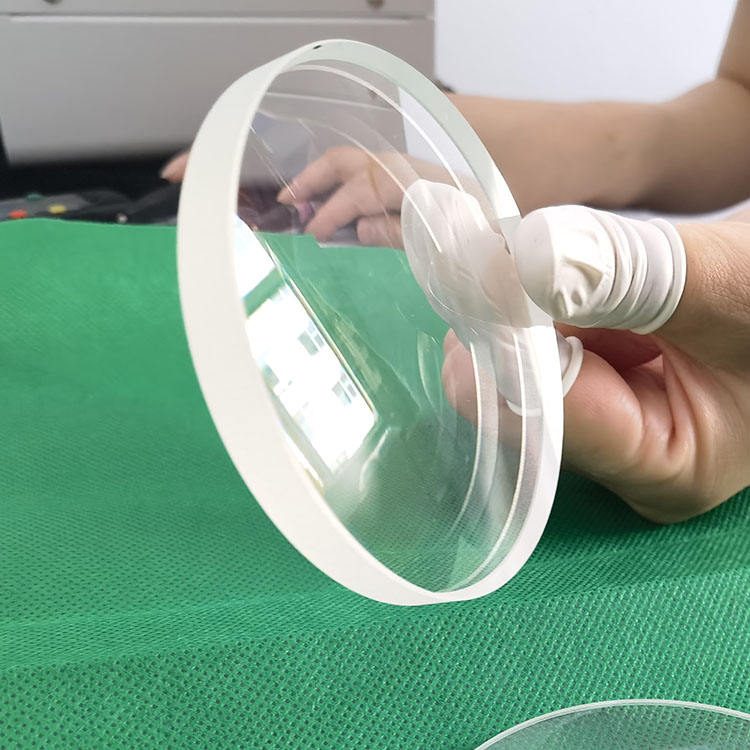

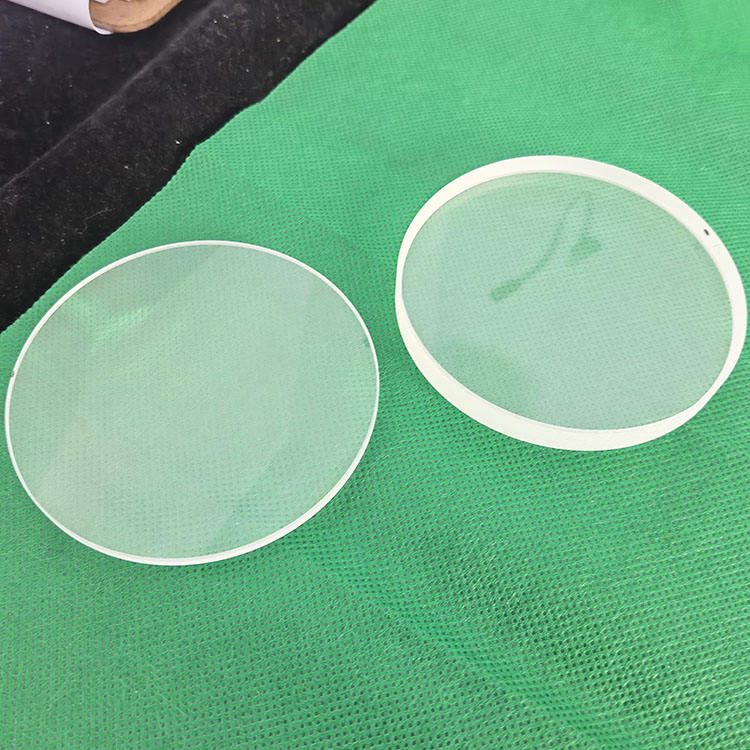

80x350 mm N-BK7 Achromatic Lens, AR Coated
Achromatic lens in N-BK7 for medical imaging, with AR coating and custom sizes available. Diameter: 80 mm, focal lengths: 350-900 mm.
Core attributes
- Material
- N-BK7
- Shape
- Achromatic
- Diameter
- 80 mm
- Focal Length
- 350 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Achromatic
- Diameter
- 80 mm
- Focal Length
- 350 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
The achromatic lens made from N-BK7 material is designed for applications in medical imaging and other optical systems operating within the 0.7-1.7 μm and 400-700 nm wavelength ranges. With a diameter of 80 mm and focal lengths ranging from 350 mm to 900 mm, this lens minimizes chromatic aberration, ensuring high-quality imaging performance. The lens features anti-reflective (AR) coatings, enhancing transmittance and making it suitable for various optical applications. This lens is ideal for R&D and procurement engineers seeking reliable optical components for their projects.
Key Features
- Achromatic design reduces chromatic aberration for improved image clarity.
- Diameter of 80 mm fits standard optical systems and applications.
- Focal lengths from 350 mm to 900 mm provide versatility for various imaging needs.
- AR coating enhances light transmission in the 400-700 nm range.
- Custom sizes available to meet specific project requirements.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 80 x 625 |
Applications
Medical, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Achromatic |
| Diameter | 80 mm |
| Focal Length | 350 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM |
| Warranty | 1 months |
| Flatness | None |
| Centration | None |
| Tolerance | None |
FAQ
Can I get custom sizes for this lens?
Yes, custom sizes are available, with standard diameters around 80-100 mm.
What is the minimum order quantity (MOQ)?
The MOQ is not specified, allowing flexibility for orders.
