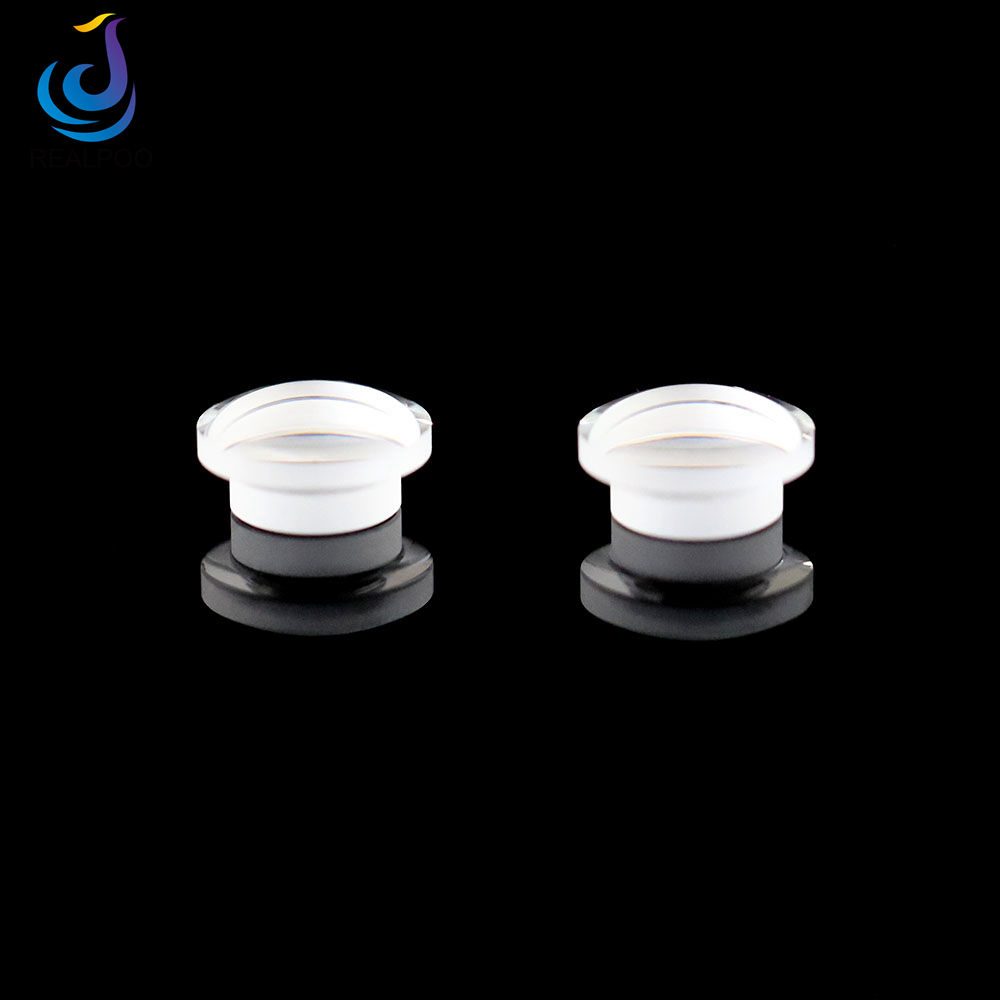

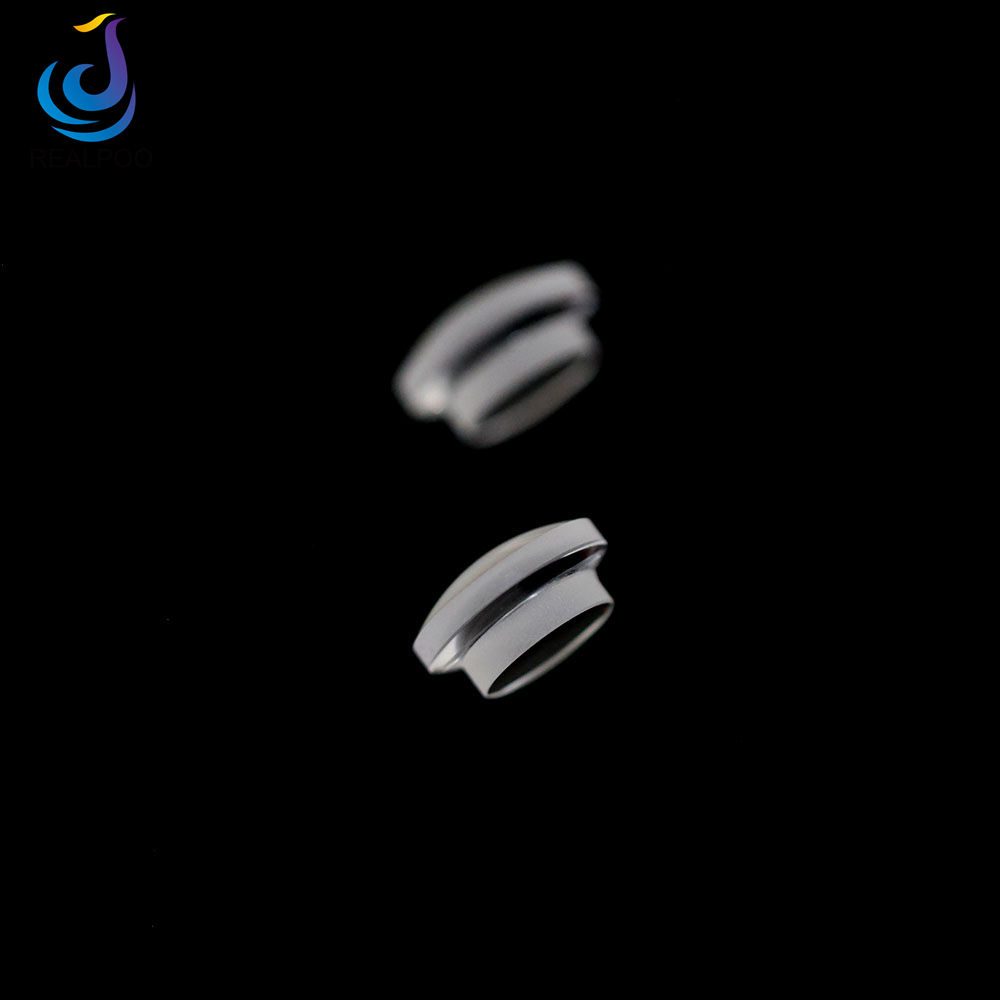

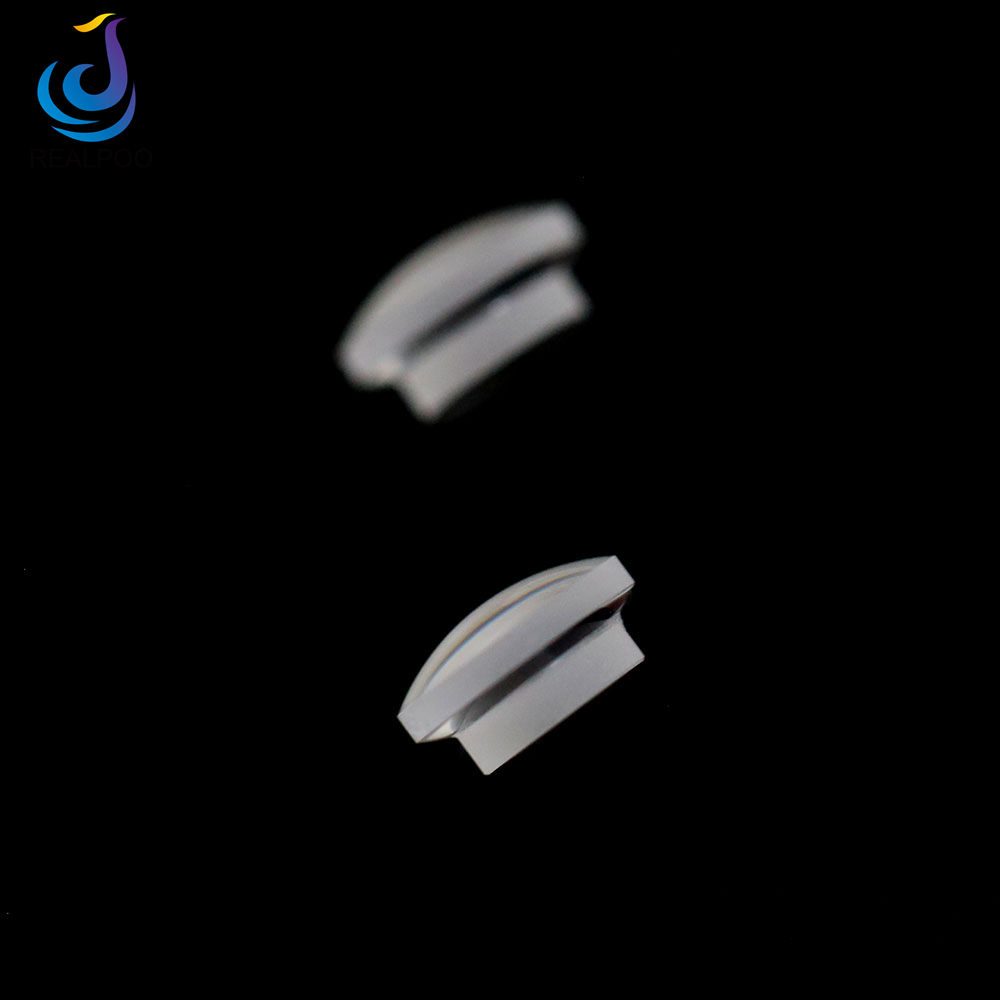

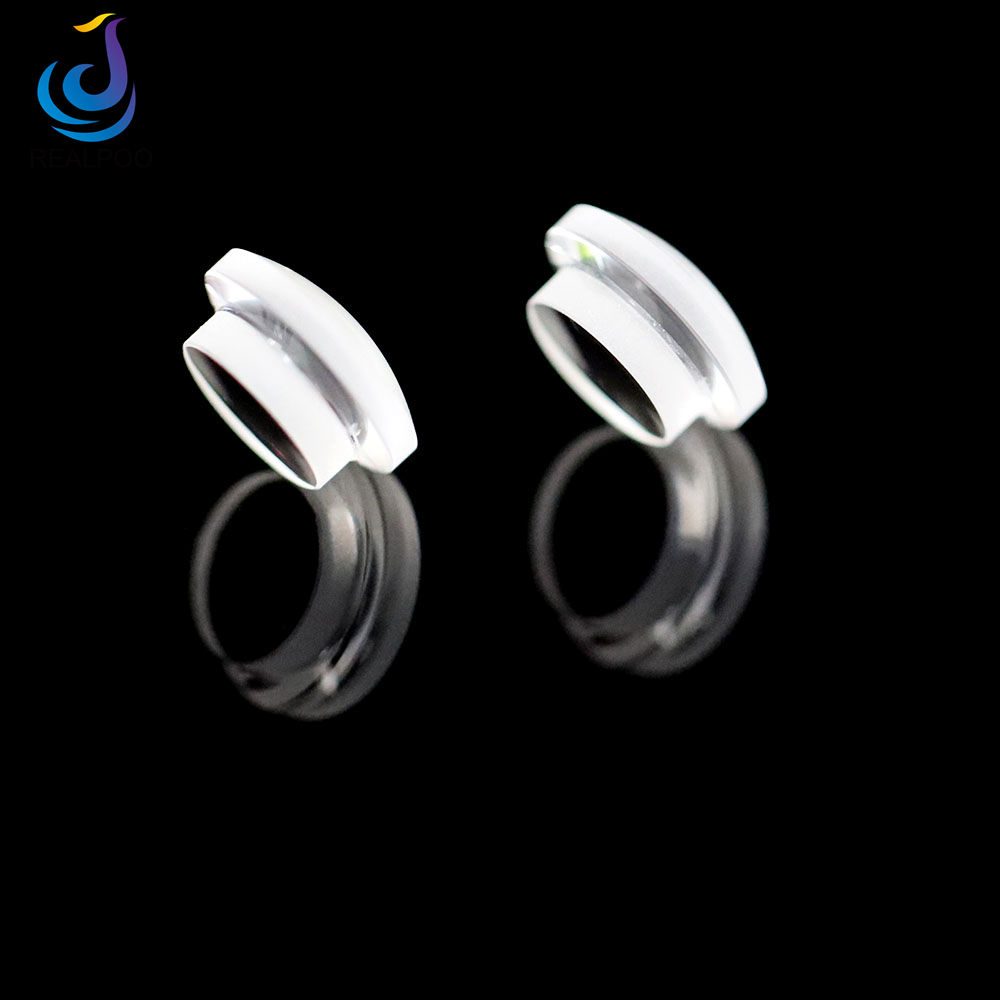

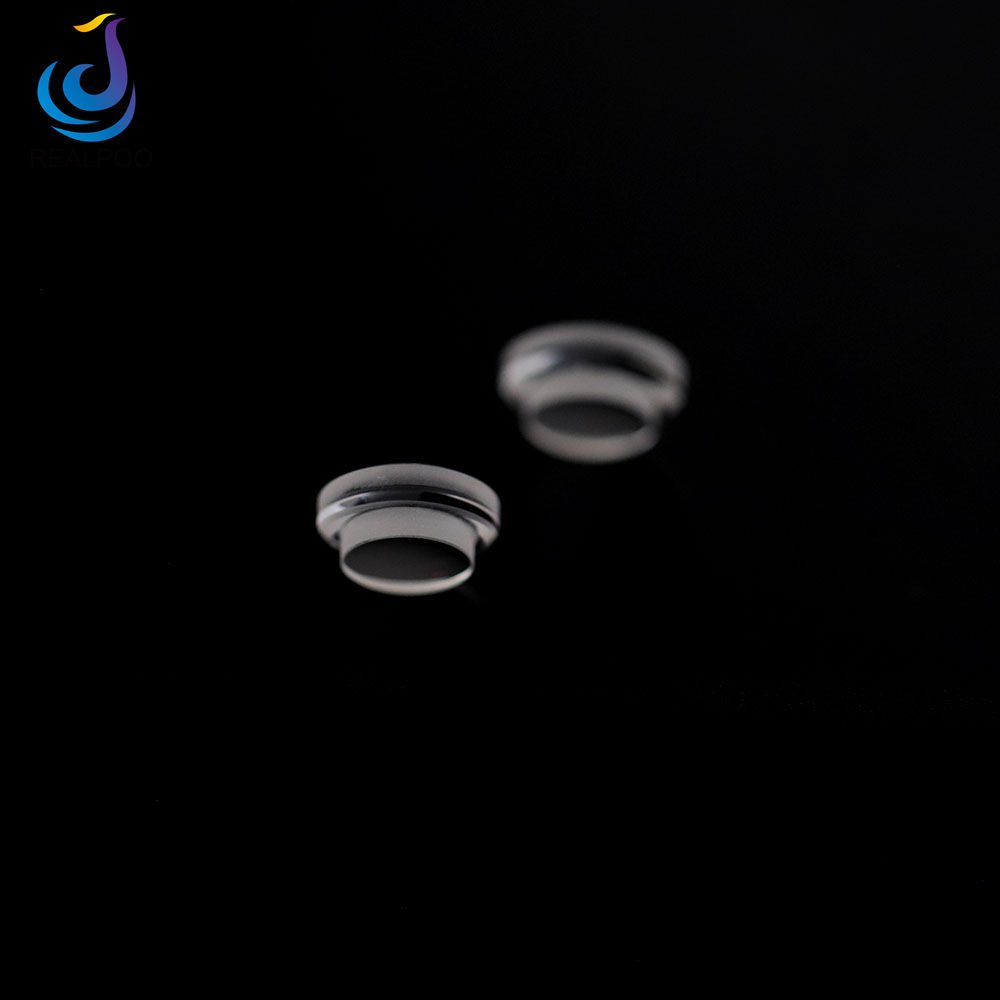

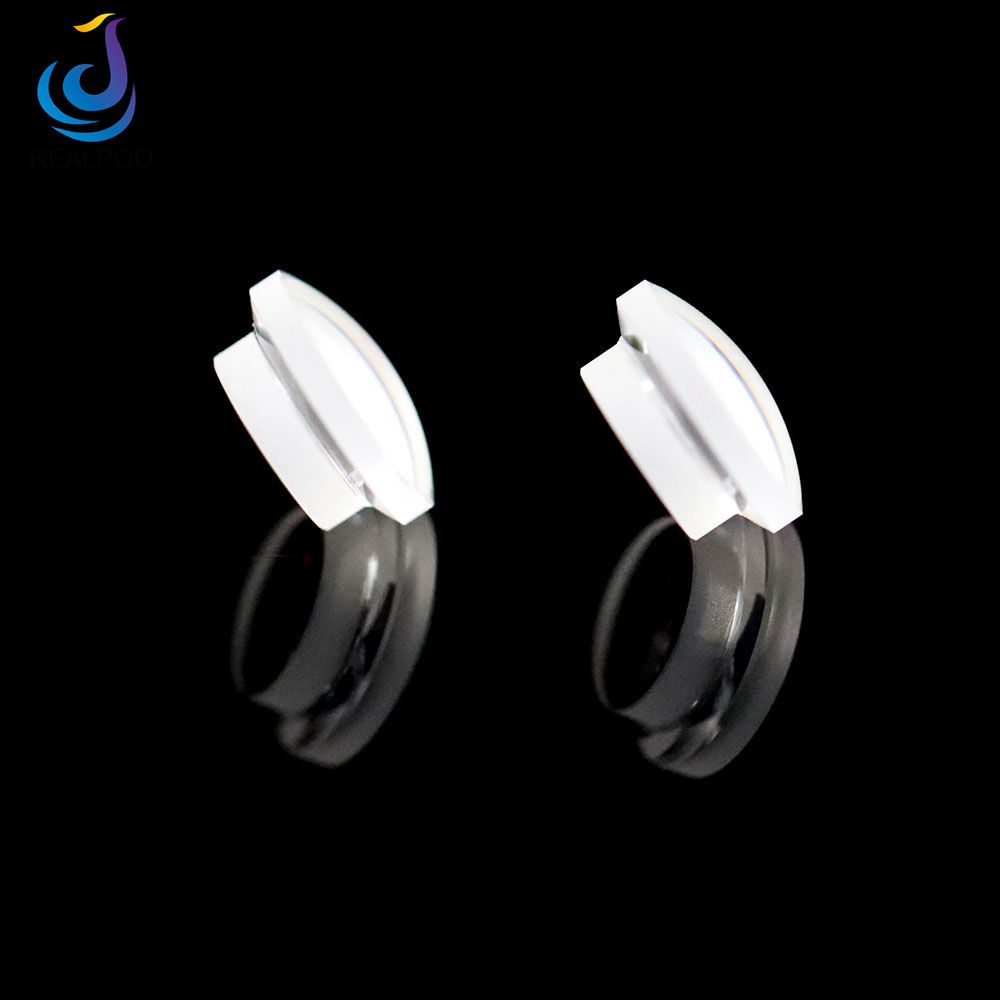

Custom Size N-BK7 Achromatic Lens, AR Coated
Achromatic lenses for microscopy with minimal aberration, available in various diameters and customizable options.
Core attributes
- Material
- N-BK7
- Shape
- Achromatic
- Focal Length
- 6 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Achromatic
- Focal Length
- 6 mm
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
Achromatic lenses are essential for applications requiring minimal chromatic and spherical aberration, making them ideal for microscopy and spectroscopy. With a focal length of 6.0 mm and a broad operational wavelength range of 0.7-1.7 μm and 400-700 nm, these lenses enhance image quality and detail. The doublet design offers superior performance compared to single lenses, allowing for greater design flexibility. Sourced from Jilin, these lenses are available in various diameters, ensuring compatibility with diverse optical systems.
Key Features
- Focal length of 6.0 mm for precise imaging.
- Operational wavelength range of 0.7-1.7 μm and 400-700 nm for versatile applications.
- Diameter tolerance of +0.0, -0.05 mm for consistent fitting.
- Centration accuracy of ±1 arc minutes for improved alignment.
- OEM customization support for tailored solutions.
Applications
Microscopy
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Achromatic |
| Focal Length | 6 mm |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Achromatic Lens |
| Customized Support | OEM |
| Weight | 0.1 |
| Product | DIA 10mm,20mm,30mm,40mm,50mm achromatic lens |
| Diameter Tolerance | +0.0, -0.05mm |
| Center Thickness Tolerance | ±0.1mm |
| Centration | ±1 arc minutes |
FAQ
What are the diameter options for these lenses?
Available diameters include 10mm, 20mm, 30mm, 40mm, and 50mm.
What is the tolerance for center thickness?
The center thickness tolerance is ±0.1 mm.
