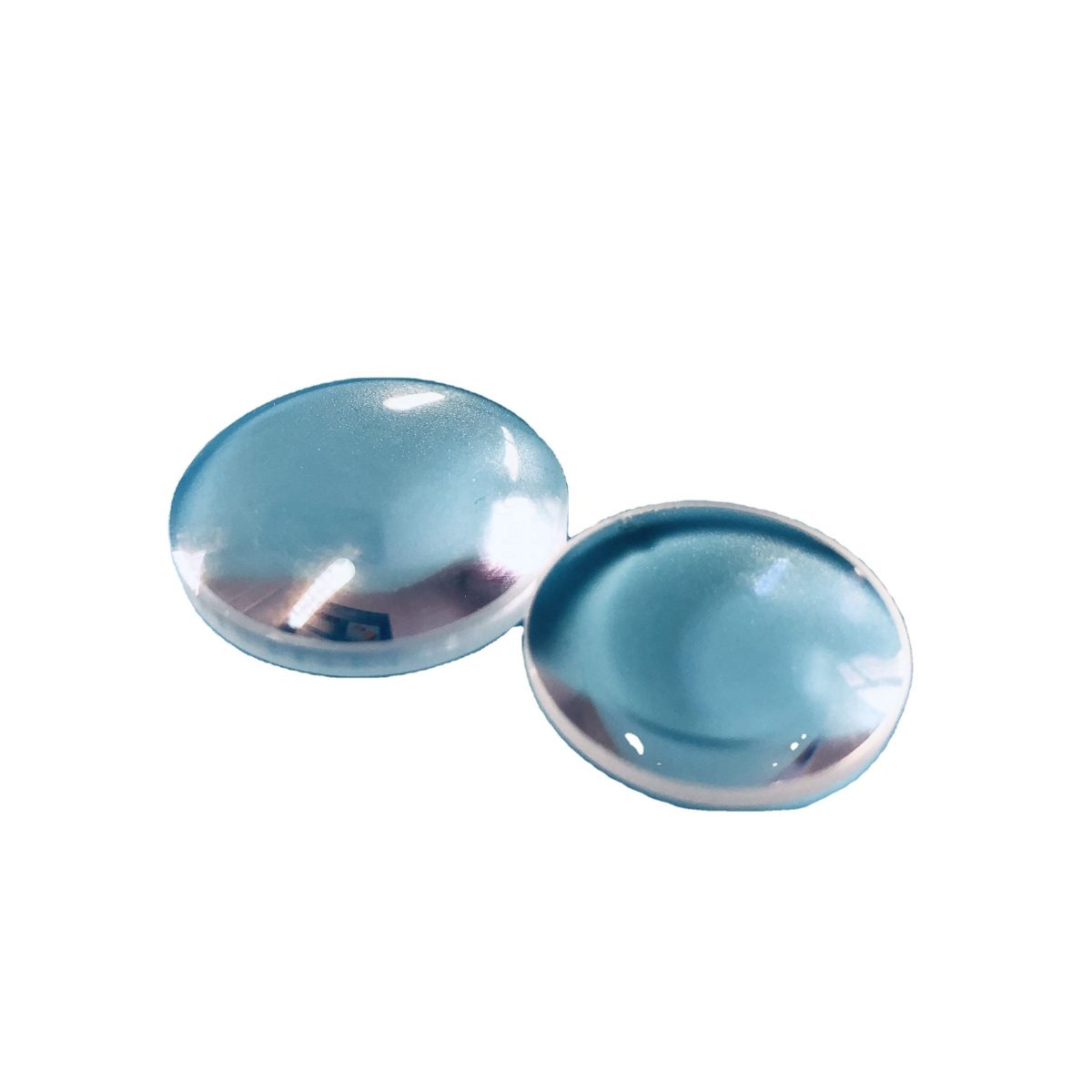

1 mm N-BK7 Aspheric Lens

Product description

The N-BK7 aspheric lenses are specifically designed for applications in the medical field, operating effectively within the 0.7-1.7 μm wavelength range. These precision lenses are optimized to eliminate spherical aberration, ensuring high performance in near-infrared imaging systems. With a diameter range from 1.0 mm to 250.0 mm and thickness options from 0.5 mm to 50.0 mm, they can accommodate various application needs, providing flexibility for R&D and procurement engineers.

Key Features

Customizable sizes from 1.0 mm to 250.0 mm for tailored applications.
High precision performance across the 0.7-1.7 μm spectrum, ideal for medical use.
Diameter tolerance of +0/-0.2 mm ensures reliable batch consistency.
Clear aperture greater than 90% for optimal light transmission.

Applications

Medical

Specification Summary

Item	Value
Material	N-BK7
Shape	Aspheric
Diameter	1 mm
Thickness	0.5 mm
Transmission bands	NIR (0.7-1.7 μm)

Full Specifications

Parameter	Value
Customized Support	OEM
Warranty	3 months
Substrate	N-BK7/H-K9L/H-LaF10/H-LaF10L
Diameter Tolerance	+0/-0.2mm
Clear Aperture	>90%

FAQ

Is custom sizing available?

Yes, these aspheric lenses can be customized to fit specific application requirements.

What is the minimum order quantity?

The minimum order quantity is not specified, allowing for flexible procurement.
