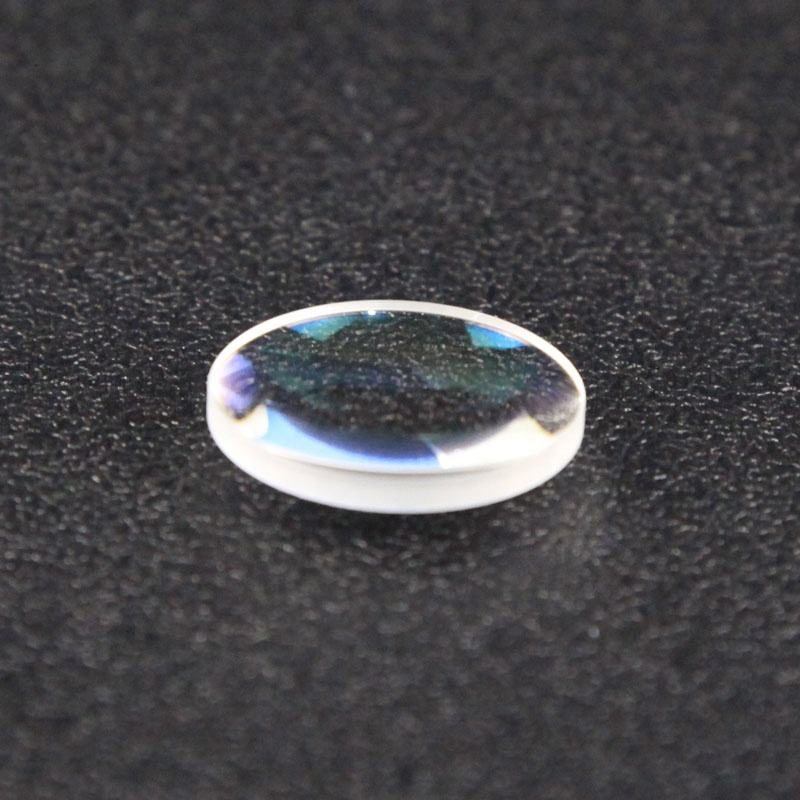

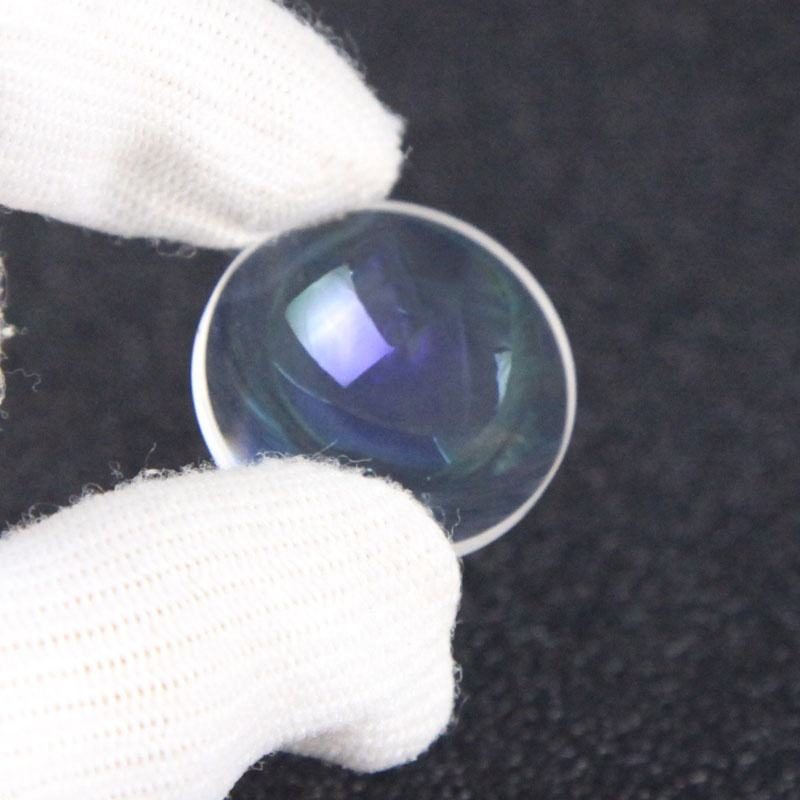

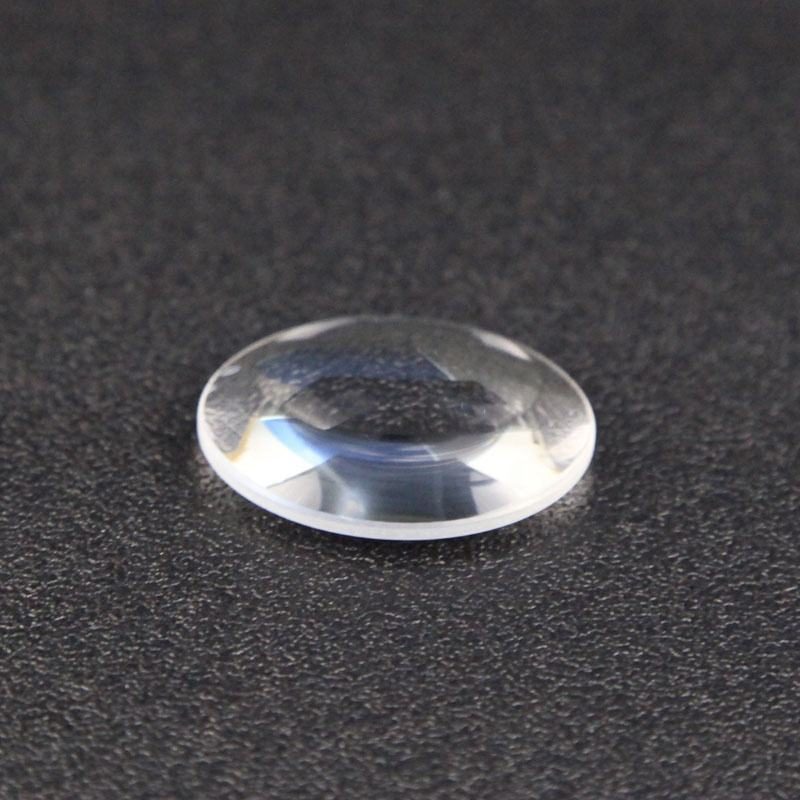

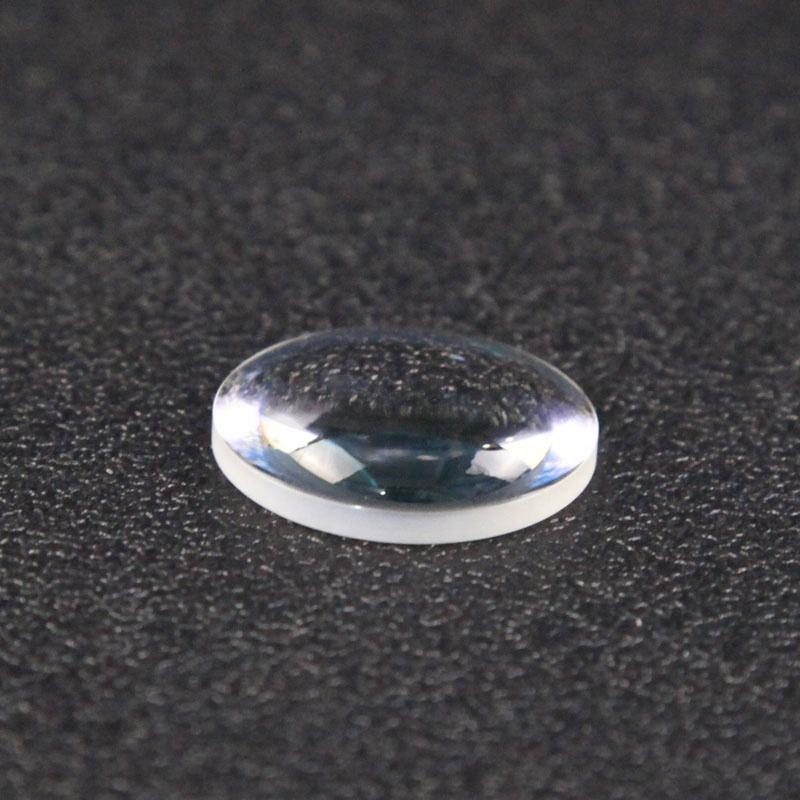

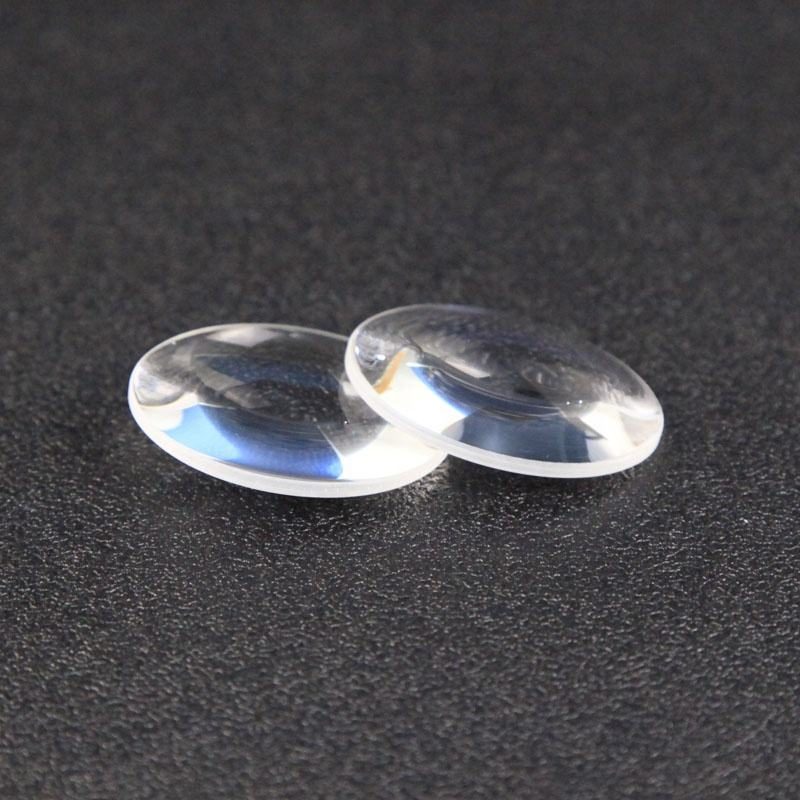

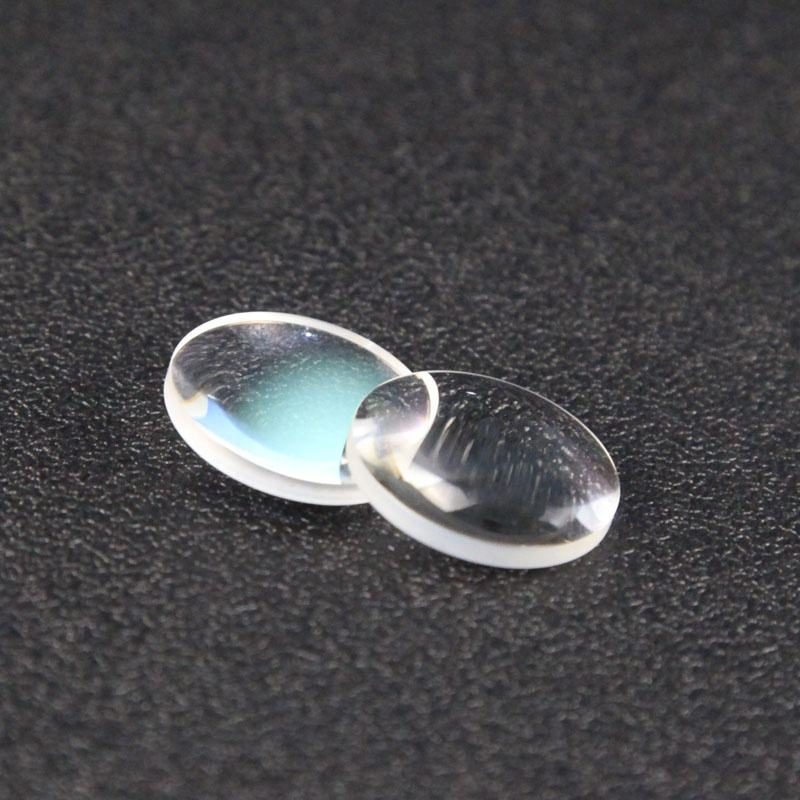

6x5 mm N-BK7 Aspheric Lens, AR Coated

Product description

The N-BK7 aspheric lens is designed for precise collimation and imaging applications, effectively minimizing spherical aberrations. With a diameter of 6.0 mm and a focal length of 5.0 mm, this lens is ideal for integrating into optical systems where space and weight are critical. Its high-quality surface finish (60/40) and clear aperture of 95% ensure optimal light transmission and performance in various optical devices.

Key Features

Aspheric design reduces spherical aberration for improved imaging quality.
Diameter of 6.0 mm with a focal length of 5.0 mm fits compact optical systems.
Surface quality rated at 60/40 ensures high performance in critical applications.
Clear aperture of 95% maximizes light throughput for enhanced efficiency.
Custom support available for OEM, ODM, and OBM projects.

Available Sizes

Diameter x Focal Length (mm)
6 x 5

Applications

Collimation, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Aspheric
Diameter	6 mm
Focal Length	5 mm
Surface Quality	60/40
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Aspherical Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.05
Flatness	1/4
Clear Aperture	95%
Diameter Tolerance	+/-0.1

FAQ

Is custom sizing available?

Yes, the lens can be customized to specific dimensions as per your requirements.

What is the diameter tolerance?

The diameter tolerance for this lens is +/-0.1 mm, ensuring precise fit in your applications.
