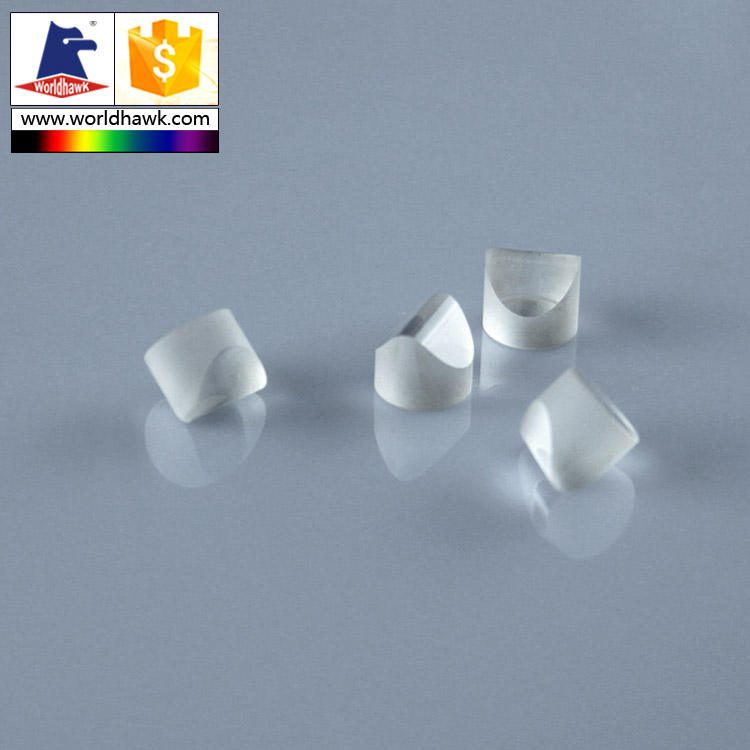

6 mm N-BK7 Aspheric Lens, AR Coated

Product description

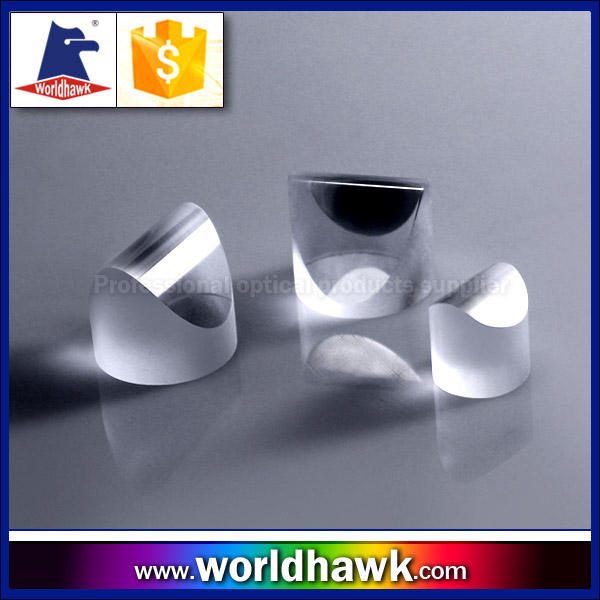

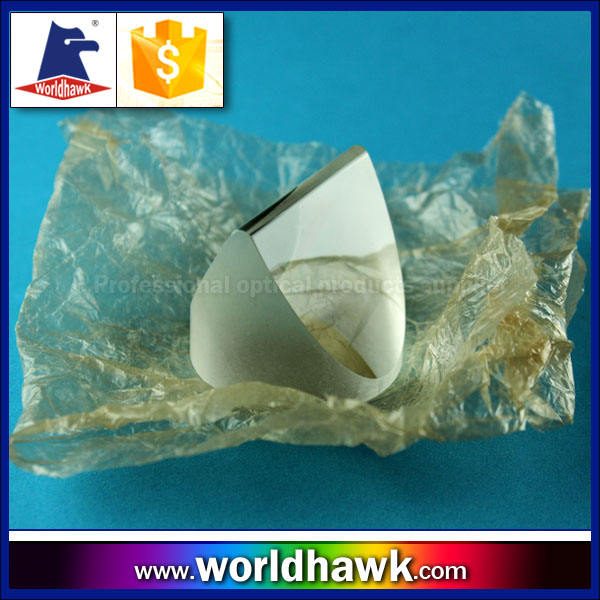

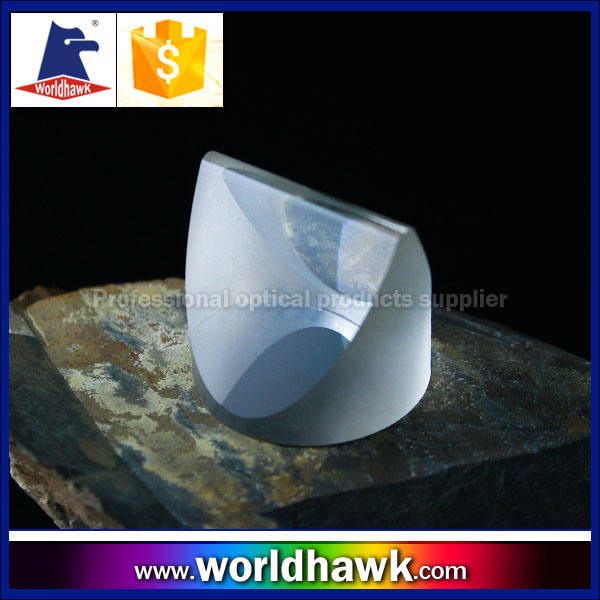

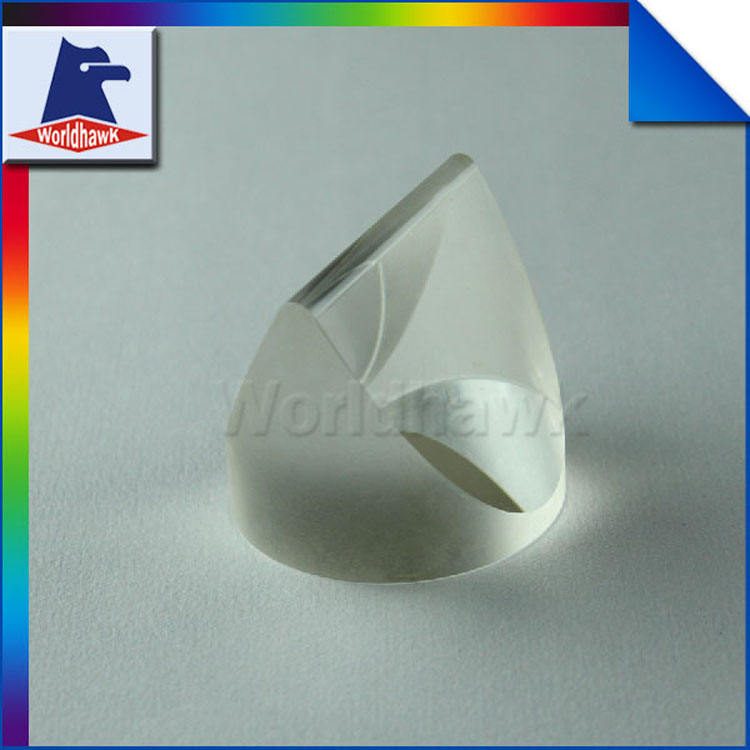

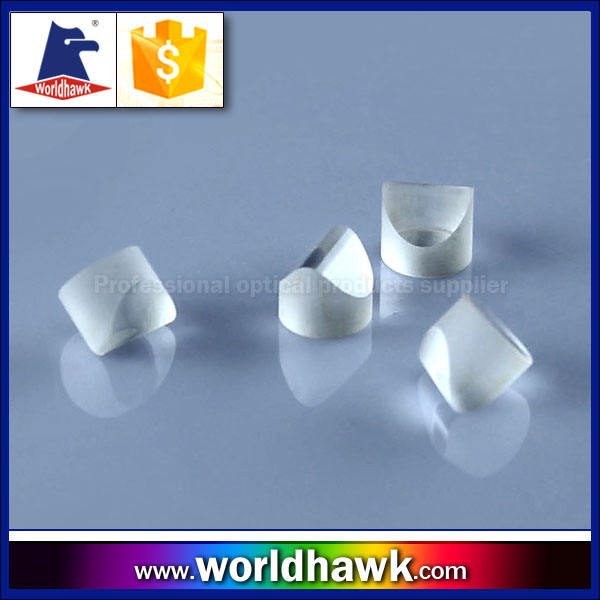

The Powell lens is designed to enhance applications in machine vision, collimation, and imaging by generating a straight, uniform laser line. With a wavelength range of 400-1100 nm, it is suitable for various optical tasks, ensuring high performance in alignment and process control. Made from N-BK7 glass, this lens features a clear aperture of ≥90%, providing efficient light transmission and distribution.

Key Features

Diameter of 6.0 mm for compact integration in optical systems.
Wavelength range of 400-1100 nm, suitable for diverse applications.
Clear aperture of ≥90% ensures high light transmission efficiency.
Available in AR and uncoated options for tailored performance.
OEM support for customized solutions to fit specific project needs.

Applications

Machine Vision, Collimation, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Aspheric
Diameter	6 mm
Coating	anti-reflective (AR), uncoated
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Powell
Customized Support	OEM
Warranty	1 Year
Weight	0.1
Clear Aperture	≥90%

FAQ

Is custom sizing available?

Yes, the lens can be customized with a diameter of φ6, φ9 and height adjustments of 6.5~8.5 mm.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing flexibility in procurement.
