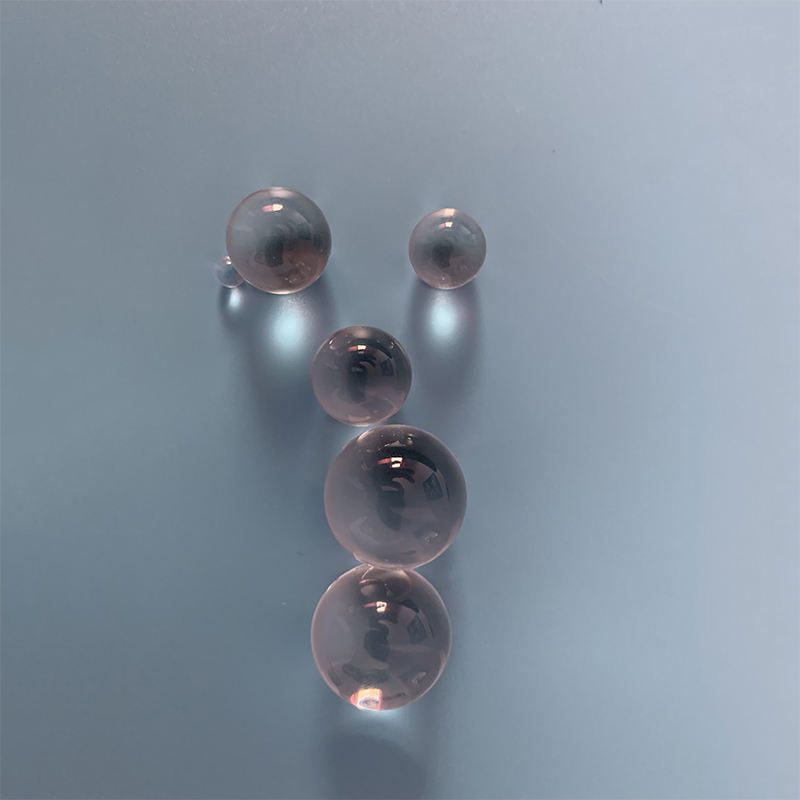

1 mm N-BK7 Ball Lens

Product description

The N-BK7 ball lens is designed for medical applications, providing enhanced signal coupling between fibers, emitters, and detectors. With a diameter of 1.0 mm and a thickness of 2.0 mm, this plano-convex lens features a surface quality of 60/40 and a clear aperture greater than 85%. Its spherical shape ensures optimal performance in various optical systems, including endoscopy and sensor applications.

Key Features

Diameter of 1.0 mm and thickness of 2.0 mm for compact integration
Surface quality of 60/40 ensures reliable optical performance
Clear aperture greater than 85% maximizes light transmission
Parallelism of 5 arc min supports precise alignment in applications
Flatness of L/4 enhances imaging quality in optical systems

Applications

Medical

Specification Summary

Item	Value
Material	N-BK7
Shape	Ball
Diameter	1 mm
Thickness	2 mm
Surface Quality	60/40

Full Specifications

Parameter	Value
Customized Support	OEM
Warranty	6 months
Parallelism	5 arc min
Flatness	L/4
Clear Aperture	>85%
Use	Optical
Structure	Plano-convex

FAQ

Can this lens be customized in size?

Custom sizes are available, but specific dimensions beyond the standard 1.0 mm diameter are not listed.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, allowing for flexible procurement options.
