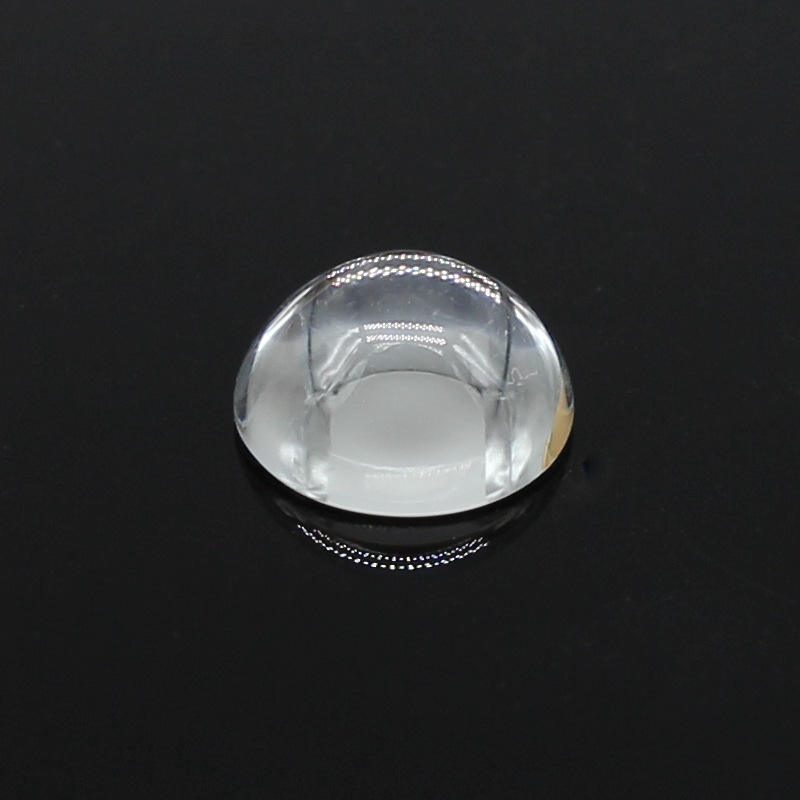

1 mm N-BK7 Ball Lens, AR Coated

Product description

The N-BK7 half ball lens is designed for applications in medical imaging, projection, and collimation. With a diameter of 1.0 mm and a surface quality of 60/40, this lens enhances signal coupling and focuses light effectively. Its high diameter tolerance of +/-0.1 mm ensures precision, making it suitable for various optical systems. The lens is manufactured from durable N-BK7 glass, providing reliability for long-term use in sensitive applications.

Key Features

High diameter tolerance of +/-0.1 mm for precise fitting
Surface quality rated at 60/40 for optimal performance
Compatible with various applications including medical and imaging
Customizable options available for OEM, ODM, and OBM projects
Lightweight design at 0.03 grams for easy integration

Applications

Medical, Projection, Collimation, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Ball
Diameter	1 mm
Surface Quality	60/40
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	half ball lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.03
Color	transparents
Flatness	1/4lambda
Diameter Tolerance	+/-0.1

FAQ

Is custom sizing available for this lens?

Yes, the lens can be customized according to your request, sample, or drawing.

What is the minimum order quantity (MOQ) for this lens?

The minimum order quantity is not specified, allowing flexibility for various procurement needs.
