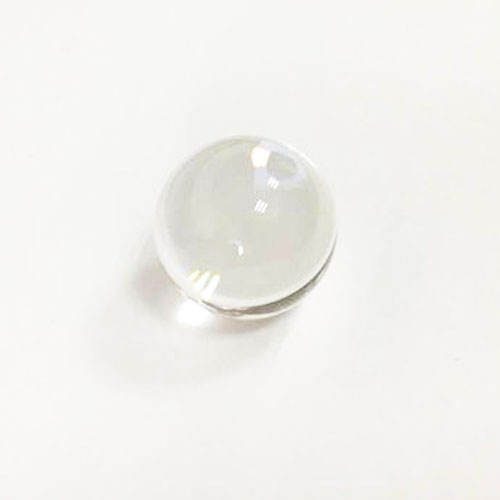

1 mm N-BK7 Ball Lens, AR Coated
Explore N-BK7 ball lenses for medical and collimation applications, with customizable sizes and high precision tolerances.
Core attributes
- Material
- N-BK7
- Shape
- Ball
- Diameter
- 1 mm
- Coating
- anti-reflective (AR), high-reflective (HR)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Ball
- Diameter
- 1 mm
- Coating
- anti-reflective (AR), high-reflective (HR)
Product description

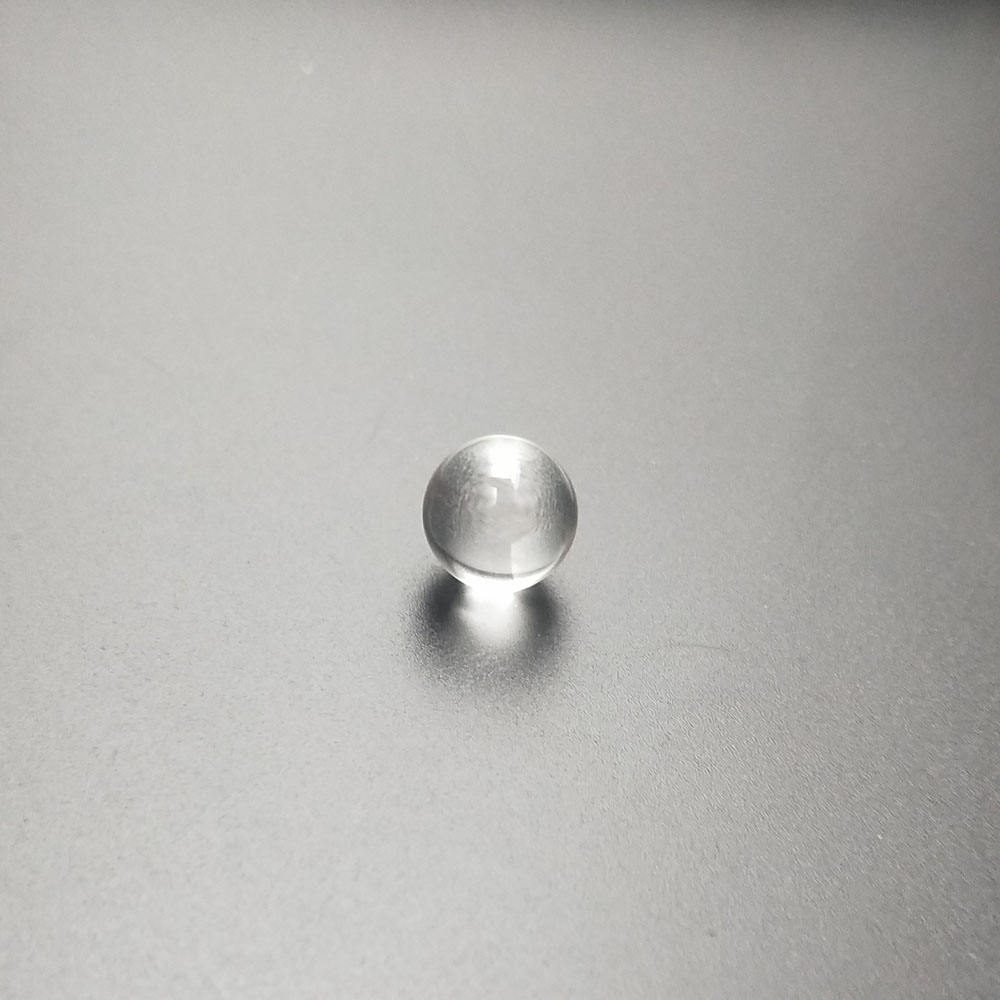

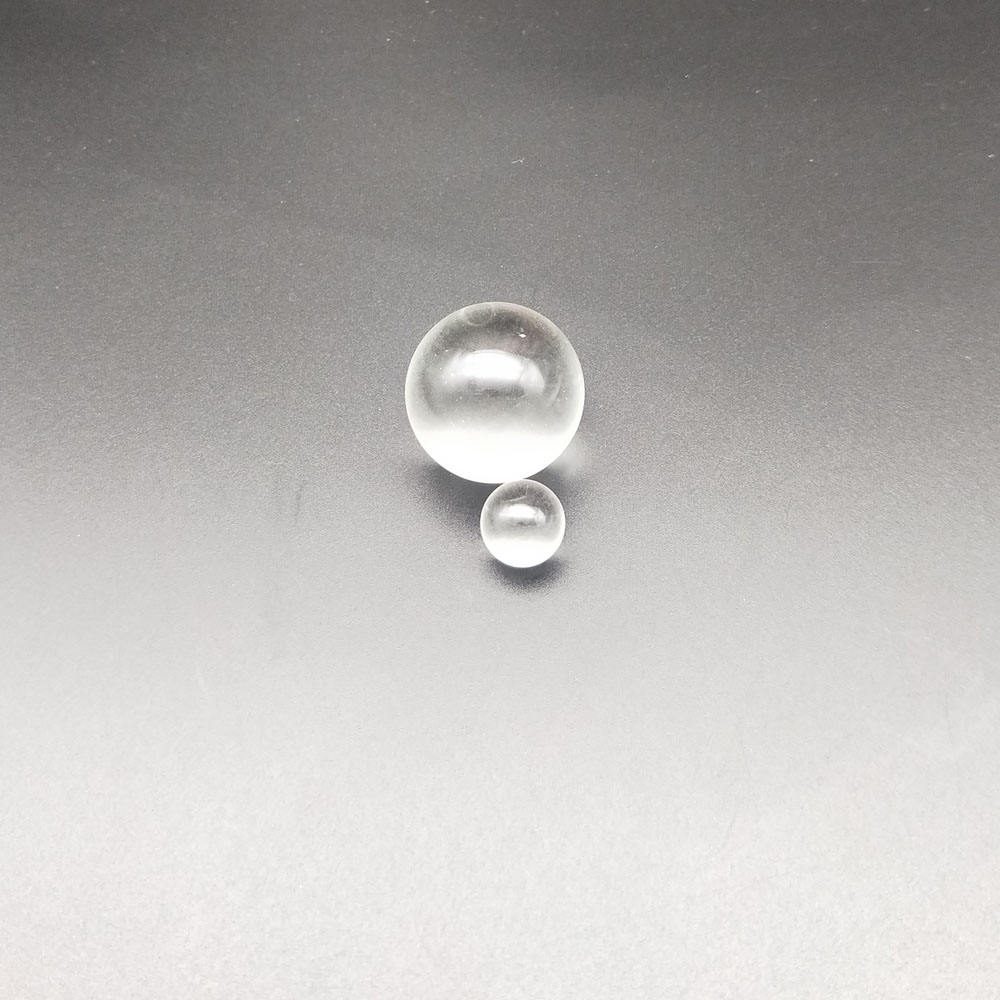

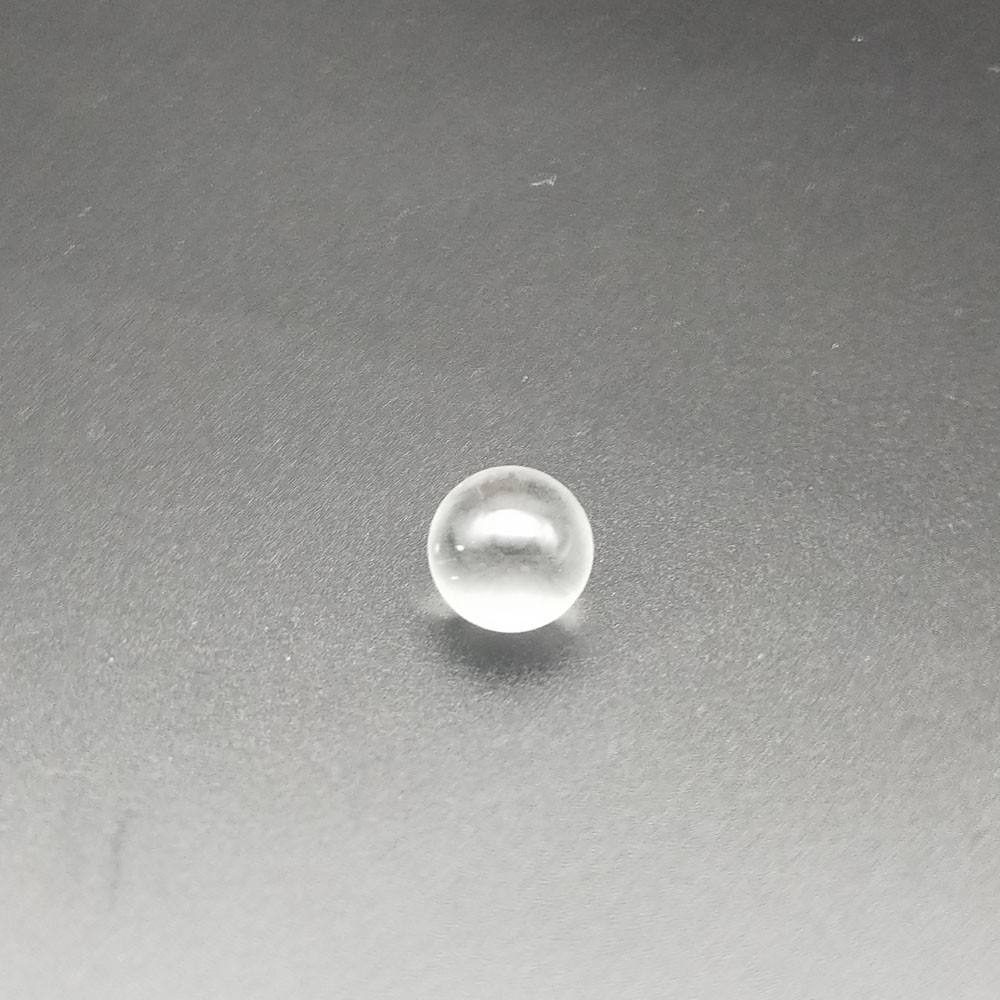

Ball lenses made from N-BK7 material are ideal for applications in medical devices and collimation systems. With diameters ranging from 1.0 mm to 20.0 mm, these lenses provide high coupling efficiency and ease of alignment, making them suitable for optical fibers and sensors. Their unique design allows for effective beam collimation, enhancing signal coupling between emitters, detectors, and fibers. Customization options are available to meet specific application needs.
Key Features
- Diameter range: 1.0 mm to 20.0 mm, suitable for various applications.
- Diameter tolerance of +/-0.005 mm ensures precision in optical setups.
- Clear aperture greater than 90% enhances light transmission efficiency.
- Focal length tolerance of ±2% allows for accurate beam focusing.
- Custom support for OEM, ODM, and OBM projects ensures flexibility.
Applications
Medical, Collimation
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Ball |
| Diameter | 1 mm |
| Coating | anti-reflective (AR), high-reflective (HR) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 month |
| Diameter Tolerance | +/-0.005mm |
| Clear Aperture | > 90% |
| Focal Length Tolerance | ±2% |
FAQ
Can these lenses be customized?
Yes, customization options are available for OEM, ODM, and OBM projects.
What is the diameter tolerance?
The diameter tolerance is +/-0.005 mm, ensuring high precision.
