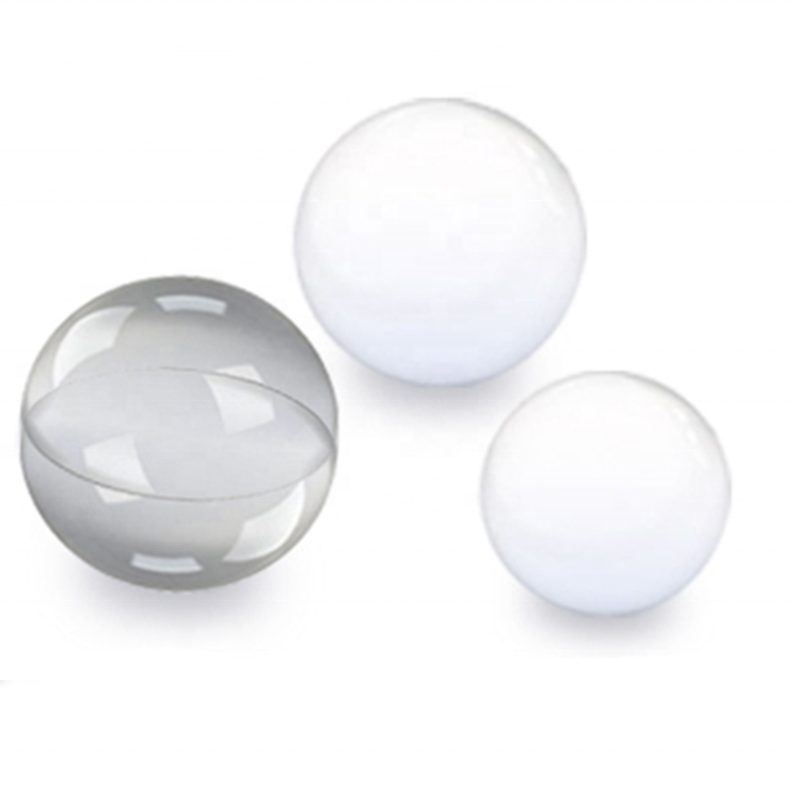

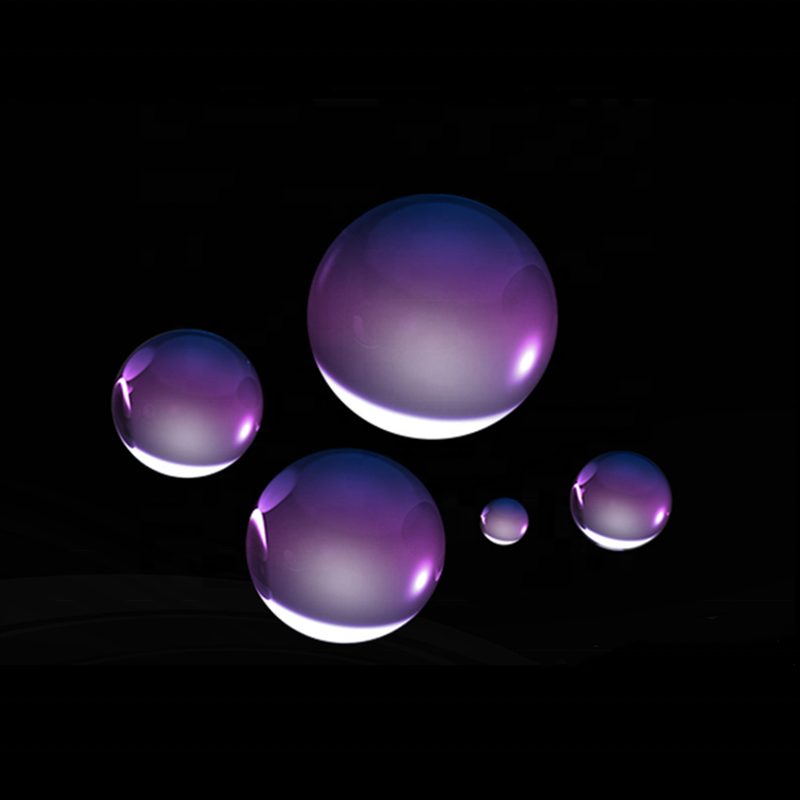

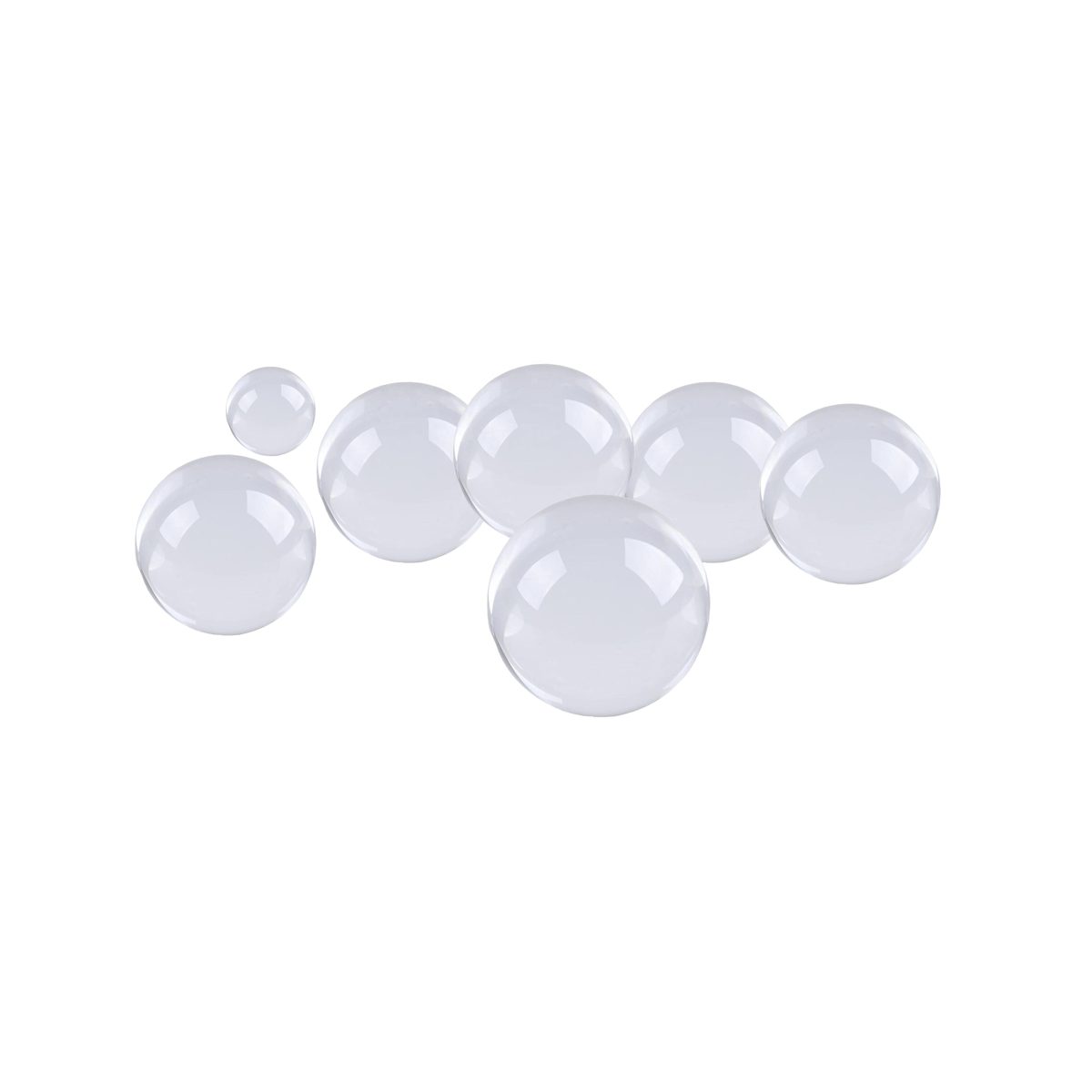

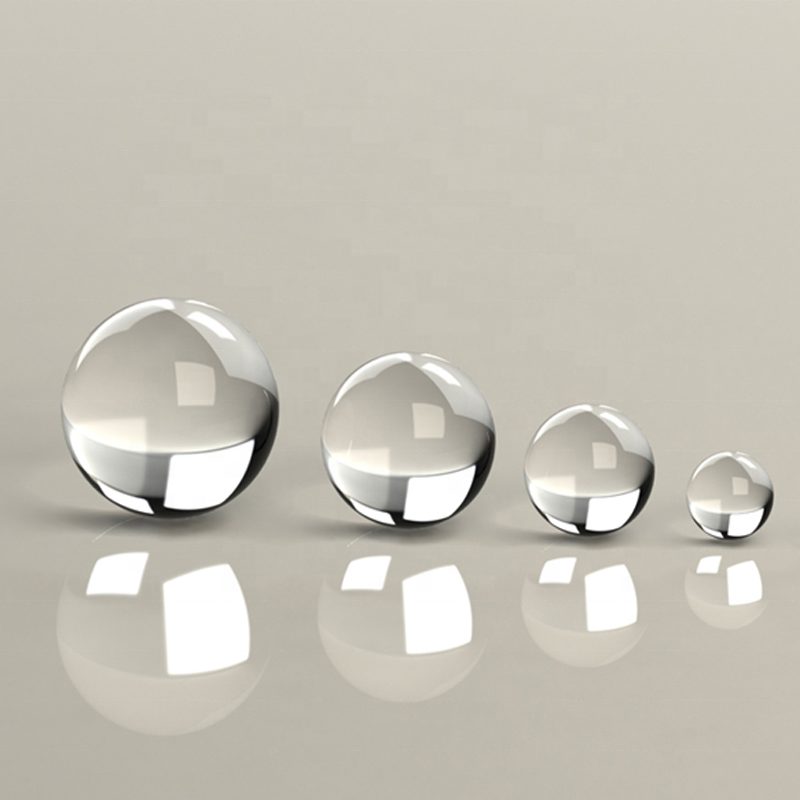

1 mm N-BK7 Ball Lens

Product description

The N-BK7 ball lens is designed for applications in medical imaging, projection, and collimation. Its spherical geometry enhances signal coupling between fibers, emitters, and detectors, making it ideal for optical measurement systems. With a diameter range of 1.0 to 10.0 mm and a surface quality of 60/40, this lens ensures effective light focusing or collimation based on your specific needs. The lens is available in both uncoated and anti-reflective coated options, providing flexibility for various applications.

Key Features

Diameter range of 1.0 to 10.0 mm for versatile application fit.
Surface quality of 60/40 ensures reliable performance in optical systems.
High diameter tolerance of +/-0.1 mm for precise fitting.
Available in uncoated and AR-coated options to suit different needs.
Custom OEM/ODM support for tailored solutions.

Applications

Medical, Projection, Collimation, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Ball
Diameter	1 mm
Surface Quality	60/40
Coating	uncoated, anti-reflective (AR)

Full Specifications

Parameter	Value
Type	ball lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.05
Color	transparents
Flatness	1/4lambda
Diameter Tolerance	+/-0.1

FAQ

Can I get custom sizes for the ball lens?

Yes, the ball lens is available in a diameter range of 1.0 to 10.0 mm and can be custom-made to meet specific requirements.

What is the minimum order quantity (MOQ) for this lens?

The minimum order quantity (MOQ) is not specified, allowing for flexible purchasing options.
