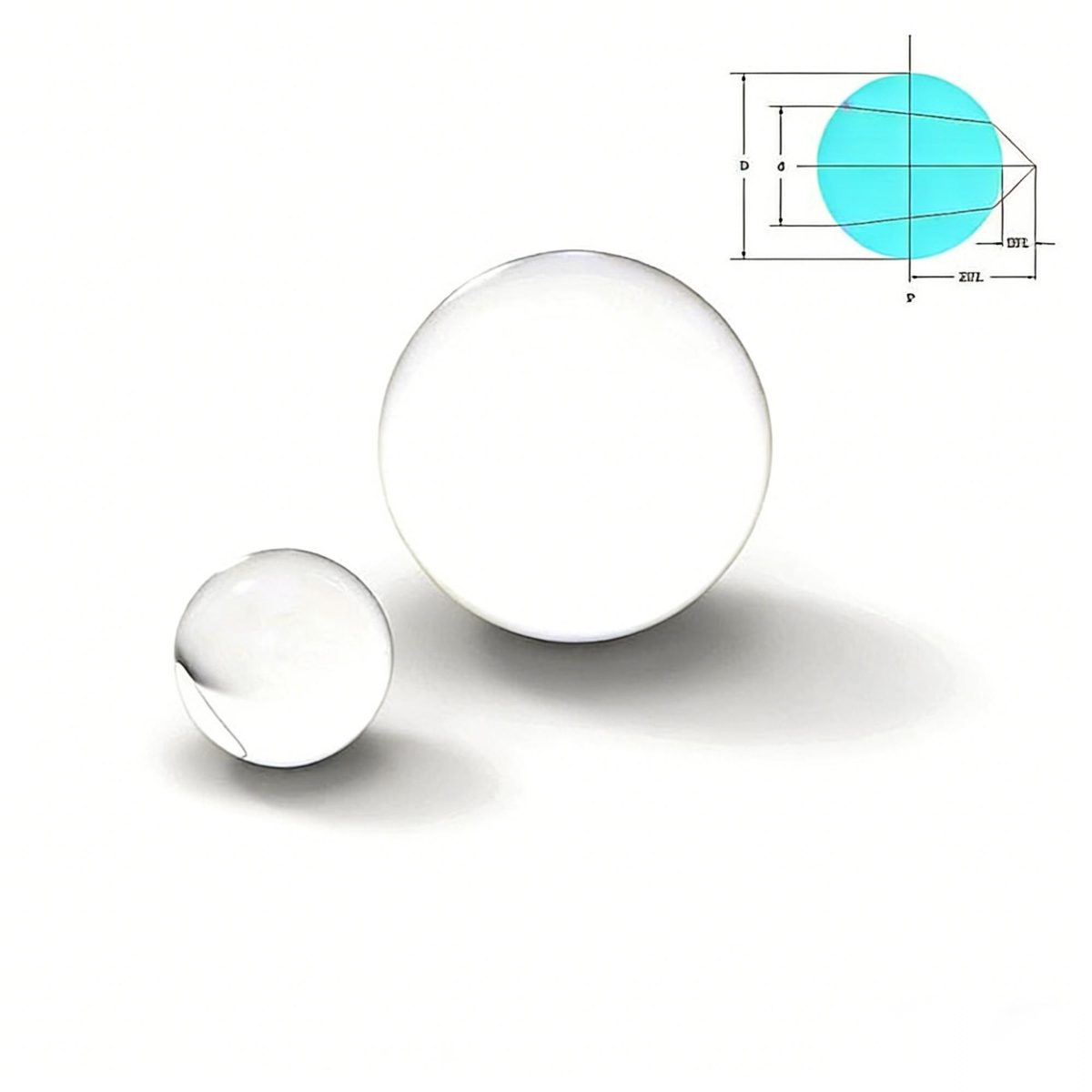

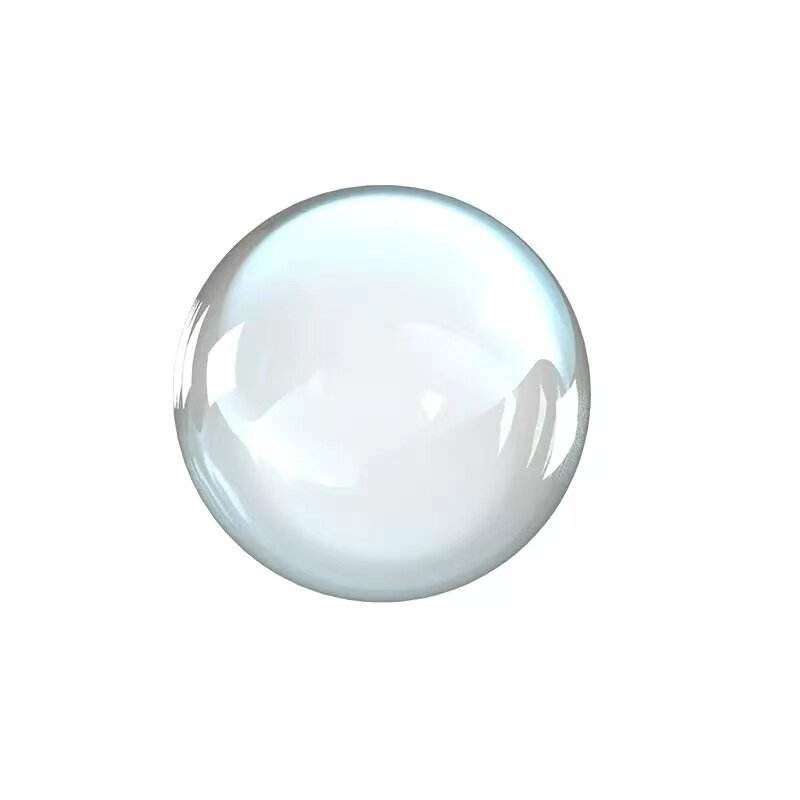

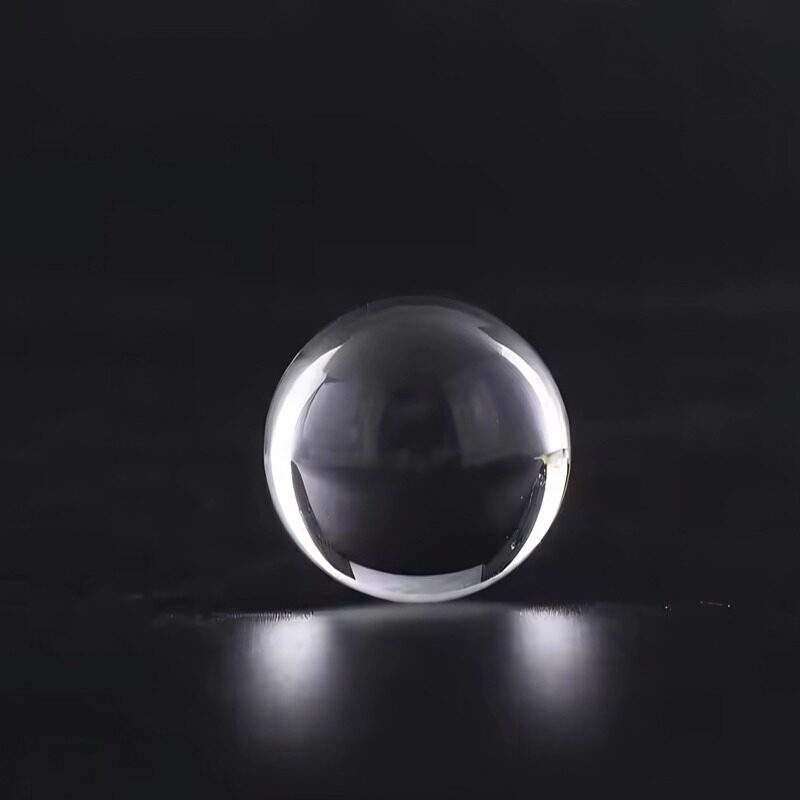

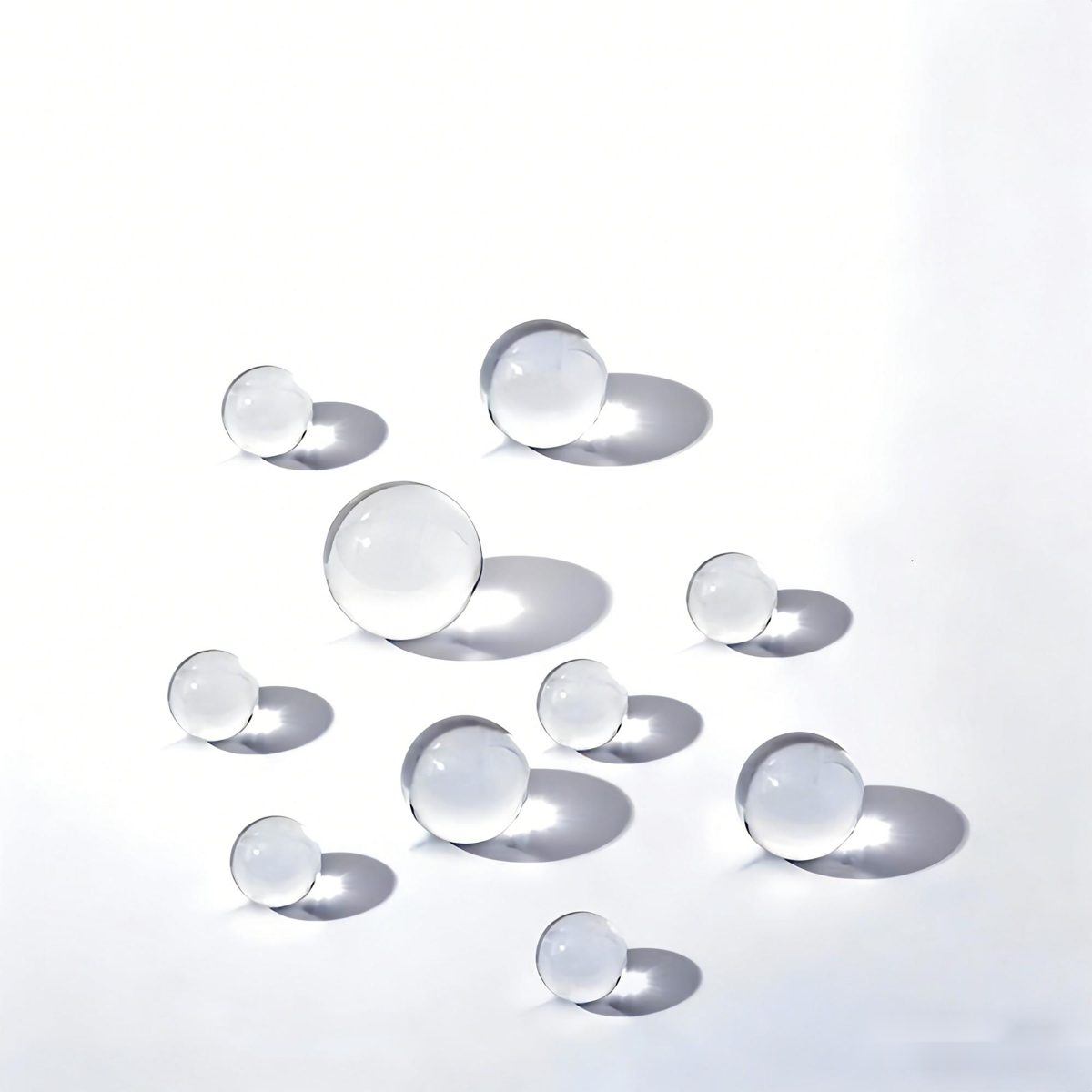

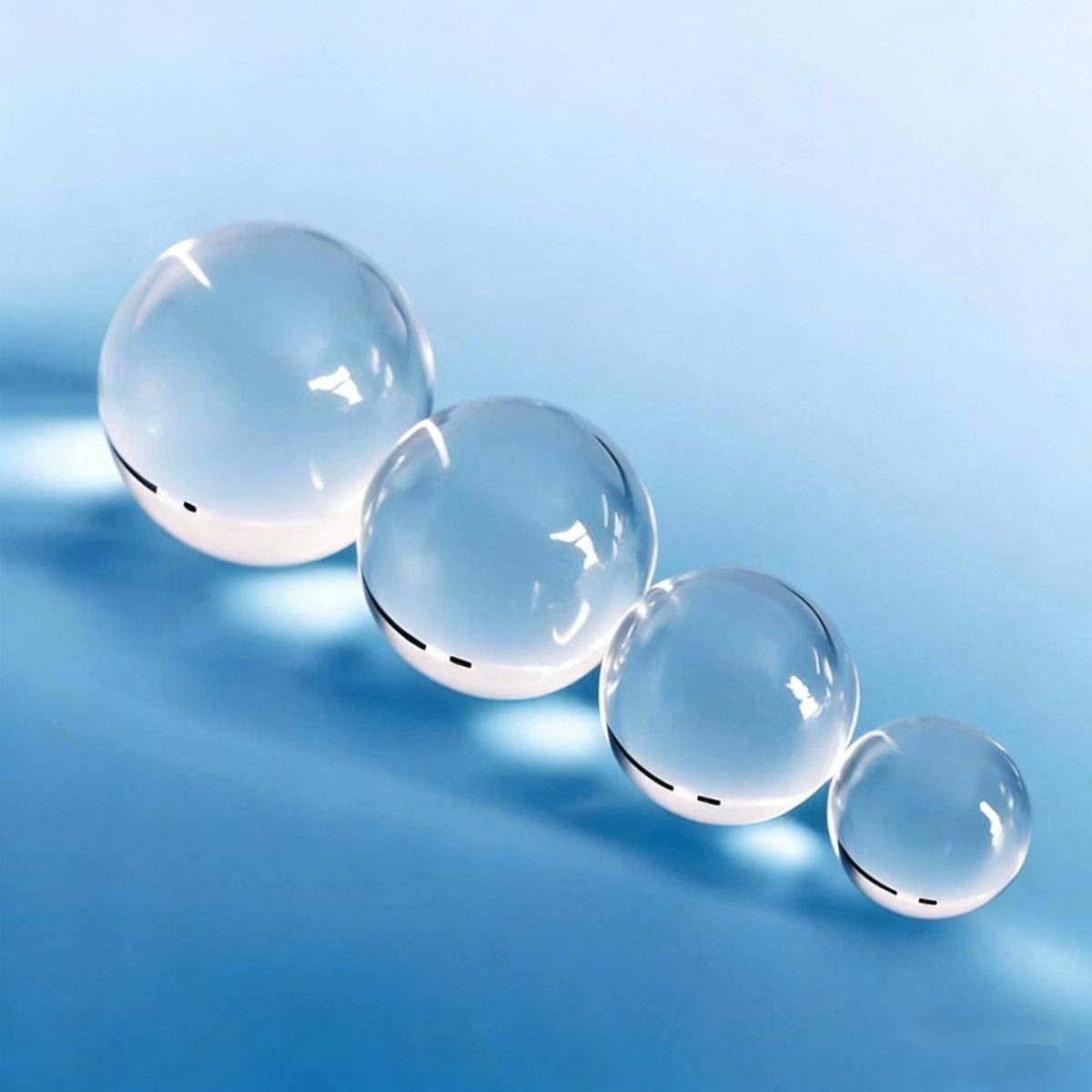

Custom Size N-BK7 Ball Lens, AR Coated
N-BK7 ball lens for medical applications with customizable thickness and precision tolerances.
Core attributes
- Material
- N-BK7
- Shape
- Ball
- Thickness
- 0.1 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Ball
- Thickness
- 0.1 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
The N-BK7 ball lens is designed for medical applications, enhancing signal coupling between optical fibers, transmitters, and detectors. Its transparent optical glass dome shape enables effective light transmission in various devices, including endoscopes and barcode scanners. With a thickness range of 0.1 to 100 mm, this lens can meet diverse requirements in optical systems, providing reliable performance in critical medical environments.
Key Features
- Material: N-BK7 for high optical quality and durability.
- Thickness range from 0.1 to 100 mm for versatile application fit.
- Surface quality of 60/40 ensures effective light transmission.
- Dimension tolerance of +/-0.005 mm for precision in assembly.
- Customizable support available for OEM needs.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Ball |
| Thickness | 0.1 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Ball Lens; Optical Glass Dome |
| Customized Support | OEM |
| Warranty | 3 Years |
| Weight | 0.5 |
| Color | Transparent |
| Dimension Tolerance | +/-0.005mm |
FAQ
Is custom sizing available?
Yes, the lens can be customized to meet specific application requirements.
What is the dimension tolerance?
The dimension tolerance for this lens is +/-0.005 mm.
