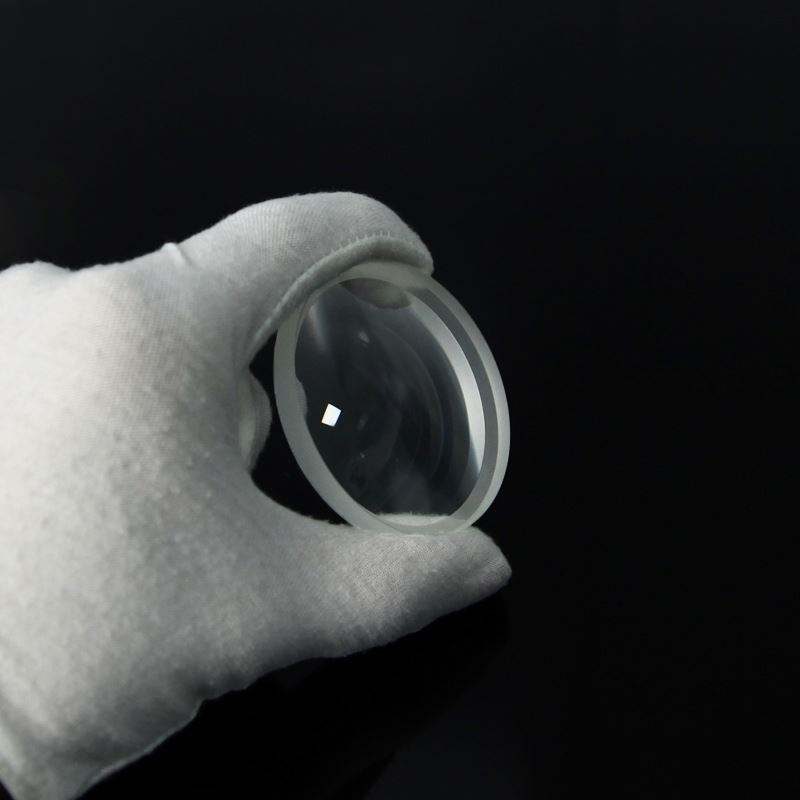

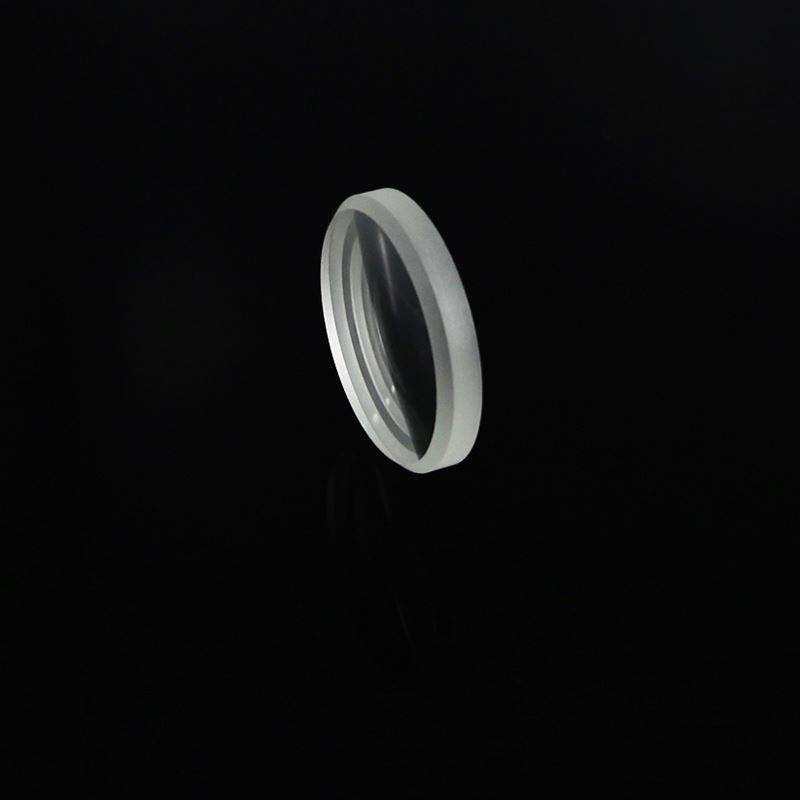

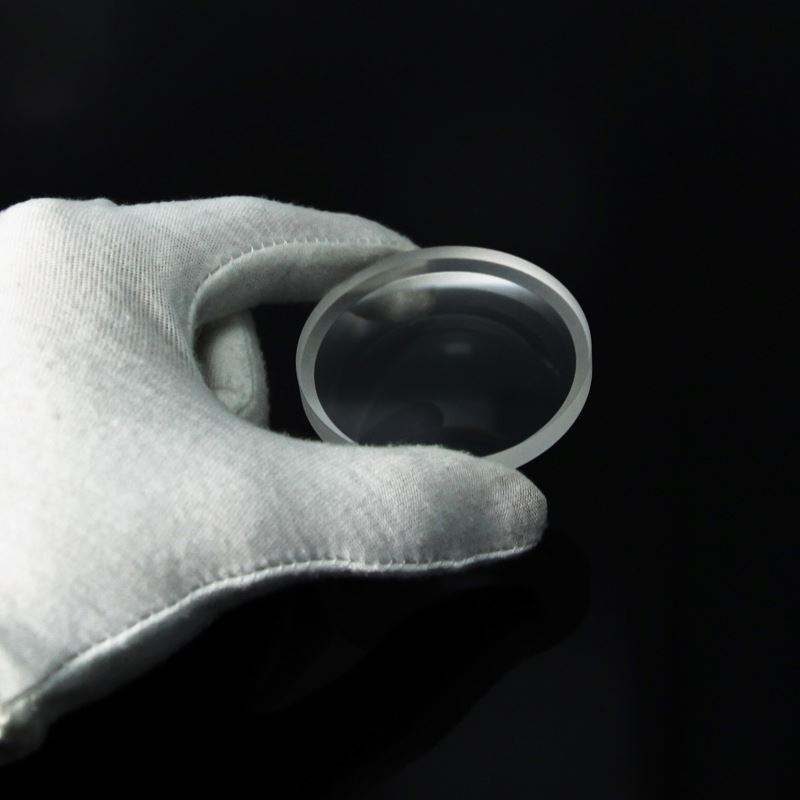

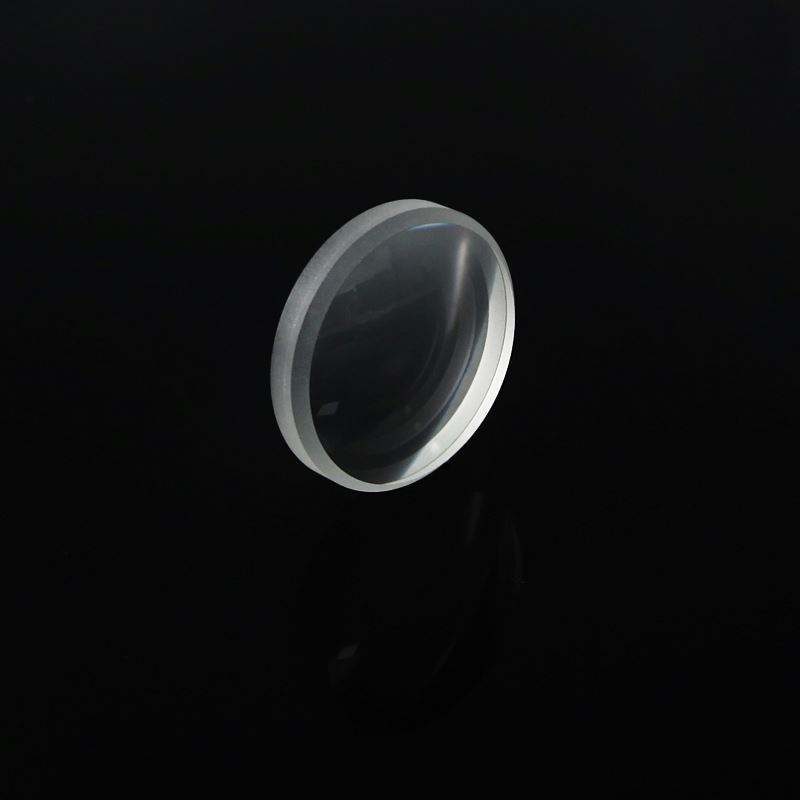

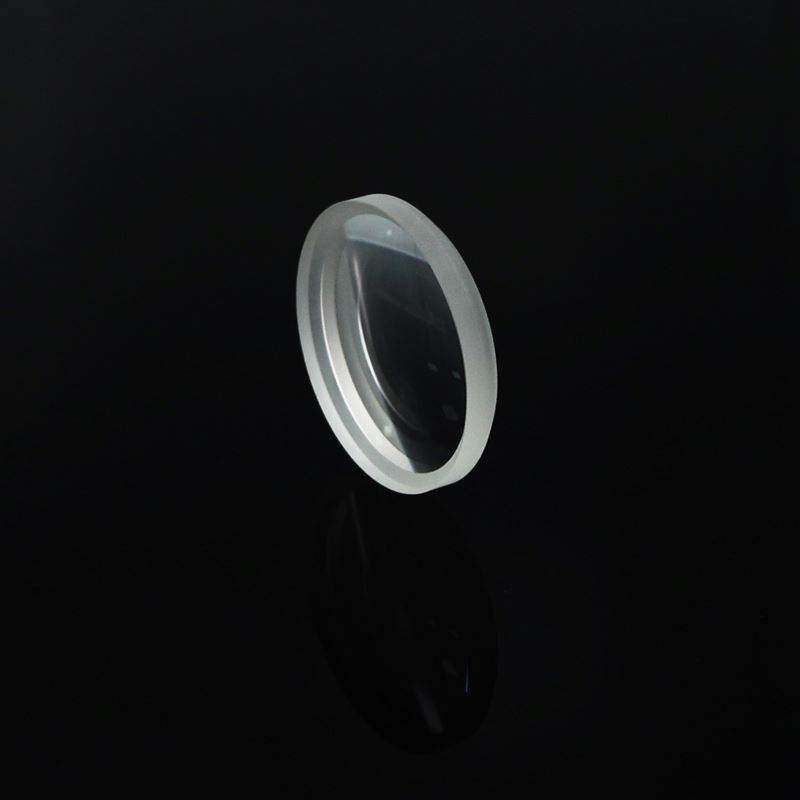

0.1 mm N-BK7 Biconcave Lens, AR Coated
Explore N-BK7 biconcave lenses for projection and imaging applications. Custom sizes and OEM support available.
Core attributes
- Material
- N-BK7
- Shape
- Biconcave
- Diameter
- 0.1 mm
- Thickness
- 0.1 mm
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Biconcave
- Diameter
- 0.1 mm
- Thickness
- 0.1 mm
- Coating
- anti-reflective (AR)
Product description
The N-BK7 biconcave lens is designed for applications such as projection, beam expansion, and image reduction. With its double concave structure, it effectively expands the focal length of optical systems. This lens is ideal for R&D and procurement engineers seeking reliable optical components for their projects, ensuring optimal performance in various imaging applications.
Key Features
- Material: N-BK7 for excellent optical performance.
- Diameter: 0.1 mm for compact applications.
- Thickness: Up to 100 mm, providing versatility in design.
- Clear Aperture: 85% ~ 95% for enhanced light transmission.
- Customizable: OEM support available for tailored solutions.
Applications
Projection
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Biconcave |
| Diameter | 0.1 mm |
| Thickness | 0.1 mm |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Concave Lens; Concave lens |
| Customized Support | OEM |
| Warranty | 3 Years |
| Weight | 0.5 |
| Color | Transparent |
| Clear Aperture | 85% ~95% |
| Flatness | 1/4lambda |
FAQ
Can I get custom sizes?
Yes, custom sizes and thicknesses can be accommodated.
What are the tolerances?
Thickness tolerance is +/-0.1 mm, and diameter tolerance is -0.2 mm.
