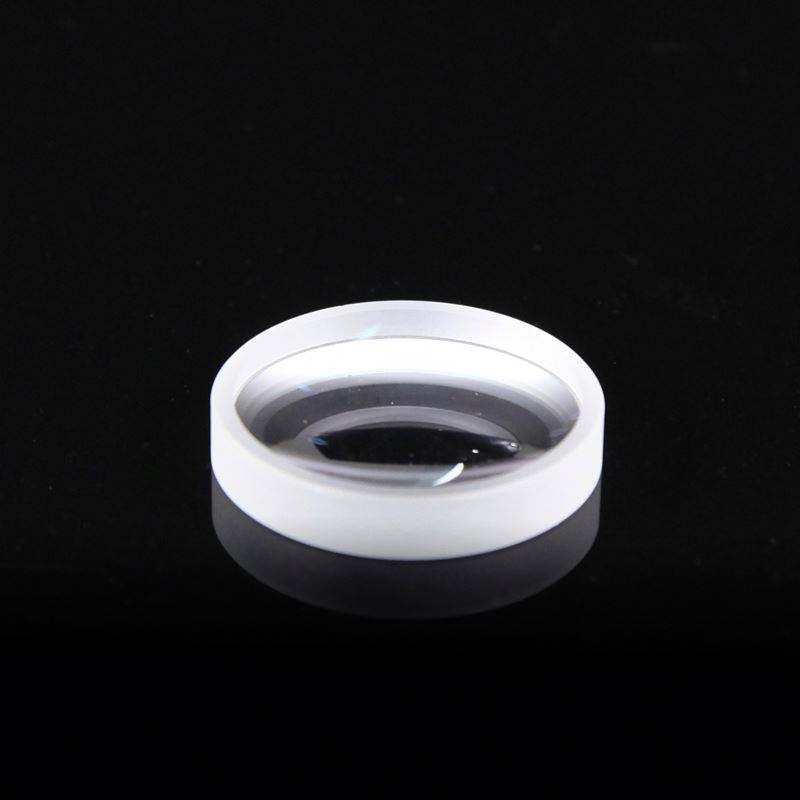

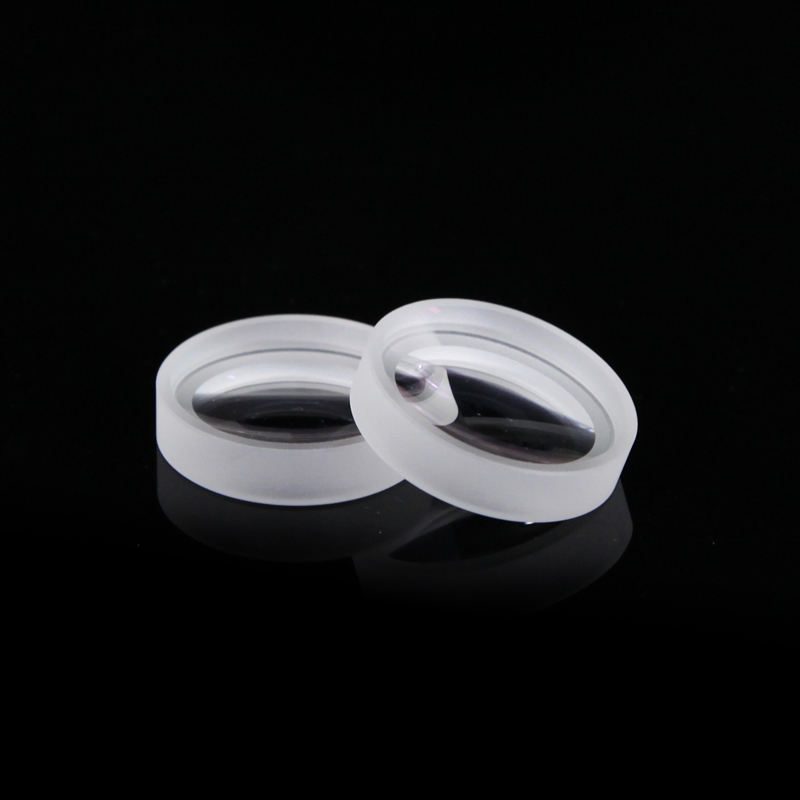

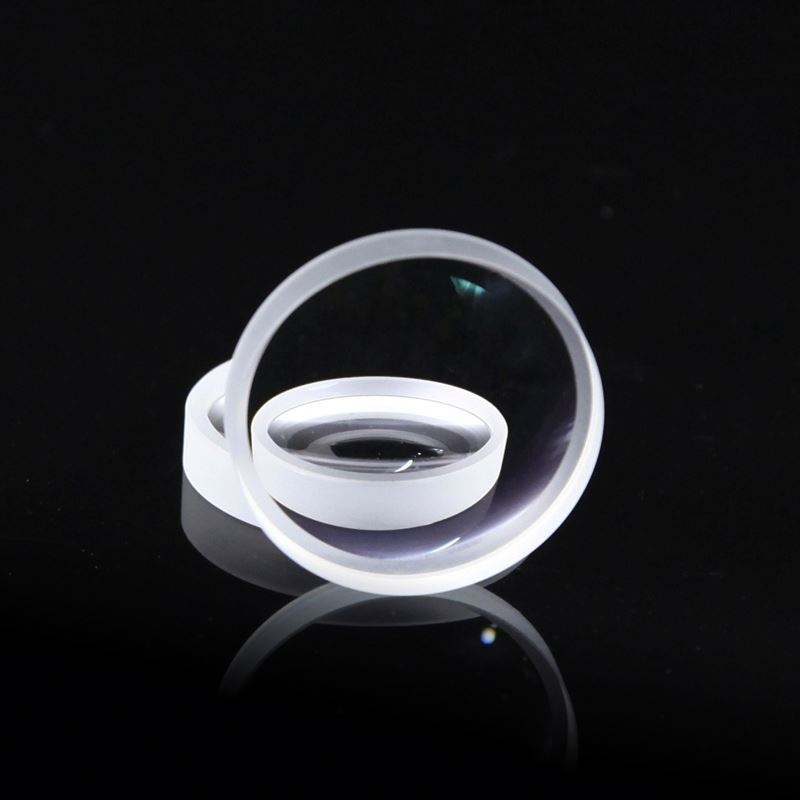

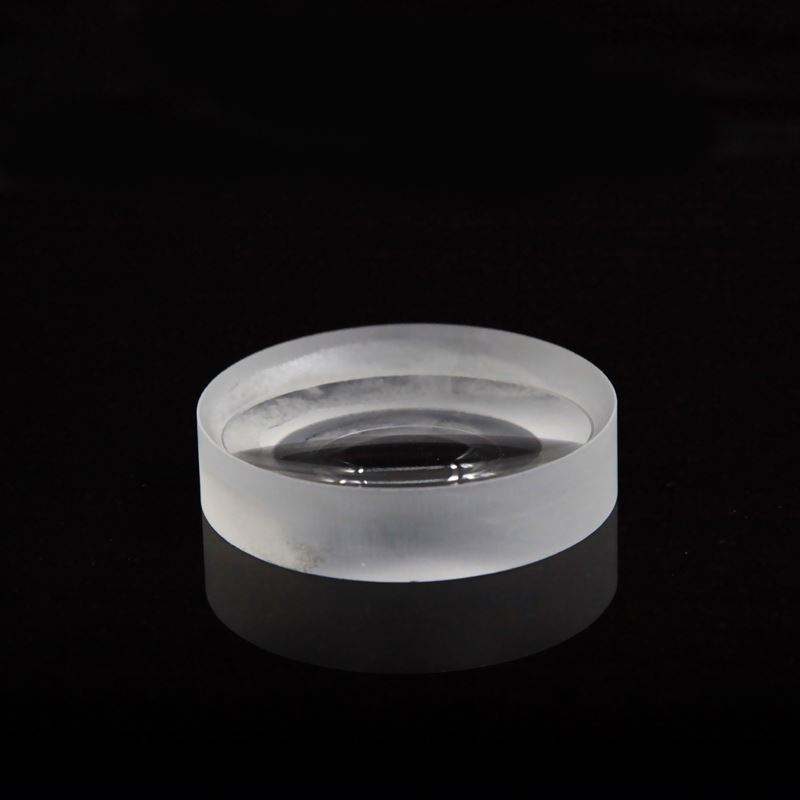

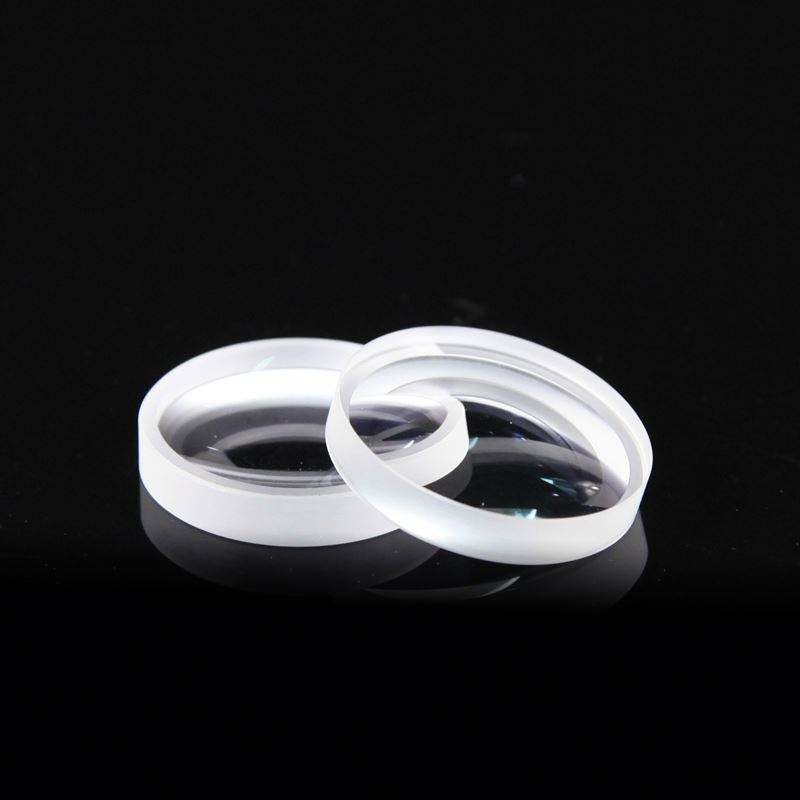

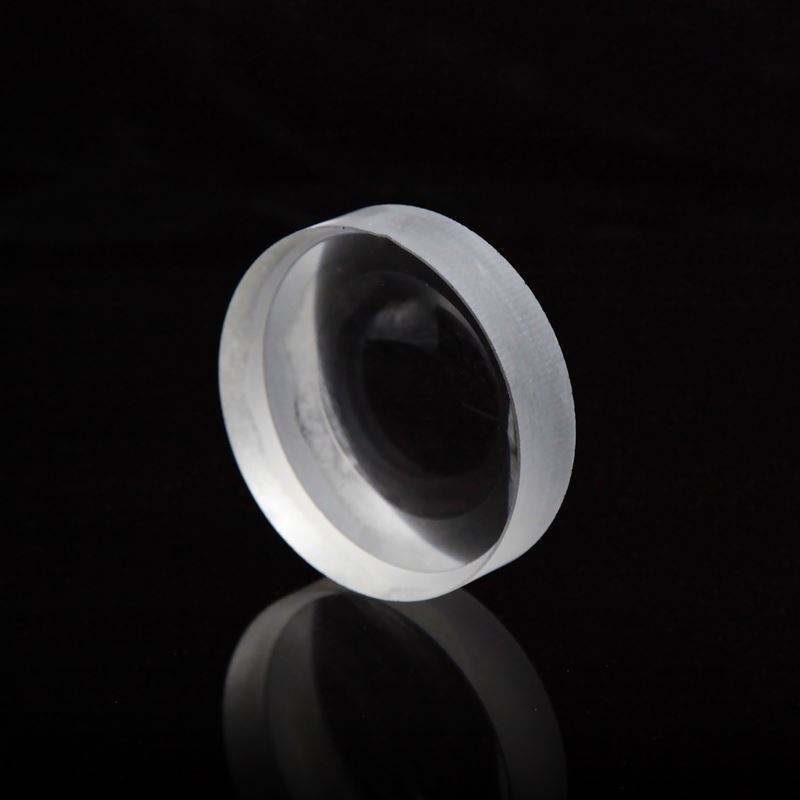

1 mm N-BK7 Biconcave Lens, AR Coated

This biconcave lens, made from N-BK7 glass, is designed for applications requiring precise optical performance across a wide wavelength range of 0.7-1.7 μm and 400-700 nm. Its anti-reflective coating minimizes glare, enhancing clarity for improved visibility in various optical systems. With customizable sizes from 1 mm to 100 mm in thickness and a diameter range of 0.5-300 mm, this lens meets the needs of R&D and procurement engineers seeking reliable optical components for IR imaging, LIDAR, and medical devices.

Key Features

• High-Quality Glass Material: Ensures durability and precision for optical applications.
• Customizable Sizes: Available in thicknesses from 1 mm to 100 mm and diameters from 0.5 mm to 300 mm.
• Anti-Reflective Coating: Reduces glare and enhances clarity for improved visibility.
• Surface Accuracy: Achieves flatness of L/4 (@633nm) to L/10 (@633nm) for high performance.
• Laser-Induced Damage Threshold (LIDT): ≥ 10 J/cm² at 1064 nm, ensuring reliability in high-energy applications.

Specification Summary

Full Specifications

FAQ

What are the available thickness and diameter options for this lens?

Thickness options range from 1 mm to 100 mm, and diameters range from 0.5 mm to 300 mm.

Can I get a custom size for my application?

Yes, custom sizes can be provided to meet specific application requirements.
