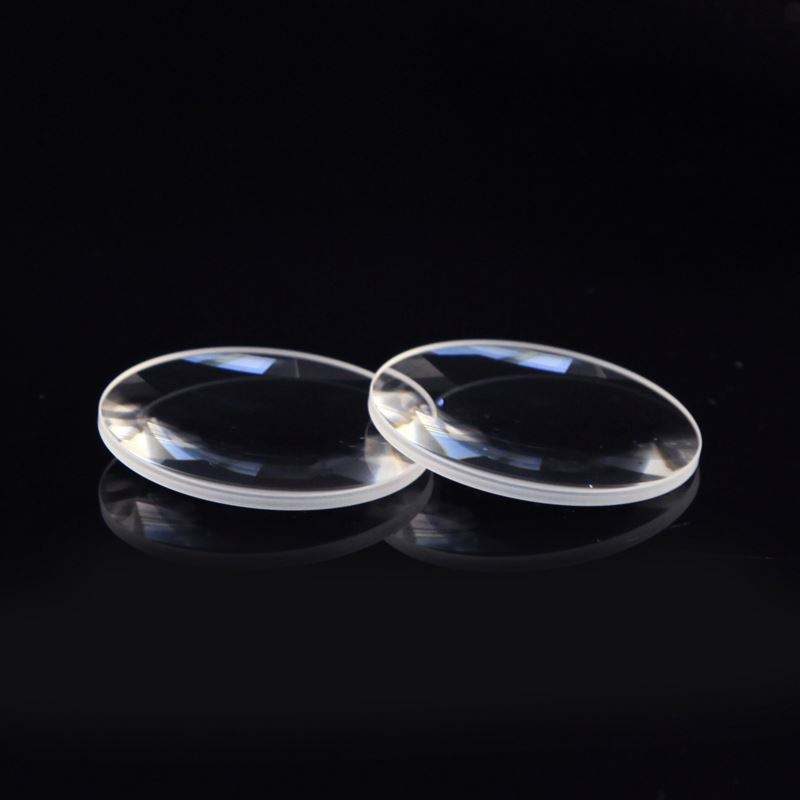

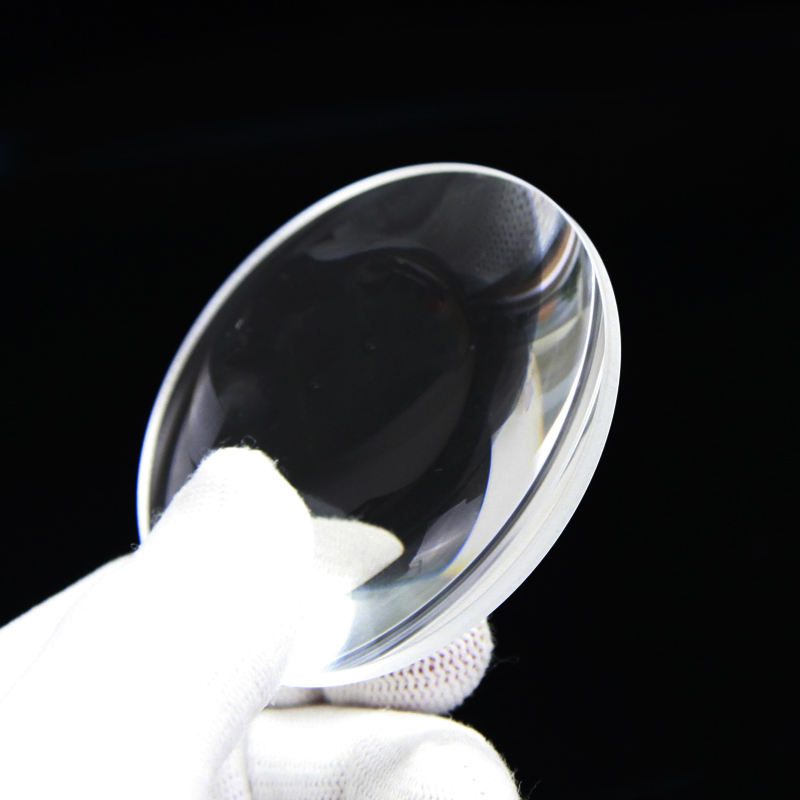

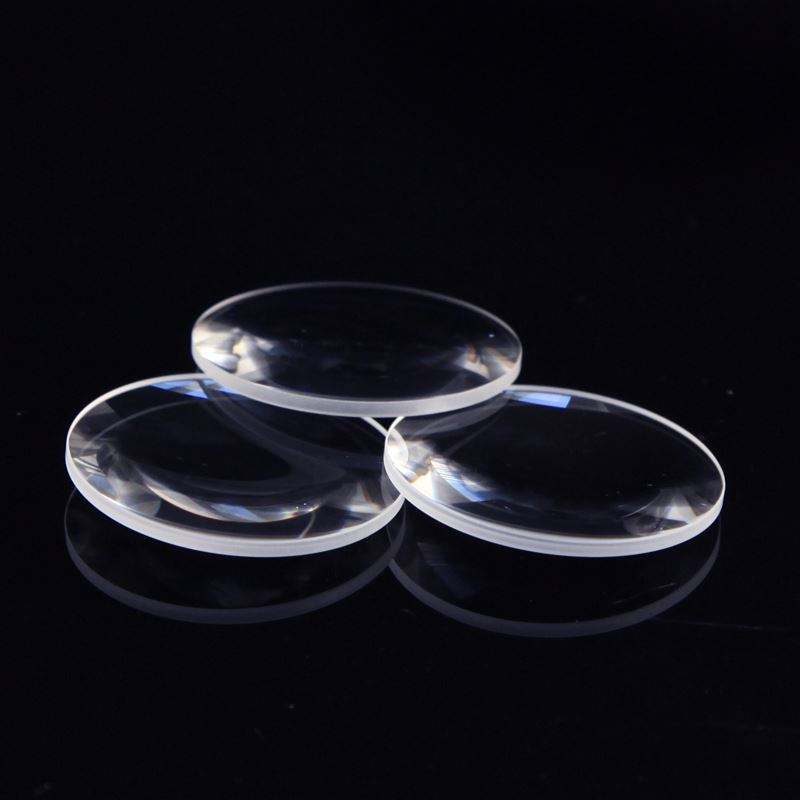

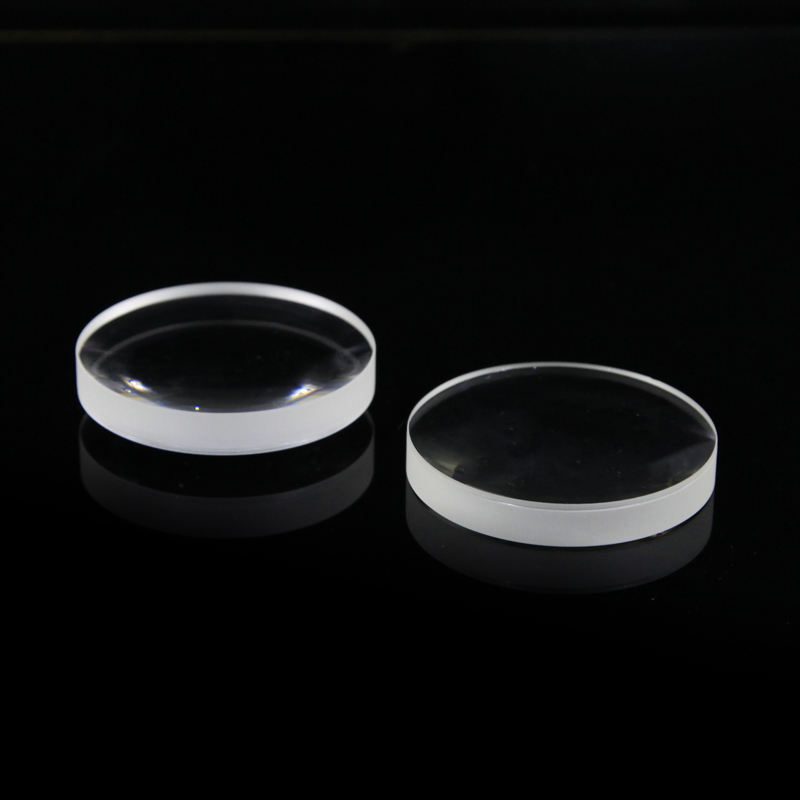

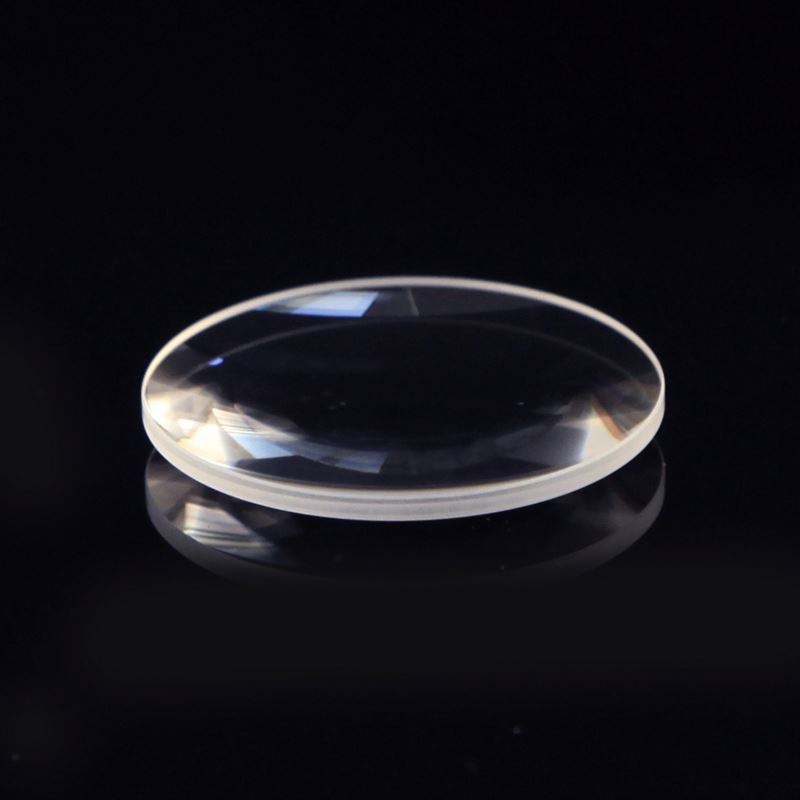

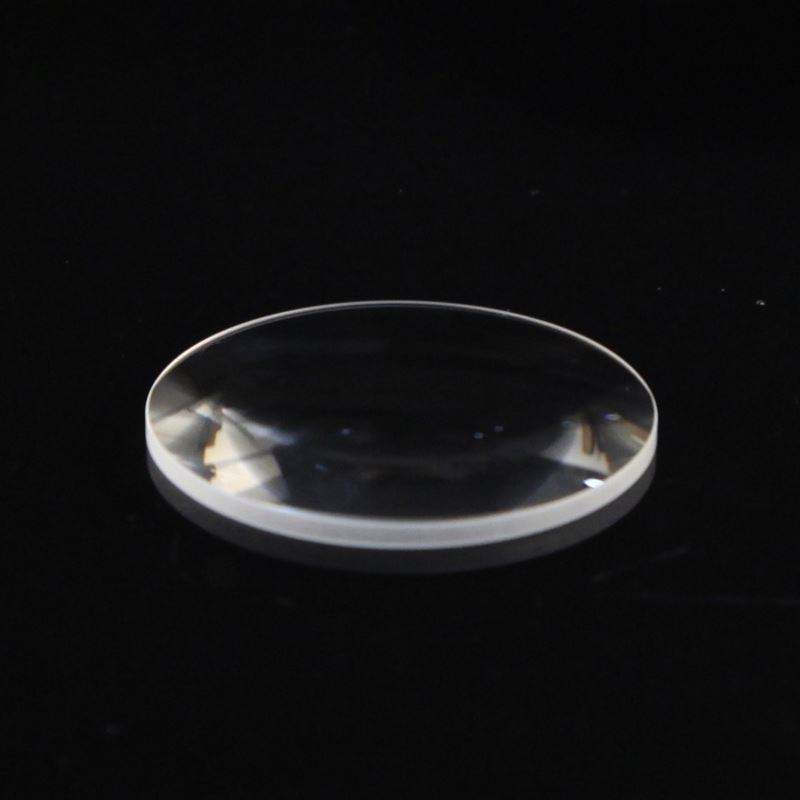

10 mm N-BK7 Biconvex Lens, AR Coated

Product description

The biconvex lens made from N-BK7 is designed for projection applications, effectively expanding light beams and enhancing image quality across the 0.7-1.7 μm and 400-700 nm wavelength ranges. With a diameter of 10 mm and a thickness of 0.1 to 100 mm, this lens offers versatility for various optical systems. Its transparent color and high clear aperture (85% ~95%) ensure optimal light transmission, making it suitable for both standard and customized solutions.

Key Features

Material: N-BK7 for excellent optical performance.
Coatings: Available in anti-reflective (AR) and uncoated options for tailored applications.
Diameter: 10 mm with a thickness range from 0.1 to 100 mm for flexible design integration.
Clear Aperture: 85% ~95% for superior light transmission.
Customization: OEM, ODM, and OBM support for tailored specifications.

Applications

Projection

Specification Summary

Item	Value
Material	N-BK7
Shape	Biconvex
Diameter	10 mm
Thickness	0.1 mm
Coating	anti-reflective (AR), uncoated
Transmission bands	NIR (0.7-1.7 μm), VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Biconvex Lenses; Concave lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.5
Color	Transparent
Clear Aperture	85% ~95%
Flatness	1/4lambda

FAQ

Can I get custom sizes for this lens?

Yes, custom sizes are available, and we can manufacture according to your drawings.

What are the thickness tolerances?

The thickness tolerance is +/-0.1 mm, ensuring precision in your applications.
