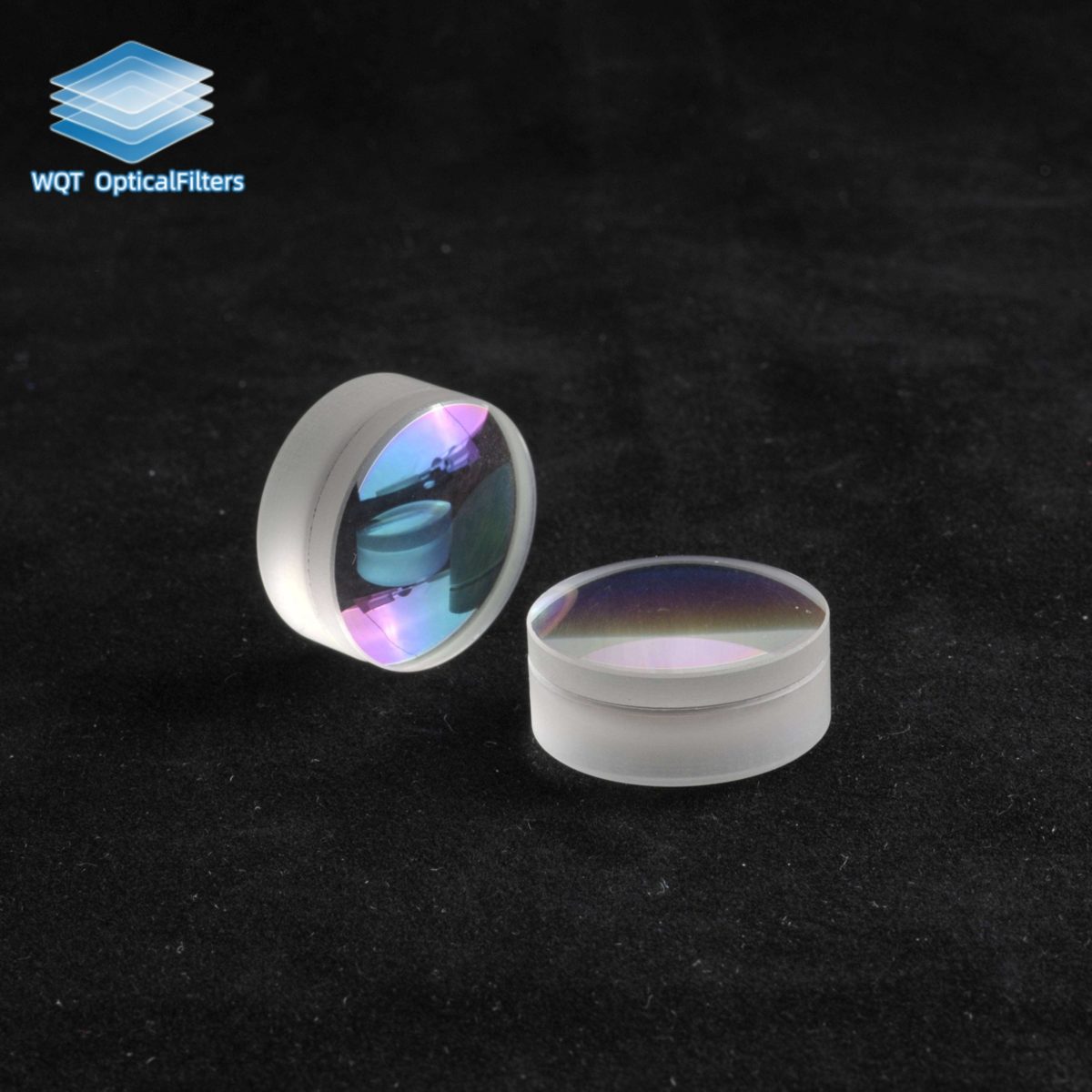

12.7 mm N-BK7 Biconvex Lens, AR Coated

Product description

This biconvex achromatic lens made from N-BK7 glass is designed to solve challenges in precision optics by providing excellent light transmission and clarity. With a diameter of 12.7 mm and a surface quality rating of 60/40, it is suitable for various optical applications requiring high performance. The lens is manufactured with precision polishing, ensuring consistent quality and reliability for R&D and production environments. Customization options are available to meet specific project needs.

Key Features

Diameter of 12.7 mm with a tolerance of 0.00/-0.05 mm for precise fitting.
Surface quality rated at 60/40 for reliable optical performance.
Clear aperture of 90% ensures maximum light transmission.
Customizable options for diameter, thickness, and coatings to fit unique applications.
Manufactured from N-BK7 glass for excellent thermal stability and durability.

Specification Summary

Item	Value
Material	N-BK7
Shape	Biconvex
Diameter	12.7 mm
Surface Quality	60/40
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Achromatic Lens, Aspherical Lens, Biconvex Lens, Concave Lens, Convex Lens, Plan…
Customized Support	OEM, ODM
Warranty	2 Years
Weight	20g
Key Word	Achromatic Lens
Structure	Achromatic Cement lens
Service	OEM ODM Private Label Service
Main Material	Glass
Clear Aperture	90%
Diameter Tolerance	0.00/-0.05mm
Thickness Tolerance	Within 0.005mm

FAQ

Is custom sizing available?

Yes, the lens can be customized for diameter, thickness, and coatings based on customer specifications.

What is the minimum order quantity (MOQ)?

There is no minimum order quantity for this optical component.
