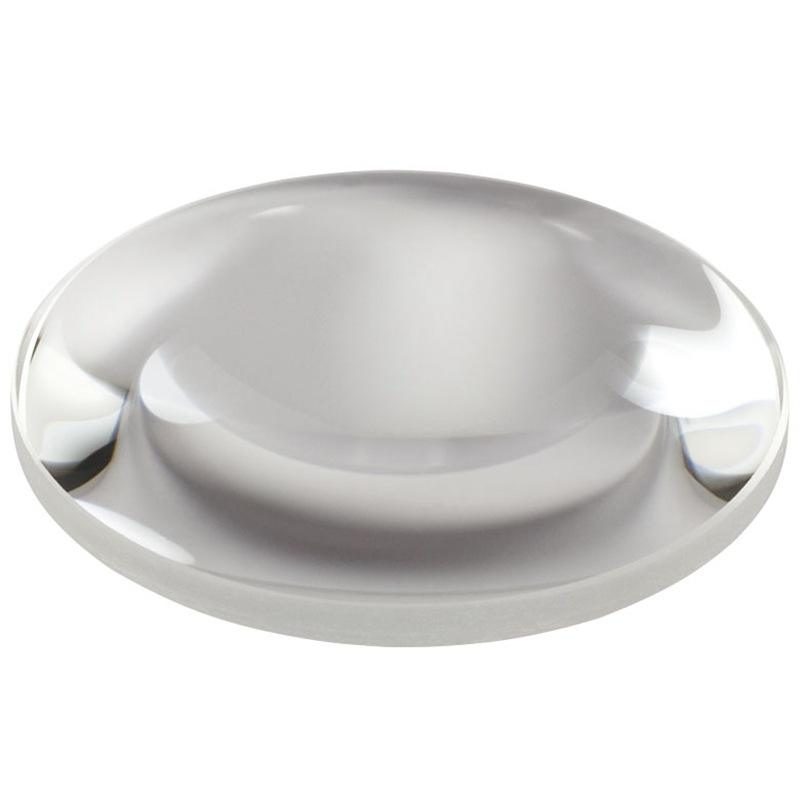

17x50 mm N-BK7 Biconvex Lens, AR Coated

Product description

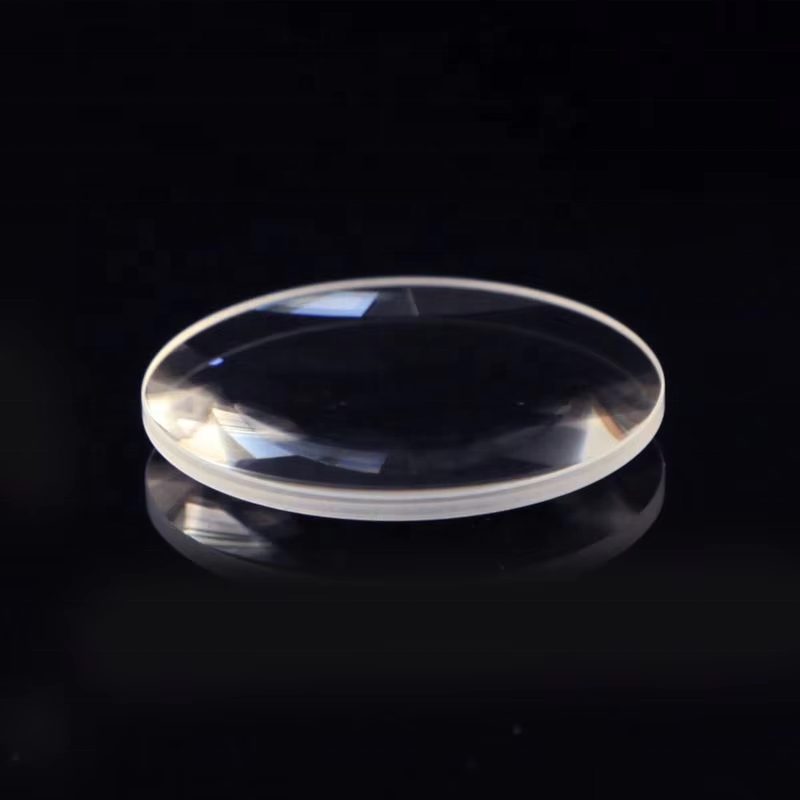

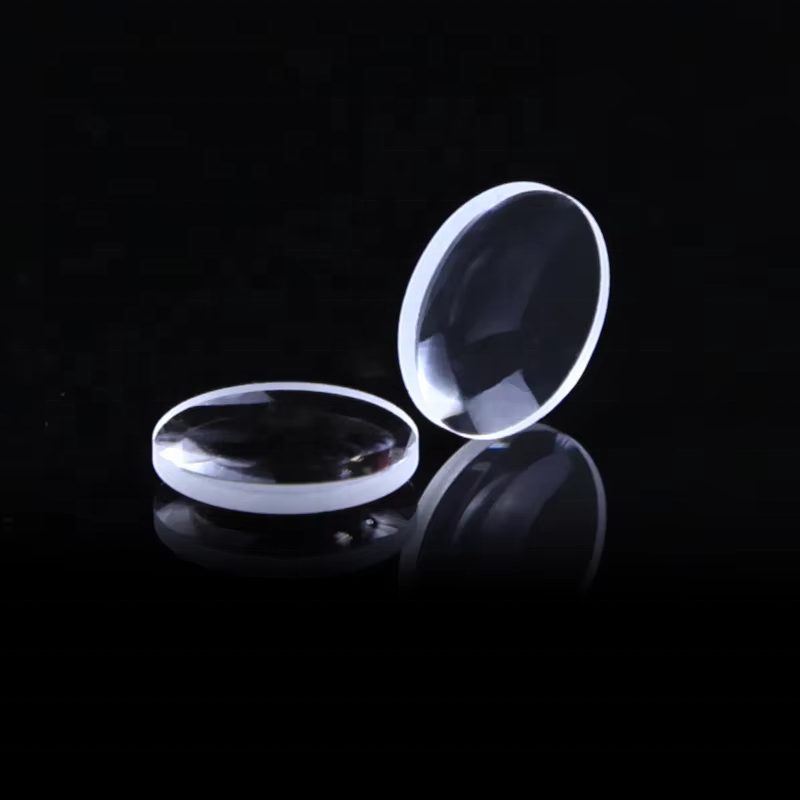

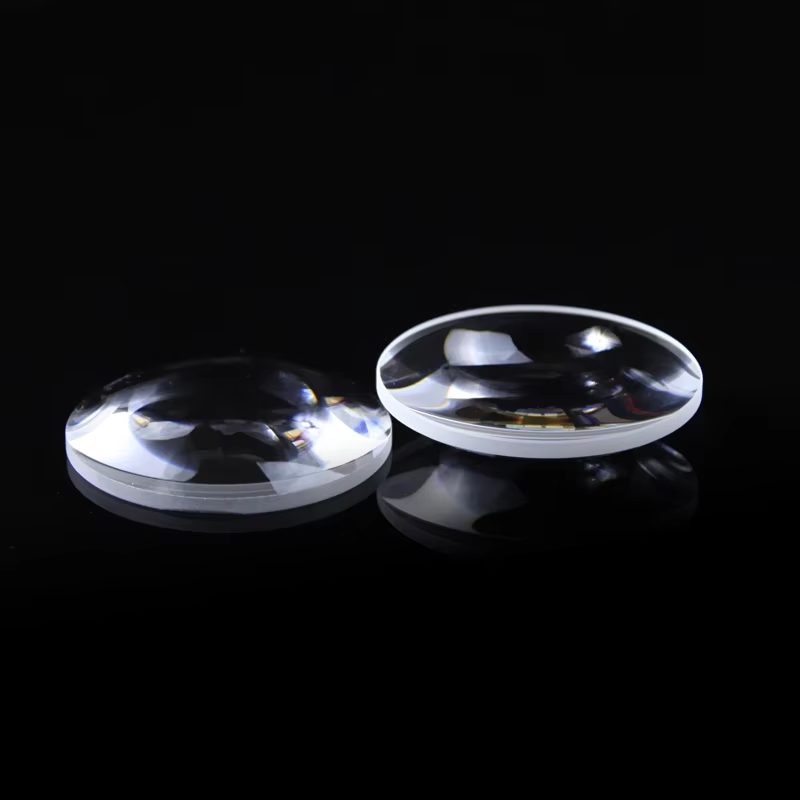

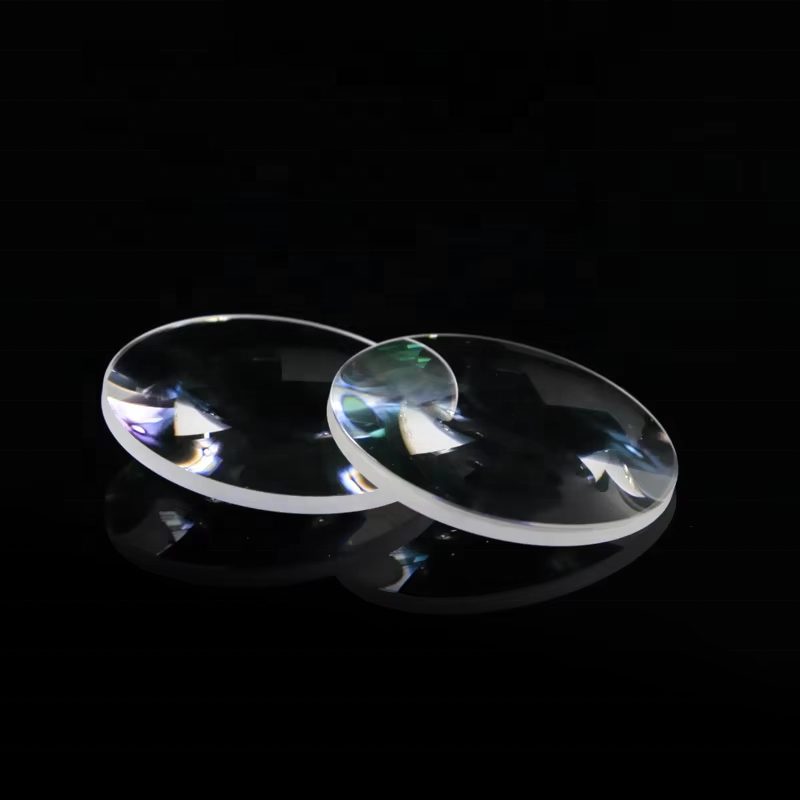

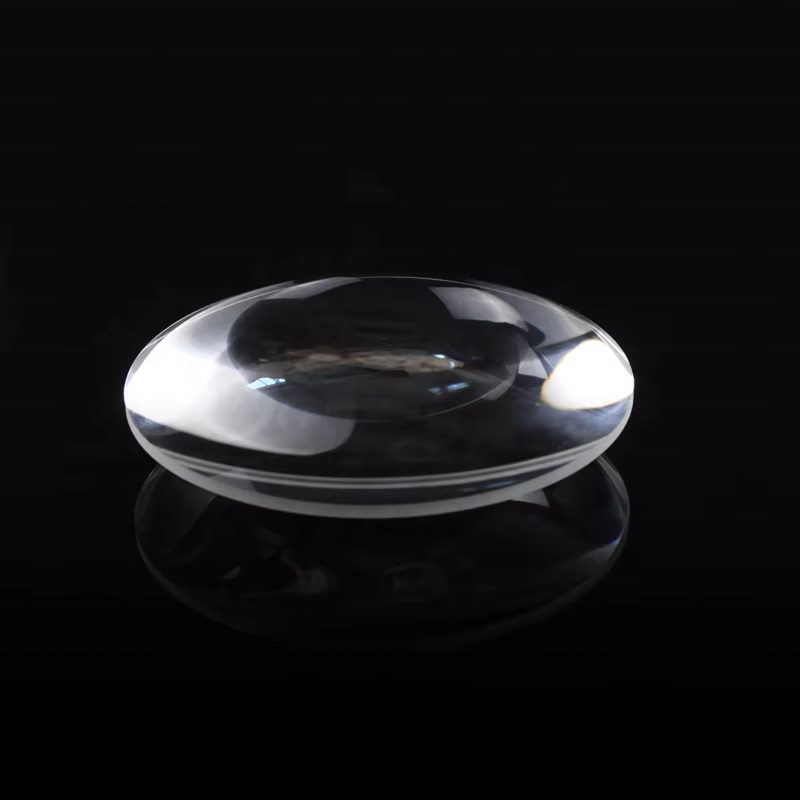

The biconvex lens made from N-BK7 glass is ideal for applications in microscopy, collimation, and imaging. With a diameter of 17 mm and a focal length of 50 mm, this lens effectively focuses and controls laser beams, ensuring high-quality imaging across various optical instruments. Its design allows for the convergence of light, making it suitable for a wide range of optical applications. The lens can be customized to meet specific requirements, providing flexibility for different projects.

Key Features

Diameter: 17 mm for compatibility with standard optical setups.
Focal Length: 50 mm for effective light convergence.
Center Thickness: 2.62 mm with a tolerance of ±0.05 mm for precision.
Clear Aperture: >95% ensuring minimal light loss.
Customizable options available to meet OEM specifications.

Available Sizes

Diameter x Focal Length (mm)
10 x 50
17 x 50

Applications

Microscopy, Collimation, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Biconvex
Diameter	17 mm
Focal Length	50 mm
Thickness	1.6 mm
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Convex Lens; Bi-convex Lenses
Customized Support	OEM
Weight	0.5
Color	Transparent
Bevel	Protective Bevel
Clear Aperture	95%

FAQ

Can I get custom sizes for this lens?

Yes, this biconvex lens can be customized with variant sizes ranging from 10 mm to 50 mm.

What are the tolerances for this lens?

The lens has a tolerance of ±0.05 mm for center thickness.
