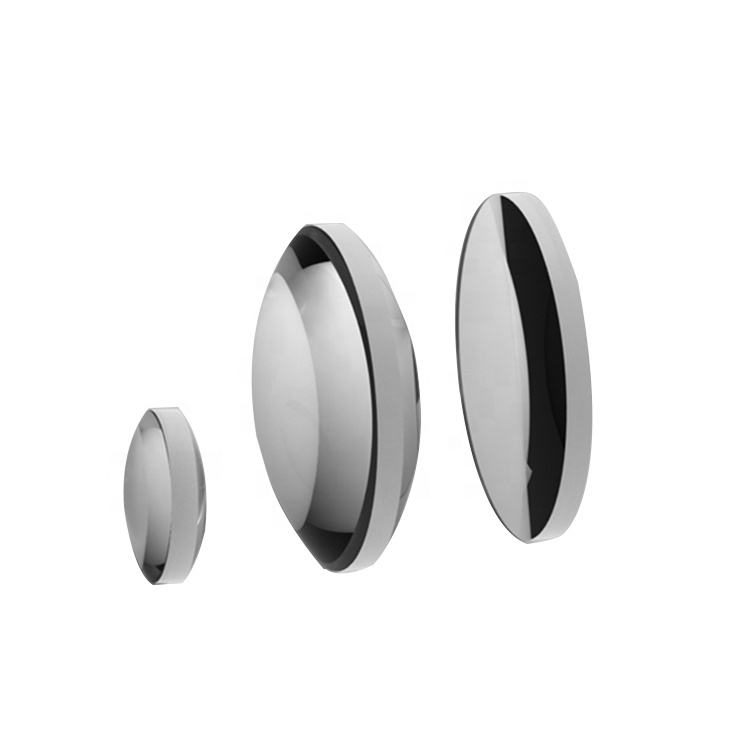

1 mm N-BK7 Biconvex Lens, AR Coated

Product description

The N-BK7 biconvex lens is designed for high-precision applications in machine vision, microscopy, and imaging. With its broadband anti-reflection coating, it offers excellent transmission across multiple wavelength bands, including 400-700 nm and 1.7-3 μm. This lens effectively minimizes reflection losses, making it ideal for demanding optical systems. Customization options are available to meet specific application needs, ensuring optimal performance in various environments.

Key Features

Broadband anti-reflection coating enhances transmission, reducing reflection losses.
Compatible with multiple wavelength bands, including 400-700 nm and 1.7-3 μm.
Customizable options available for material and coatings to fit specific applications.
Precision grades available for high-accuracy requirements in imaging systems.
Centration tolerances as tight as <1 arc-min for precision applications.

Applications

Machine Vision, Microscopy, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Biconvex
Diameter	1 mm
Coating	anti-reflective (AR)
Transmission bands	SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Convex Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.1
Structure	Spherical or aspheric available
Centration	<3 arc-min (standard), <1 arc-min (precision)

FAQ

Can I get custom sizes for this lens?

Yes, the lens can be customized in terms of material and coatings to meet specific application requirements.

What are the available tolerances for centration?

Centration tolerances are available at <3 arc-min for standard and <1 arc-min for precision grades.
