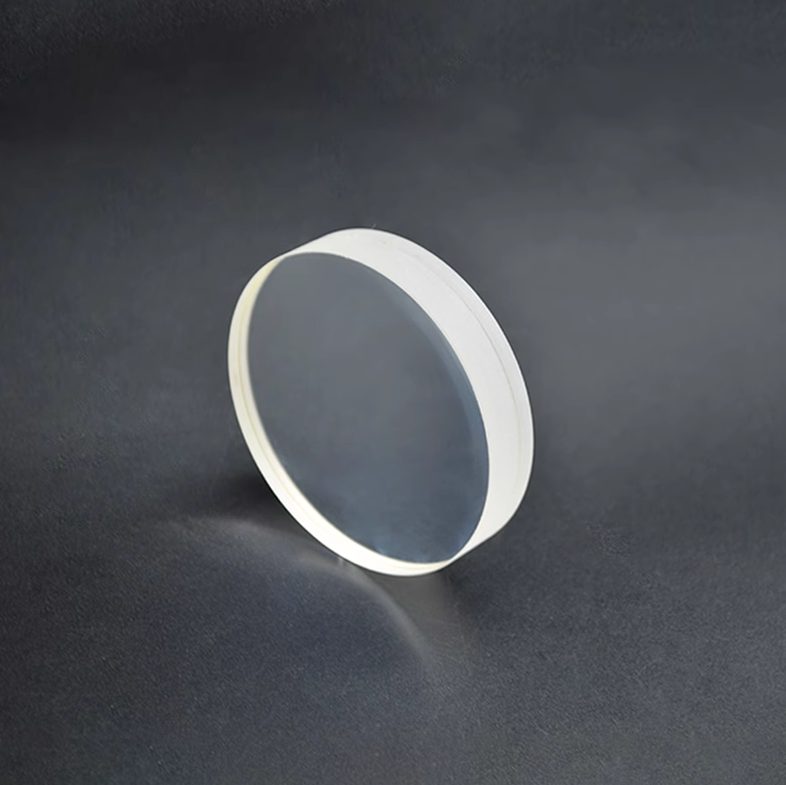

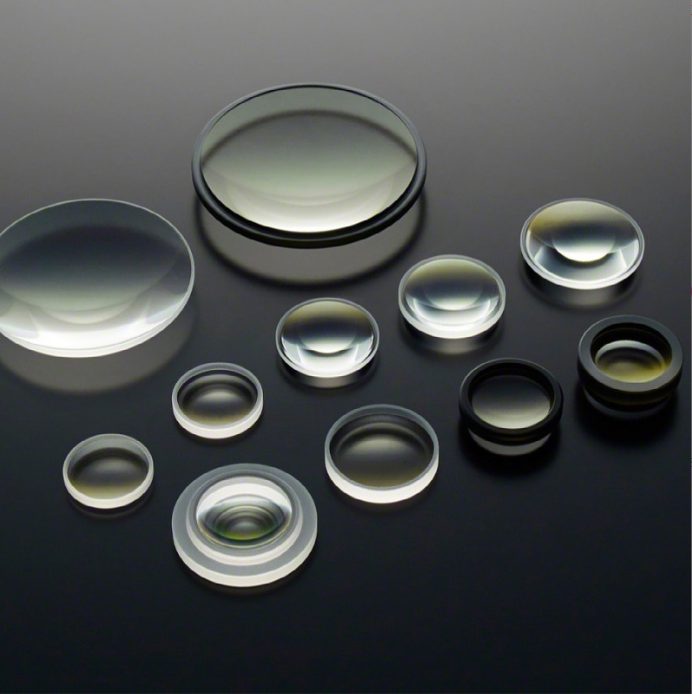

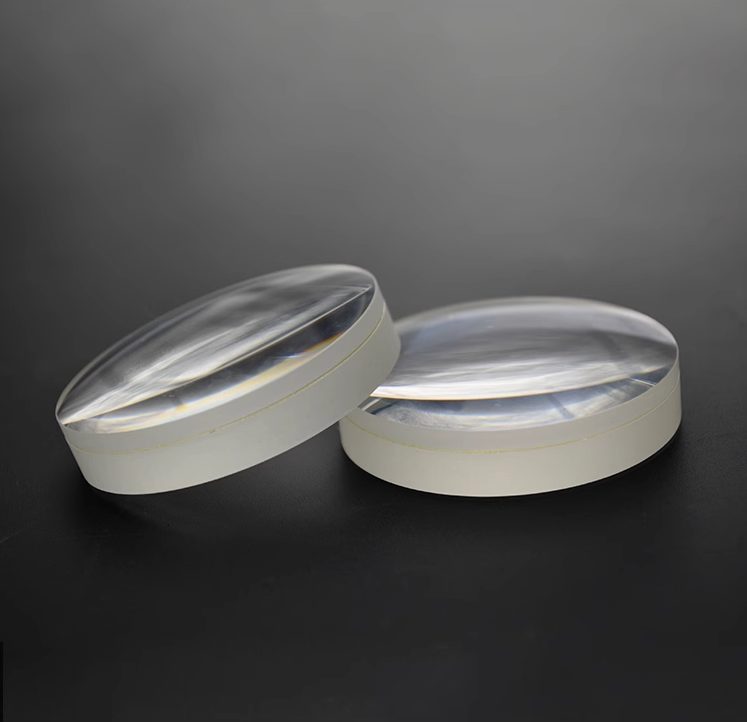

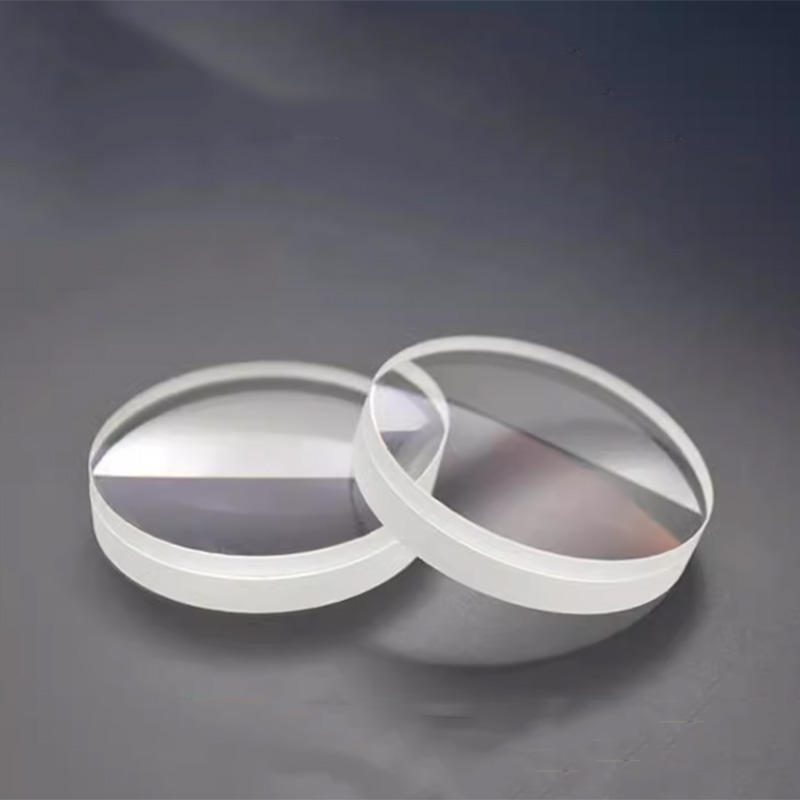

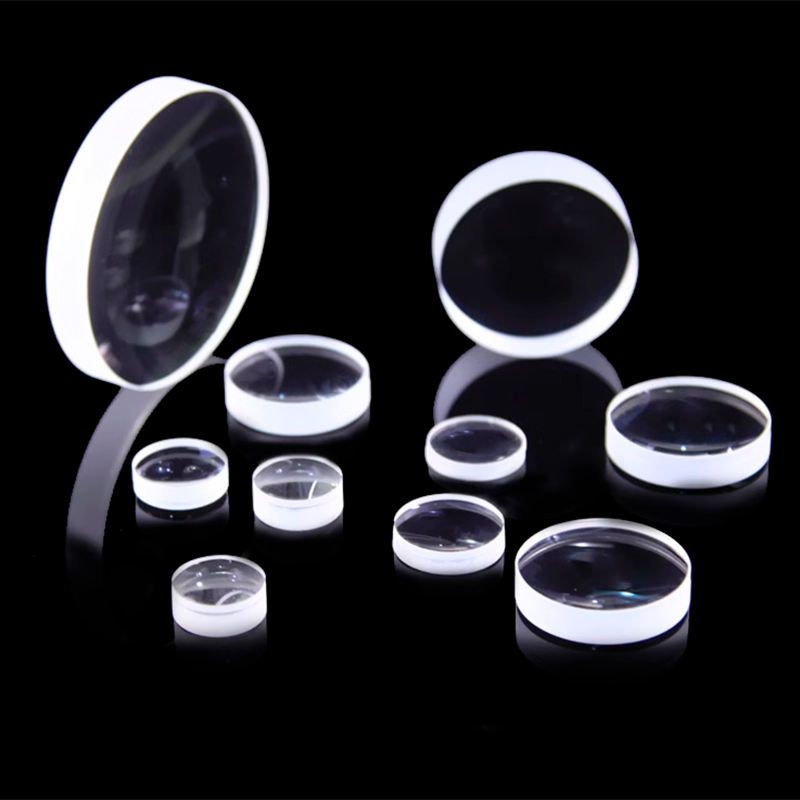

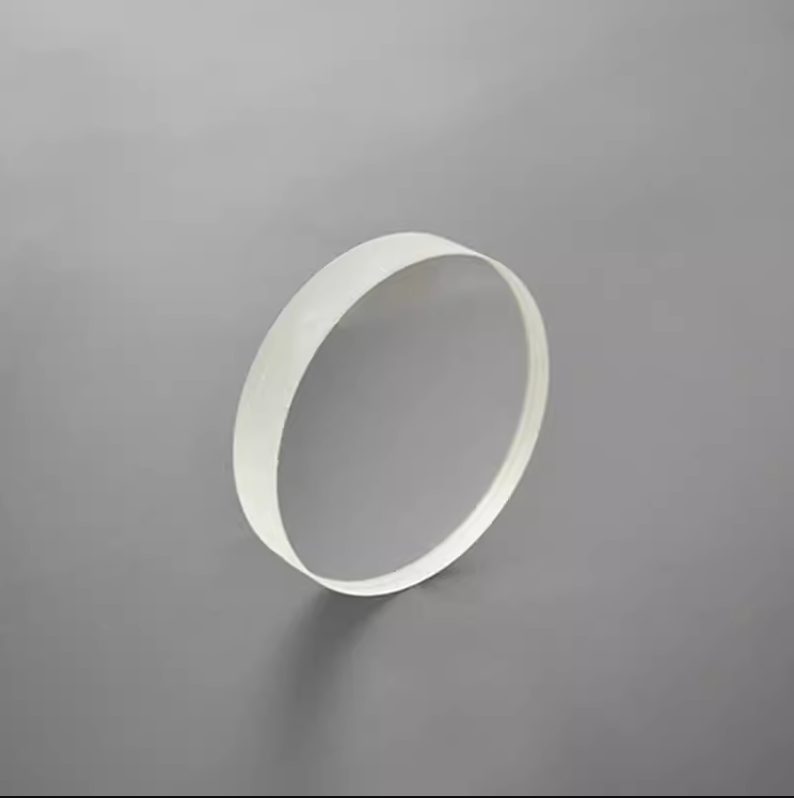

25.4 mm N-BK7 Biconvex Lens, AR Coated
Biconvex lens made from N-BK7, ideal for IR imaging and LIDAR, with customizable options and 60/40 surface quality.
Core attributes
- Material
- N-BK7
- Shape
- Biconvex
- Diameter
- 25.4 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Biconvex
- Diameter
- 25.4 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm)
Product description
This biconvex lens, made from N-BK7 material, is designed to effectively gather light from point sources across a broad wavelength range of 200-2500 nm. With anti-reflective coatings, it enhances image quality while maintaining a surface quality of 60/40. Ideal for applications in IR imaging, LIDAR, and medical devices, this lens ensures precision and clarity in optical systems. Its 25.4 mm diameter and customizable options make it suitable for a variety of projects.
Key Features
- Wavelength range: 200-2500 nm for versatile applications.
- Surface quality of 60/40 ensures clarity and precision.
- Anti-reflective coatings reduce glare for improved image quality.
- Diameter tolerance of 0.2 mm for consistent performance.
- Customized support available including OEM, ODM, and OBM.
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Biconvex |
| Diameter | 25.4 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | SWIR (1.7-3 μm), NIR (0.7-1.7 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Biconvex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.3 |
| Wavelength | 200-2500nm |
| Diameter Tolerance | 0.2mm |
| Center Thickness Tolerance | ±0.1mm |
| Package | safe |
FAQ
What are the customization options available?
Customization options include OEM, ODM, and OBM to fit specific project needs.
What is the diameter tolerance of the lens?
The diameter tolerance is 0.2 mm, ensuring consistent sizing.
