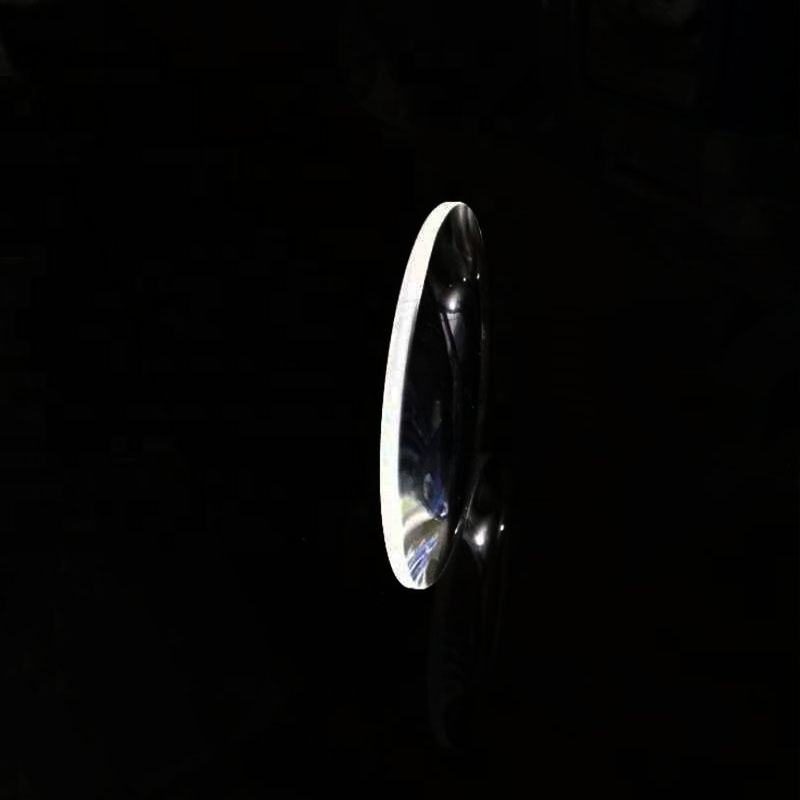

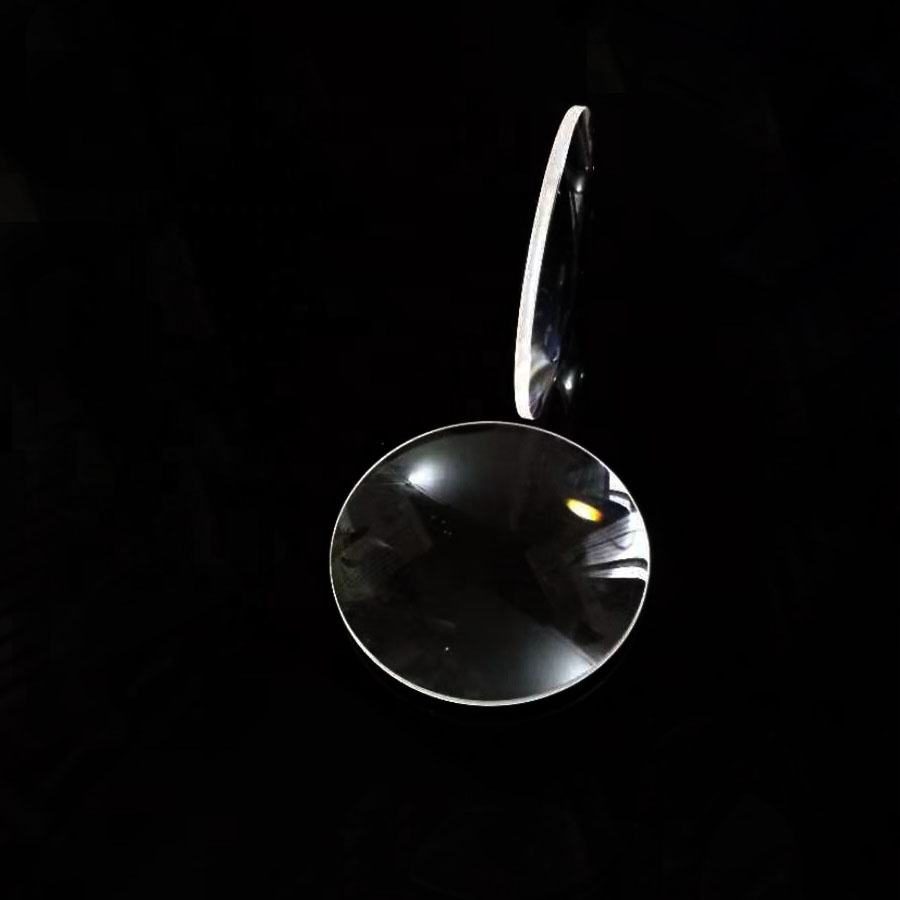

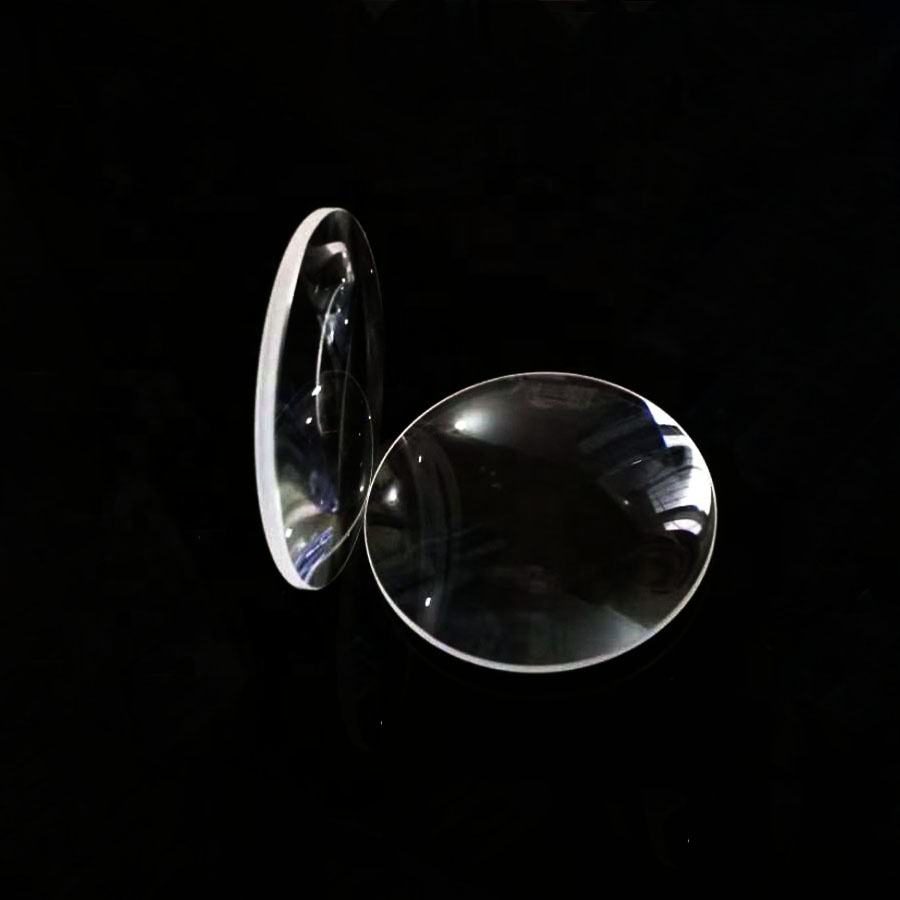

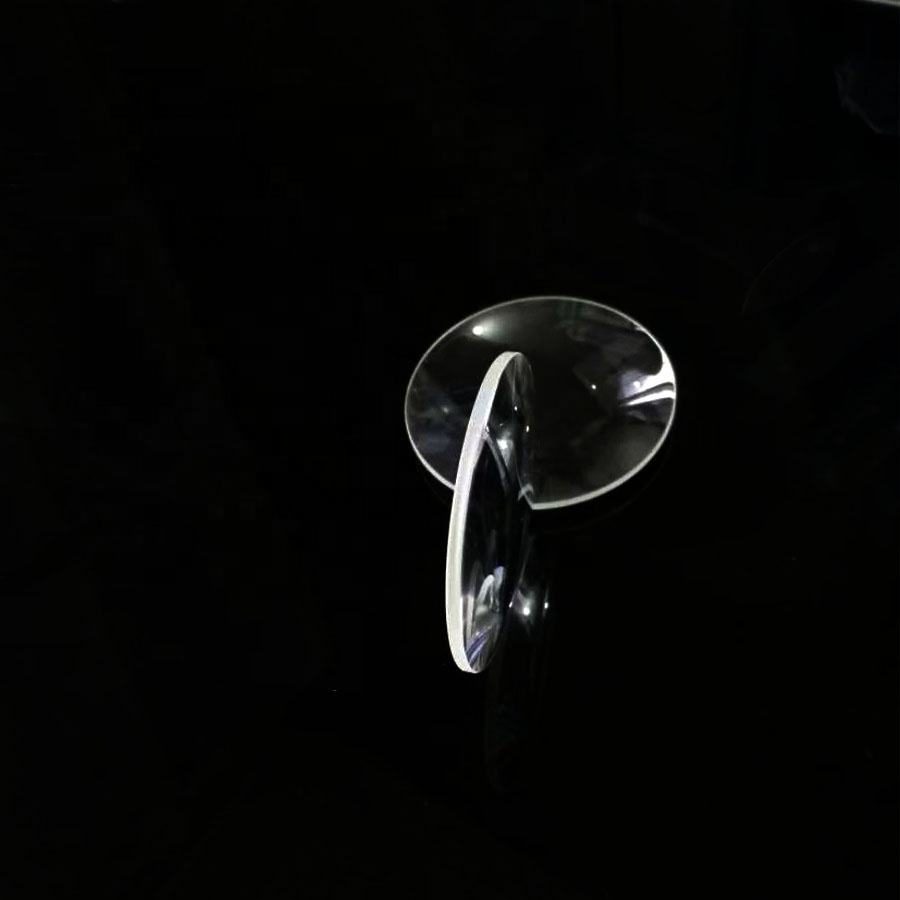

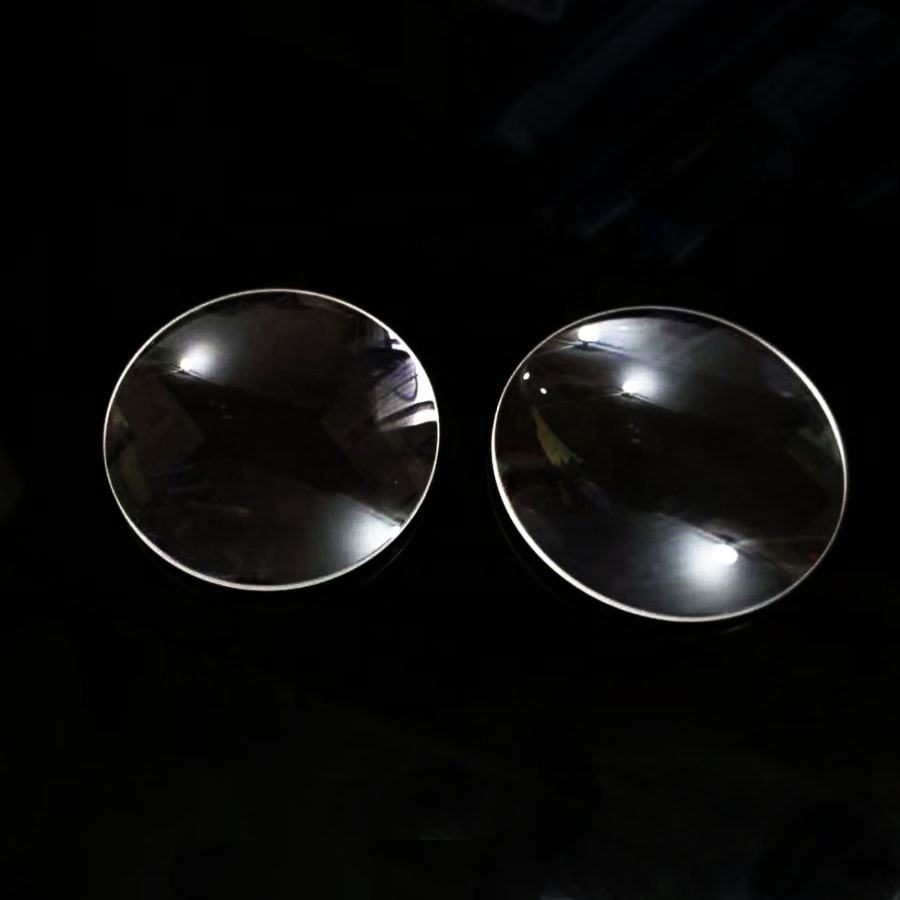

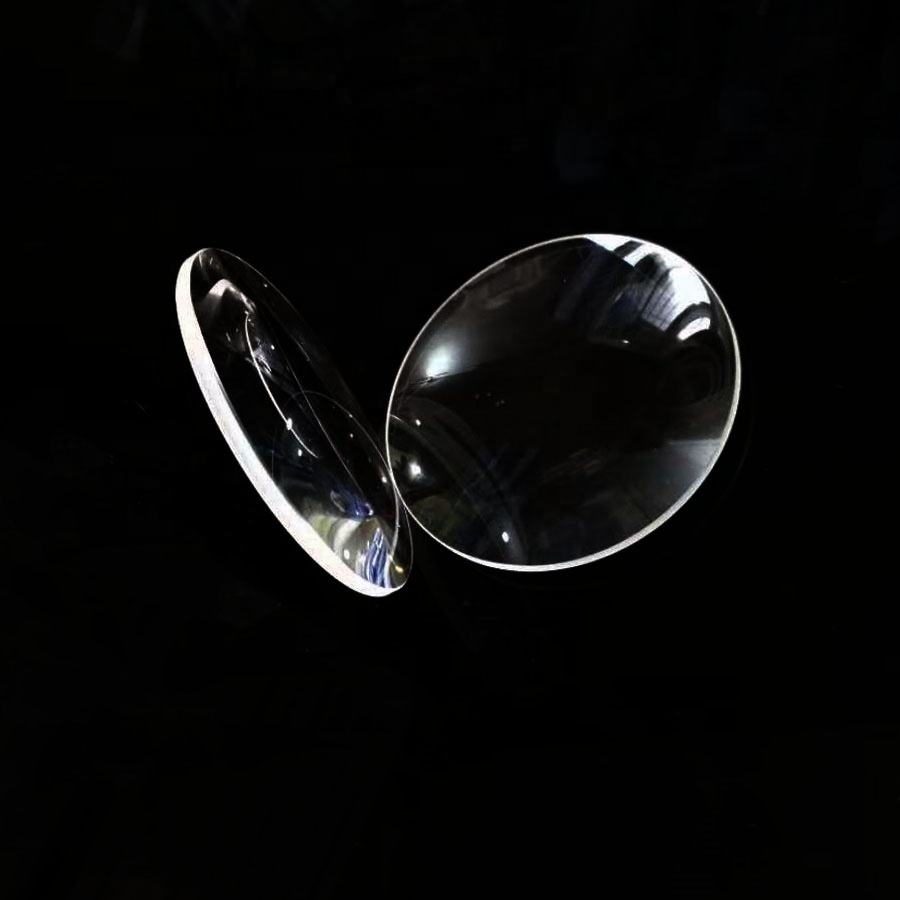

50x95 mm N-BK7 Biconvex Lens, AR Coated
Biconvex lens for medical applications, 50 mm diameter, 95 mm focal length, customizable sizes, and OEM support.
Core attributes
- Material
- N-BK7
- Shape
- Biconvex
- Diameter
- 50 mm
- Focal Length
- 95 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Biconvex
- Diameter
- 50 mm
- Focal Length
- 95 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
The biconvex lens made from N-BK7 optical glass is designed for applications in the medical field, particularly for systems operating within the 400-700 nm wavelength range. With a diameter of 50 mm and a focal length of 95 mm, this lens effectively gathers light from point sources, making it ideal for imaging and optical equipment. Its anti-reflective coating enhances transmittance, ensuring high-quality performance in various optical systems.
Key Features
- Diameter of 50 mm with a tolerance of +/-0.1 mm for precise fitting.
- Focal length of 95 mm, optimized for effective light gathering.
- Surface quality rated at 60/40, ensuring minimal distortion.
- Customizable sizes available from 38 mm to 95 mm to meet specific application needs.
- OEM, ODM, and OBM support for tailored solutions.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 38 x 71 |
| 50 x 95 |
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Biconvex |
| Diameter | 50 mm |
| Focal Length | 95 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Biconvex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.02 |
| Edge Thickness | 2mm |
| Diameter Tolerance | +/-0.1 |
FAQ
Can I get custom sizes for this lens?
Yes, customizable sizes are available, ranging from 38 mm to 95 mm.
What are the tolerances for the diameter?
The diameter tolerance for the lens is +/-0.1 mm.
