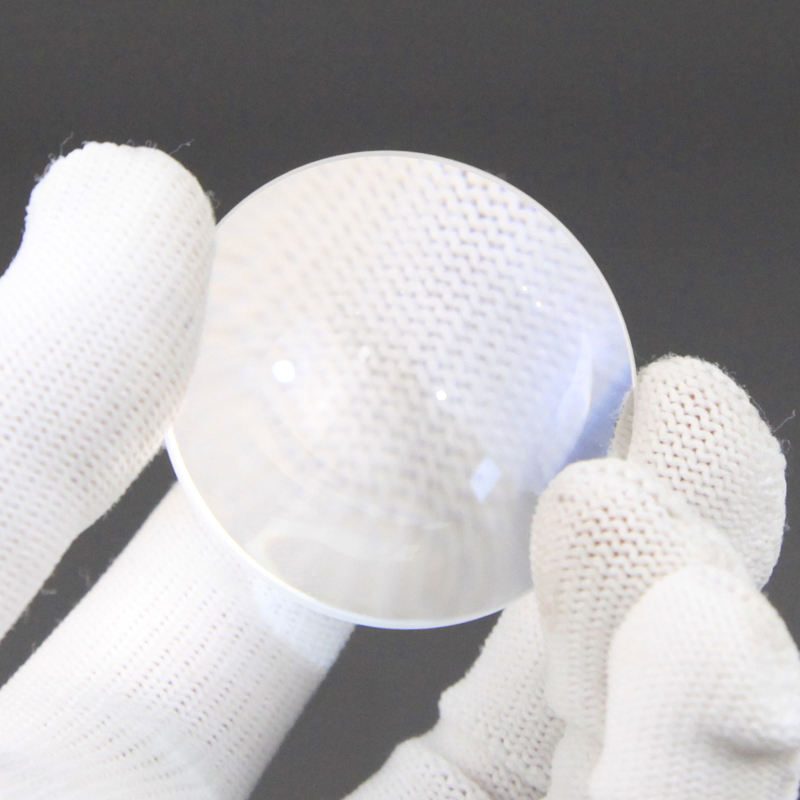

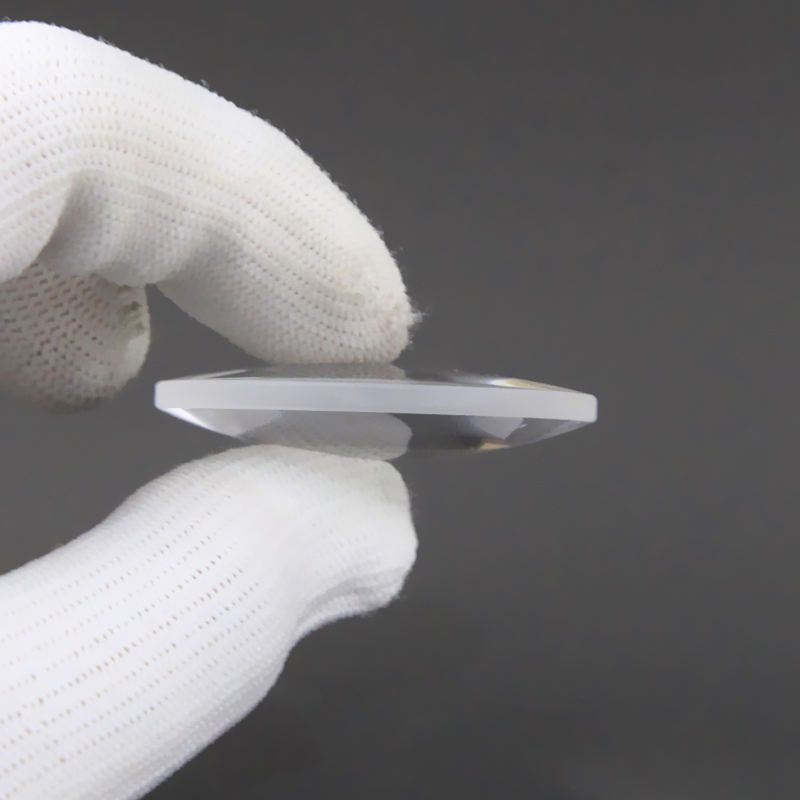

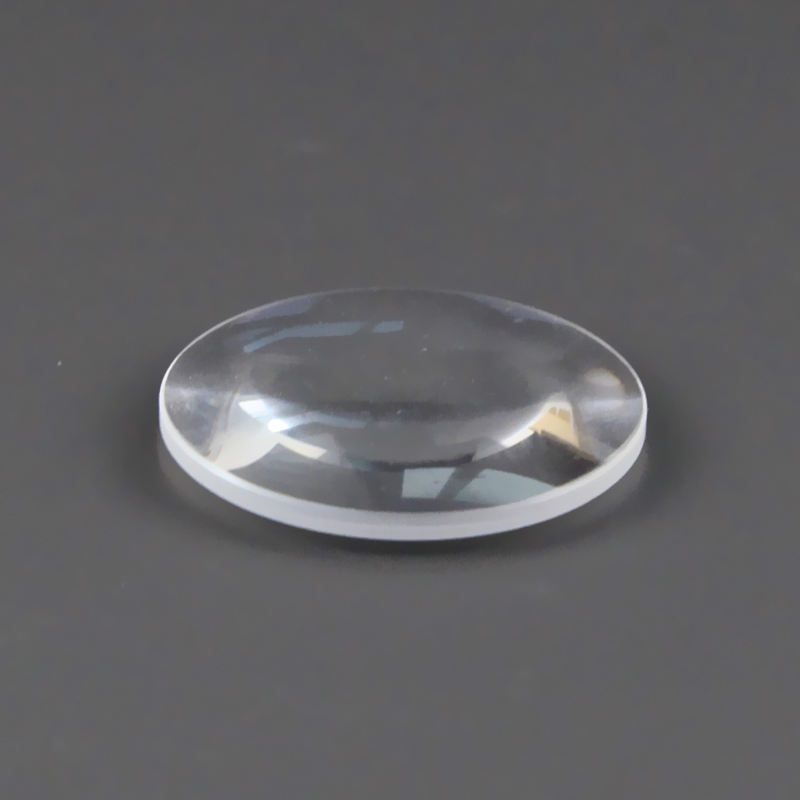

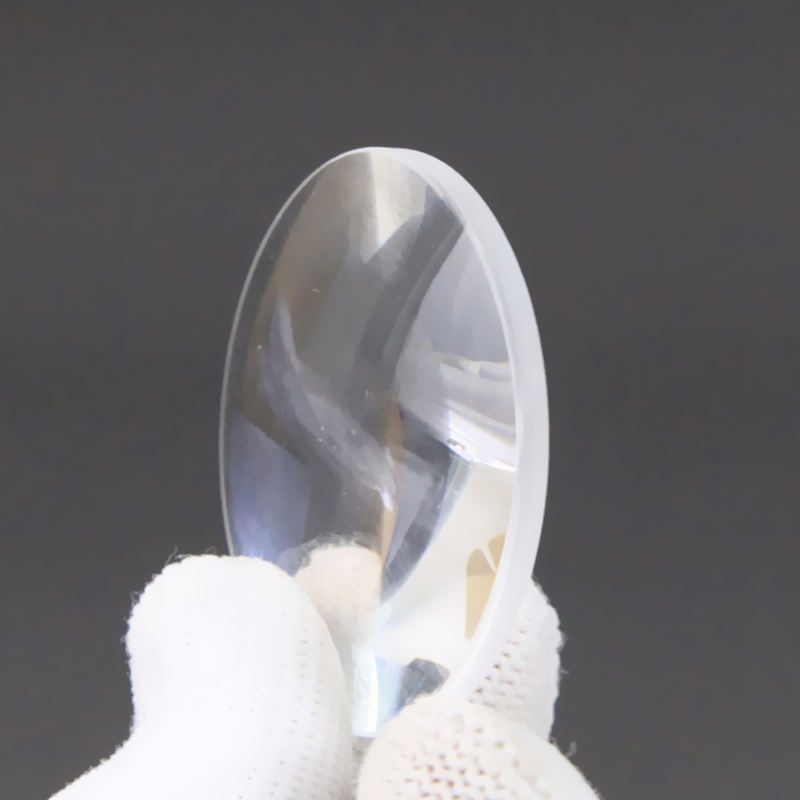

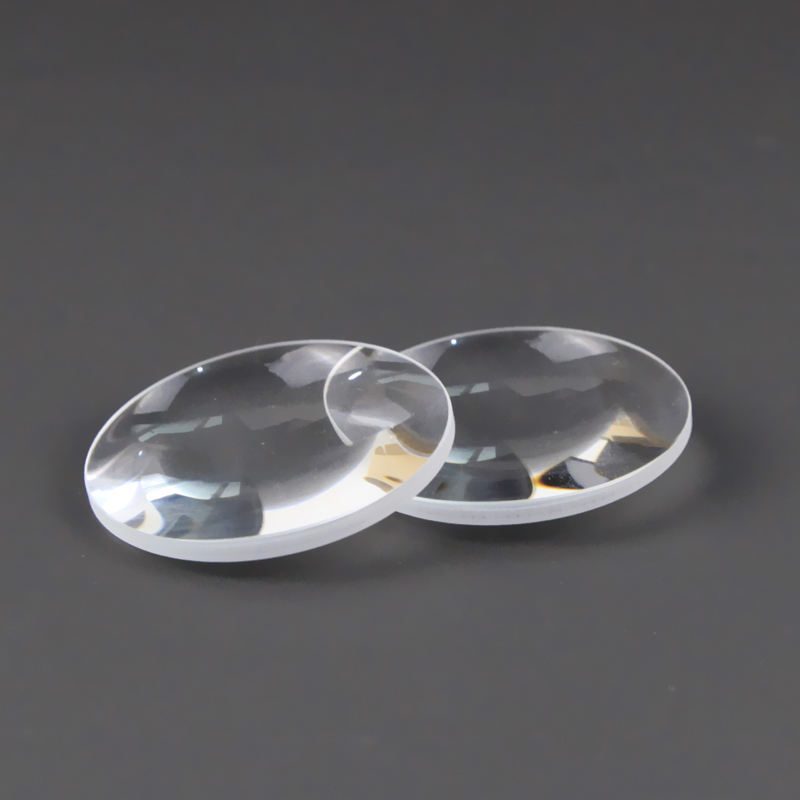

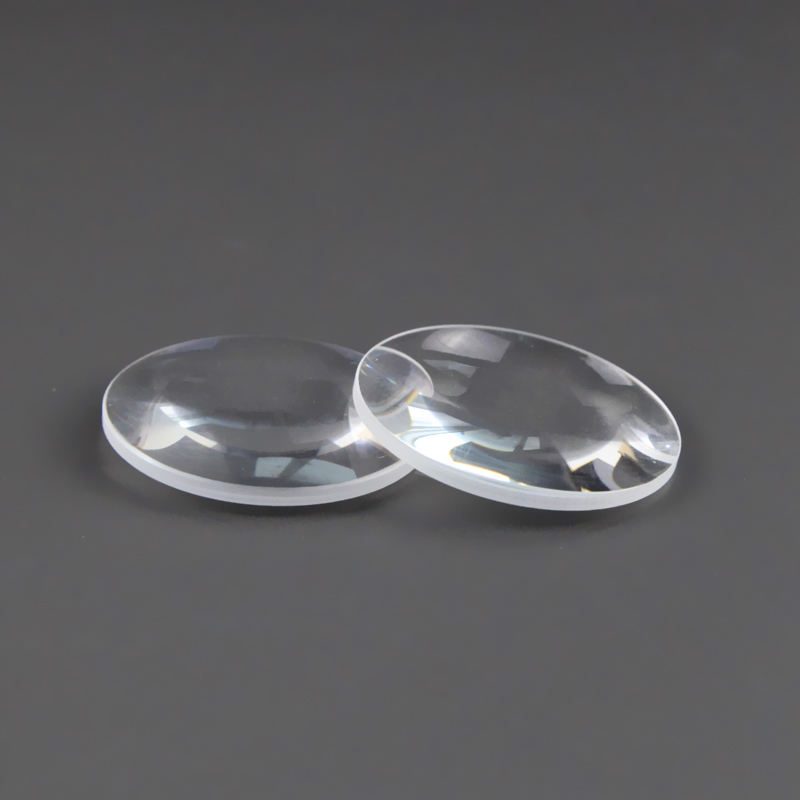

5x95.5 mm N-BK7 Biconvex Lens, AR Coated

Product description

The biconvex lens made from N-BK7 material is designed for applications in projection and imaging, providing precise focus for projector and camera optics. With a clear aperture greater than 95%, this lens ensures high-quality imaging and effective laser beam control. Its customizable options, including anti-reflective coatings, cater to specific project requirements, making it a versatile choice for various optical instruments.

Key Features

Focal length of 95.5 mm for optimal imaging performance.
Diameter range from 5.0 mm to 200.0 mm for diverse applications.
Tolerance of +/-0.05 mm ensures high precision in manufacturing.
Clear transparent color enhances light transmission.
Customizable with OEM support for tailored solutions.

Available Sizes

Diameter x Focal Length (mm)
102.5 x 95.5

Applications

Projection, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Biconvex
Diameter	5 mm
Focal Length	95.5 mm
Coating	anti-reflective (AR)

Full Specifications

Parameter	Value
Type	Biconvex Lens; Convex Lens
Customized Support	OEM
Warranty	None
Weight	0.5
Center Thickness	8.6mm
Edge Thickness	2.5mm
Tolerance	+/-0.05mm
Color	Clear Transparent
Clear Aperture	>95%

FAQ

What are the available sizes for this lens?

The lens is available in a diameter range from 5.0 mm to 200.0 mm, with variant sizes including 102.5 mm and 95.5 mm.

What is the tolerance for this lens?

The lens has a manufacturing tolerance of +/-0.05 mm, ensuring high precision.
