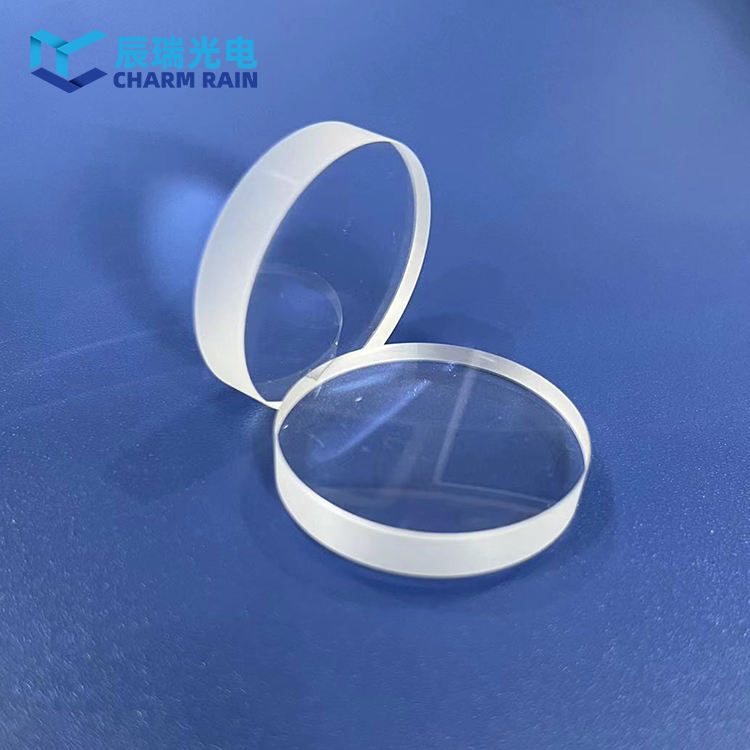

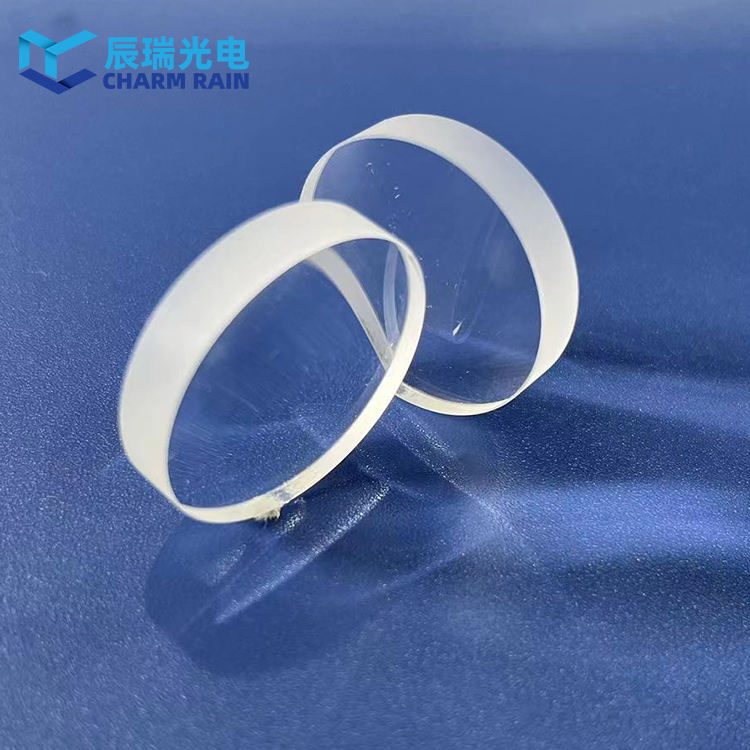

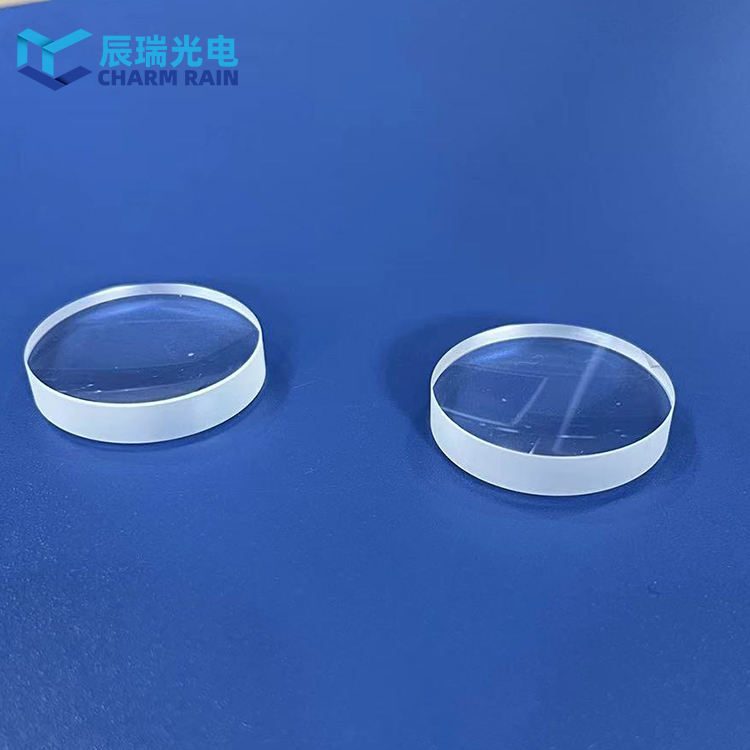

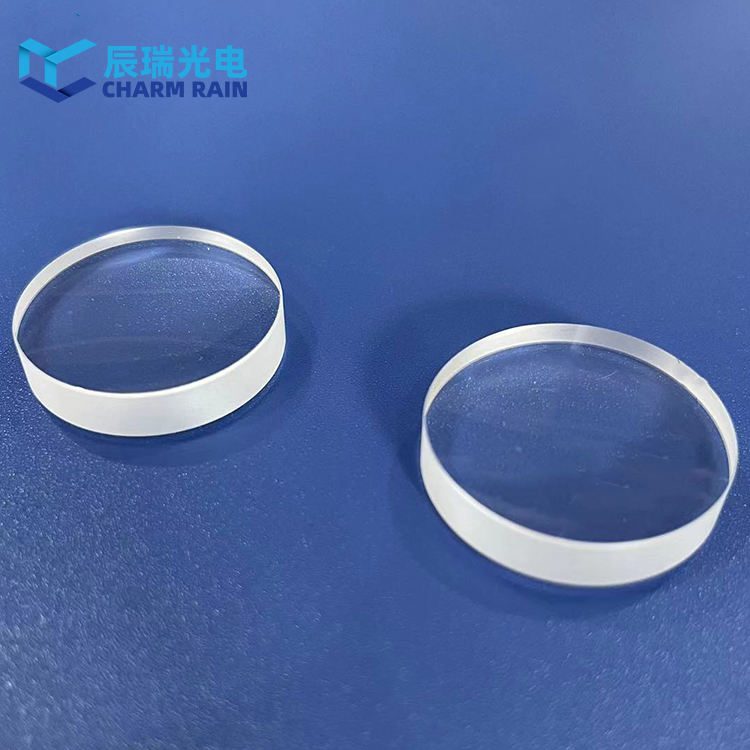

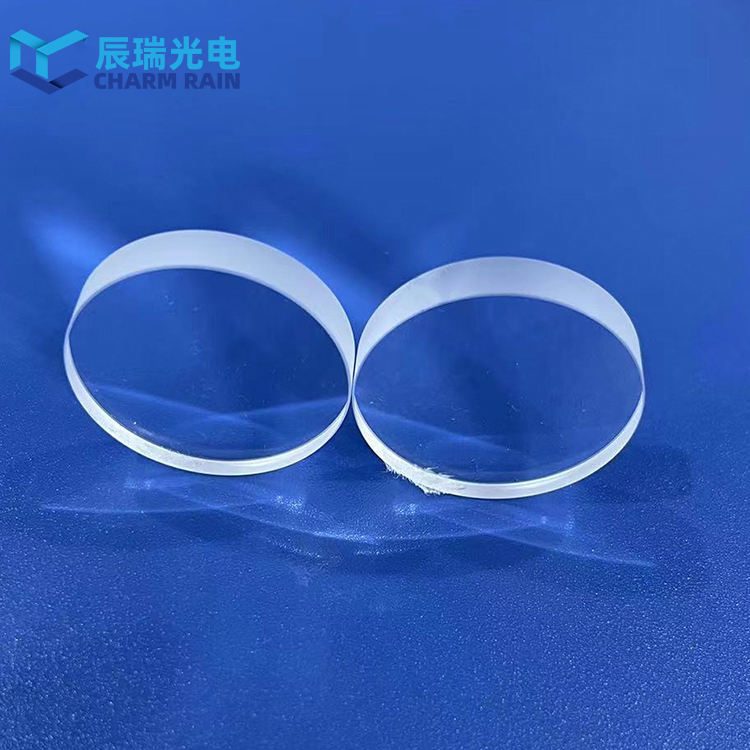

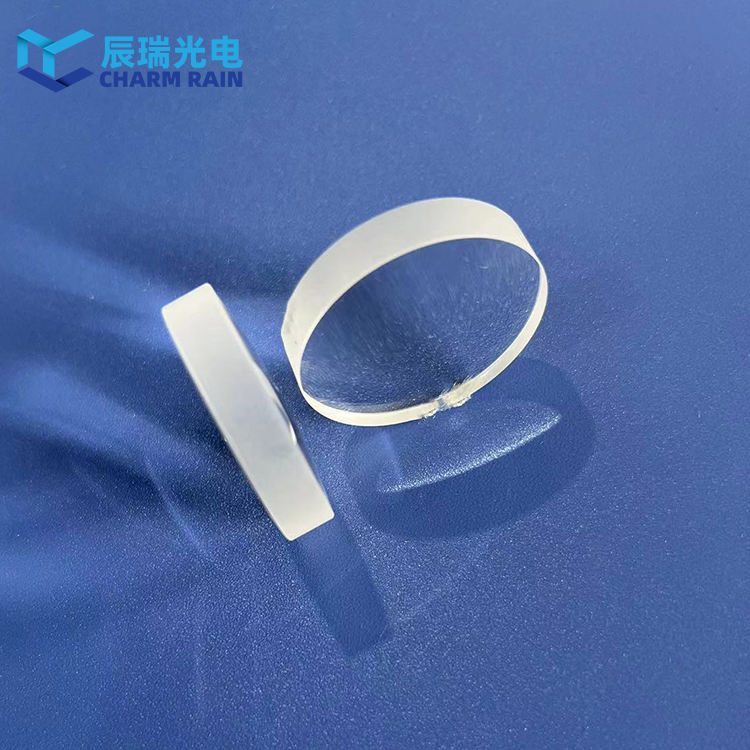

5 mm N-BK7 Biconvex Lens, AR Coated

Product description

The biconvex lens made from N-BK7 is designed for applications requiring high transmittance in the ultraviolet range, specifically under 400 nm. With a diameter range from 5.0 mm to 300.0 mm and a thickness between 5.0 mm and 50.0 mm, this lens is suitable for various optical systems. Its surface flatness of 1/4 @ 633 nm and parallelism of 30 arc seconds ensure precision in imaging applications. Customization options are available for OEM and ODM projects, making it adaptable for specific project requirements.

Key Features

Diameter range: 5.0 mm to 300.0 mm for flexible integration into diverse systems.
Thickness range: 5.0 mm to 50.0 mm allows for tailored optical performance.
Surface flatness of 1/4 @ 633 nm ensures high-quality imaging.
Parallelism of 30 arc seconds supports precise alignment in optical setups.
Custom OEM and ODM support enables tailored solutions for unique applications.

Specification Summary

Item	Value
Material	N-BK7
Shape	Biconvex
Diameter	5 mm
Thickness	5 mm
Coating	anti-reflective (AR)
Transmission bands	UV (<400 nm)

Full Specifications

Parameter	Value
Type	biconvex lens
Customized Support	OEM, ODM
Warranty	3 months
Weight	0.5kg
Surface Flatness	1/4@633nm
Parallel	30 Arc Sec
Diameter Tolerance	0/-0.1mm

FAQ

What are the available custom sizes for this lens?

The lens can be customized with diameters ranging from 5.0 mm to 300.0 mm and thicknesses from 5.0 mm to 50.0 mm.

What is the diameter tolerance for this lens?

The diameter tolerance is 0/-0.1 mm, ensuring a precise fit in your application.
