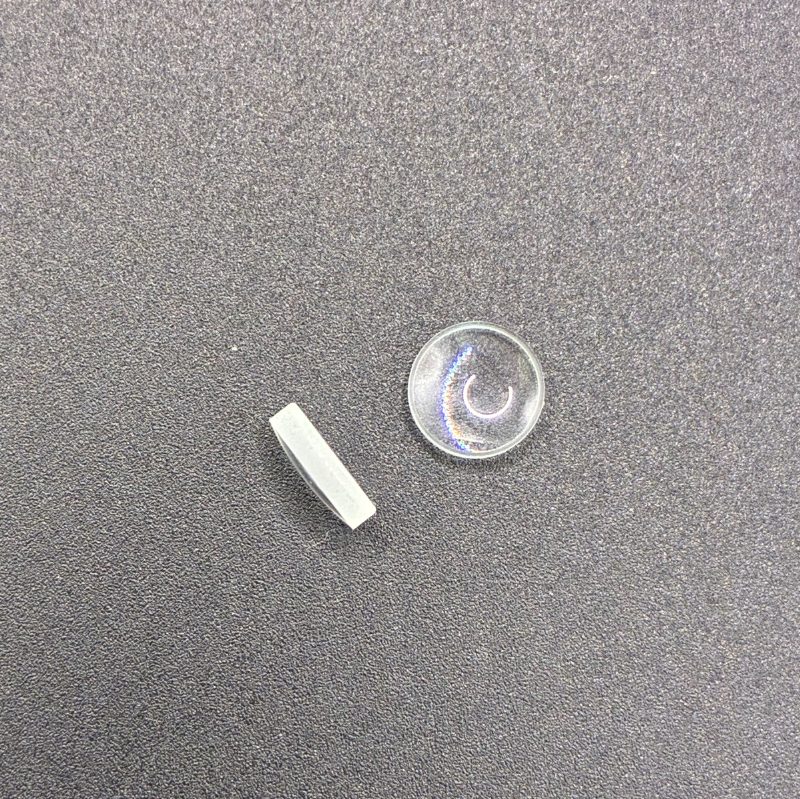

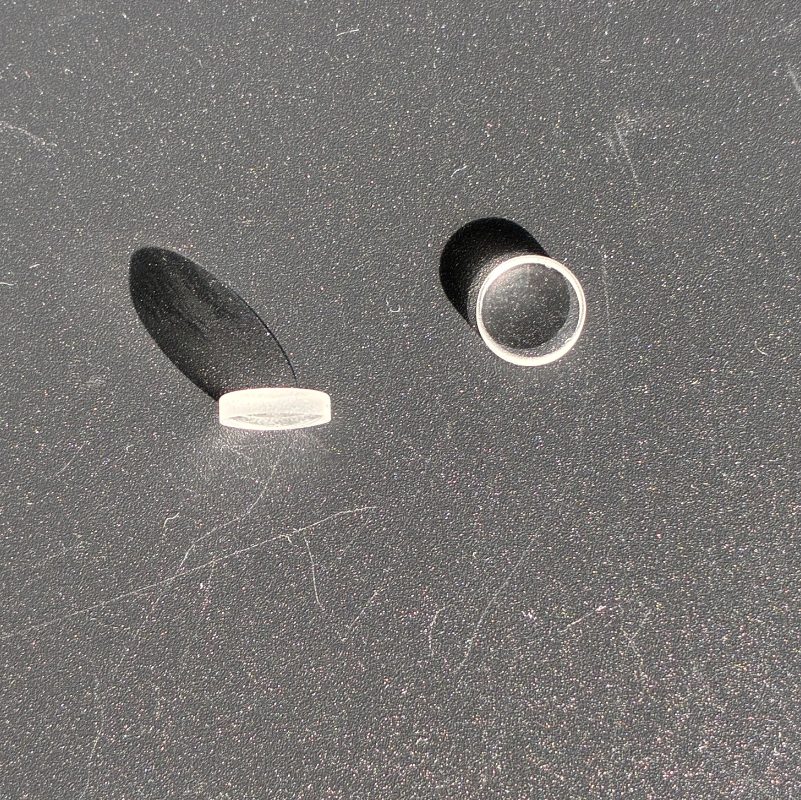

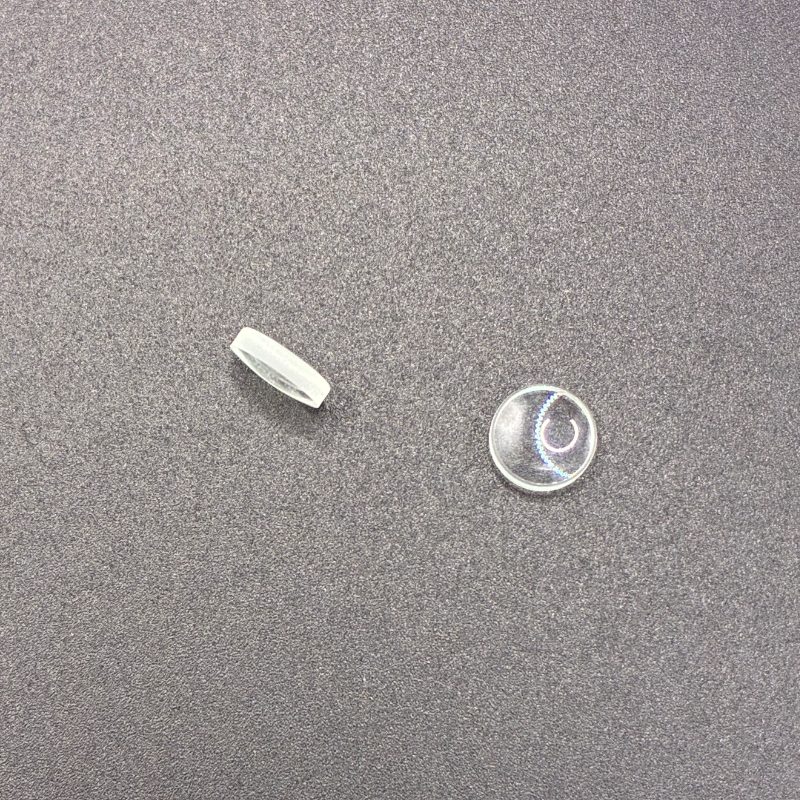

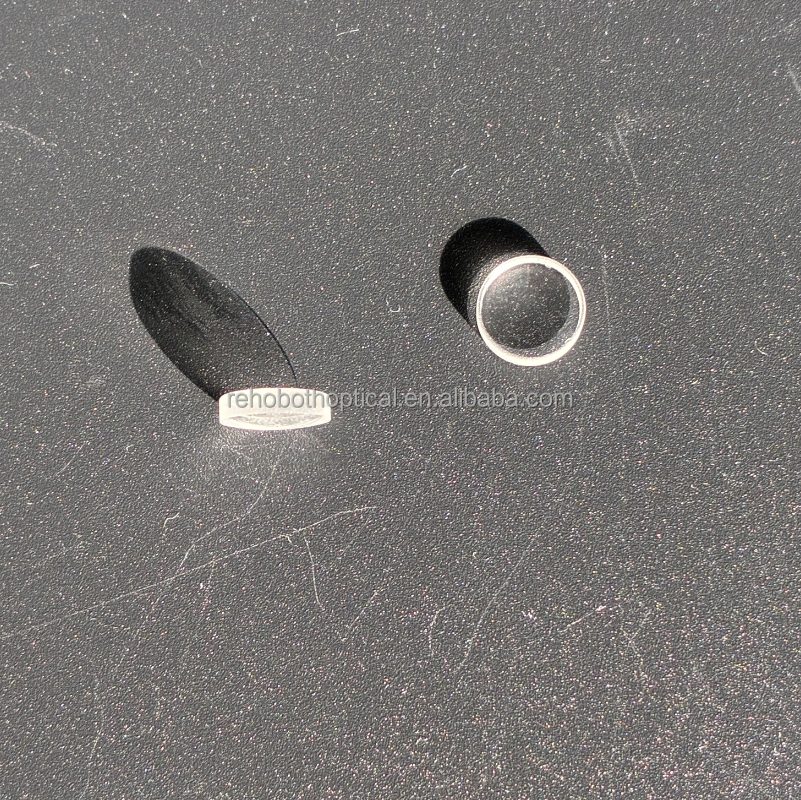

7.5 mm N-BK7 Biconvex Lens, AR Coated

This biconvex lens, made from N-BK7 optical glass, is designed for medical applications, specifically for endoscopes. With a diameter of 7.5 mm and AR coating, it efficiently transmits light in the 400-700 nm and <400 nm bands, ensuring optimal performance in medical imaging. Its compact size and customizable features make it suitable for various optical instruments, addressing the need for high-quality, reliable components in medical device development.

Key Features

• Biconvex shape enhances light convergence for improved imaging quality.
• AR coating minimizes reflections, increasing transmittance across specified bands.

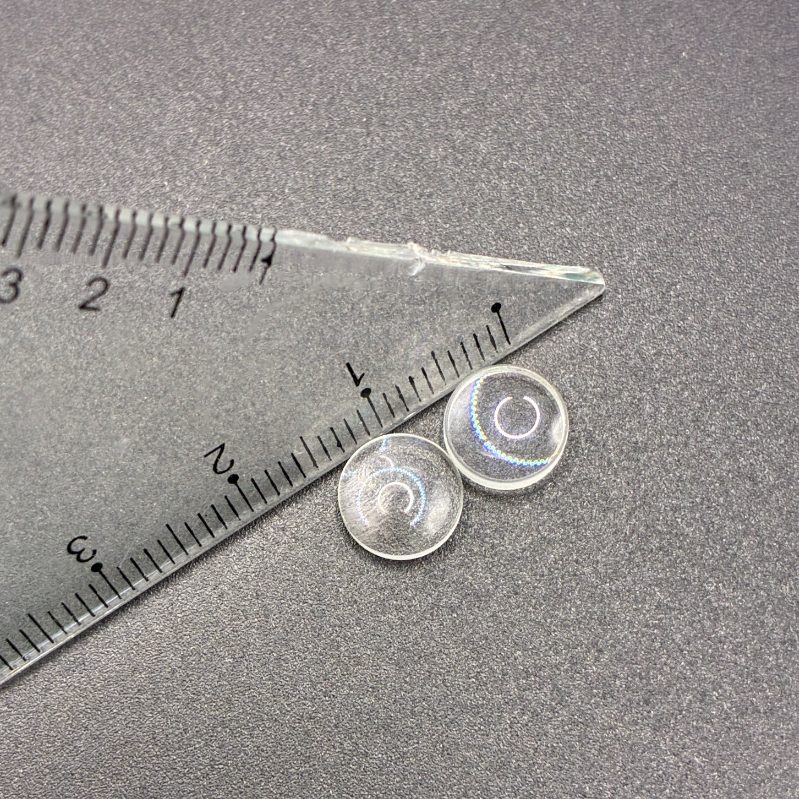

• Compact 7.5 mm diameter fits well in constrained medical device designs.

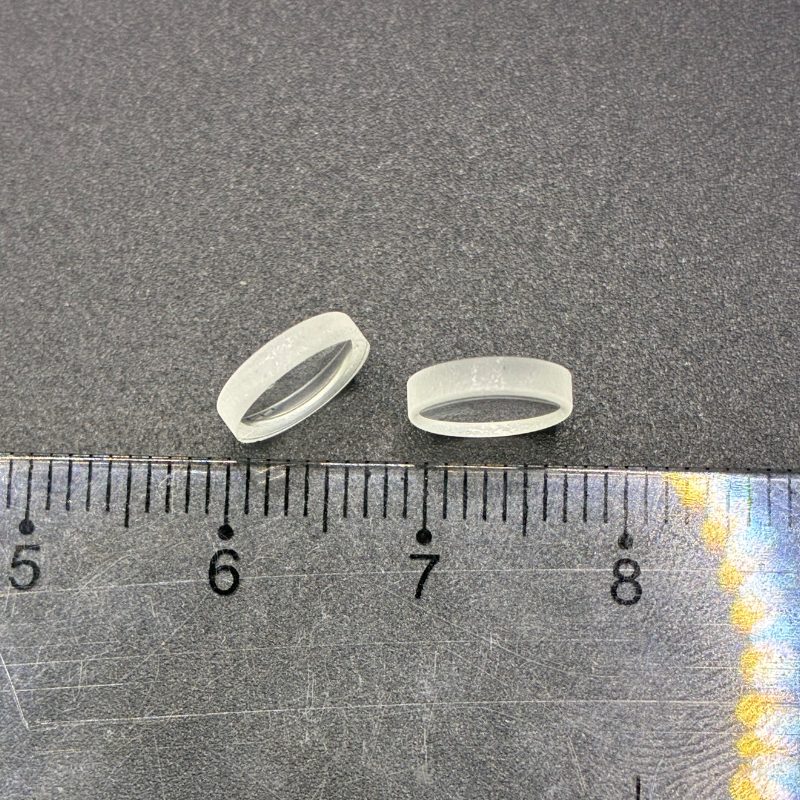

• Customizable center thickness (1.5±0.015 mm) supports specific application requirements.
• Low MOQ of 5 pieces enables prototyping and small batch production.

Applications

Medical

Specification Summary

Full Specifications

FAQ

Can I get custom sizes?

Yes, the lens can be customized according to specific designs.

What is the minimum order quantity?

The minimum order quantity is 5 pieces.
