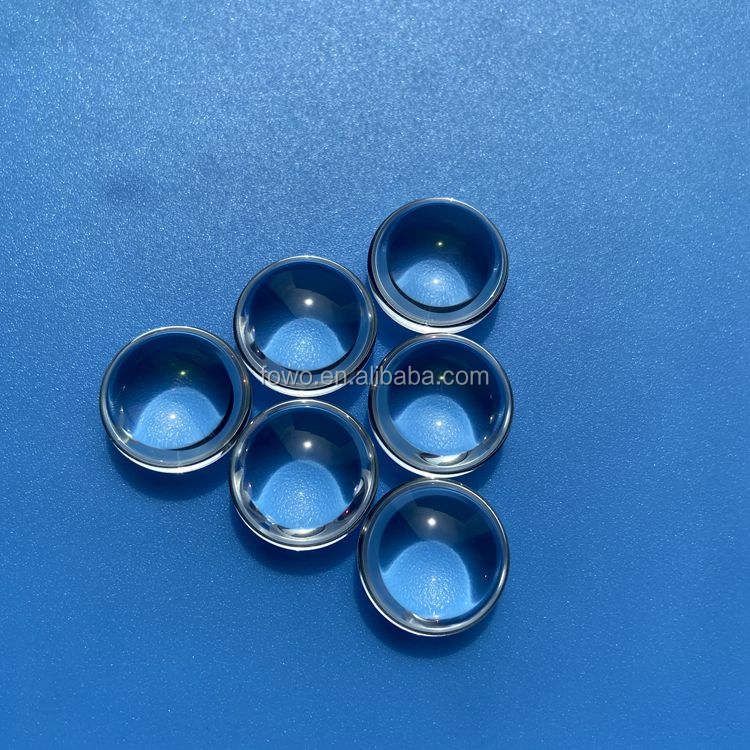

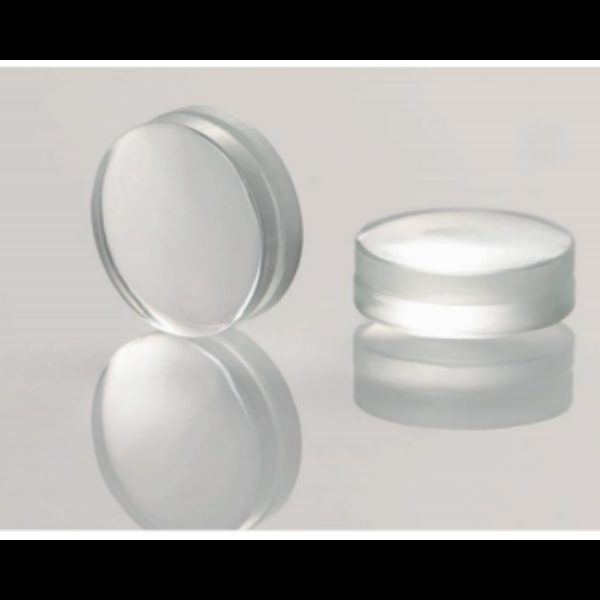

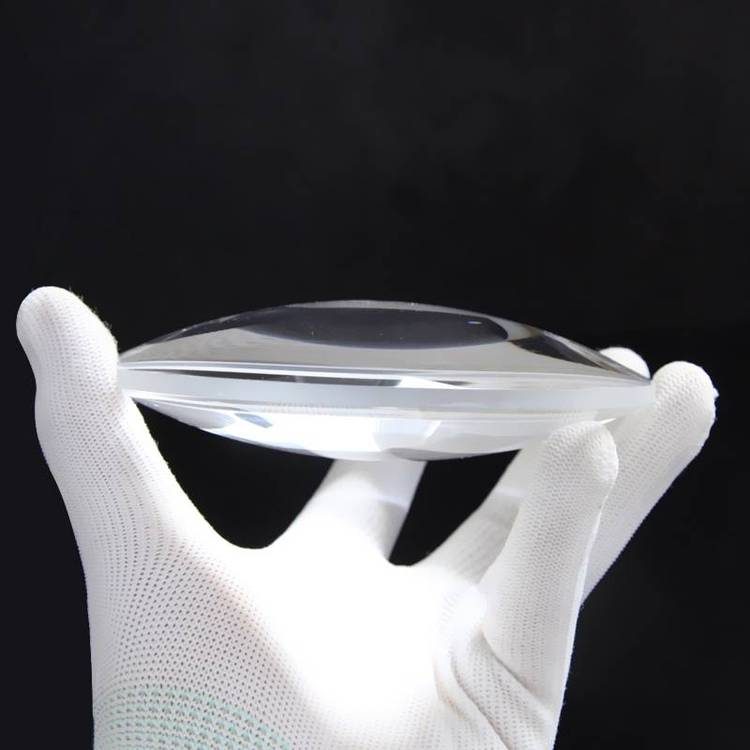

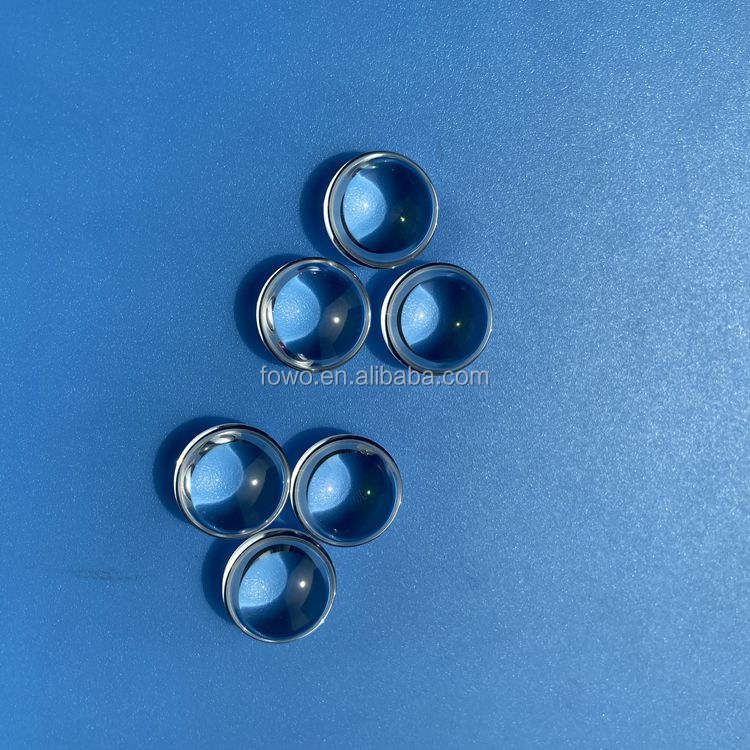

Custom Size N-BK7 Biconvex Lens, AR Coated
Explore the Optical N-BK7 Biconvex Lens for precise imaging in medical and microscopy applications.
Core attributes
- Material
- N-BK7
- Shape
- Biconvex
- Focal Length
- 10 mm
- Coating
- anti-reflective (AR), uncoated, mgf2
- Transmission bands
- SWIR (1.7-3 μm), VIS (400-700 nm), UV (<400 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Biconvex
- Focal Length
- 10 mm
- Coating
- anti-reflective (AR), uncoated, mgf2
- Transmission bands
- SWIR (1.7-3 μm), VIS (400-700 nm), UV (<400 nm)
Product description
The Optical N-BK7 Biconvex Lens is designed to enhance imaging and projection applications in medical, microscopy, and collimation fields. With a focal length of 10 mm and a clear aperture of 98%, this lens provides excellent light transmission across multiple bands, including 1.7-3 μm and 400-700 nm. The lens’s biconvex shape ensures superior optical performance, making it ideal for various demanding applications.
Key Features
- Focal Length: 10 mm, providing precise imaging capabilities.
- Clear Aperture: 98%, ensuring minimal light loss.
- Surface Quality: 60-40 scratch-dig, enhancing durability and performance.
- Custom Coating Options available for tailored performance.
- Weight: 0.05 kg, facilitating easy integration into devices.
Applications
Medical, Microscopy, Projection, Collimation, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Biconvex |
| Focal Length | 10 mm |
| Coating | anti-reflective (AR), uncoated, mgf2 |
| Transmission bands | SWIR (1.7-3 μm), VIS (400-700 nm), UV (<400 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Biconvex Lens |
| Customized Support | OEM, ODM, OBM |
| Warranty | 3 Years |
| Weight | 0.05 |
| Name | Optical N-BK7 Biconvex Lens |
| Size Tolerance | +-0.01mm to 0.1mm |
| Structure | biconvex |
| Clear Aperture | 98% |
| Certification | ISO |
FAQ
What are the size tolerances for this lens?
Size tolerance is ±0.01 mm to 0.1 mm, ensuring precision.
Can I request custom sizes for this lens?
Yes, diameters can be customized from 5 mm to 150 mm.
