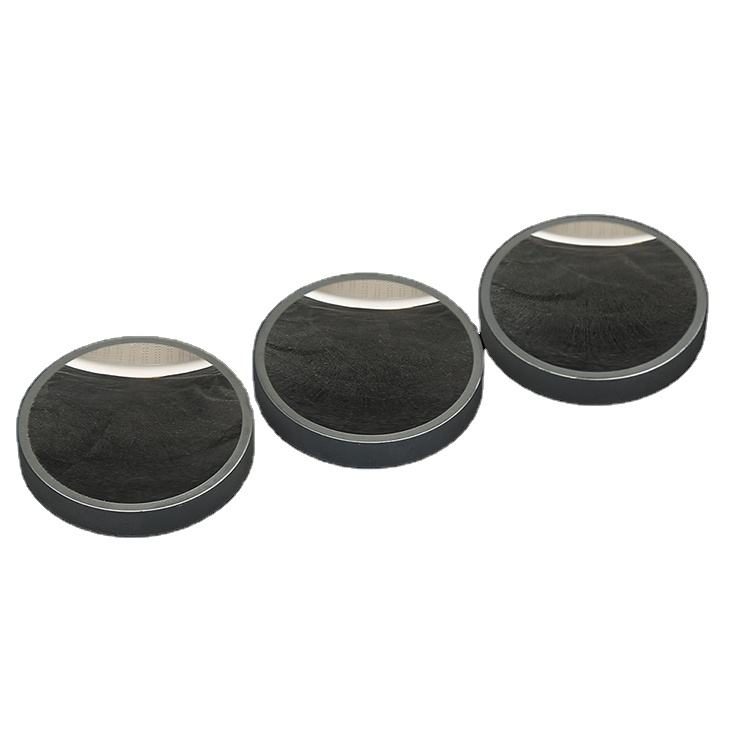

5 mm N-BK7 Concave Lens, AR Coated

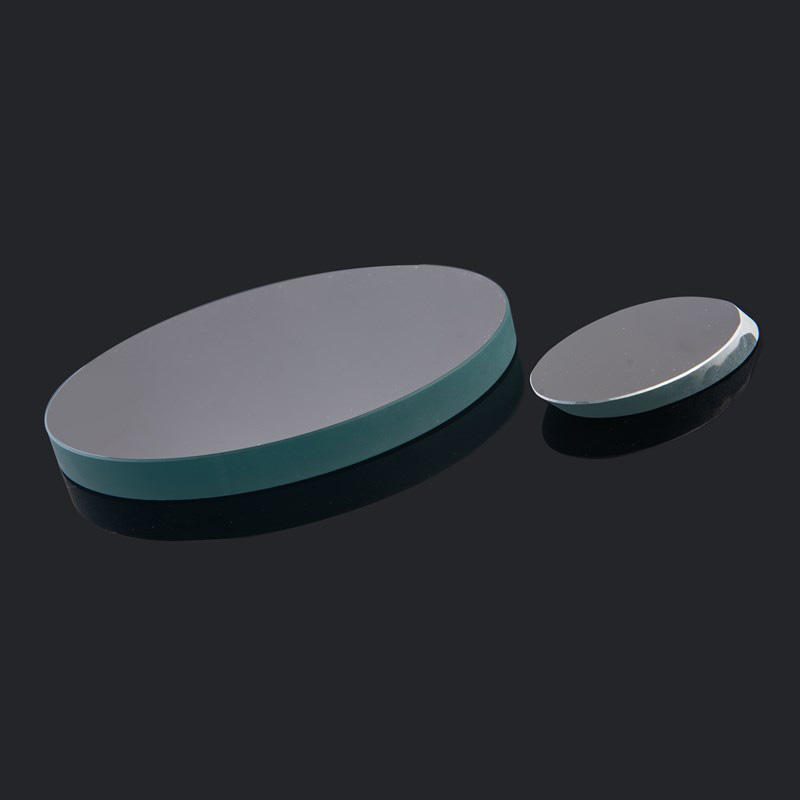

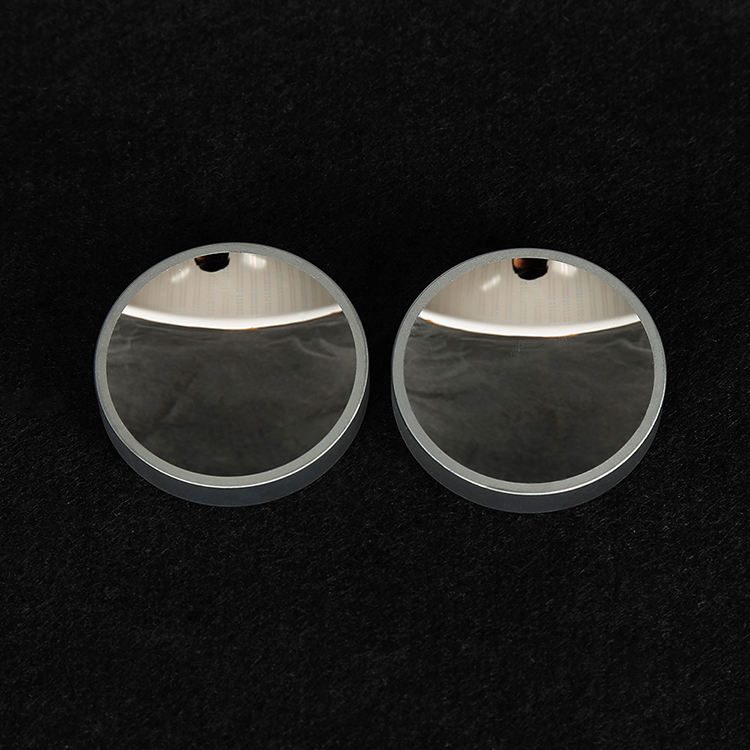

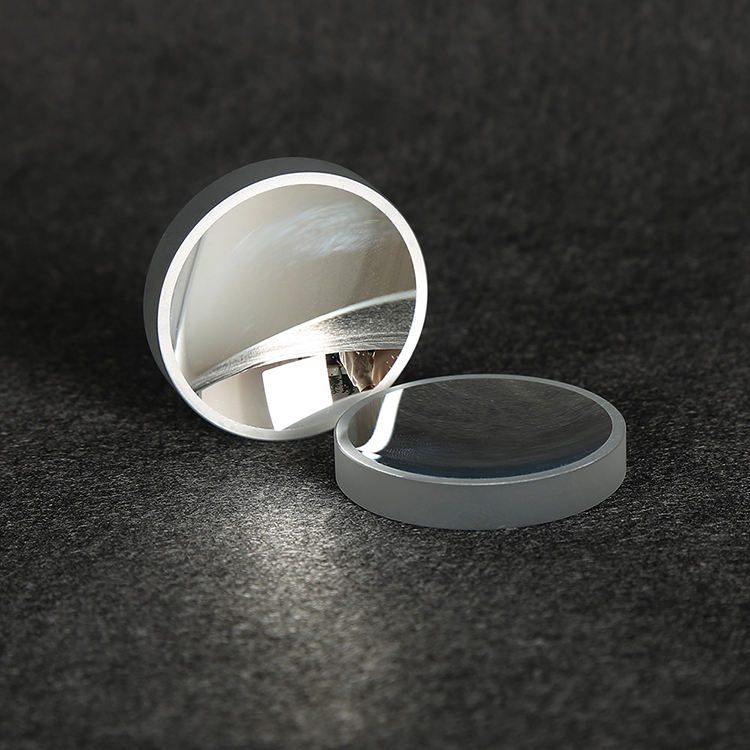

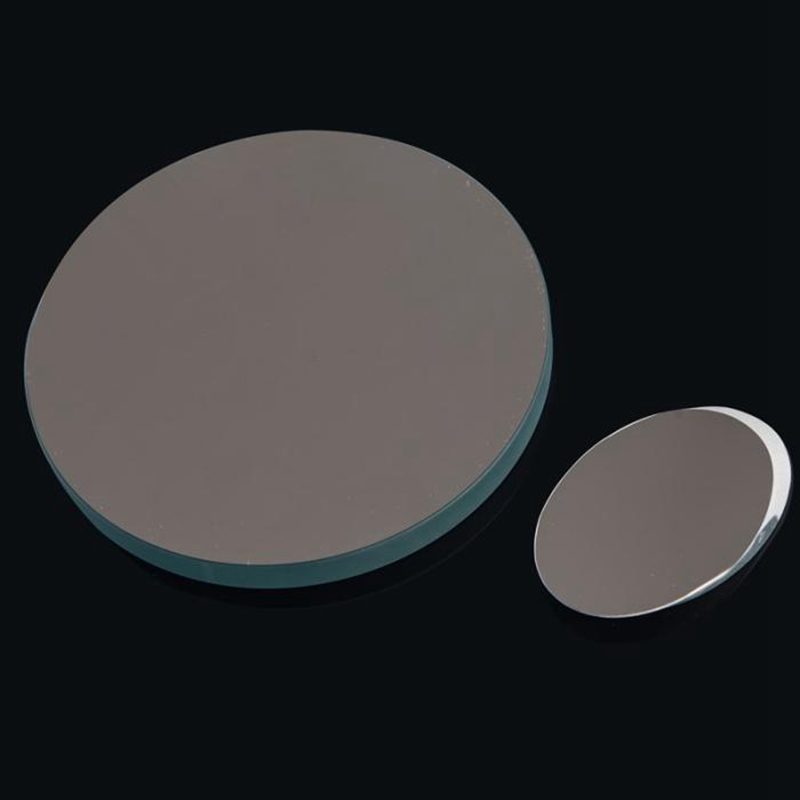

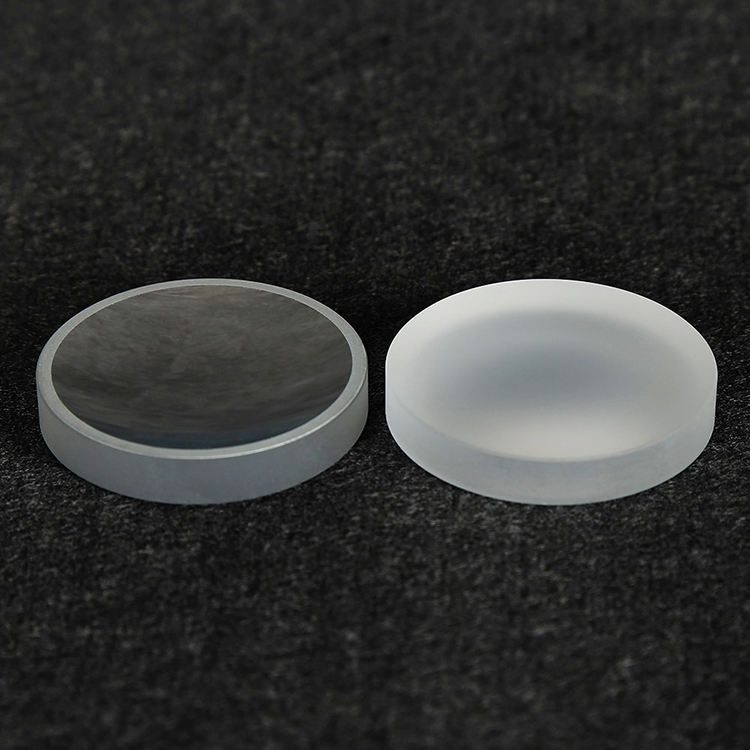

High Reflectivity Optical Glass Concave Mirror for semiconductor and imaging applications, customizable with high precision tolerances.
Core attributes
- Material
- N-BK7
- Shape
- Concave
- Diameter
- 5 mm
- Coating
- anti-reflective (AR), high-reflective (HR)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Concave
- Diameter
- 5 mm
- Coating
- anti-reflective (AR), high-reflective (HR)
Product description
The High Reflectivity Optical Glass Concave Mirror is designed for applications in semiconductor and imaging sectors, providing precise light reflection and focusing capabilities. With a diameter range of 5.0 to 300.0 mm and high-quality coatings, this mirror ensures optimal performance in beam steering and illumination tasks. Its customizable features and stringent tolerances make it suitable for various projection systems, ensuring reliability for R&D and production needs.
Key Features
- Diameter range: 5.0 to 300.0 mm for versatile application fit.
- Surface flatness options: 60-40, 40-20, 20-10 for high precision.
- Clear aperture >98.5% ensures minimal light loss.
- Diameter and thickness tolerances of +/-0.01 mm for consistent performance.
- Customizable support for OEM, ODM, and OBM projects.
Applications
Semiconductor, Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Concave |
| Diameter | 5 mm |
| Coating | anti-reflective (AR), high-reflective (HR) |
Full Specifications
| Parameter | Value |
|---|---|
| Customized Support | OEM, ODM, OBM |
| Diameter Tolerance | +/-0.01 |
| Thickness Tolerance | +/-0.01 |
| Surface Flatness | 60-40,40-20,20-10 |
| Clear Aperture | >98.5% |
| Bevel | 0.1-0.3mm X45 Degree |
| Use | projection system |
| Structure | Concave |
FAQ
What are the available diameter sizes?
The concave mirror is available in diameters ranging from 5.0 mm to 300.0 mm.
What is the minimum order quantity?
The data does not specify a minimum order quantity.
