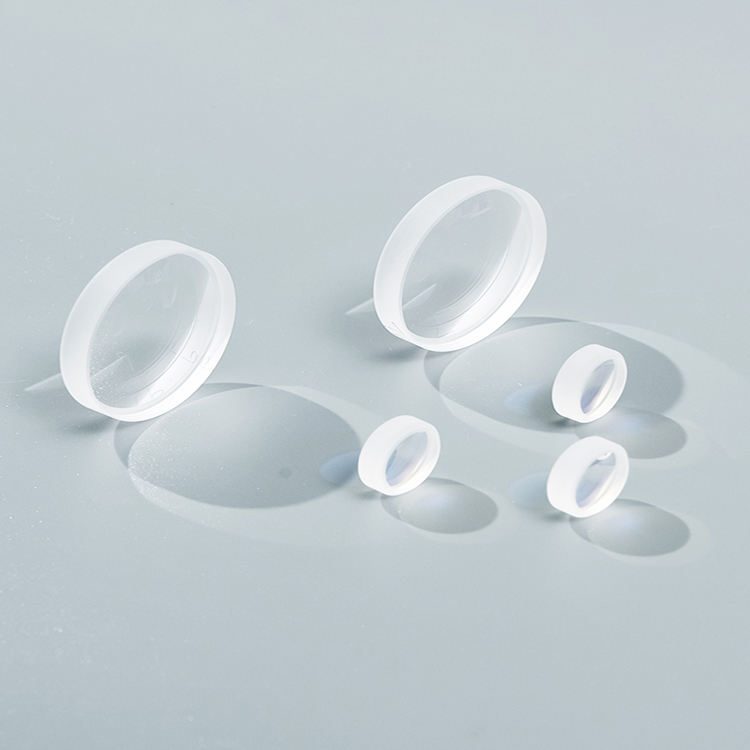

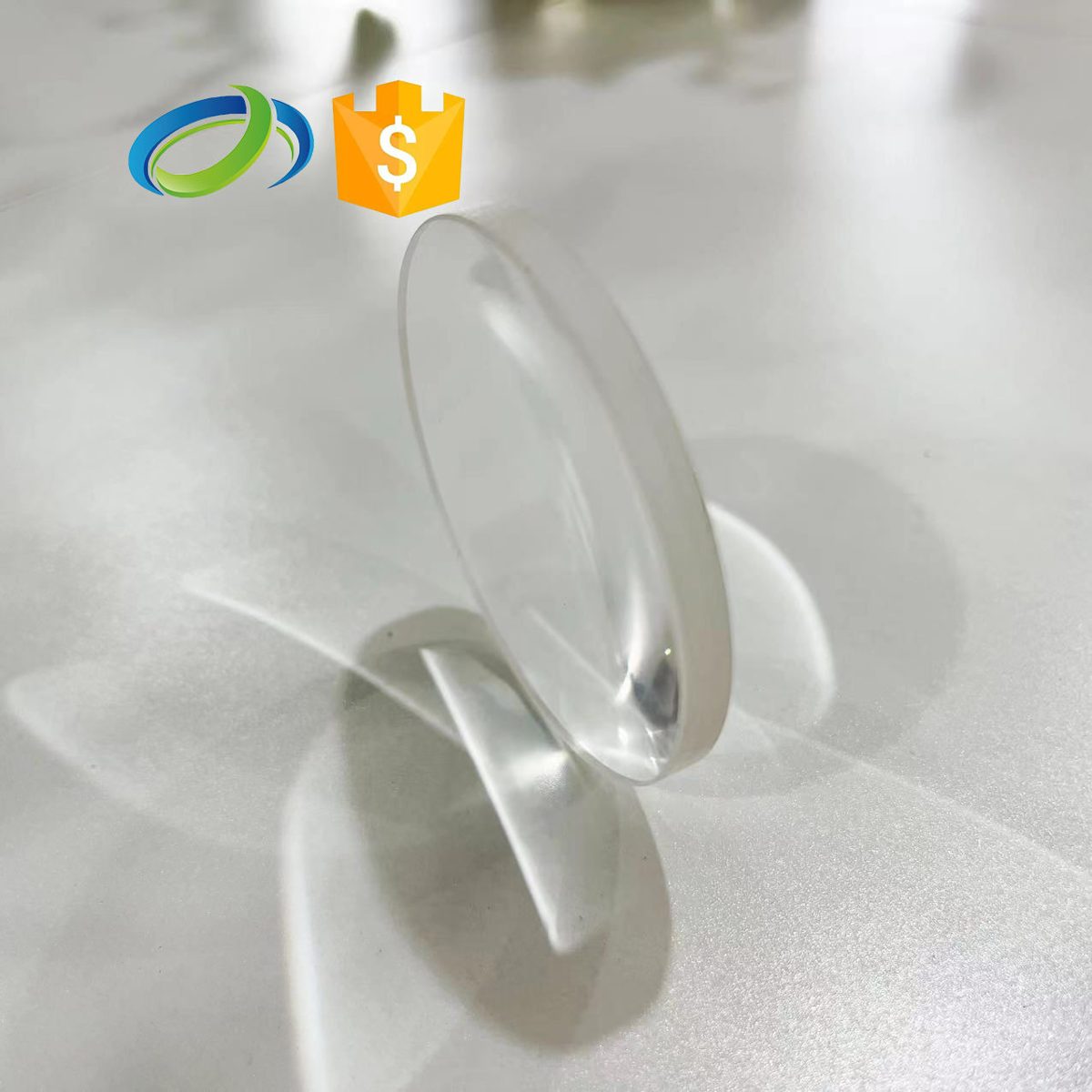

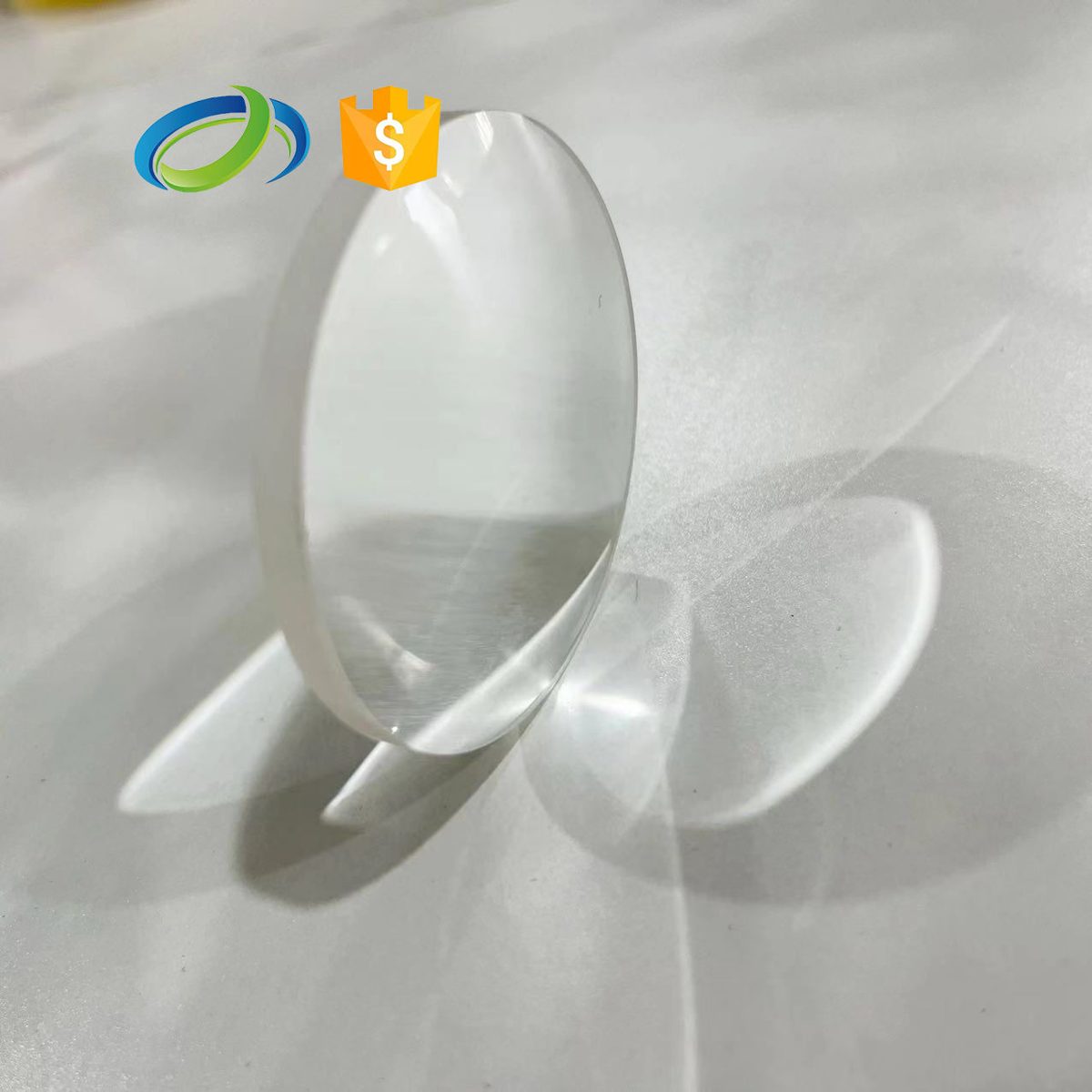

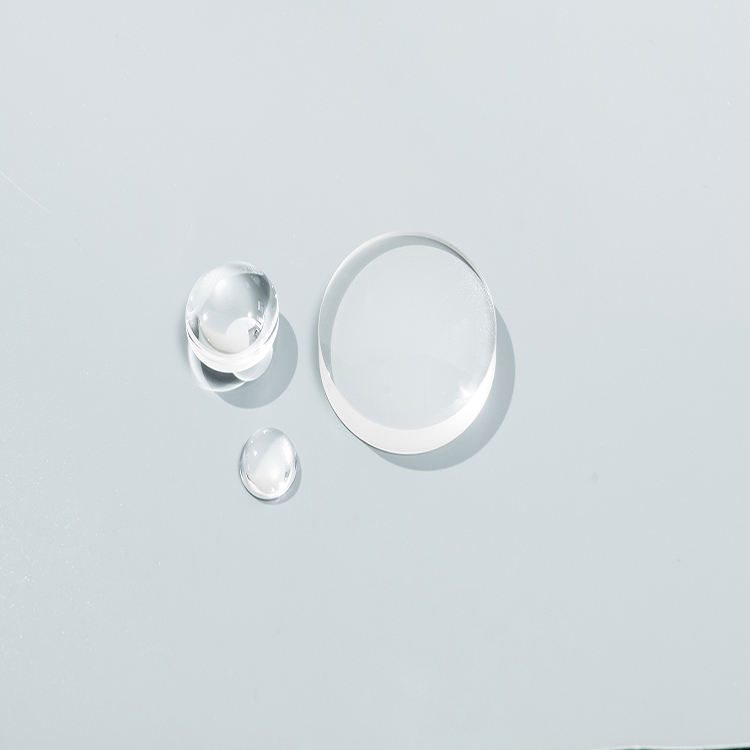

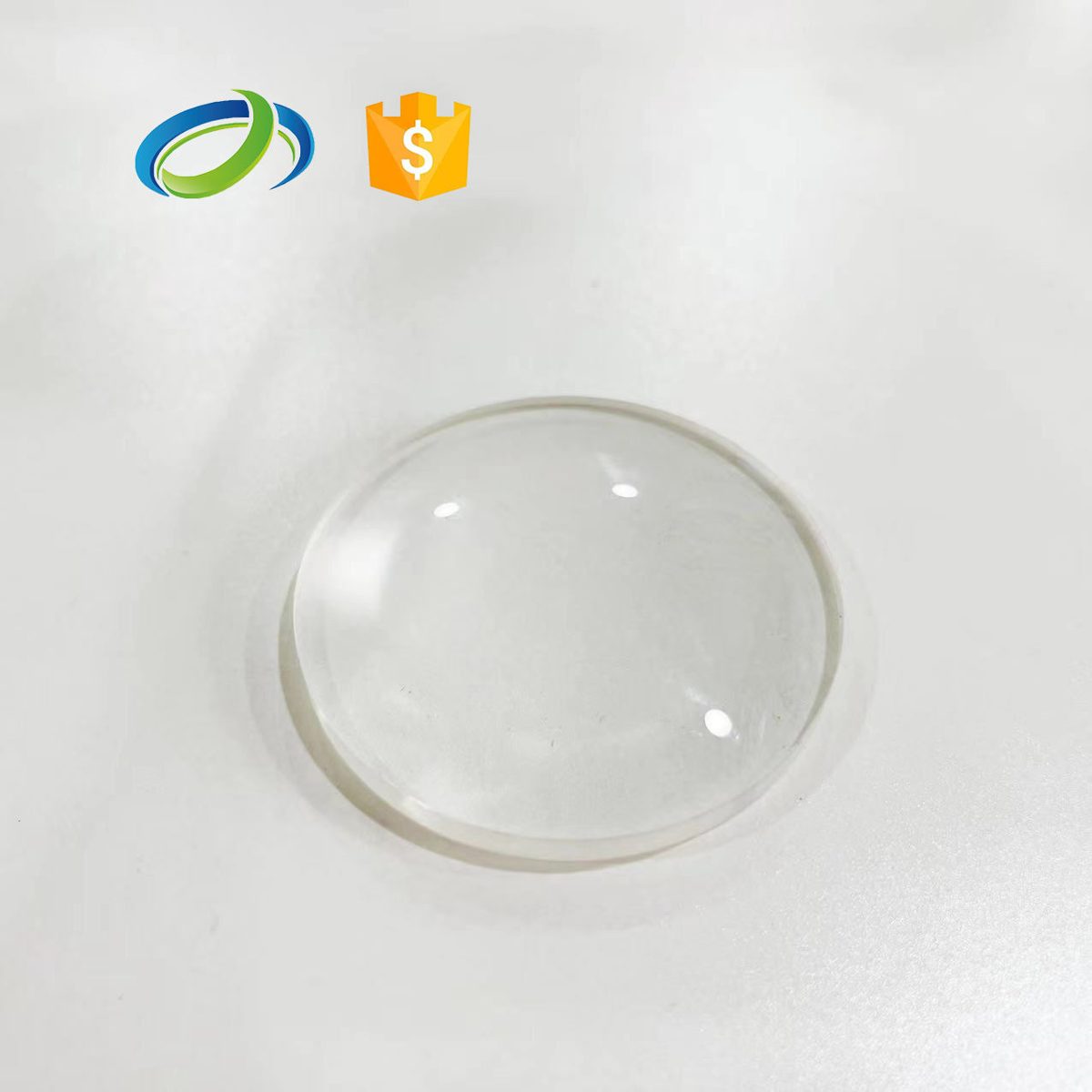

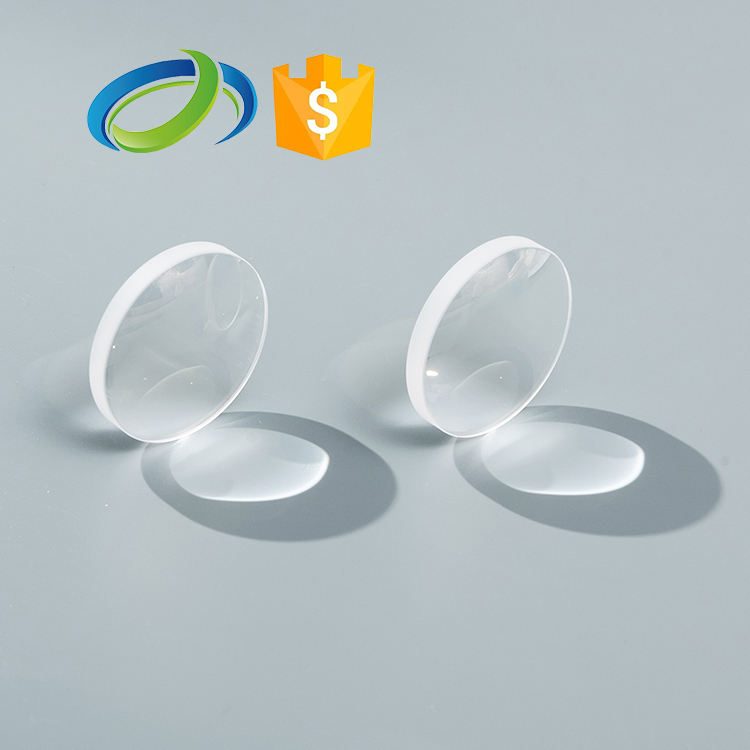

10x18 mm N-BK7 Convex Lens, AR Coated
High-performance plano-convex lens for projection applications, featuring 90%-93% transmittance and customizable options.
Core attributes
- Material
- N-BK7
- Shape
- Convex
- Diameter
- 10 mm
- Focal Length
- 18 mm
- Surface Quality
- 60/40
- Transmittance
- 90%
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Convex
- Diameter
- 10 mm
- Focal Length
- 18 mm
- Surface Quality
- 60/40
- Transmittance
- 90%
- Coating
- anti-reflective (AR)
- Transmission bands
- VIS (400-700 nm)
Product description
This plano-convex lens made from N-BK7 optical glass is designed for projection applications within the 400-700 nm wavelength range. With a focal length of 18 mm and a diameter of 10 mm, it provides high transmittance of 90%-93%, ensuring efficient light transmission. The lens features a surface quality of 60/40, making it suitable for various optical setups. Its reliable performance and customizable options make it an ideal choice for R&D and procurement engineers seeking precision optics.
Key Features
- High transmittance of 90%-93% for efficient light projection.
- Surface quality of 60/40 ensures reliable optical performance.
- Diameter tolerance of ±0.1 mm for precise fitting in applications.
- Customizable options available for OEM and ODM support.
- Compact size and lightweight at 0.5 kg for easy integration.
Available Sizes
| Diameter x Focal Length (mm) |
|---|
| 10 x 18 |
Applications
Projection
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Convex |
| Diameter | 10 mm |
| Focal Length | 18 mm |
| Surface Quality | 60/40 |
| Transmittance | 90% |
| Coating | anti-reflective (AR) |
| Transmission bands | VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Plano Convex Lens |
| Customized Support | OEM, ODM |
| Warranty | 3 month |
| Weight | 0.5kg(1.10lb) |
| Diameter Tolerance | ±0.1mm |
| Parallel | 3point |
| Transmittance | 90%-93% |
FAQ
Can I get custom sizes for this lens?
Yes, customizable options are available for OEM and ODM support.
What is the diameter tolerance?
The diameter tolerance for this lens is ±0.1 mm.
