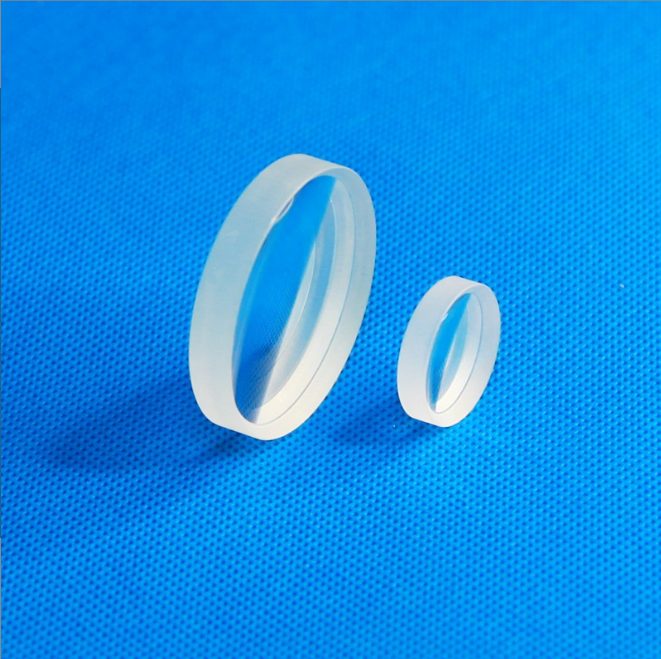

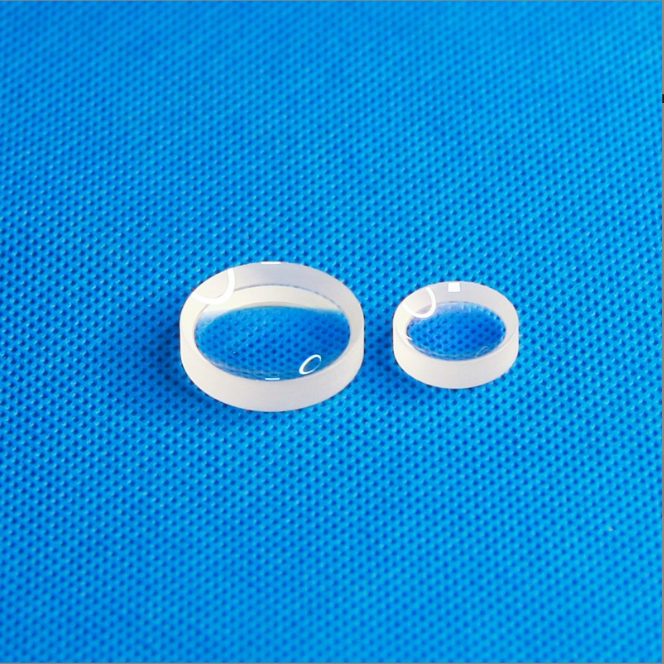

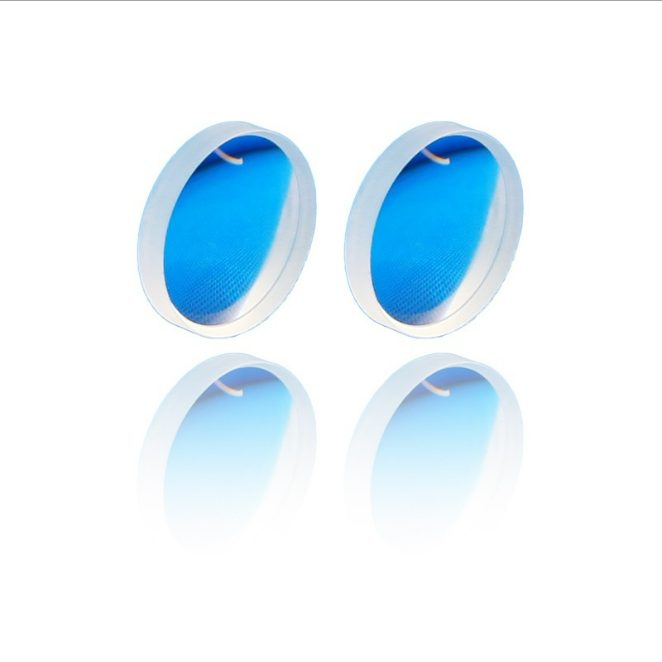

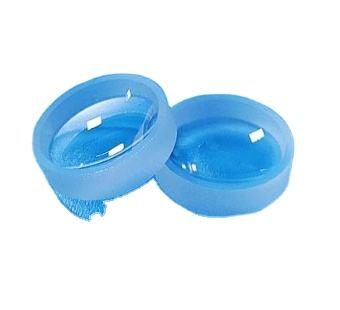

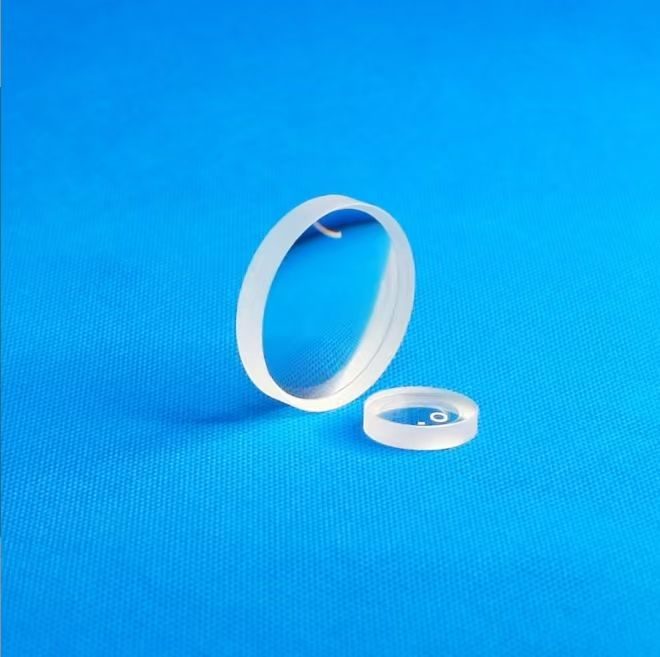

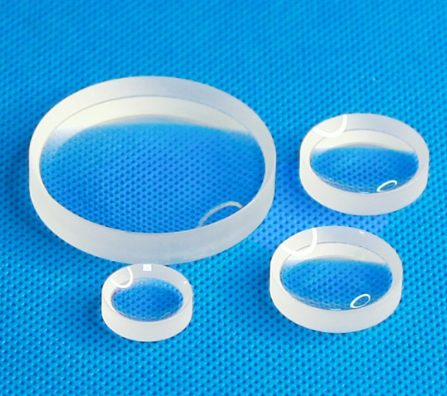

9 mm N-BK7 Convex Lens, AR Coated

Product description

This convex lens made from N-BK7 glass is ideal for applications in thermal imaging, machine vision, security, medical devices, and microscopy. With a transmittance of 90% across the 400-700 nm and <400 nm bands, it ensures high performance in various optical systems. The lens is designed for precision with a diameter of 9.0 mm and offers a reliable solution for engineers seeking quality optical components.

Key Features

High transmittance of 90% for enhanced imaging performance.
Diameter tolerance of +/-0.1 mm for precise integration.
Surface quality options of 60/40 or better for superior clarity.
Custom OEM/ODM support for tailored optical solutions.
Stable supply capacity with a monthly output of 2 million units.

Applications

Thermal Imaging, Machine Vision, Security, Medical, Microscopy, Imaging

Specification Summary

Item	Value
Material	N-BK7
Shape	Convex
Diameter	9 mm
Transmittance	90%
Coating	anti-reflective (AR)
Transmission bands	VIS (400-700 nm), UV (<400 nm)

Full Specifications

Parameter	Value
Type	Convex Lens; concave lenses Plano-convex lens
Customized Support	OEM, ODM, OBM
Warranty	1 Year
Weight	0.3
Transmittance	90%
Surface	20/10

FAQ

What are the available custom sizes?

Custom lens sizes range from 1 mm to 300 mm, allowing for flexibility in design.

What is the minimum order quantity (MOQ)?

The MOQ is not specified, offering potential for small batch orders.
