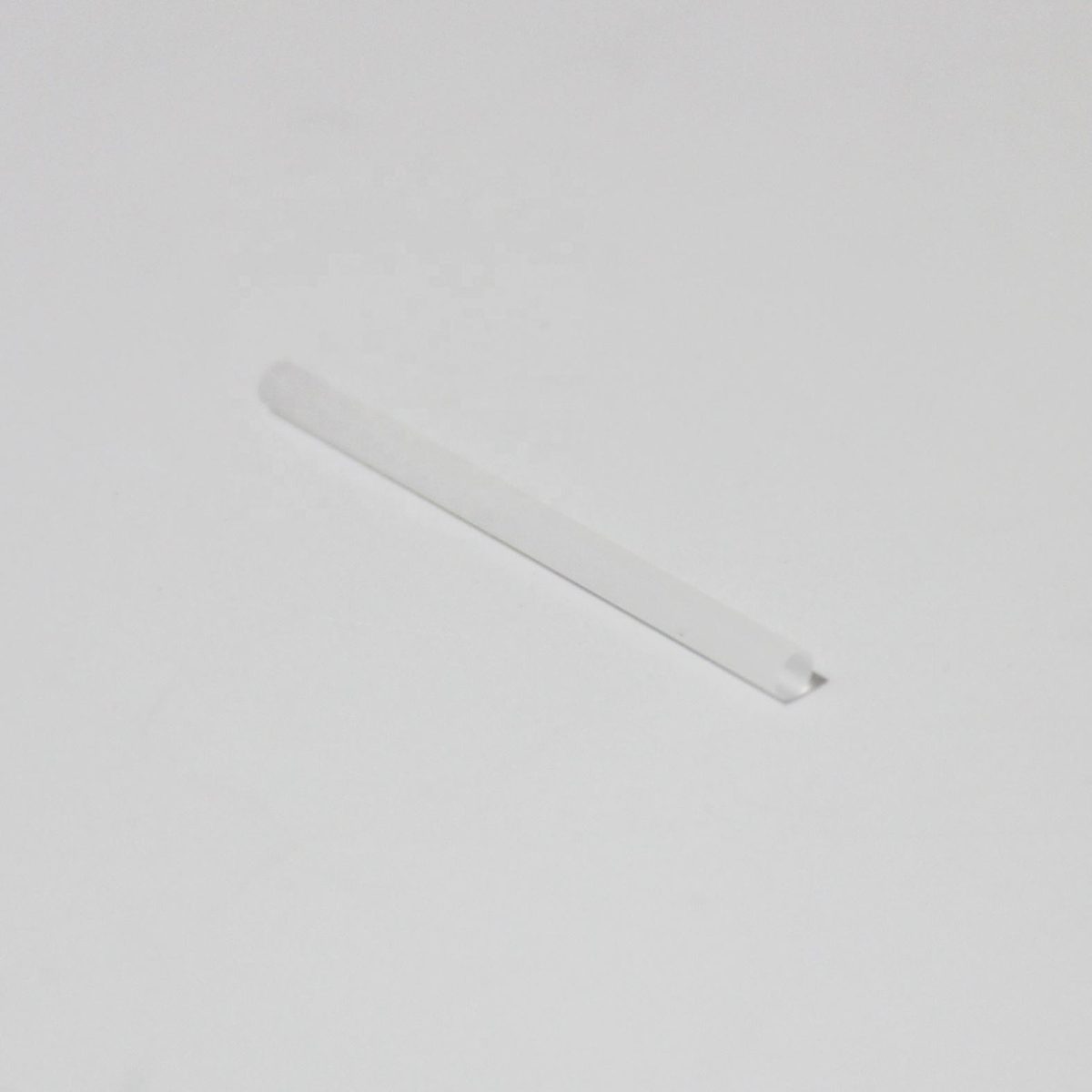

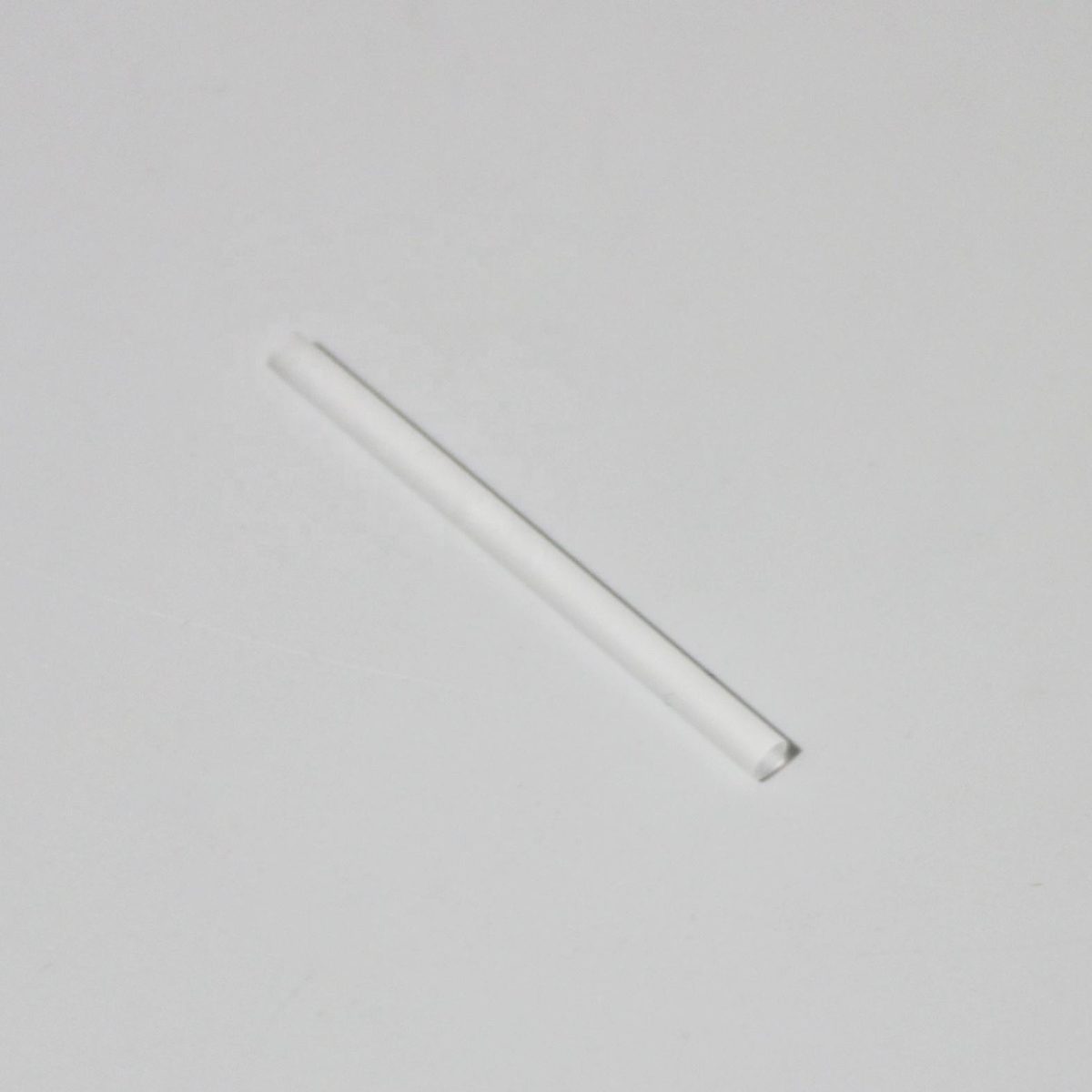

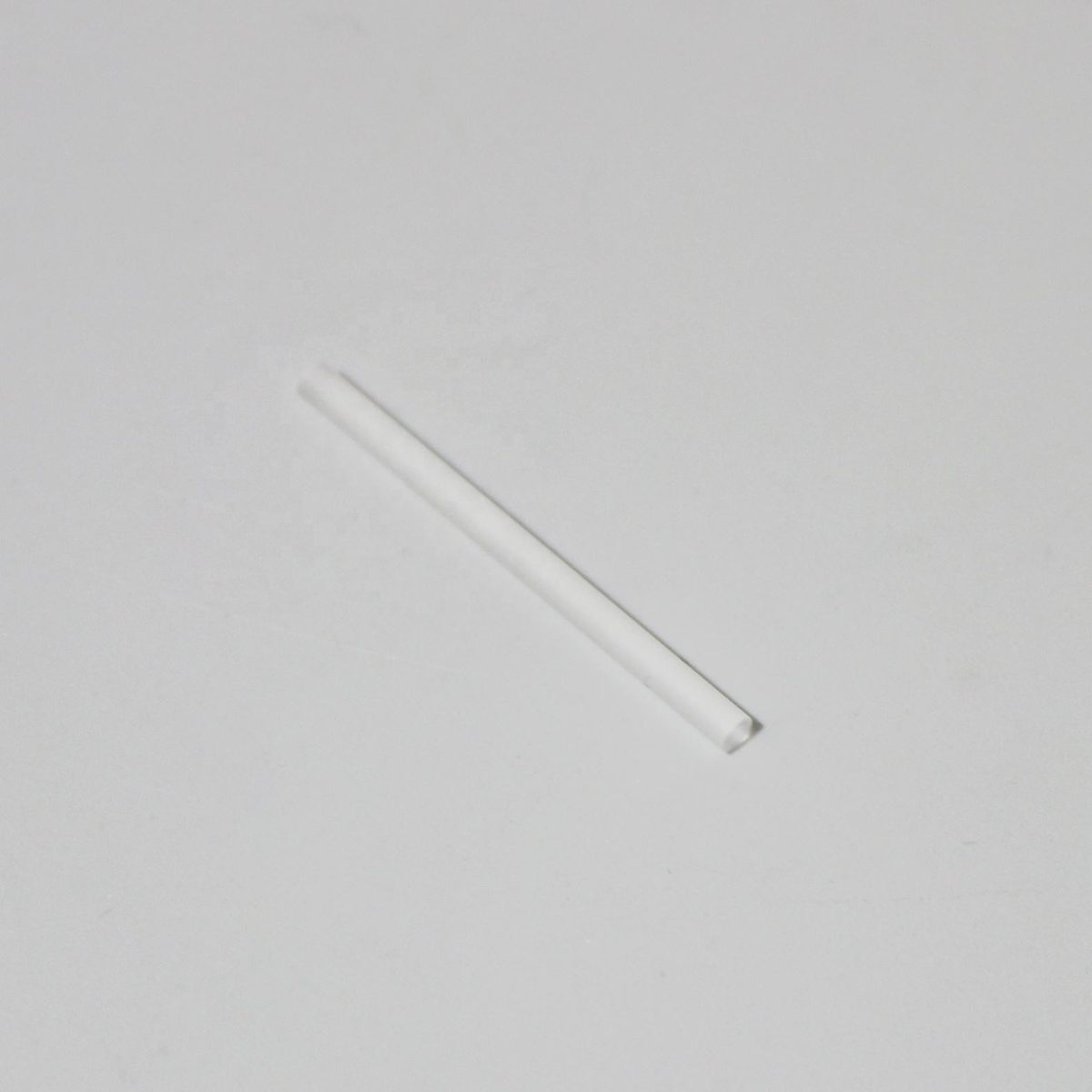

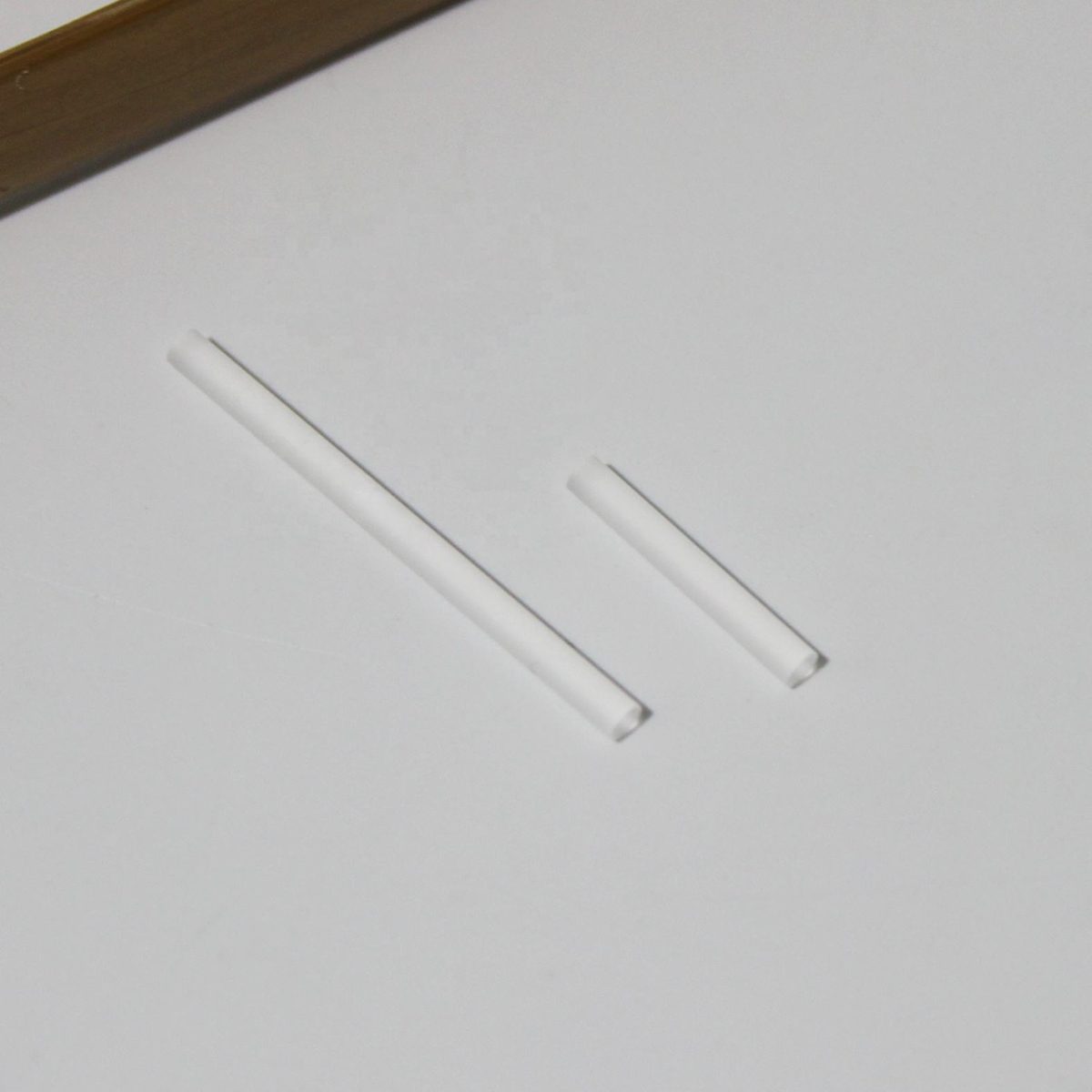

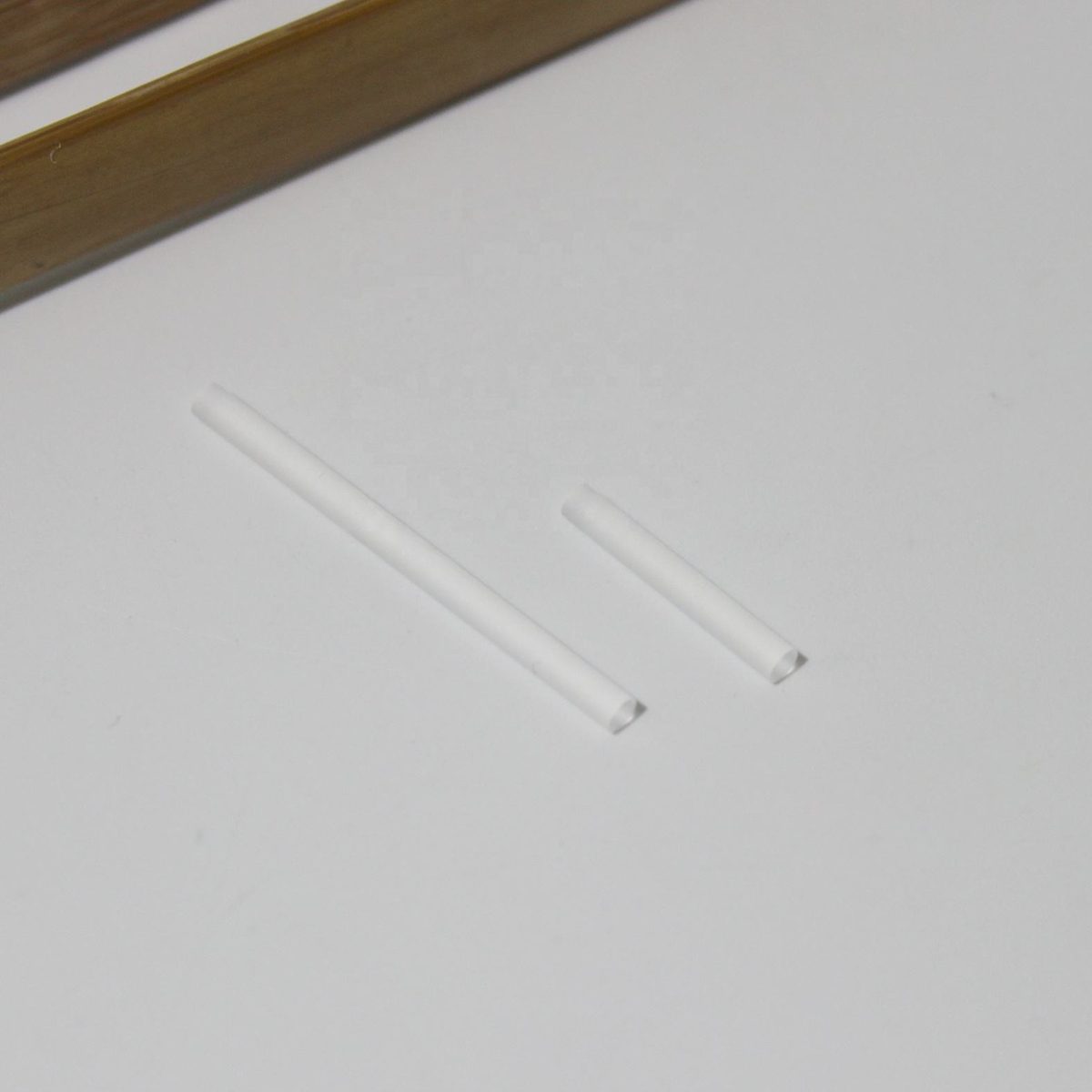

0.2 mm N-BK7 Cylindrical Lens, AR Coated

The N-BK7 cylindrical rod lens is designed to meet diverse optical needs, particularly for applications requiring precise light manipulation. With a diameter range from 0.25 mm to 1000 mm and a length of 60 mm, this lens offers flexibility for various setups. Its surface quality of 40/20 ensures minimal distortion, while the clear aperture of 80% to 95% maximizes light transmission. Ideal for R&D in IR imaging, LIDAR, and other optical applications, this lens can be customized to fit specific requirements.

Key Features

• Diameter range: 0.25 mm to 1000 mm for versatile applications.
• Surface quality of 40/20 ensures high clarity and minimal distortion.
• Clear aperture of 80% to 95% maximizes light throughput.
• Diameter tolerance of +/- 0-0.005 mm for precise fitting.
• Customized support available for OEM and ODM projects.

Specification Summary

Full Specifications

FAQ

Is custom sizing available?

Yes, the lens can be customized based on specific requirements.

What is the diameter tolerance?

The diameter tolerance is +/- 0-0.005 mm.
