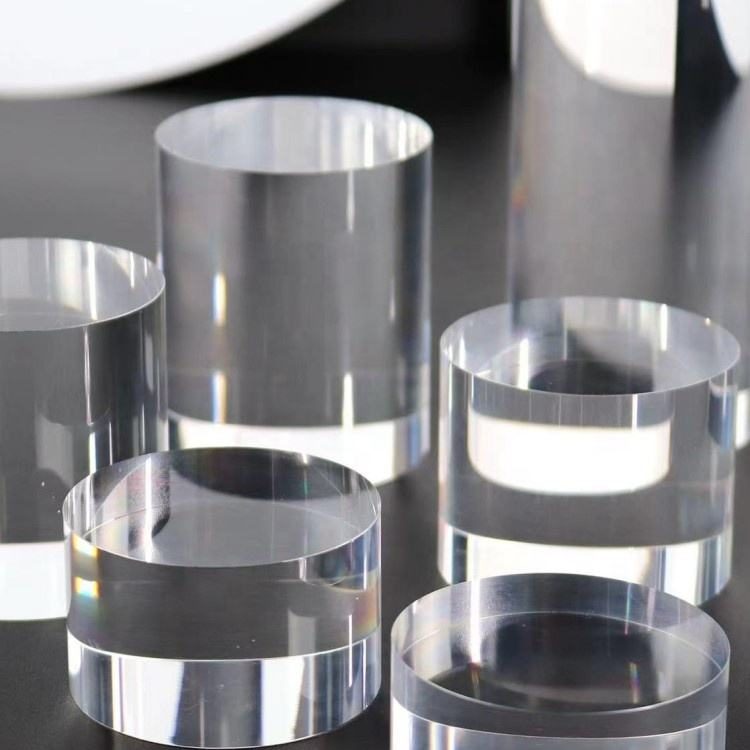

18 mm N-BK7 Cylindrical Lens, AR Coated
N-BK7 cylindrical optical glass rod for medical applications, featuring high precision and customizable options.
Core attributes
- Material
- N-BK7
- Shape
- Cylindrical
- Diameter
- 18 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Cylindrical
- Diameter
- 18 mm
- Surface Quality
- 60/40
- Coating
- anti-reflective (AR)
Product description
The N-BK7 cylindrical optical glass rod is designed for precise applications in the medical field, such as endoscopes and optical devices. With a surface quality of 60/40 and a surface flatness of 1/4Lambda, this component ensures clarity and precision in optical performance. Its durable construction and precision machining make it suitable for repeated use in demanding environments.
Key Features
- Surface quality of 60/40 for reliable optical clarity.
- Surface flatness of 1/4Lambda ensures high precision.
- Length of 15mm and diameter of 18mm for versatile applications.
- Weight of 0.03kg for easy integration into devices.
- Customizable support available for OEM, ODM, and OBM projects.
Applications
Medical
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Cylindrical |
| Diameter | 18 mm |
| Surface Quality | 60/40 |
| Coating | anti-reflective (AR) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Optical Glass Cylinder Rod |
| Customized Support | OEM, ODM, OBM |
| Weight | 0.03 |
| Length | 15mm |
| Surface Flatness | 1/4Lambda |
| Dimension Tolerance | +/-0.05mm |
FAQ
Is custom sizing available?
Custom sizing options are available, including OEM, ODM, and OBM support.
What are the tolerances for this optical rod?
The dimension tolerance is +/-0.05mm, ensuring precise fit in applications.
