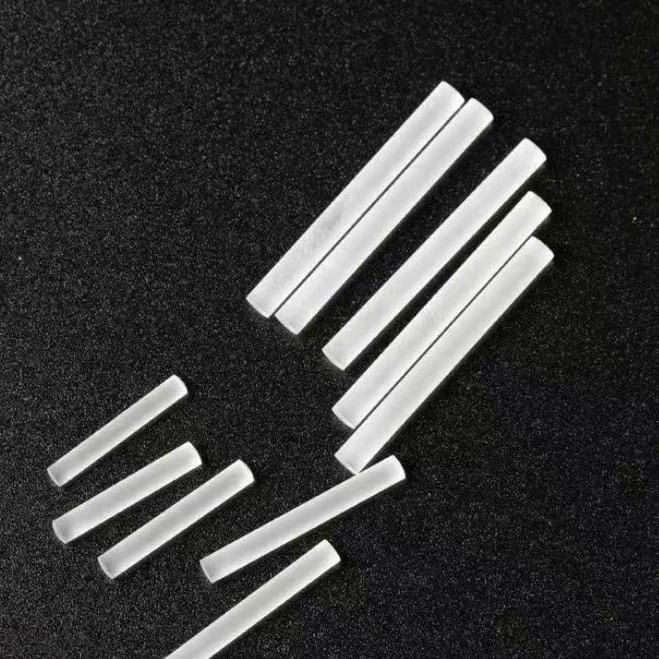

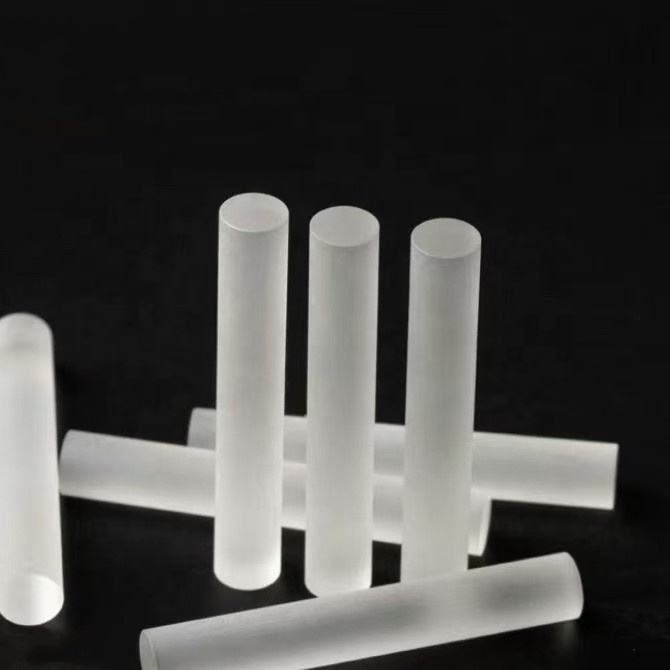

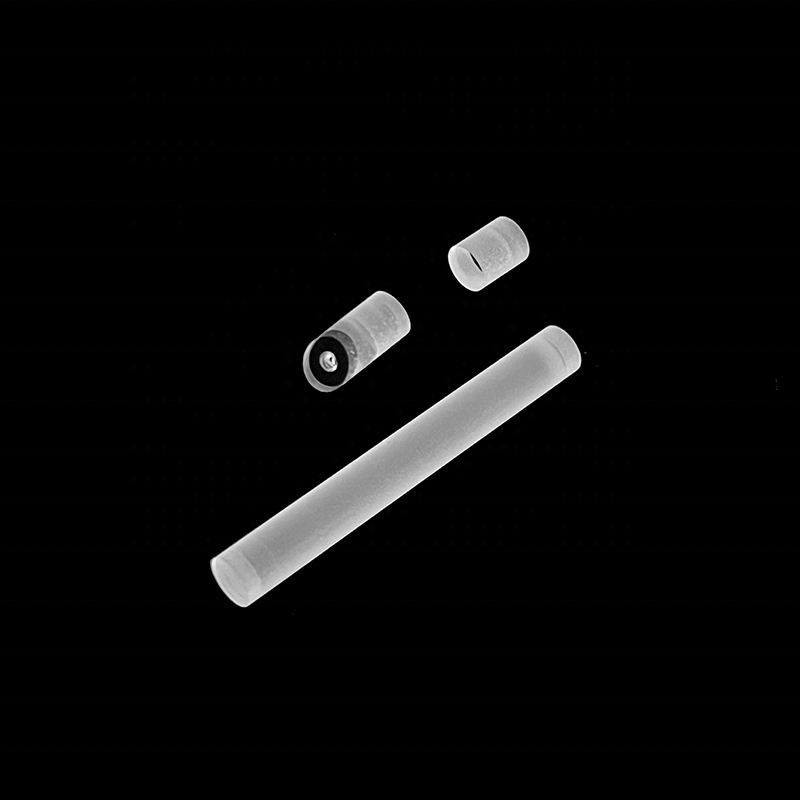

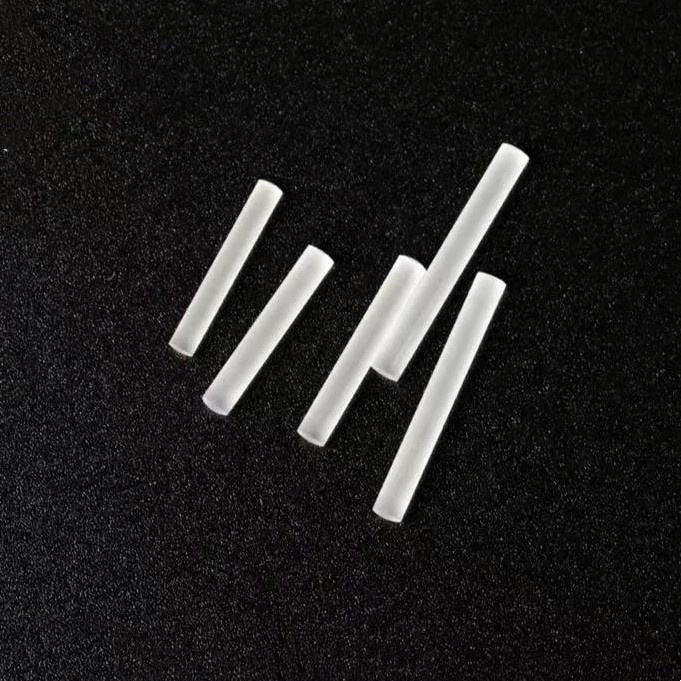

9 mm N-BK7 Cylindrical Lens, AR Coated

Product description

The N-BK7 cylindrical lens is designed for applications in medical and collimation systems, particularly suitable for endoscopes. With a wavelength range of 400-700 nm, this lens ensures effective light transmission and precise optical performance. Its high surface quality (60/40) and clear aperture (>90%) make it an ideal choice for applications requiring reliable light collimation and focus.

Key Features

Material: N-BK7 for excellent optical clarity and performance.
Surface quality of 60/40 ensures minimal distortion for critical applications.
Clear aperture greater than 90% maximizes light throughput.
Customizable dimensions and focal lengths to meet specific project requirements.
Available with AR and MgF2 coatings for enhanced transmittance.

Applications

Medical, Collimation

Specification Summary

Item	Value
Material	N-BK7
Shape	Cylindrical
Diameter	9 mm
Surface Quality	60/40
Coating	anti-reflective (AR), mgf2
Transmission bands	VIS (400-700 nm)

Full Specifications

Parameter	Value
Type	Biconvex Lens
Customized Support	OEM, ODM, OBM
Warranty	3 Years
Weight	0.02
Center Thickness	customer request
Surface Flatness	1/4@633nm
Clear Aperture	>90%

FAQ

Can I get custom sizes for this lens?

Yes, custom sizes and focal lengths can be provided based on your specific requests.

What is the minimum order quantity (MOQ)?

The minimum order quantity is not specified; please inquire for details.
