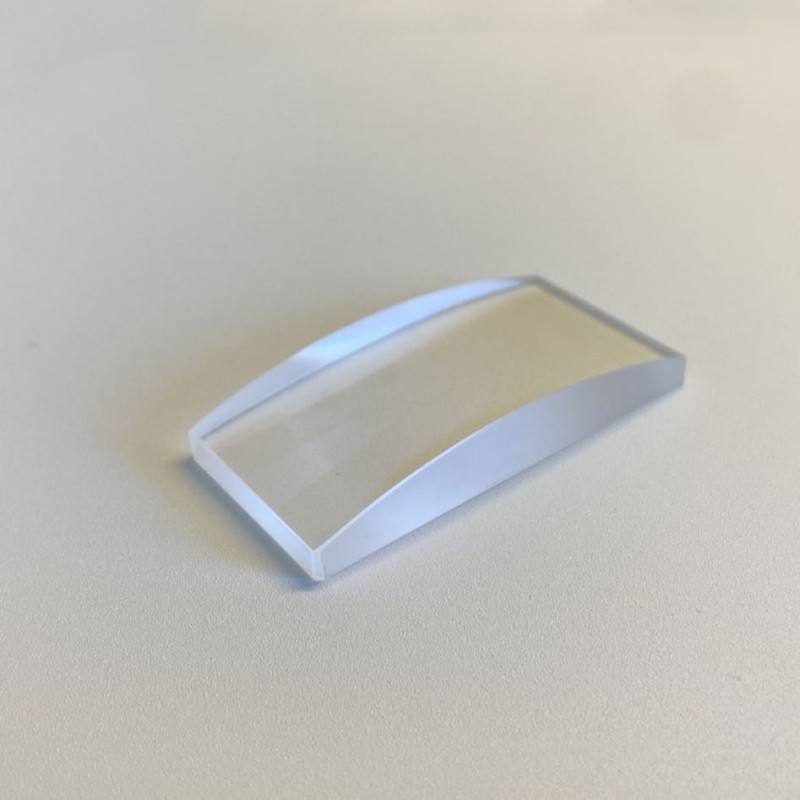

Custom Size N-BK7 Cylindrical Lens, AR Coated
Cylindrical convex lens for imaging applications, customizable sizes, and high precision with anti-reflective coating.
Core attributes
- Material
- N-BK7
- Shape
- Cylindrical
- Focal Length
- 5 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product facts
Key attributes
- Material
- N-BK7
- Shape
- Cylindrical
- Focal Length
- 5 mm
- Surface Quality
- 20/10
- Coating
- anti-reflective (AR)
- Transmission bands
- NIR (0.7-1.7 μm), VIS (400-700 nm)
Product description
This cylindrical convex lens, made from N-BK7 glass, is ideal for imaging applications within the 0.7-1.7 μm and 400-700 nm bands. With a focal length of 5.0 mm and a surface quality of 20/10, it enhances light focusing for precise beam control. The anti-reflective coating reduces glare and improves optical clarity, making it a reliable choice for R&D and production environments. Custom sizes and dimensions are available to fit specific project needs.
Key Features
- Focal length of 5.0 mm for precise light focusing.
- Surface quality of 20/10 ensures high optical clarity.
- Anti-reflective coating minimizes glare for improved performance.
- Customizable dimensions from 1 mm to 300 mm with ±0.03 mm tolerance.
- Support for OEM and ODM projects for tailored solutions.
Applications
Imaging
Specification Summary
| Item | Value |
|---|---|
| Material | N-BK7 |
| Shape | Cylindrical |
| Focal Length | 5 mm |
| Surface Quality | 20/10 |
| Coating | anti-reflective (AR) |
| Transmission bands | NIR (0.7-1.7 μm), VIS (400-700 nm) |
Full Specifications
| Parameter | Value |
|---|---|
| Type | Convex Lens |
| Customized Support | OEM, ODM |
| Warranty | 3 months |
| Weight | 0.01 |
| Dimension | 1mm-300mm |
| Dimension Tolerance | ±0.03 |
FAQ
What are the available custom sizes?
Custom sizes range from 1 mm to 300 mm.
What is the MOQ for this lens?
Minimum order quantity details are not specified.
